Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#13330) — 399 parça

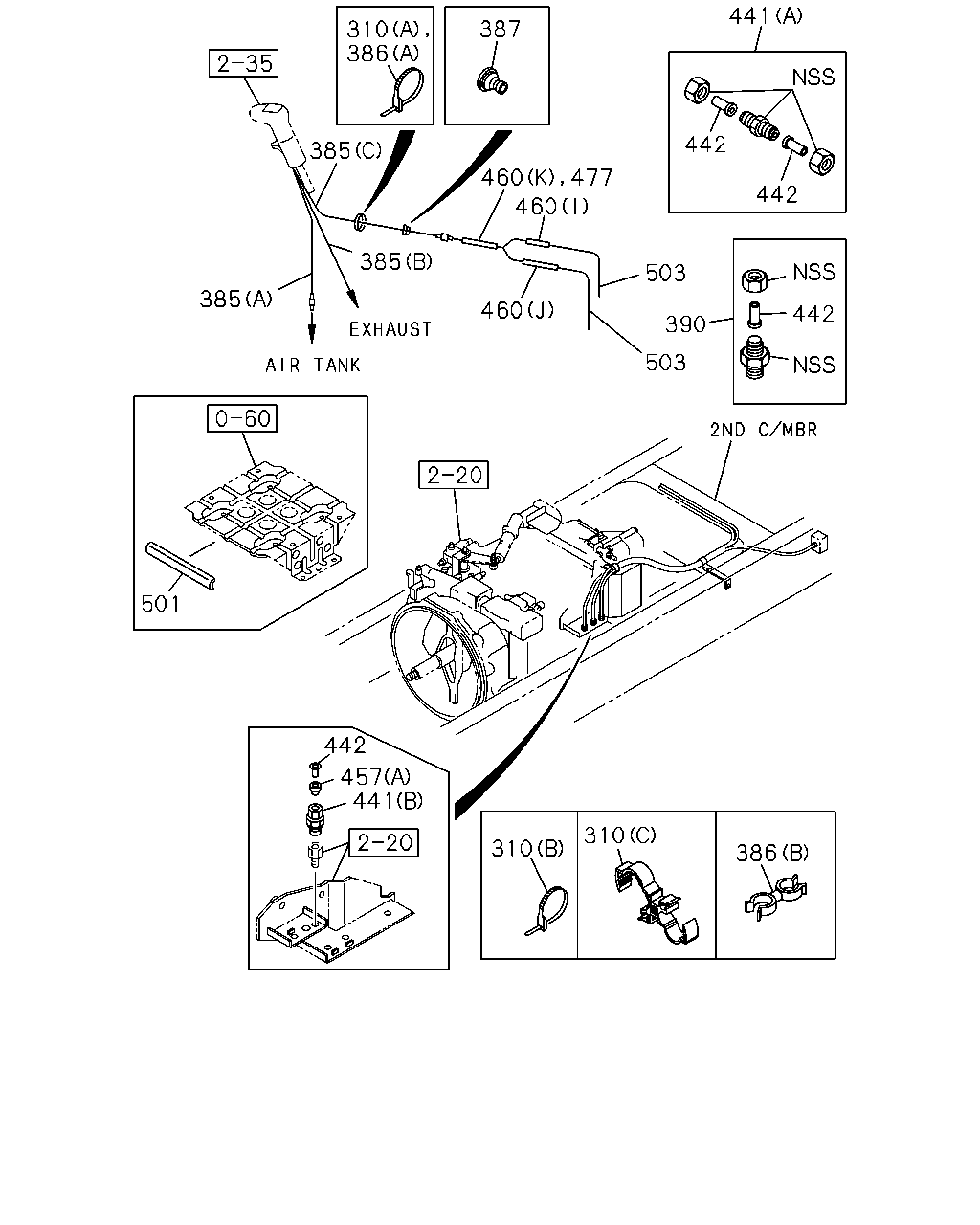

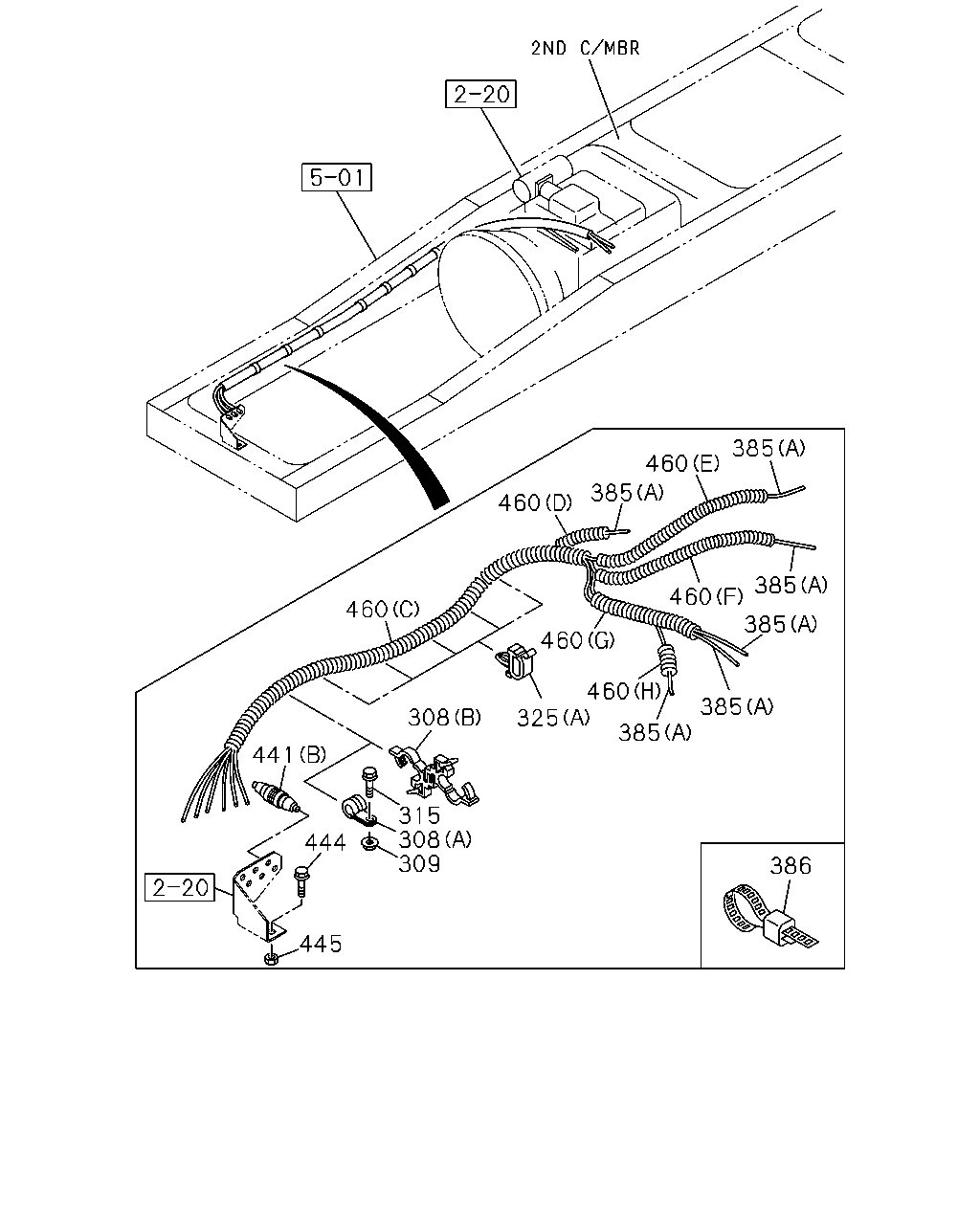

441 501 460 460 387 460 385 385 385 385 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0106	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0107-	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0106	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0107-	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0105-	●	●
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0105-	●	●
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0105-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-	●	●
460	TUBE; CORRUGATE CAB UP +110MM<TGG> FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0107-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0107-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0107-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0107-	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0107-	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0105-0106	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0107-	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) L=250 SERVICED BY L=800	1-83129-031-1	02	1	0105-	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0107-0107	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0105-0106	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0107-0107	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0105-0304	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0105-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=7.4 L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0204	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-	●	●
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-0	04	1	0504-	●	●
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0105-0503	●	●
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0105-0503	●	●
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0504-	●	●

468 192 496 465 509

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
192	COVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-79907-090-0	01	1	0105-0105	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0105-0105		●
192	COVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-79907-090-0	01	1	0106-0106	●
192	COVER ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7)	1-79907-090-0	01	1	0106-0106		●
192	COVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-79907-090-0	01	1	0107-0109	●	●
192	COVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) W-SERIES ENG<1A2>	1-79907-090-0	01	1	0110-	●	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-47478-772-0	01	1	0105-0105	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47478-772-0	01	1	0105-0105		●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-47478-772-0	01	1	0106-0106	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7)	1-47478-772-0	01	1	0106-0106		●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-47478-772-0	01	1	0107-0109	●	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) W-SERIES ENG<1A2>	1-47478-772-1	01	1	0110-	●	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0105-0105	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0105-0105		●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-0106	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-0106		●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0107-0109	●	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) W-SERIES ENG<1A2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0110-	●	●
468	NUT; BRKT FULLER M/T<X9B> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-	●
496	FASTENER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) D8X13.5	1-09987-248-1	02	1	0105-0105	●
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	0105-0105		●
496	FASTENER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) D8X13.5	1-09987-248-1	02	1	0106-0106	●
496	FASTENER ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) D8X13.5	1-09987-248-1	02	1	0106-0106		●
496	FASTENER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) D8X13.5	1-09987-248-1	02	1	0107-0109	●	●
496	FASTENER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) W-SERIES ENG<1A2> D8X13.5	1-09987-248-1	02	1	0110-	●	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-47477-825-2	01	1	0105-0105	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	0105-0105		●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-47477-825-2	01	1	0106-0106	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7)	1-47477-825-2	01	1	0106-0106		●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-47477-825-2	01	1	0107-0109	●	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) W-SERIES ENG<1A2>	1-47477-825-2	01	1	0110-0401	●	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) W-SERIES ENG<1A2>	1-47479-978-0	01	1	0402-	●	●

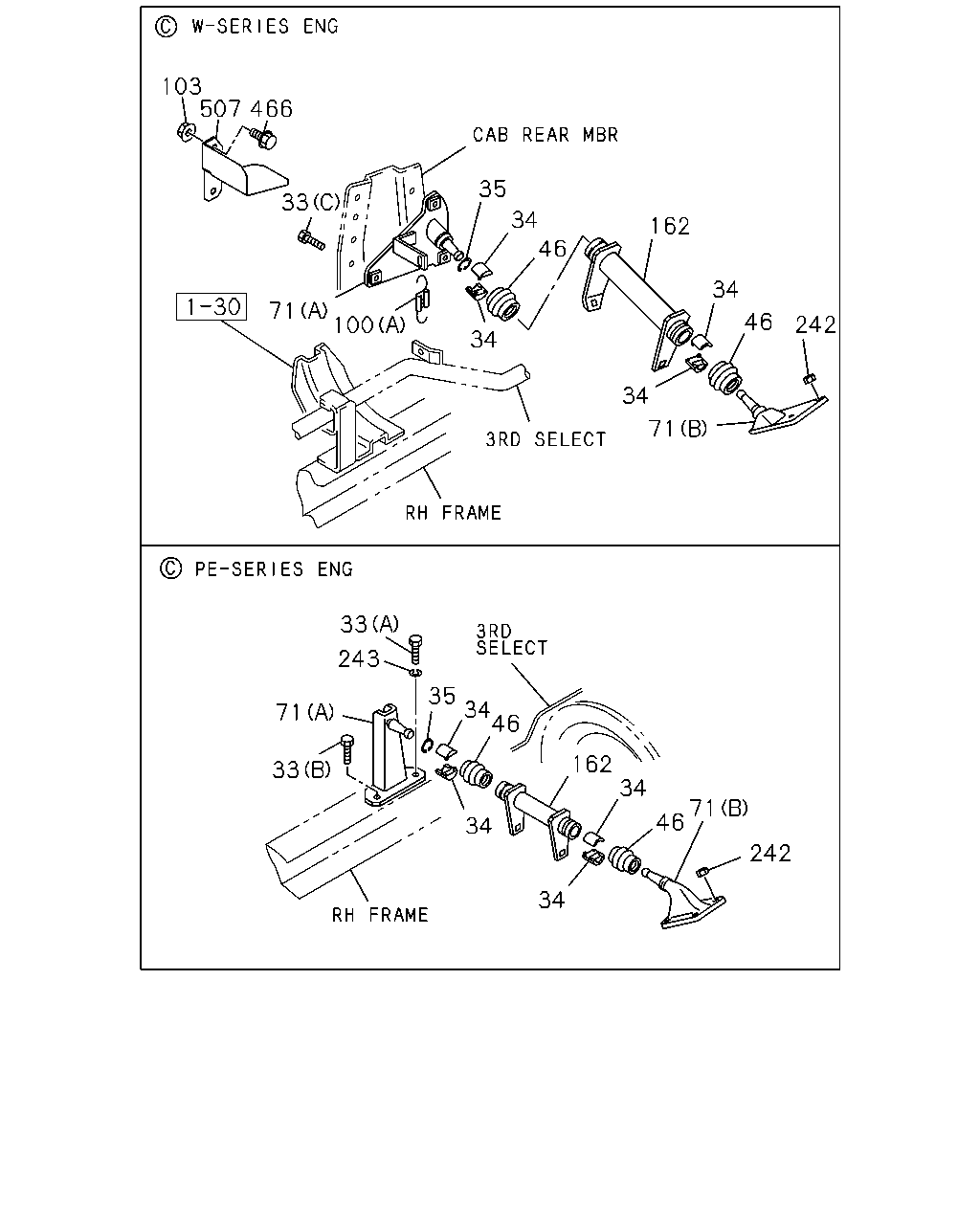

242 71 46 34 162 34 34 46 34 35 33 243 71 33 71 34 46 242 34 162 46 34 35 34 100 71 33 466 507 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT,3RD RELAY LEVER W-SERIES ENG<1A2> (C) M10X30 FLANGE	0-28681-030-0	03	1	0105-0512	●	●
33	BOLT; BRKT,3RD RELAY LEVER W-SERIES ENG<1A2> (C) M10X30 FLANGE	0-28651-030-0	03	1	0601-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M14X45	0-20801-445-0	01	1	0105-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	0105-0512	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) M10X40 W/LK WASHER	0-50541-040-0	01	1	0601-	●	●
34	SEAT; BALL,RELAY LEVER W-SERIES ENG<1A2>	1-33659-165-0	04	1	0105-	●	●
34	SEAT; BALL,RELAY LEVER 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-33659-118-0	04	1	0105-	●	●
35	RING; SNAP,RELAY LEVER W-SERIES ENG<1A2> OD=34.4	9-09180-132-0	01	1	0105-	●	●
35	RING; SNAP,RELAY LEVER 10PE1S(60L),10PE1N(61L),10PE1H(68L) OD=23.5	9-09180-122-0	01	1	0105-	●	●
46	SEAL; DUST,RELAY LEVER W-SERIES ENG<1A2>	1-33659-166-0	02	1	0105-0503	●	●
46	SEAL; DUST,RELAY LEVER W-SERIES ENG<1A2>	1-33659-248-0	02	1	0504-	●	●
46	SEAL; DUST,RELAY LEVER 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-33659-172-0	02	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> CAB UP +110MM<TGG> ISUZU M/T<X9A> W-SERIES ENG<1A2> (A)	1-33657-758-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-33657-812-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME PE-SERIES ENG<1A0> ISUZU M/T<X9A> (B)	1-33657-188-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME PE-SERIES ENG<1A0> ISUZU M/T<X9A> (A)	1-33657-568-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME W-SERIES ENG<1A2> (B)	1-33657-481-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME W-SERIES ENG<1A2> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> (A)	1-33657-657-1	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B)	1-33657-478-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A)	1-33657-569-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-C(55L) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WF1 TC-C(1B8),6WG1 TC-C(72L) PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-33657-512-0	01	1	0105-	●	●
100	SPRING W-SERIES ENG<1A2> (A)	1-09583-319-0	01	1	0105-	●	●
100	SPRING W-SERIES ENG<1A2> (B)	1-09583-351-0	01	1	0105-	●	●
103	NUT CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
103	NUT CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
162	LEVER; RELAY PE-SERIES ENG<1A0> ISUZU M/T<X9A>	1-33651-806-0	01	1	0105-	●	●
162	LEVER; RELAY W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B>	1-33651-625-1	01	1	0105-	●	●
162	LEVER; RELAY ZF M/T<X9E> W-SERIES ENG<1A2>	1-33651-679-0	01	1	0105-	●	●
162	LEVER; RELAY 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E>	1-33651-678-1	01	1	0105-	●	●
242	NUT; FLANGE 3RD RELAY LEVER PE-SERIES ENG<1A0> M8 FLANGE	5-09440-005-0	04	1	0105-	●	●
242	NUT; FLANGE 3RD RELAY LEVER W-SERIES ENG<1A2> M12 FLANGE	0-91150-212-0	03	1	0105-0602	●	●
242	NUT; FLANGE 3RD RELAY LEVER W-SERIES ENG<1A2> M12 FLANGE	0-91180-212-0	03	1	0603-	●	●
243	WASHER; LK,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=14.2	9-09150-614-0	01	1	0105-0603	●	●
243	WASHER; LK,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=14.2	0-91510-614-0	01	1	0604-	●	●
466	BOLT; FIX CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
466	BOLT; FIX CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
507	PROTECTOR; HEAT CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-14181-315-0	01	1	0105-	●	●

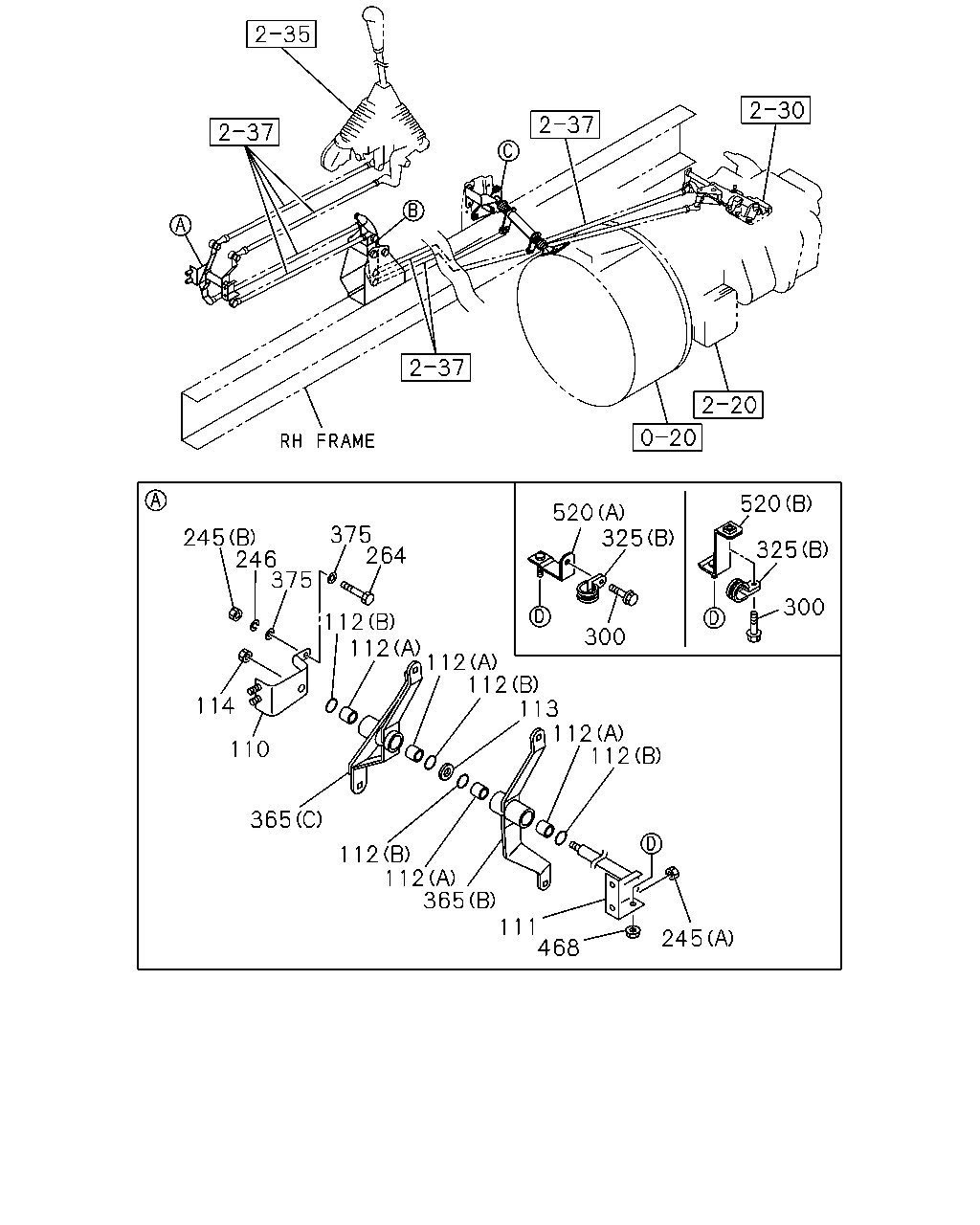

245 468 111 365 112 112 365 110 114 112 112 113 112 112 112 112 264 375 375 246 245 300 325 520 300 325 520

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	0105-	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-1	01	1	0105-	●	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	0105-	●	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	0105-	●	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	0105-	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0105-0602	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	0105-	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	0105-	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	0105-0301	●	●
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	01	1	0302-	●	●
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0105-0107	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0108-	●
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0105-	●	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0105-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-1	01	1	0105-	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-1	01	1	0105-	●	●
365	LEVER; RELAY,SELECT PE-SERIES ENG<1A0> (A)	1-33651-770-1	01	1	0105-	●	●
365	LEVER; RELAY,SELECT W-SERIES ENG<1A2> (A)	1-33651-771-1	01	1	0105-	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-	●	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0105-0105	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0105-0105		●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-0106	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-0106		●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0107-0109	●	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) W-SERIES ENG<1A2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0110-	●	●
468	NUT; BRKT FULLER M/T<X9B> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-	●
520	BRACKET; NYLON TUBE FULLER M/T<X9B> (A)	1-79996-545-0	01	1	0105-0304	●
520	BRACKET; NYLON TUBE FULLER M/T<X9B> (B)	1-79996-628-0	01	1	0305-	●

385 460 385 460 460 441 444 445 309 315 308 308 325 385 386 385 460 460 460 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
308	CLIP; PIPE FULLER M/T<X9B> (A) ID=18 L=28	1-09701-067-0	01	1	0105-0107	●	●
308	CLIP; PIPE FULLER M/T<X9B> (A) ID=19 L=28	9-09525-856-0	01	1	0108-	●	●
308	CLIP; PIPE FULLER M/T<X9B> (B) ID=12-16 & 12-16	1-09709-191-0	01	1	0105-	●	●
309	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
309	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
315	BOLT; PIPE CLIP FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
315	BOLT; PIPE CLIP FULLER M/T<X9B> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0105-0107	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0108-	●
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0105-	●	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0106	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0107-	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0106	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0107-	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=250	1-09707-126-0	08	1	0105-	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=250	5-09707-030-1	02	1	0105-0308	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	01	1	0105-0308	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	02	1	0309-	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0308	●	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0105-	●	●
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0105-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-	●	●
444	BOLT; BRKT,NIPPLE FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
444	BOLT; BRKT,NIPPLE FULLER M/T<X9B> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
445	NUT; BRKT,NIPPLE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
445	NUT; BRKT,NIPPLE FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
460	TUBE; CORRUGATE CAB UP +110MM<TGG> FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0107-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0107-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0107-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0107-	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0107-	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0105-0106	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0107-	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) L=250 SERVICED BY L=800	1-83129-031-1	02	1	0105-	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0107-0107	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0105-0106	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0107-0107	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0105-0304	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0105-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=7.4 L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0204	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-	●	●

386 310 310 441 457 442 501 442 390 503 503 460 385 385 385 386 310 387 477 460 460 442 442 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) CAB UP +110MM<TGG> (A) L=140	5-09707-031-1	03	1	0106-	●	●
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAB UP +110MM<TGG> (A) L=140	5-09707-031-1	02	1	0106-	●	●
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=250	1-09707-126-0	16	1	0105-	●	●
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=250	5-09707-030-1	02	1	0105-	●	●
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	01	1	0105-0105	●	●
310	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (C) ID=12-16 & 12-16	1-09709-191-0	01	1	0106-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0107-0107	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0304	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0106	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0107-	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0106	●	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0107-	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0106	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0107-0107	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-	●	●
385	TUBE; NYLON FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=250	1-09707-126-0	08	1	0105-	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=250	5-09707-030-1	02	1	0105-0308	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	01	1	0105-0308	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	02	1	0309-	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0308	●	●
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0105-	●	●
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-	●	●
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S151 OD(Y2N) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0105-	●	●
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0105-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-	●	●
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0105-	●	●
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0105-	●	●
457	GASKET PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B)	1-09623-594-0	04	1	0105-	●	●
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-	●	●
460	TUBE; CORRUGATE CAB UP +110MM<TGG> FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0107-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0107-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0107-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0107-	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0107-	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0105-0106	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0107-	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) L=250 SERVICED BY L=800	1-83129-031-1	02	1	0105-	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0107-0107	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0105-0106	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0107-0107	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0105-0304	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. CAB UP +110MM<TGG> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-	●	●
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0105-0107	●	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=7.4 L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0204	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-	●	●
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	0105-	●	●
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0105-	●	●
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-0	04	1	0504-	●	●
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0105-0503	●	●
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0105-0503	●	●
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0504-	●	●
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0105-	●	●
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-	●	●

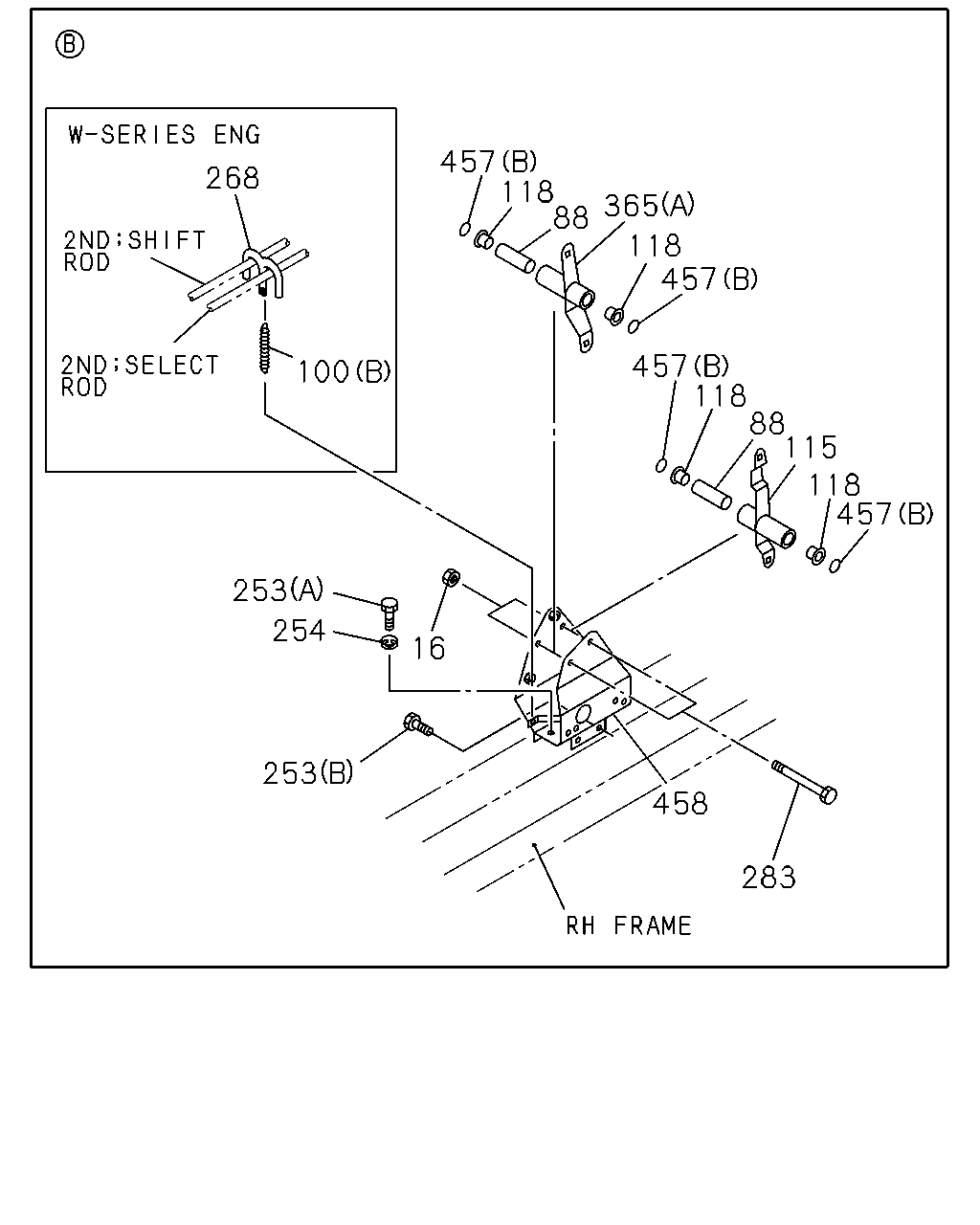

283 458 253 254 16 253 457 118 115 88 118 457 457 118 365 88 118 457 100 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M10 FLANGE	0-91150-110-0	02	1	0105-0602	●	●
16	NUT; RELAY LEVER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M10 FLANGE	0-91180-110-0	02	1	0603-	●	●
88	COLLAR; RELAY LEVER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33659-191-1	02	1	0105-	●	●
100	SPRING W-SERIES ENG<1A2> (A)	1-09583-319-0	01	1	0105-	●	●
100	SPRING W-SERIES ENG<1A2> (B)	1-09583-351-0	01	1	0105-	●	●
115	LEVER; RELAY,2ND SHIFT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33651-769-1	01	1	0105-	●	●
118	BUSHING; RELAY LEVER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-09330-119-0	04	1	0105-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0105-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0105-0603	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	0604-	●	●
268	BRACKET; LINK ROD W-SERIES ENG<1A2>	1-33657-216-0	01	1	0105-	●	●
283	BOLT; RELAY LEVER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M10X110	9-09801-316-1	02	1	0105-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-1	01	1	0105-	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-1	01	1	0105-	●	●
365	LEVER; RELAY,SELECT PE-SERIES ENG<1A0> (A)	1-33651-770-1	01	1	0105-	●	●
365	LEVER; RELAY,SELECT W-SERIES ENG<1A2> (A)	1-33651-771-1	01	1	0105-	●	●
457	GASKET PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B)	1-09623-594-0	04	1	0105-	●	●
457	GASKET TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-	●	●
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-33657-664-1	01	1	0105-	●	●
458	BRACKET; 2ND RELAY LEVER PE-SERIES ENG<1A0>	1-33657-572-2	01	1	0105-	●	●
458	BRACKET; 2ND RELAY LEVER W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
