◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10632 - FVM-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#1333) — 17 parça

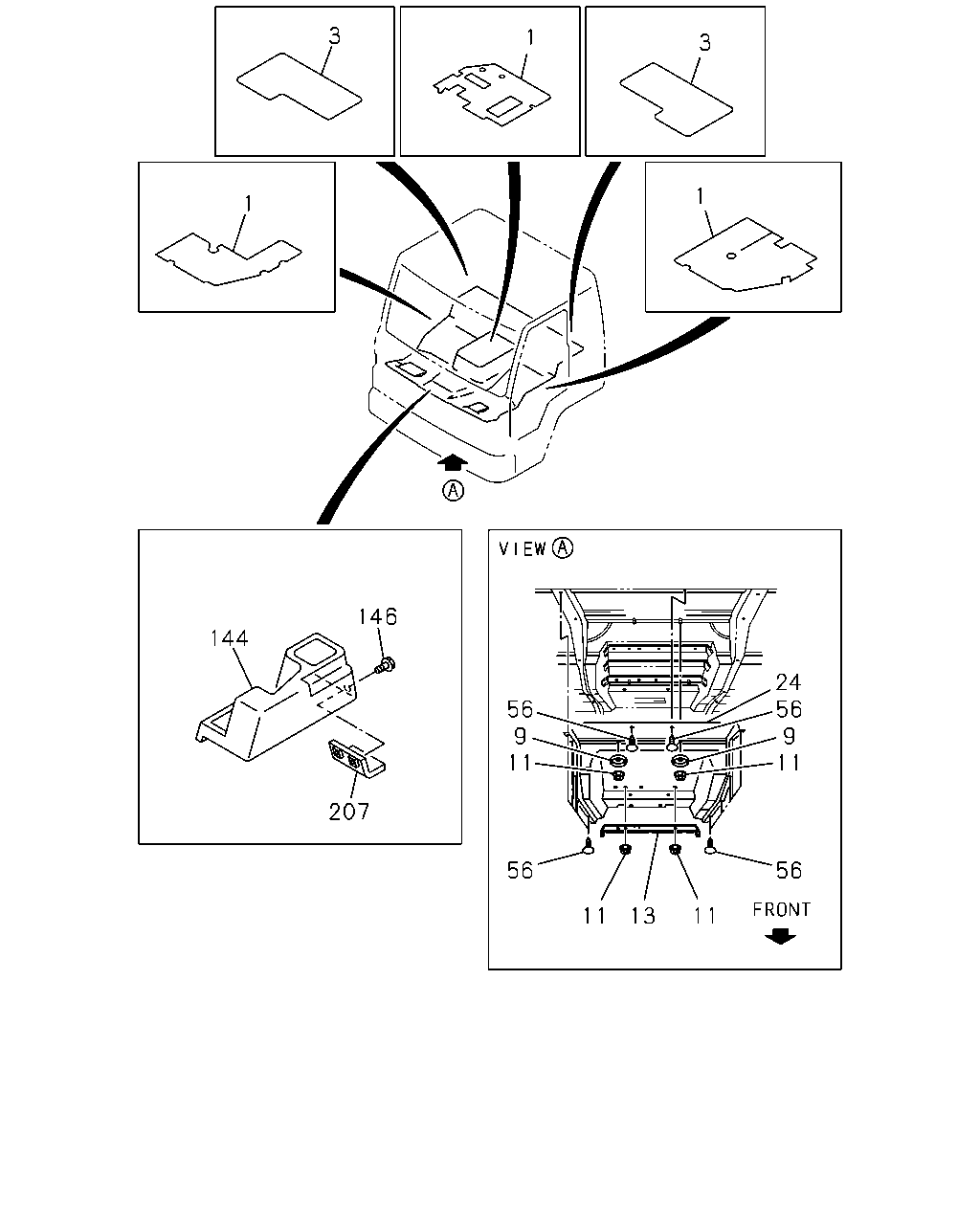

çizim 95471
3 1 3 1 1 146 144 24 56 9 11 56 9 11 207 56 56 13 11 11
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9204-
3 SHEET; MELTING,BED PAN
DELUXE CAB(W14) CUT BULK SHEET 900X1000 		1-61970-039-0 02 1 9204-
9 WASHER; HEAT INSULATOR 1-73377-052-1 02 1 9204-
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 04 1 9204-
13 PLATE; HEAT INSULATOR 1-71998-159-5 01 1 9204-
24 INSULATOR; HEAT,FRT
ANTI NOISE EQUIPMENT ECE<SLK> 		1-71998-844-1 01 1 9204-9404
24 INSULATOR; HEAT,FRT
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-71998-325-7 01 1 9204-9404
24 INSULATOR; HEAT,FRT 1-71998-325-7 01 1 9405-9504
24 INSULATOR; HEAT,FRT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-325-7 01 1 9505-
24 INSULATOR; HEAT,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-181-7 01 1 9505-
56 CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK 		1-09987-114-0 12 1 9204-
144 COVER; HAND BRK VLV 1-73998-818-0 01 1 9204-9504
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-73998-818-0 01 1 9505-
146 BOLT; COVER BRKT
M6X16 W/WASHER 		9-03900-616-0 06 1 9204-9504
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/WASHER 		9-03900-616-0 06 1 9505-
207 BRACKET ASM; HAND BRAKE VALVE 1-73998-575-0 01 1 9204-9504
207 BRACKET ASM; HAND BRAKE VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-73998-575-0 01 1 9505-
