◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#133295) — 33 parça

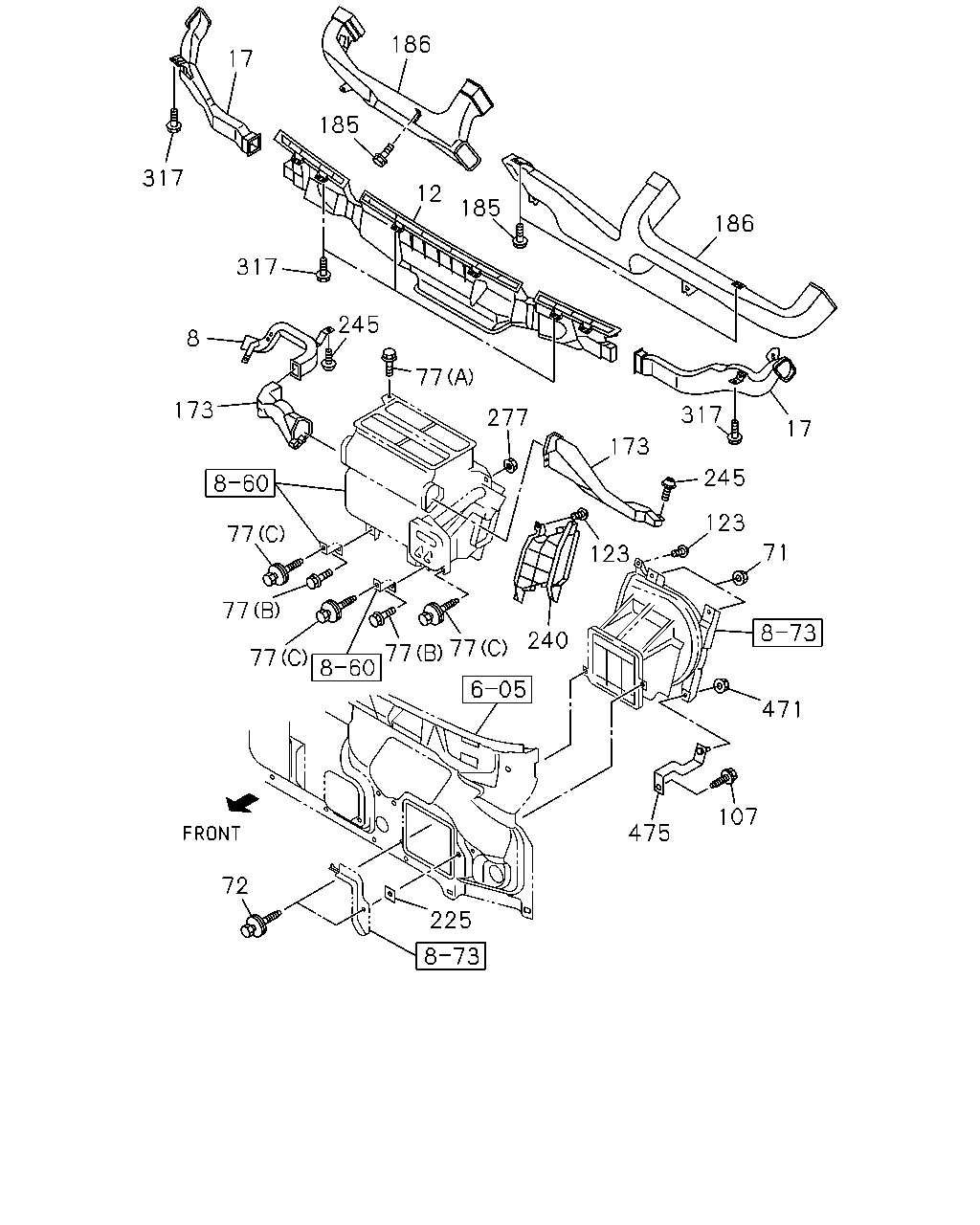

çizim 408083
17 317 317 8 186 185 12 186 185 17 317 173 245 123 71 245 173 77 77 77 77 77 77 277 123 240 471 107 475 72 225
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 8-97585-499-1 01 1 1402-1410
8 DUCT; HTR AIR,DRIVER FOOT 8-98290-098-0 01 1 1411-
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1402-
17 NOZZLE; DEFROSTER,SIDE 8-98040-016-1 01 1 1402-
17 NOZZLE; DEFROSTER,SIDE 8-98040-011-1 01 1 1402-
71 NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 FLANGE THA 		0-91180-106-0 02 1 1402-
72 BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1402-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1402-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M6X20 FLANGE THA 		0-28650-620-0 02 1 1402-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1402-
107 BOLT; STAY,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1402-
123 SCREW; DUCT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1402-
173 DUCT; FOOT,HTR 8-97585-506-2 01 1 1402-
173 DUCT; FOOT,HTR 8-98011-459-2 01 1 1402-1410
173 DUCT; FOOT,HTR 8-98290-096-0 01 1 1411-
185 SCREW; VENT DUCT
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1402-
186 DUCT; VENTILATOR 8-97585-488-4 01 1 1402-1410
186 DUCT; VENTILATOR 8-98285-576-0 01 1 1411-
186 DUCT; VENTILATOR 8-98174-737-0 01 1 1402-1410
186 DUCT; VENTILATOR 8-98285-571-0 01 1 1411-
225 SEAL; WATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-97856-616-0 01 1 1402-
240 DUCT; AIR,HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98041-402-1 01 1 1402-
245 CLIP; FOOT DUCT 8-98056-059-0 03 1 1402-1410
245 CLIP; FOOT DUCT 8-98056-059-0 04 1 1411-
277 NUT; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 FLANGE THA 		0-91180-106-0 01 1 1402-
317 SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1402-
471 NUT; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 FLANGE THA 		0-91180-106-0 01 1 1402-
475 BRACKET; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98043-500-1 01 1 1402-
çizim 408273
206 407 476 50 223
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR
THA 		8-97925-112-0 01 1 1402-
206 GROMMET; A/C PIPE TO BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98019-649-0 01 1 1402-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1402-
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98041-758-0 01 1 1402-
476 SCREW; VALVE
T25 M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
