◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#133293) — 19 parça

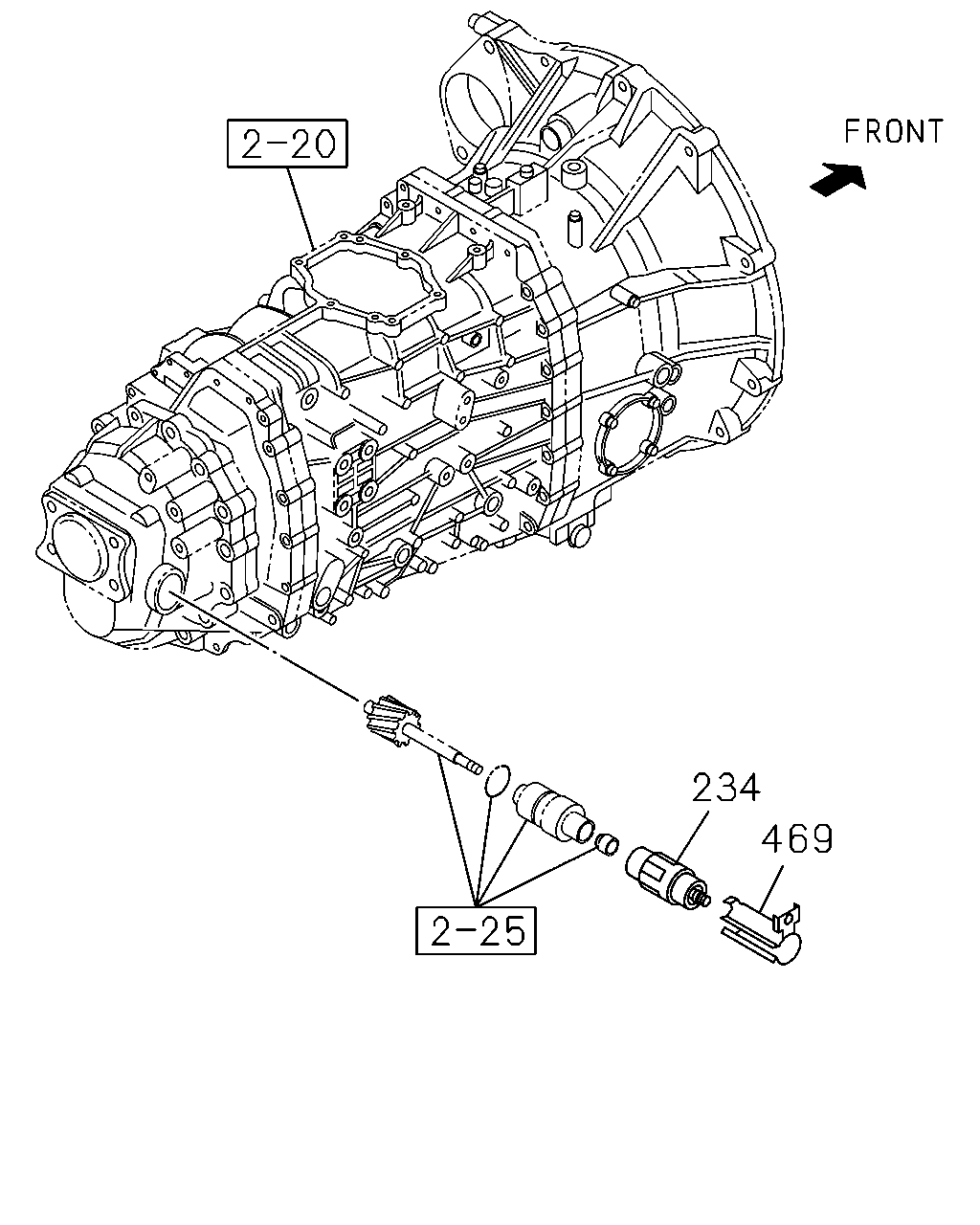

çizim 406692
234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1402-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1402-

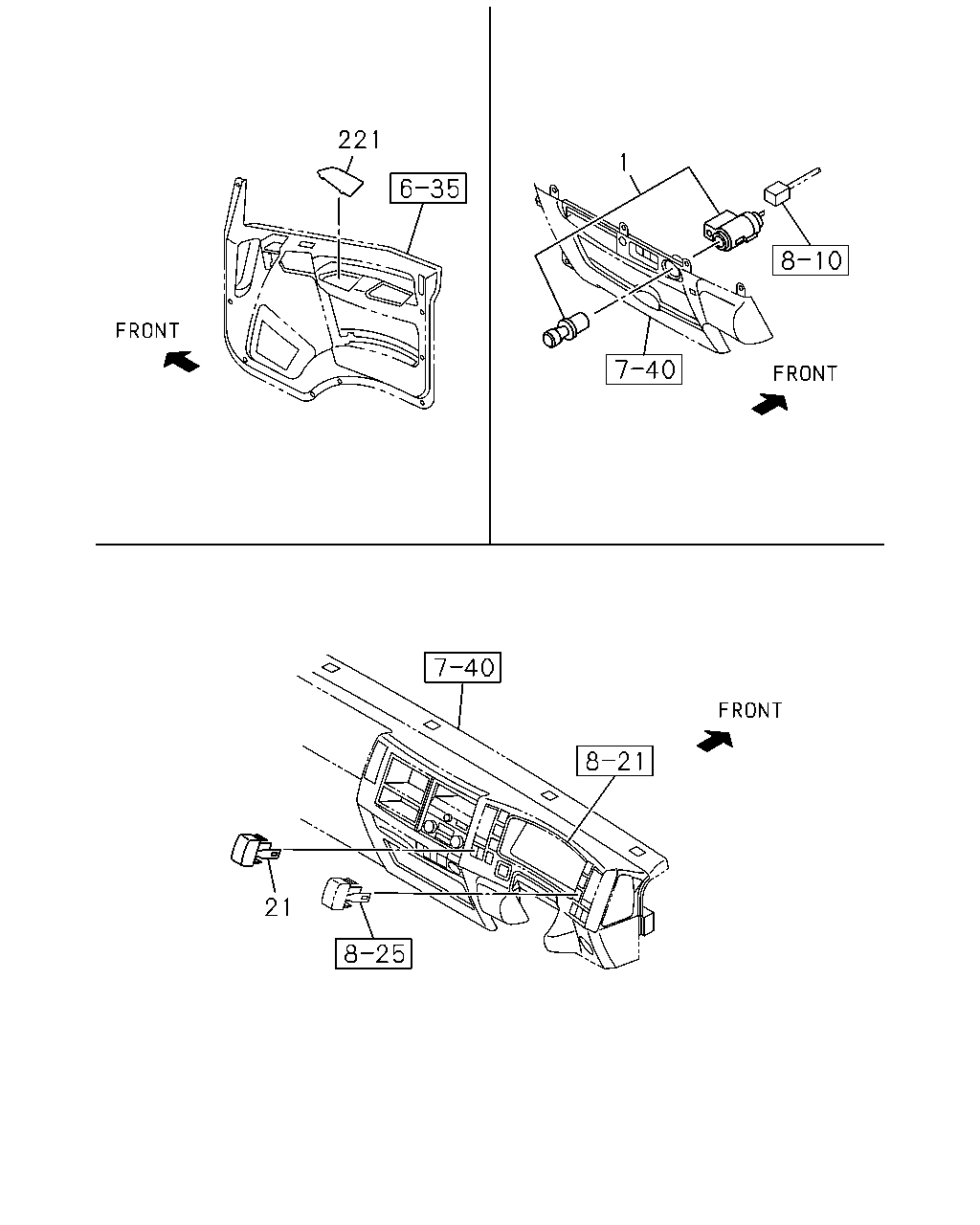

çizim 406994
221 1 21
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1402-
21 COVER; HOLE 8-98025-954-1 01 1 1402-
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1402-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1402-

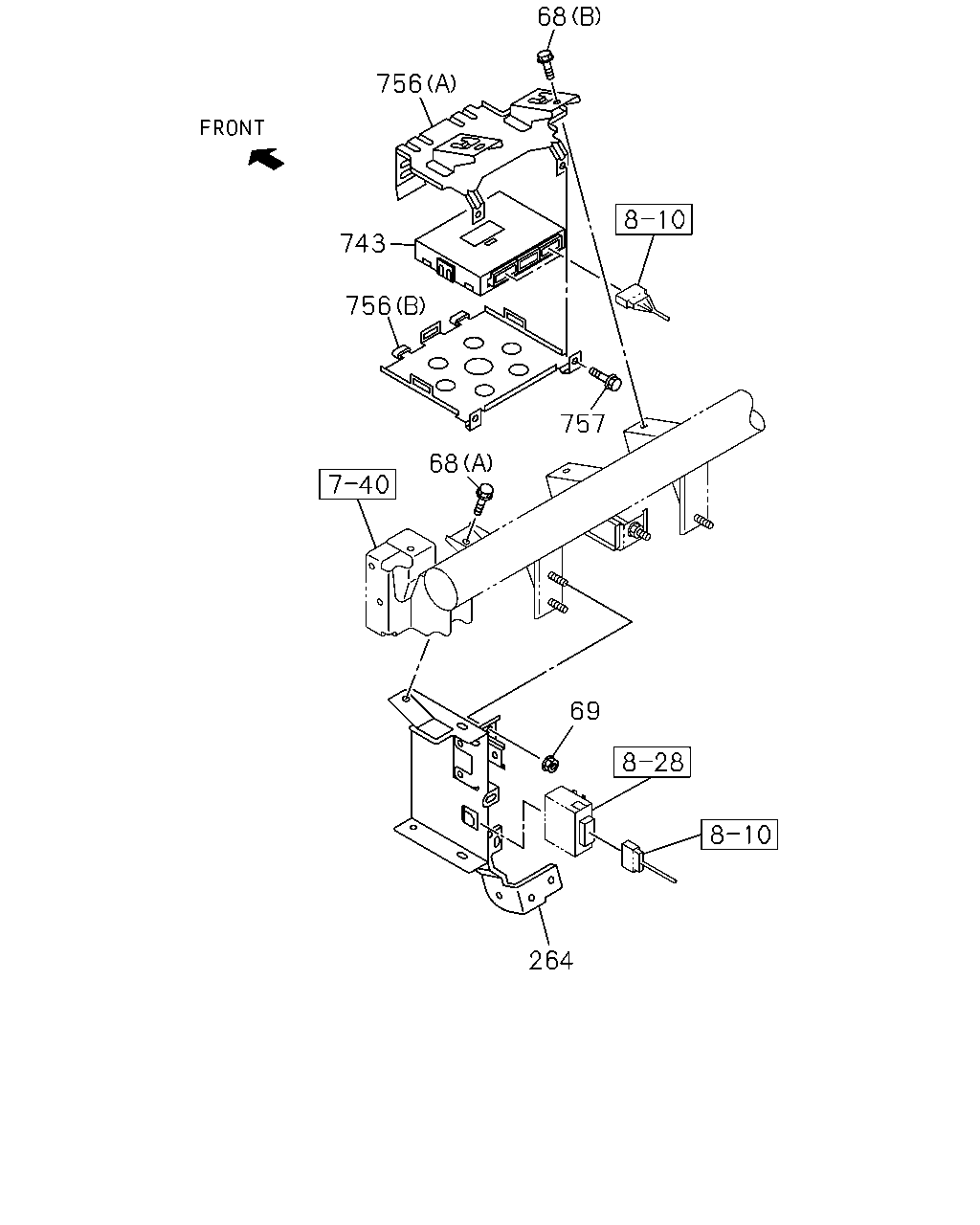

çizim 408246
69 68 757 756 743 756 68 264
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1402-
68 BOLT; BRKT
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1402-
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1402-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1402-
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98182-026-3 01 1 1402-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (A) 		8-98056-411-3 01 1 1402-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) 		8-98111-836-1 01 1 1402-
757 BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 1402-

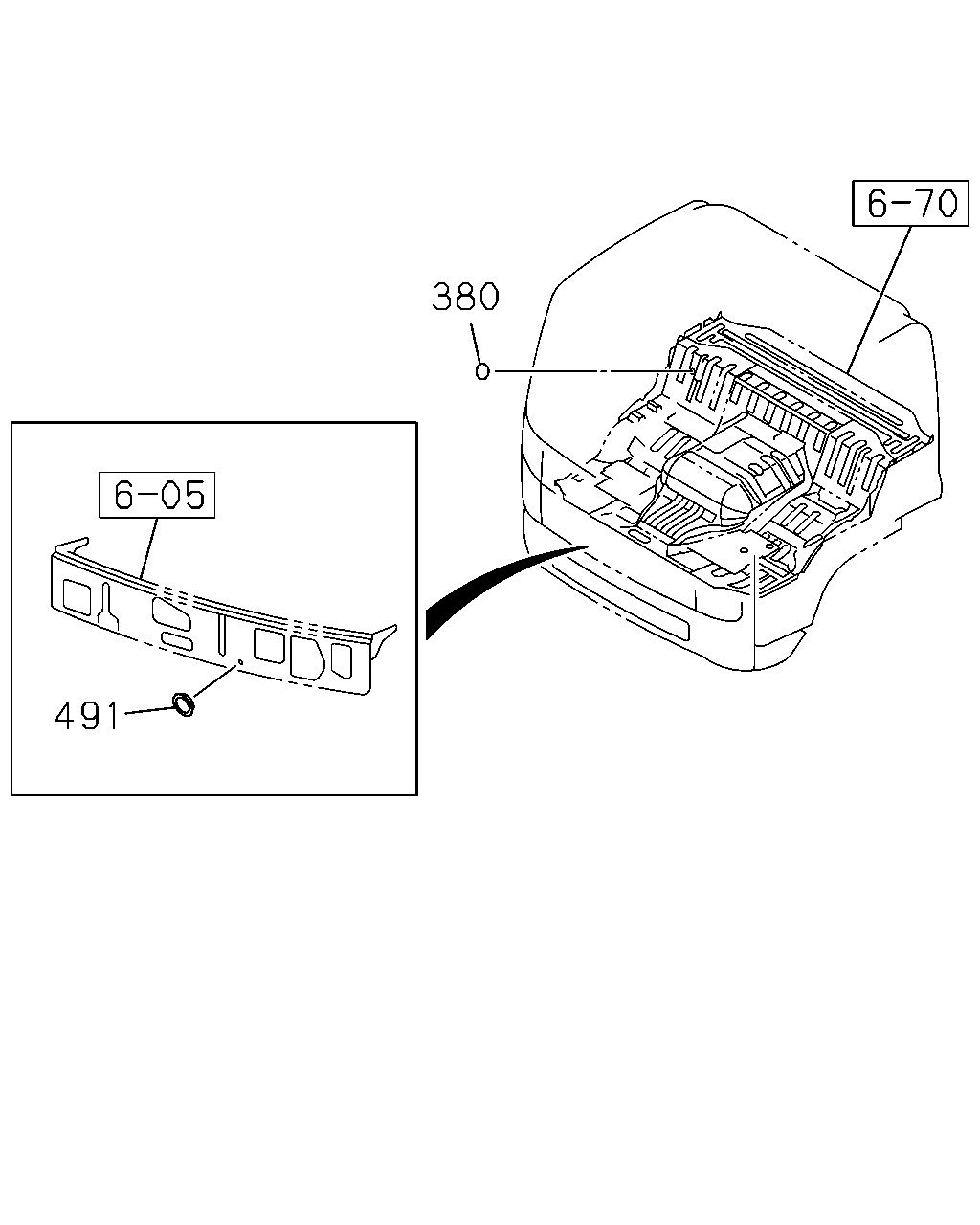

çizim 408269
380 491
BalonParca AdiParca NoAdetTipApplied Date
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 1402-
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 1402-

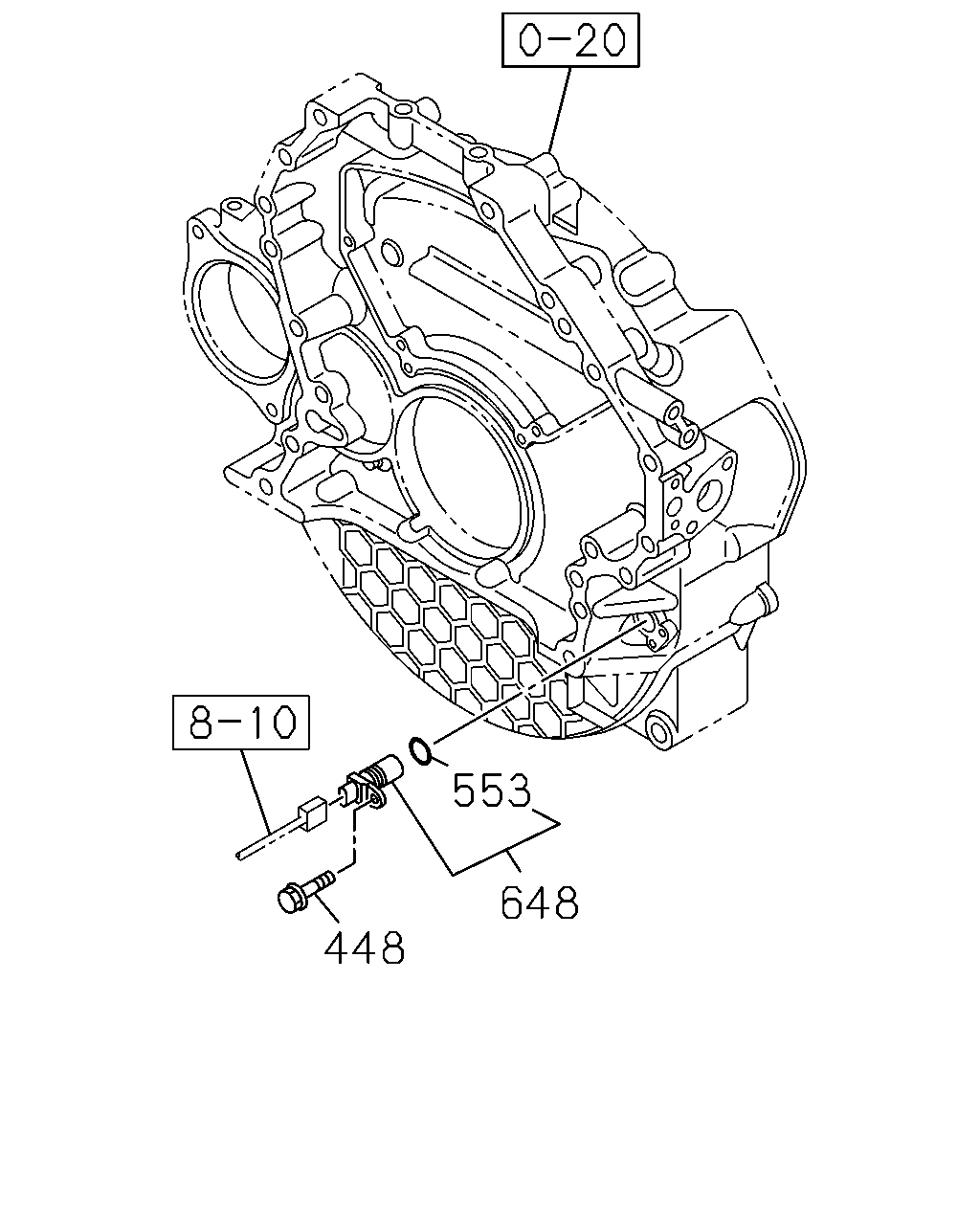

çizim 408301
553 648 448
BalonParca AdiParca NoAdetTipApplied Date
448 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 01 1 1402-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1402-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1402-
