◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#133290) — 158 parça
çizim 407405
16 16 16 16 483 171
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1402-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1402-
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1402-
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 1402-
16 CLIP; HARNESS
(G) ID=10 & 10 		1-09709-277-1 04 1 1402-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1402-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1402-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1402-
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1402-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1402-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) ID=5-12 L=18 		1-09709-287-0 02 1 1402-
16 CLIP; HARNESS
WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 01 1 1402-
16 CLIP; HARNESS
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 02 1 1402-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1402-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1402-
483 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 1402-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1402-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1402-
483 CLIP; ENG HARNESS
(G) ID=24 L=24 		1-09701-001-1 01 1 1402-
483 CLIP; ENG HARNESS
(F) 		1-09987-281-0 01 1 1402-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1402-
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1402-

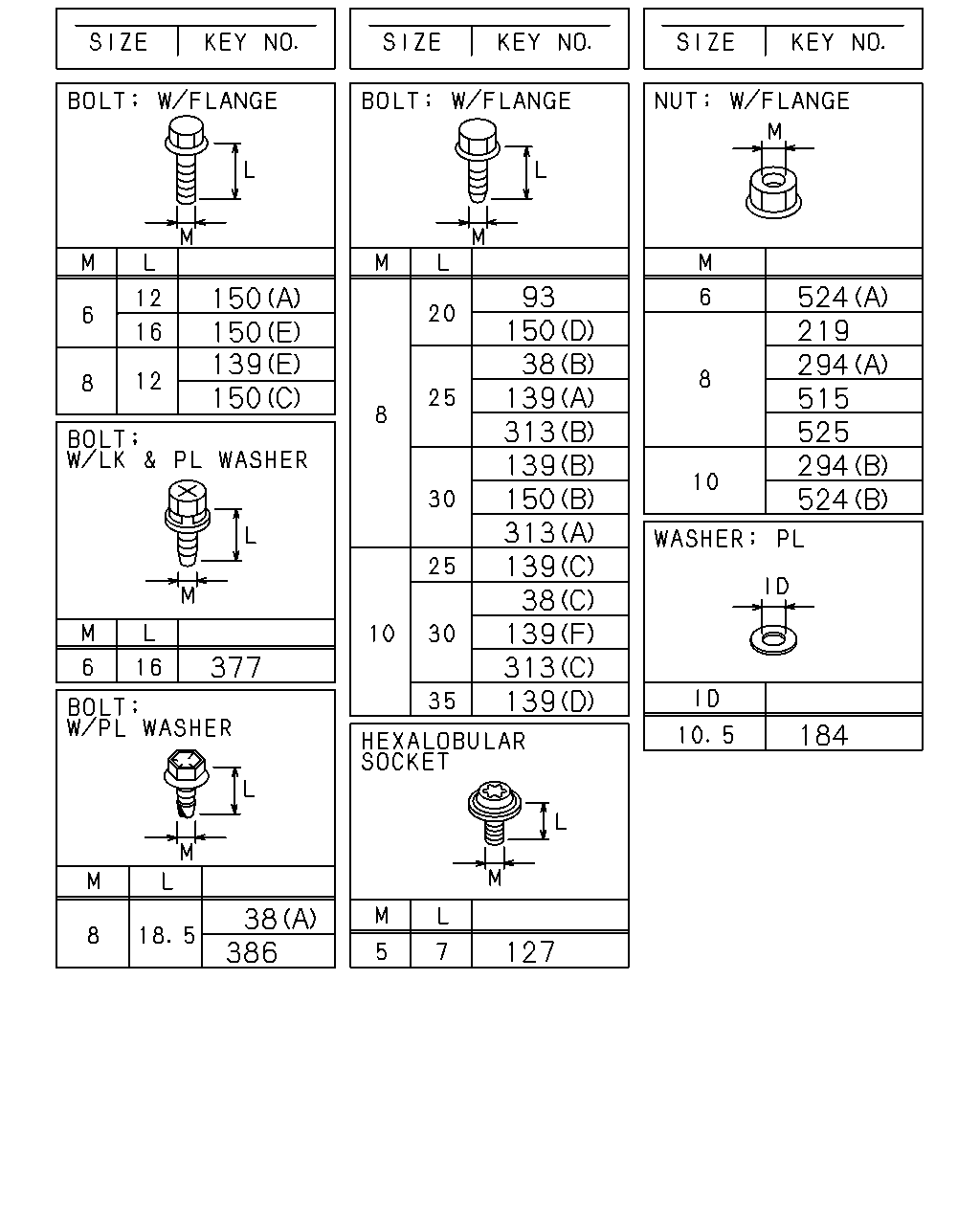

çizim 408162
150 139 150 150 377 38 386 93 38 150 139 139 313 150 139 313 38 313 139 139 127 524 294 219 515 294 525 524 184
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1402-
38 BOLT; CLIP,HARNESS
(C) M10X30 FLANGE THA 		0-28651-030-0 01 1 1402-
38 BOLT; CLIP,HARNESS
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1402-
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1402-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 1402-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1402-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1402-
139 BOLT; BRKT
(F) M10X30 FLANGE THA 		0-28651-030-0 01 1 1402-
139 BOLT; BRKT
(D) M10X35 FLANGE THA 		0-28651-035-0 01 1 1402-
150 BOLT; CLIP
(E) M6X16 FLANGE THA 		0-28050-616-0 01 1 1501-
150 BOLT; CLIP
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1402-
150 BOLT; CLIP
(C) M8X12 FLANGE THA 		0-28050-812-0 01 1 1402-
150 BOLT; CLIP
(D) M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1402-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 04 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
294 NUT
POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
313 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> (C) M10X30 FLANGE THA 		0-28651-030-0 01 1 1402-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1402-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1402-
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
524 NUT; HARNESS
(A) M6 FLANGE THA 		0-91180-106-0 04 1 1402-
524 NUT; HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1402-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1402-

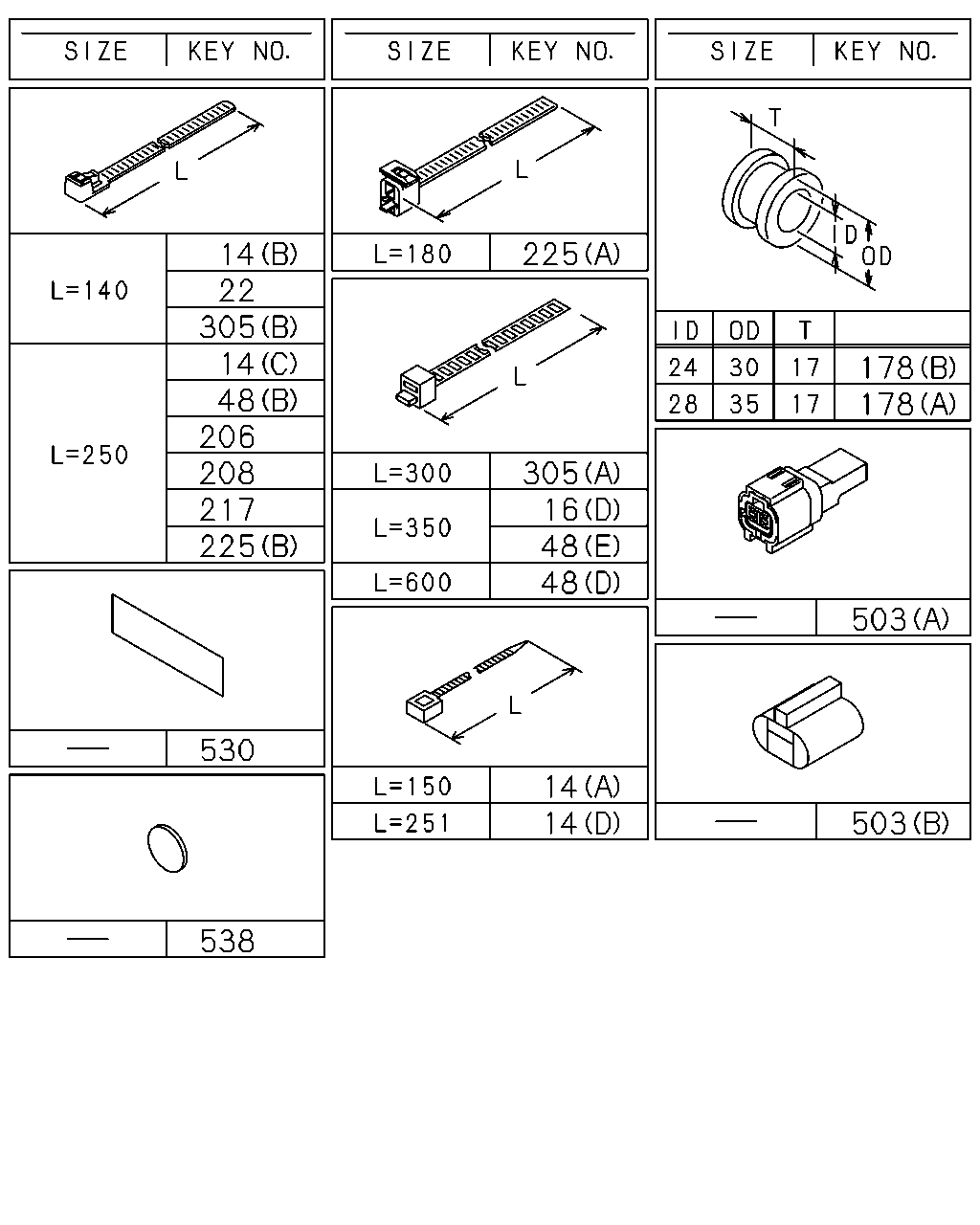

çizim 408187
538 530 225 217 208 206 14 48 305 22 14 225 305 48 16 48 14 14 503 503 178 178
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 1402-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1402-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1402-
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 1402-
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1402-
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1402-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1402-
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1402-
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 1402-
16 CLIP; HARNESS
(G) ID=10 & 10 		1-09709-277-1 04 1 1402-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1402-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1402-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1402-
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1402-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1402-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) ID=5-12 L=18 		1-09709-287-0 02 1 1402-
16 CLIP; HARNESS
WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 01 1 1402-
16 CLIP; HARNESS
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 02 1 1402-
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1402-1412
48 CLIP; FRAME HARNESS
(C) ID=5.5X2 L=35 		1-09700-974-0 01 1 1402-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1402-
48 CLIP; FRAME HARNESS
(D) L=600 		1-09707-107-1 01 1 1402-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 1402-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 03 1 1402-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 1402-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W> (A) ID=14 L=44 		9-09917-427-0 10 1 1402-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM<43W> (A) ID=14 L=44 		9-09917-427-0 16 1 1402-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM<49W> (A) ID=14 L=44 		9-09917-427-0 19 1 1402-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1402-
178 GROMMET; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1402-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1402-
178 GROMMET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1402-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1402-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1402-
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 1402-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1402-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1402-
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 1402-
305 CLIP; ENG HARNESS
(A) L=300 		1-09707-001-1 01 1 1402-
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 02 1 1402-1409
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 1410-
503 CONNECTOR
(B) 		1-82690-666-0 01 1 1402-
503 CONNECTOR
(A) 		1-82691-191-0 01 1 1402-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 1402-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1402-

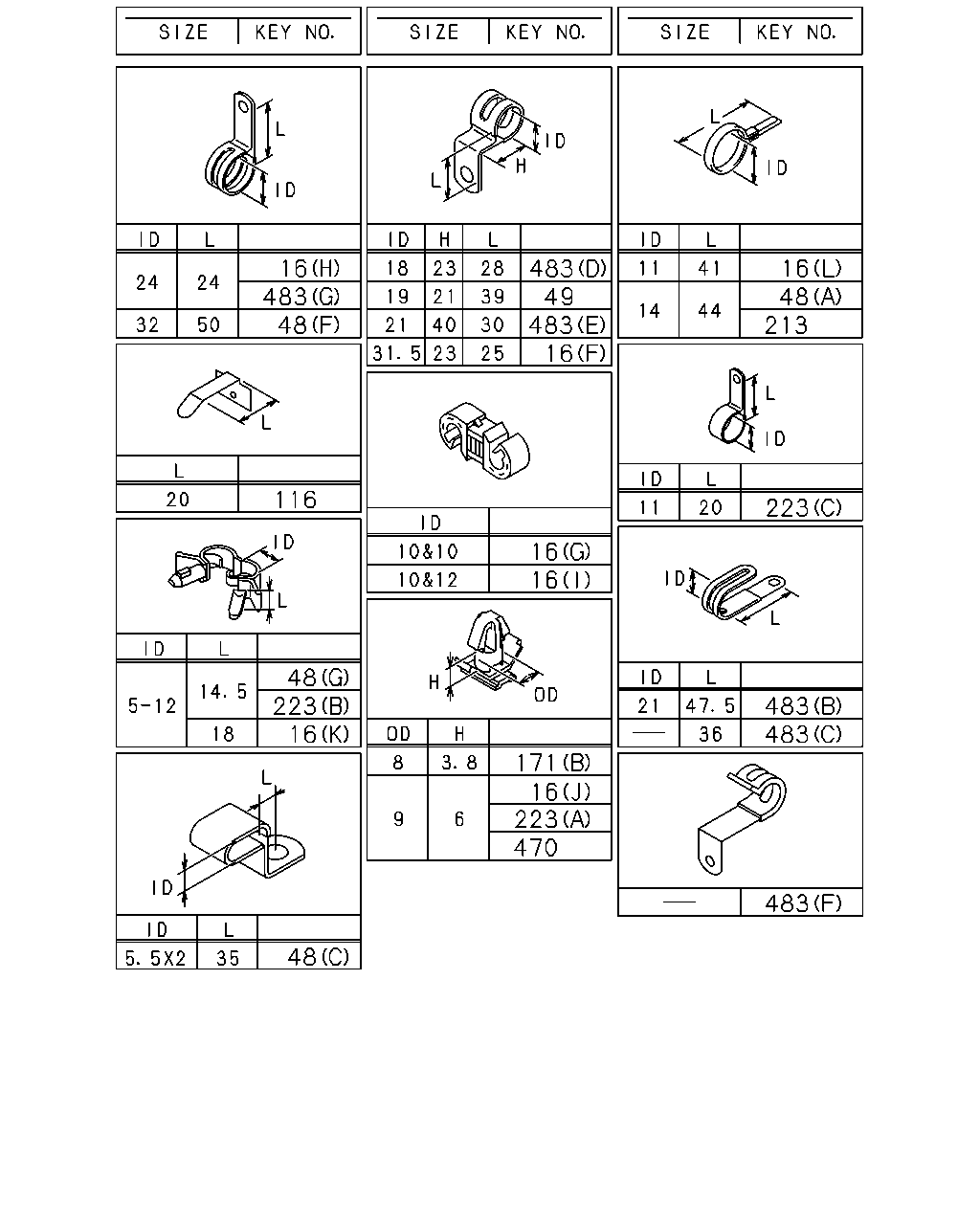

çizim 408295
16 483 116 48 48 16 223 48 483 16 49 483 16 16 171 16 223 470 16 48 213 223 483 483 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1402-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1402-
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1402-
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 1402-
16 CLIP; HARNESS
(G) ID=10 & 10 		1-09709-277-1 04 1 1402-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1402-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1402-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1402-
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1402-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1402-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) ID=5-12 L=18 		1-09709-287-0 02 1 1402-
16 CLIP; HARNESS
WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 01 1 1402-
16 CLIP; HARNESS
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=41 		1-09700-403-0 02 1 1402-
48 CLIP; FRAME HARNESS
(C) ID=5.5X2 L=35 		1-09700-974-0 01 1 1402-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1402-
48 CLIP; FRAME HARNESS
(D) L=600 		1-09707-107-1 01 1 1402-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 1402-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 03 1 1402-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 1402-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W> (A) ID=14 L=44 		9-09917-427-0 10 1 1402-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM<43W> (A) ID=14 L=44 		9-09917-427-0 16 1 1402-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM<49W> (A) ID=14 L=44 		9-09917-427-0 19 1 1402-
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1402-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1402-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1402-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1402-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1402-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 1402-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=20 		0-95235-035-0 01 1 1402-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 1402-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1402-
483 CLIP; ENG HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 01 1 1402-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1402-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1402-
483 CLIP; ENG HARNESS
(G) ID=24 L=24 		1-09701-001-1 01 1 1402-
483 CLIP; ENG HARNESS
(F) 		1-09987-281-0 01 1 1402-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1402-
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1402-

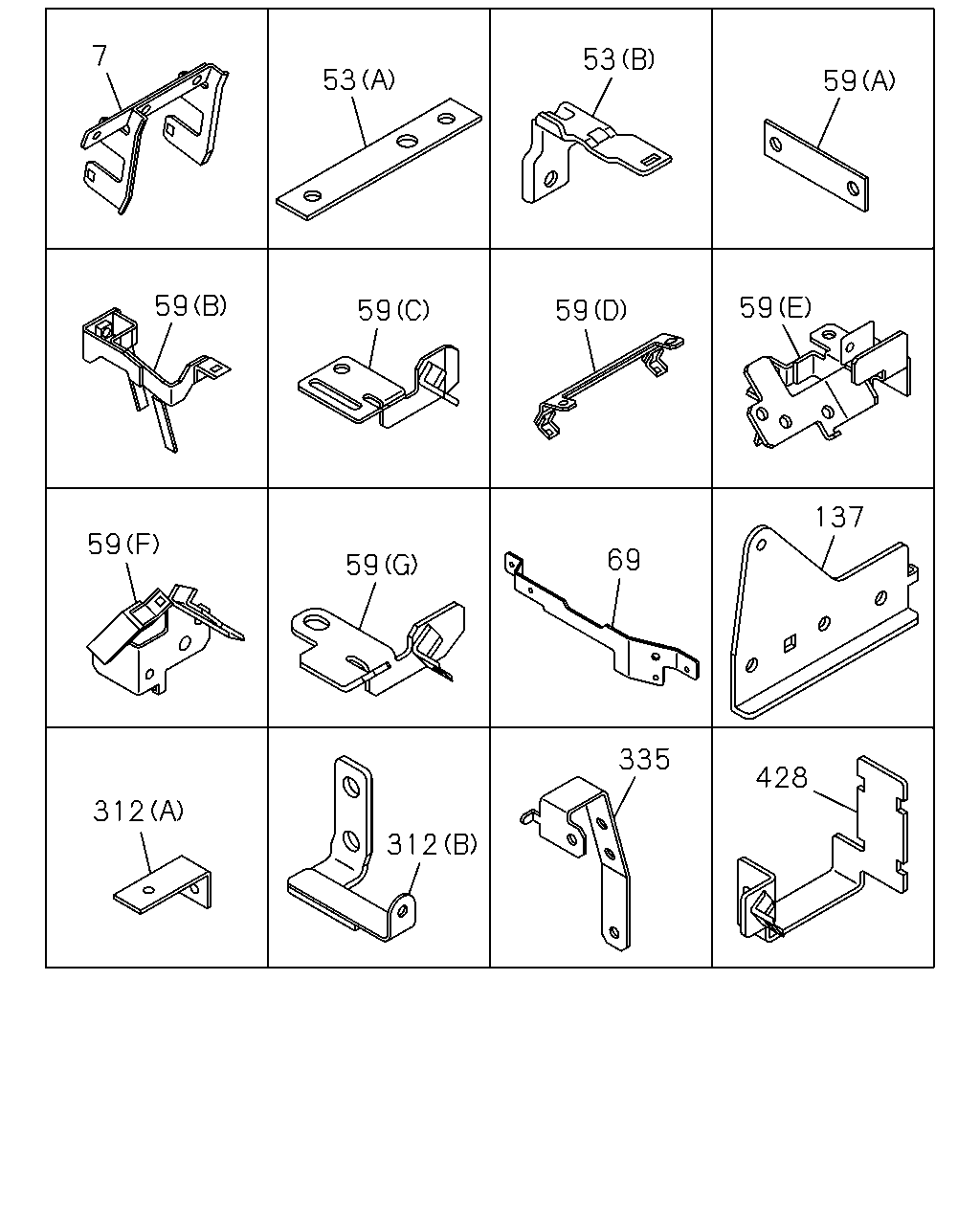

çizim 408297
7 53 53 59 59 59 59 59 59 59 69 137 428 335 312 312
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1402-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1402-
53 BRACKET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (A) L=170 		1-47479-380-0 01 1 1402-
59 BRACKET; FRAME HARNESS
(C) 		8-97616-305-0 01 1 1402-1502
59 BRACKET; FRAME HARNESS
(G) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(D) 		8-97619-533-0 01 1 1402-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-535-0 01 1 1402-1405
59 BRACKET; FRAME HARNESS
(F) 		8-97622-828-0 01 1 1406-
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1402-
59 BRACKET; FRAME HARNESS
(B) 		8-98099-963-0 01 1 1402-
69 BRACKET; CLIP 8-97614-738-0 01 1 1402-
137 BRACKET; HARNESS CLAMP 8-97624-016-0 01 1 1402-
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1402-
312 BRACKET; CLIP HARNESS
(B) 		8-98094-804-0 01 1 1402-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1402-
428 BRACKET 8-98116-461-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
