Isuzu WW
▶
TRUCKS
▶
FRR
▶
11574 - FRR THAILAND EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#133289) — 113 parça
◀
[810A] FRAME HARNESS NO.2 (9 parça)
[810A] AIR TANK SIDE (7 parça)
[810A] OTHER HARNESS NO.2 (9 parça)
[810A] ENGINE SIDE NO.1 (9 parça)
[810A] ENGINE SIDE NO.2 (14 parça)
[810A] TRANSMISSION SIDE (8 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] CAB HARNESS (24 parça)
[810A] FRAME HARNESS NO.1 (25 parça)
[810A] OTHER HARNESS NO.1 (6 parça)
▶
9
9
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-793-0
01
1
1402-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-794-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-791-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-792-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-795-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-796-0
01
1
1402-
9
HARNESS; FRAME,RR
WHEEL BASE 3400MM<34W> THA
8-97923-694-1
01
1
1402-
9
HARNESS; FRAME,RR
WHEEL BASE 4300MM<43W> THA
8-97923-695-3
01
1
1402-
9
HARNESS; FRAME,RR
WHEEL BASE 4900MM<49W> THA
8-97923-696-3
01
1
1402-

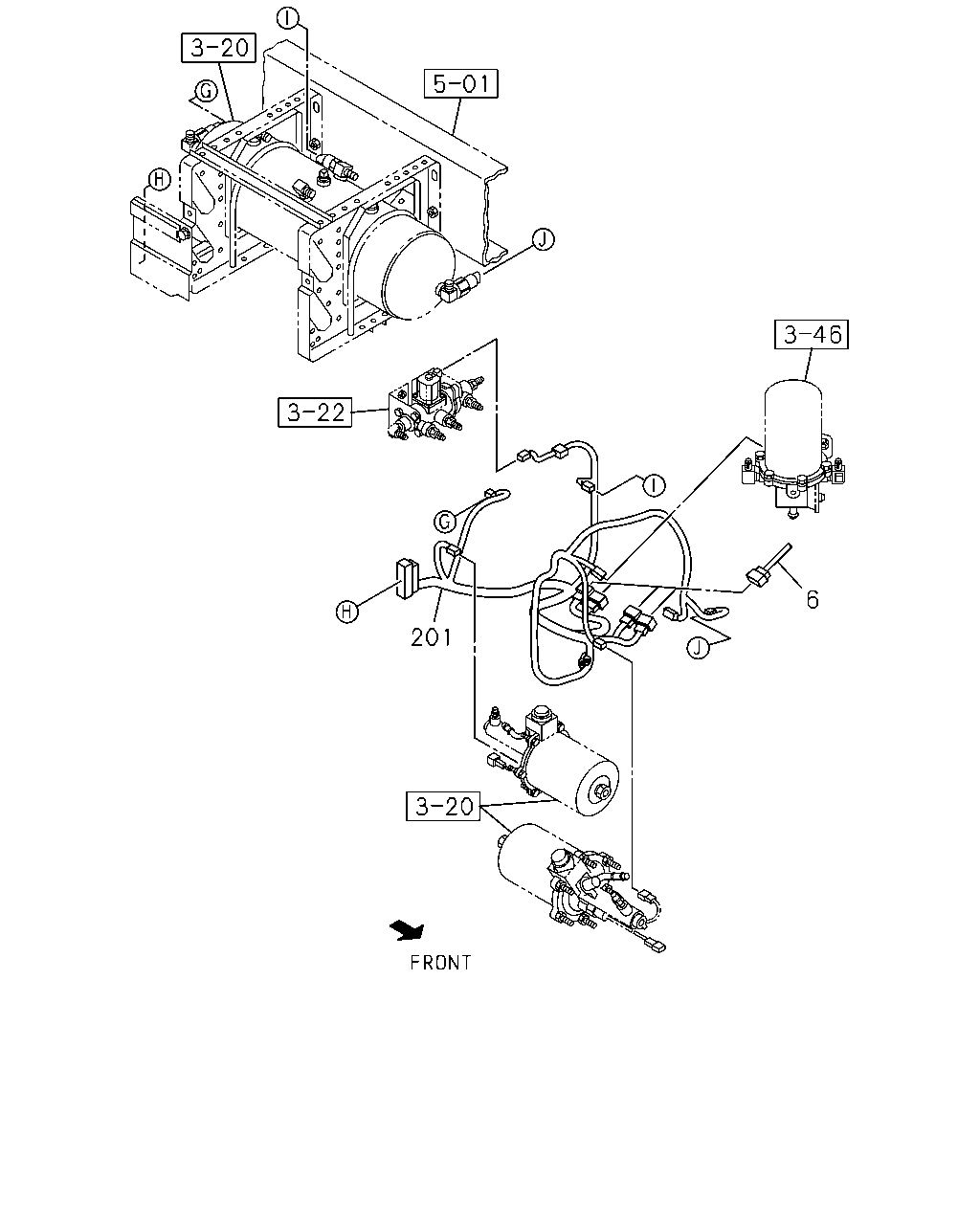

201
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-793-0
01
1
1402-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-794-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-791-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-792-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-795-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-796-0
01
1
1402-
201
HARNESS; AIR TANK
THA
8-98212-312-0
01
1
1402-

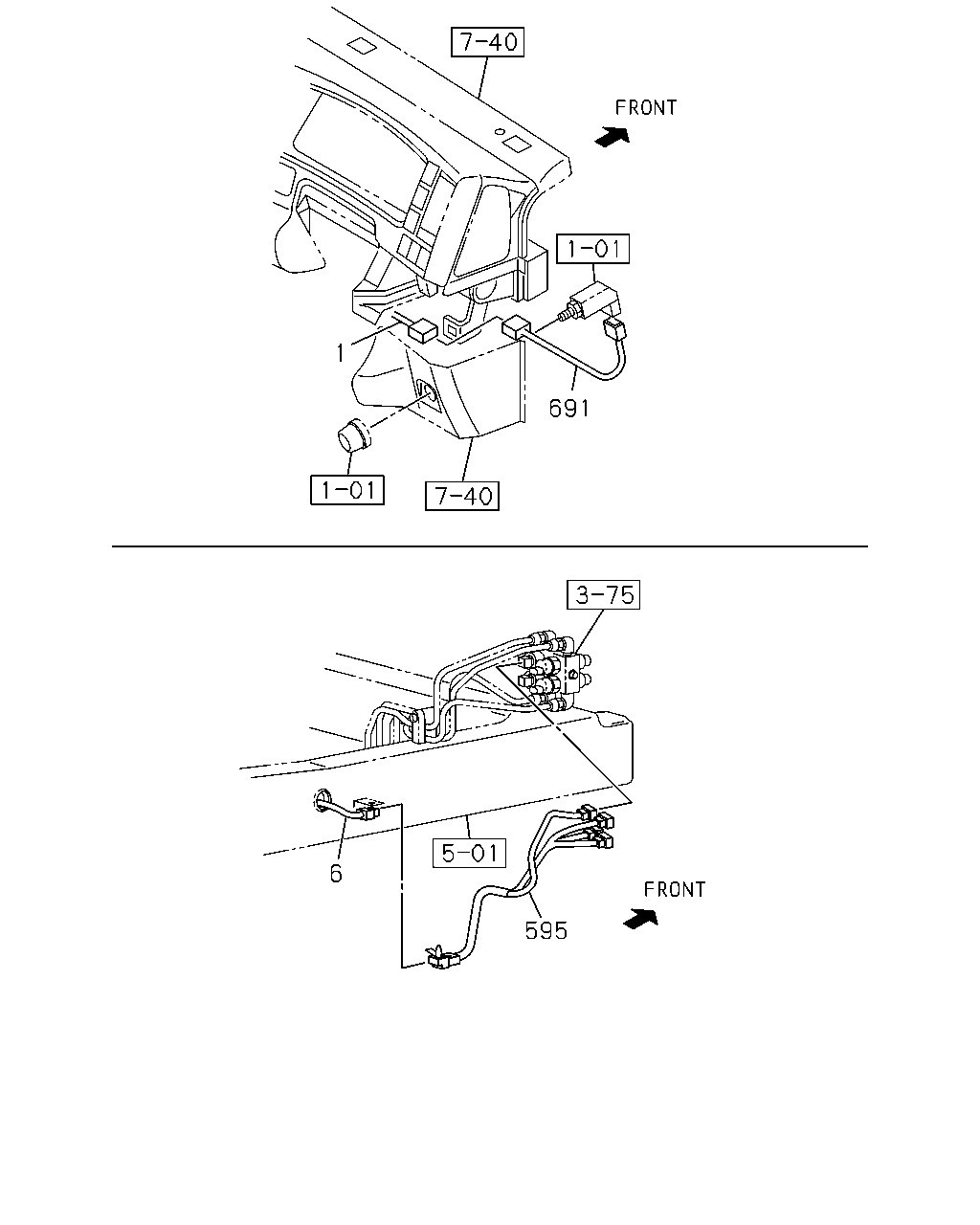

1
595
6
691
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-451-0
01
1
1402-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-793-0
01
1
1402-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-794-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-791-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-792-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-795-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-796-0
01
1
1402-
595
HARNESS; WARNING,BRK
THA
8-97925-476-0
01
1
1402-
691
HARNESS; IDLE CONT
THA
8-97948-238-0
01
1
1402-

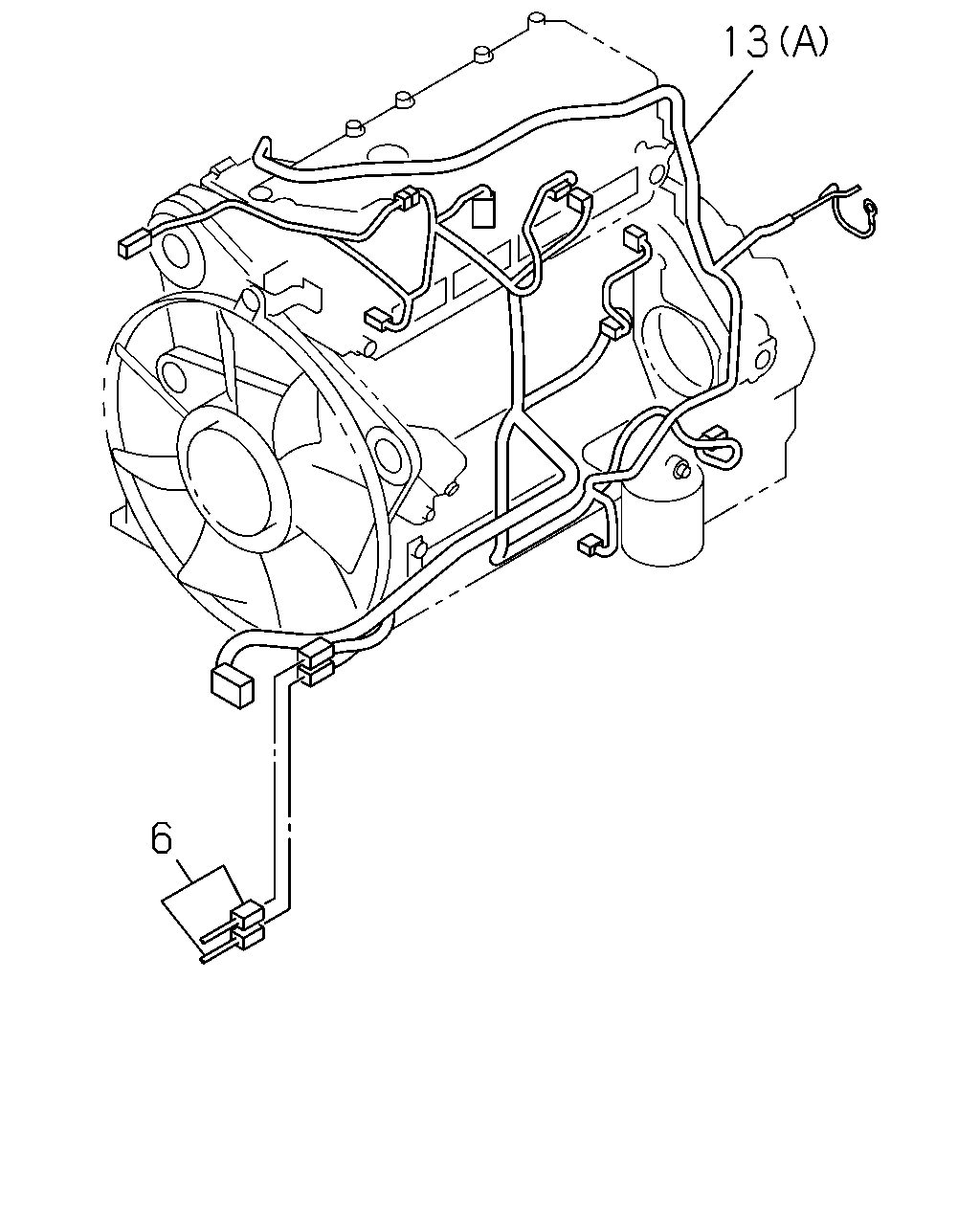

13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-793-0
01
1
1402-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-794-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-791-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-792-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-795-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-796-0
01
1
1402-
13
HARNESS; ENG
(A)
8-98255-591-0
01
1
1402-1405
13
HARNESS; ENG
(A)
8-98274-038-0
01
1
1406-
13
HARNESS; ENG
(B)
8-98171-638-0
01
1
1402-

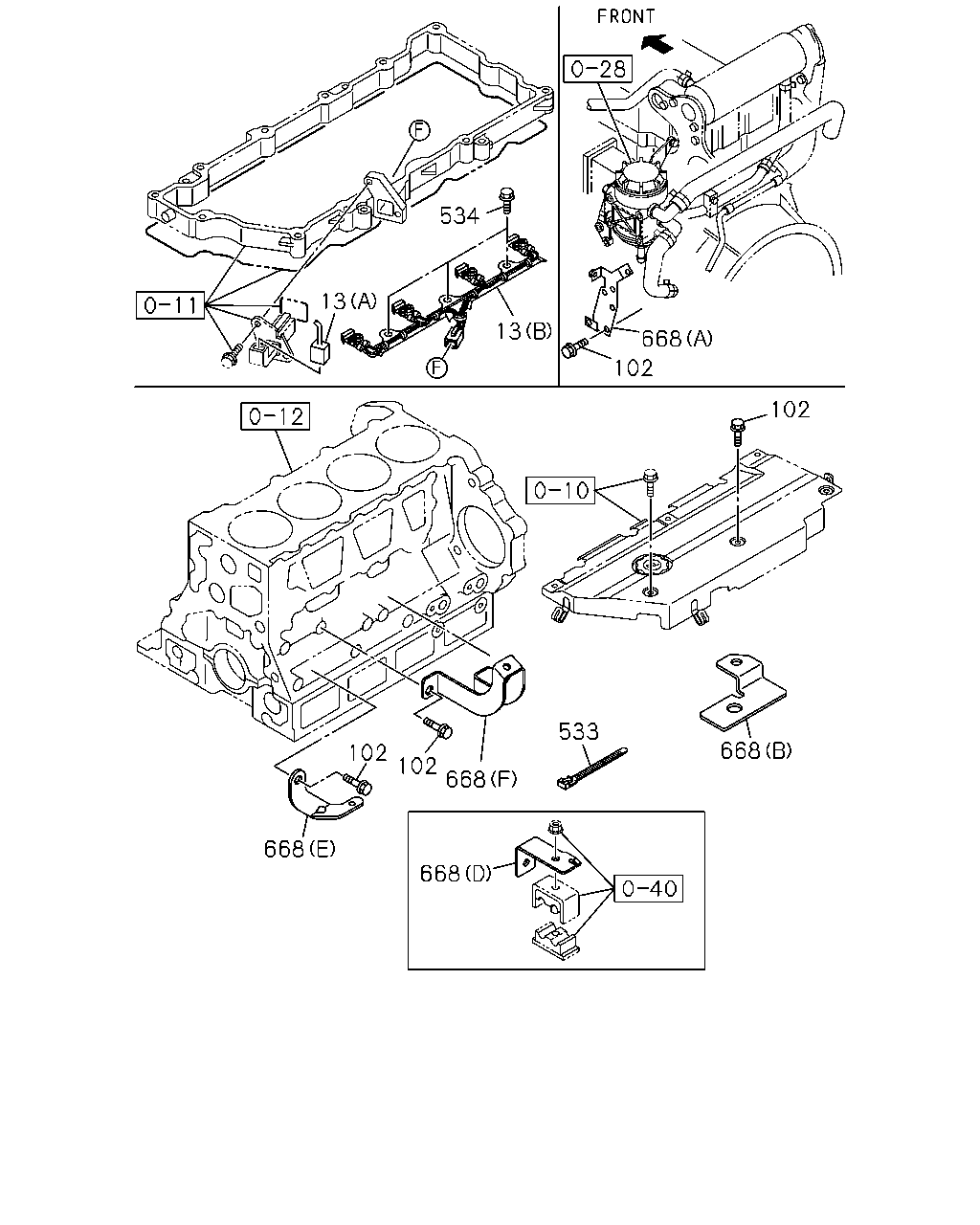

668
533
668
102
668
668
102
102
102
668
13
534
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
(A)
8-98255-591-0
01
1
1402-1405
13
HARNESS; ENG
(A)
8-98274-038-0
01
1
1406-
13
HARNESS; ENG
(B)
8-98171-638-0
01
1
1402-
102
BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE THA
0-28050-816-0
03
1
1402-
102
BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE THA
0-28151-016-0
03
1
1402-
533
CLIP
POOR QUALITY DIESEL FUEL<KF0> L=250
5-09707-030-1
01
1
1402-
534
BOLT
M10X55 FLANGE
8-97365-449-0
03
1
1402-
668
BRACKET; HARNESS
(B)
8-98205-089-0
01
1
1402-
668
BRACKET; HARNESS
(D)
8-98001-095-0
01
1
1402-
668
BRACKET; HARNESS
(E)
8-98009-245-0
01
1
1402-1408
668
BRACKET; HARNESS
(E)
8-98273-295-0
01
1
1409-
668
BRACKET; HARNESS
(F)
8-98011-484-0
01
1
1402-
668
BRACKET; HARNESS
(A)
8-98024-765-0
01
1
1402-
668
BRACKET; HARNESS
(C)
8-98095-653-2
01
1
1402-

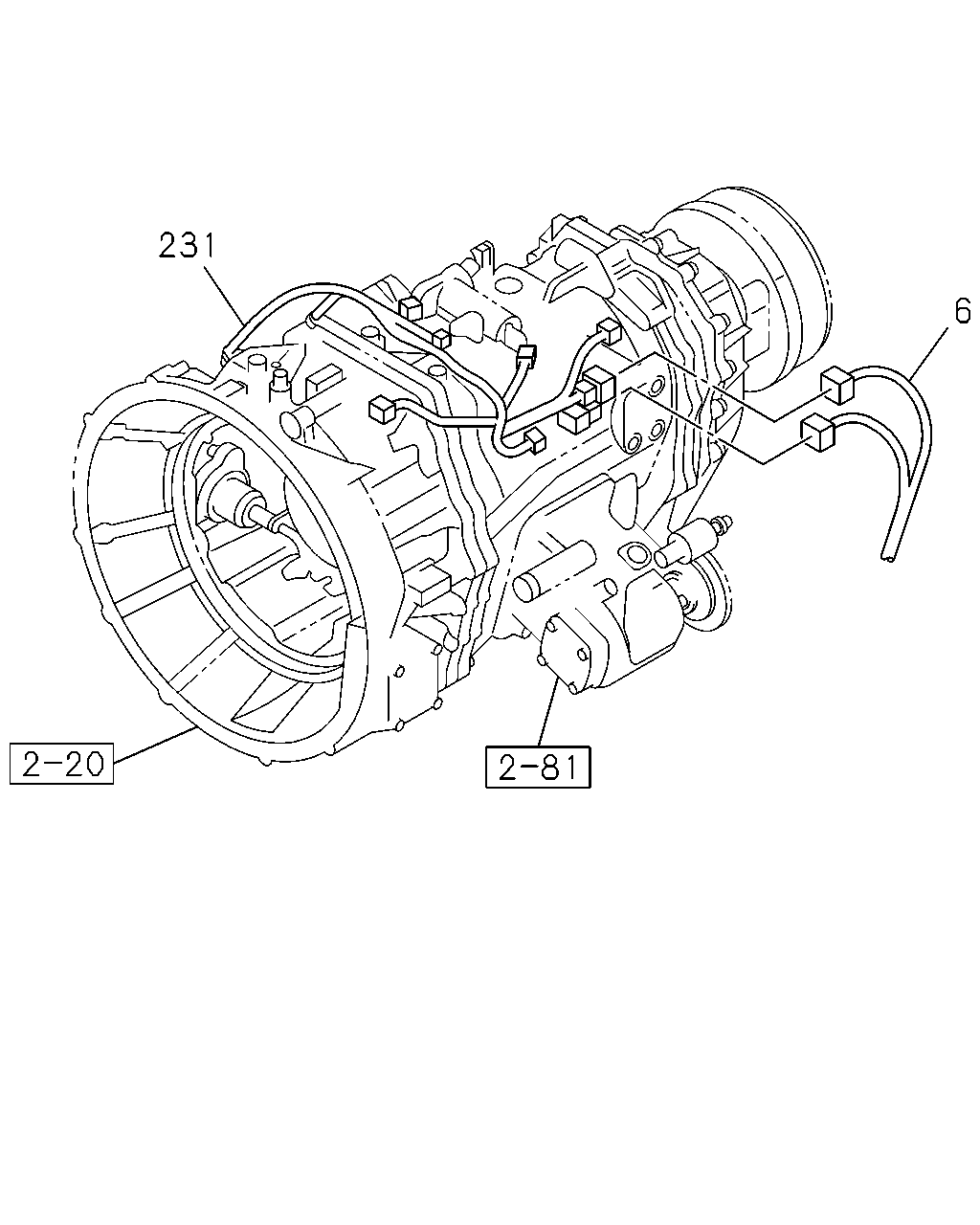

6
231
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-793-0
01
1
1402-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-794-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-791-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-792-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-795-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-796-0
01
1
1402-
231
HARNESS; TRANS
MZW6P M/T<RSZ> THA
8-97925-175-0
01
1
1402-
231
HARNESS; TRANS
MZZ6W M/T<RSA> THA
8-97925-477-0
01
1
1402-

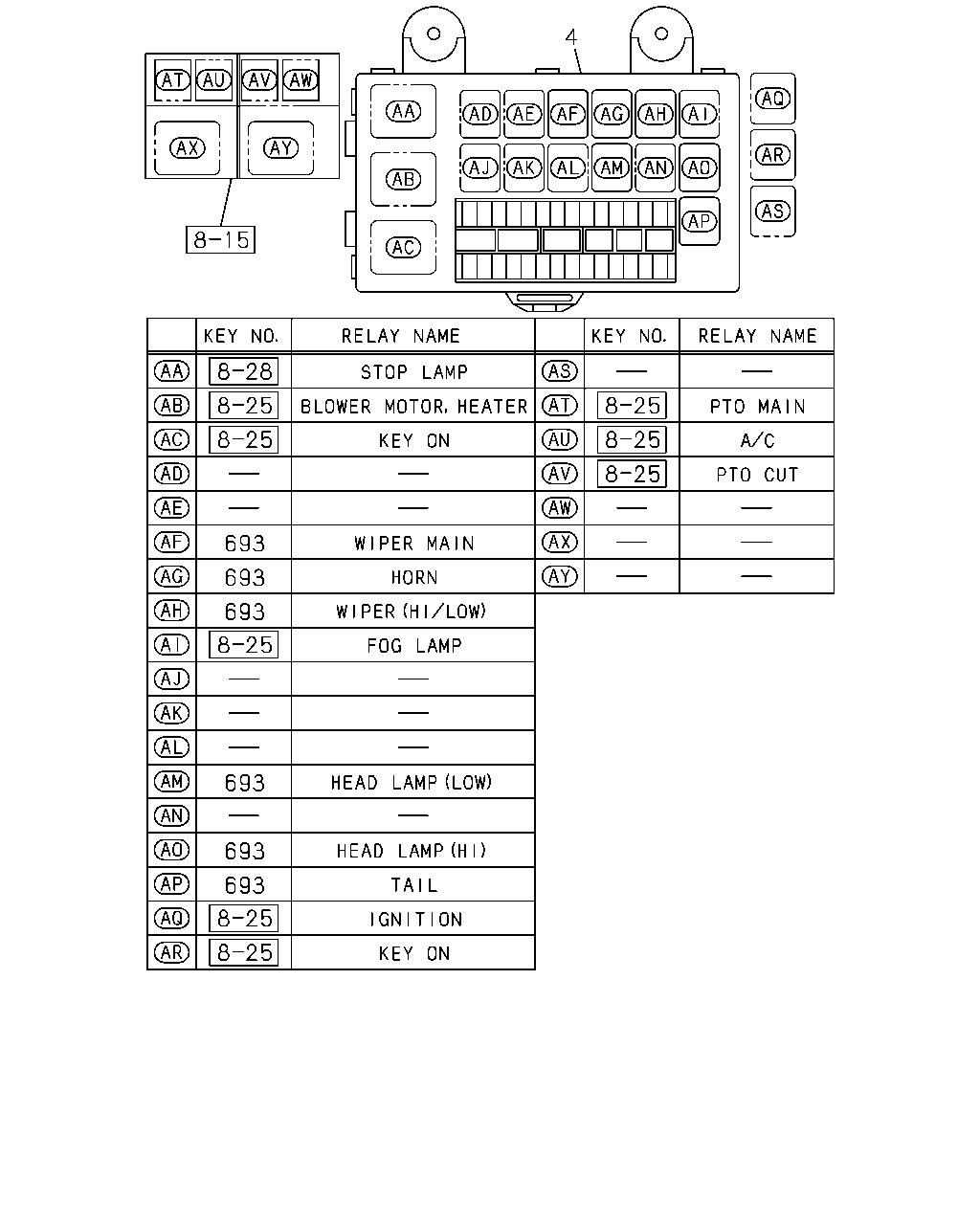

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-666-0
01
1
1402-
693
RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 10A PANASONIC
8-97173-035-1
AR
1
1402-

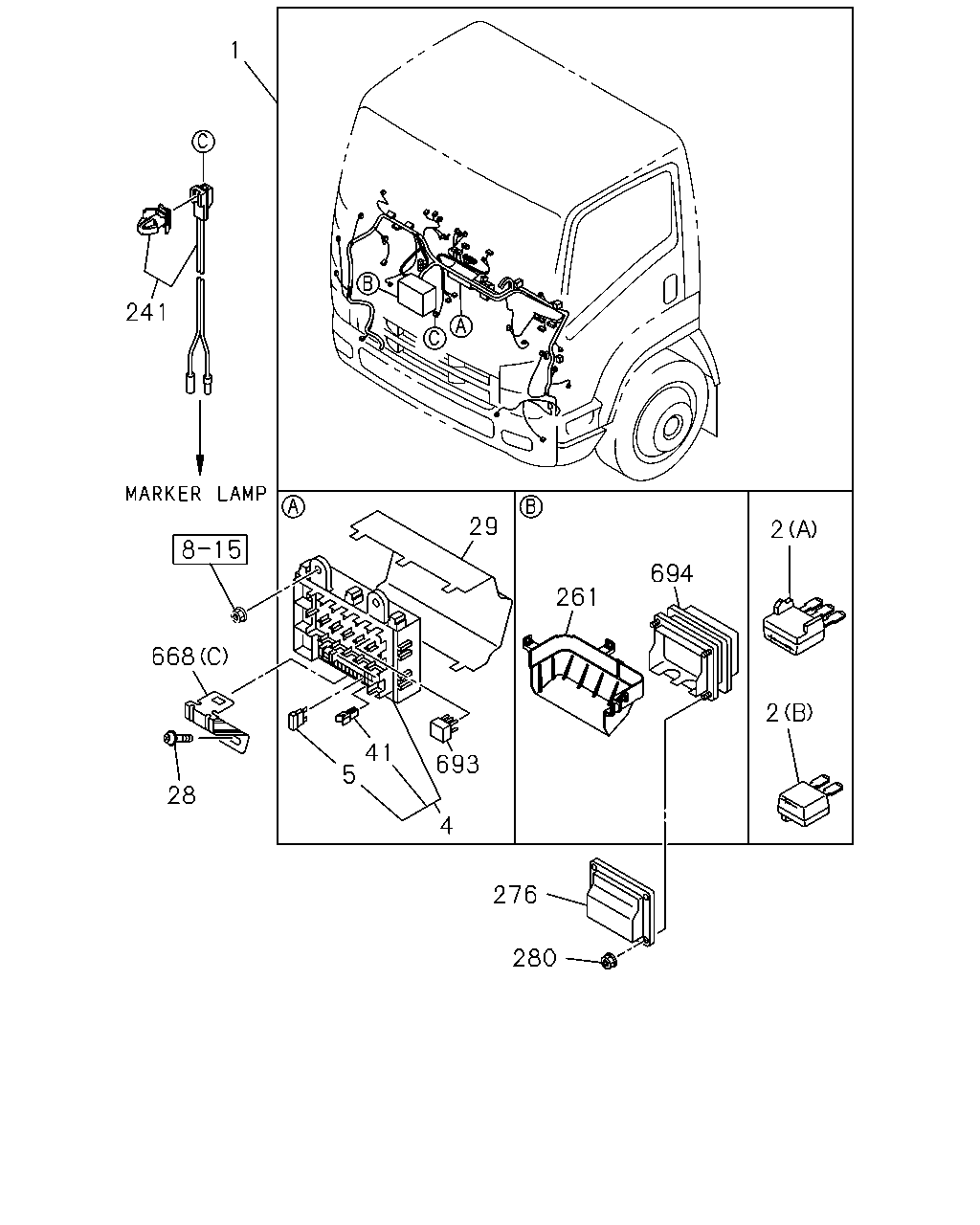

1
241
668
28
29
41
5
693
4
261
694
2
2
276
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-451-0
01
1
1402-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) BLACK 3P-1.5A THA
8-94416-438-1
01
1
1402-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) BLACK 2P-1.5A THA
8-94422-639-1
02
1
1402-
4
BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-666-0
01
1
1402-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 10A RED THA
8-98054-257-0
AR
1
1402-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 15A BLUE THA
8-98054-258-0
AR
1
1402-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 20A YELLOW THA
8-98054-259-0
AR
1
1402-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 25A WHITE THA
8-98062-982-0
01
1
1402-
28
SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
01
1
1402-
29
COVER; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98056-968-0
01
1
1402-
41
PULLER; FUSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98054-260-0
01
1
1402-
241
HARNESS; MARKER LAMP
THA
8-97924-671-0
01
1
1402-
261
COVER; CONNECTOR BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-986-1
01
1
1402-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1402-
280
NUT; BOX ASM FIX
M6 FLANGE THA
0-91180-106-0
04
1
1402-
668
BRACKET; HARNESS
(B)
8-98205-089-0
01
1
1402-
668
BRACKET; HARNESS
(D)
8-98001-095-0
01
1
1402-
668
BRACKET; HARNESS
(E)
8-98009-245-0
01
1
1402-1408
668
BRACKET; HARNESS
(E)
8-98273-295-0
01
1
1409-
668
BRACKET; HARNESS
(F)
8-98011-484-0
01
1
1402-
668
BRACKET; HARNESS
(A)
8-98024-765-0
01
1
1402-
668
BRACKET; HARNESS
(C)
8-98095-653-2
01
1
1402-
693
RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 10A PANASONIC
8-97173-035-1
AR
1
1402-
694
BOX ASM; CONNECTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98057-771-0
01
1
1402-

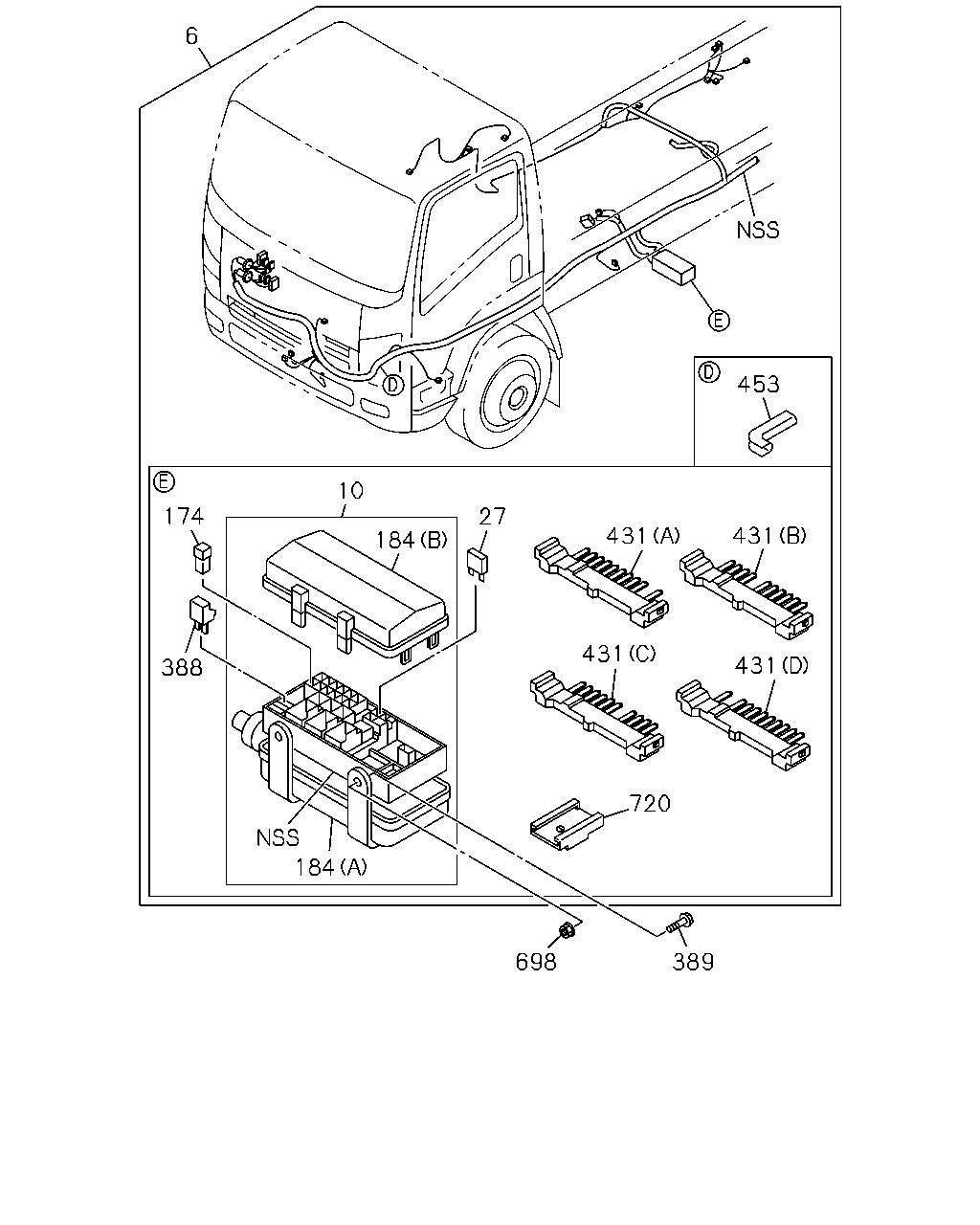

6
174
388
184
10
27
184
431
431
431
453
431
720
698
389
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-793-0
01
1
1402-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-794-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-791-0
01
1
1402-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-792-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-795-0
01
1
1402-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA
8-98217-796-0
01
1
1402-
10
BOX; FUSE,HARNESS
THA
8-98030-762-0
01
1
1402-
27
FUSE UNIT
10A RED THA
8-98054-257-0
01
1
1402-
27
FUSE UNIT
15A BLUE THA
8-98054-258-0
02
1
1402-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1402-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1402-
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
01
1
1402-
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
01
1
1402-
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
03
1
1402-
184
COVER; RELAY & FUSE BOX
(A) THA
8-98030-766-0
01
1
1402-
184
COVER; RELAY & FUSE BOX
(B) THA
8-98030-767-1
01
1
1402-
388
DIODE; RELAY BOX
BLACK 2P-1.5A THA
8-94422-639-1
01
1
1402-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1402-
431
CONNECTOR; JOINT
(A) 10P GREEN THA
1-82698-579-0
02
1
1402-
431
CONNECTOR; JOINT
(B) 10P BLUE THA
1-82699-598-0
04
1
1402-
431
CONNECTOR; JOINT
(C) 10P GREEN THA
1-82699-599-0
03
1
1402-
431
CONNECTOR; JOINT
(D) 10P BROWN THA
1-82699-601-0
01
1
1402-
453
PROTECTOR; HARNESS
THA
1-82699-709-0
02
1
1402-
698
NUT; COVER,RELAY BOX
M8 FLANGE THA
0-91180-108-0
02
1
1402-
720
ATTACHMENT; CONNECTOR
THA
1-82699-688-0
03
1
1402-
18
204
18
12
598
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-451-0
01
1
1402-
12
HARNESS; ROOF
THA
8-97924-298-0
01
1
1402-
18
HARNESS; DOOR
THA
8-98076-305-3
01
1
1402-
18
HARNESS; DOOR
THA
8-98076-304-3
01
1
1402-
204
HARNESS; CABLE,FLOOR
THA
8-98081-204-2
01
1
1402-
598
HARNESS; EXT,PTO
PTO CONTROL<SV6>
1-82675-898-0
01
1
1402-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
