◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#133267) — 56 parça

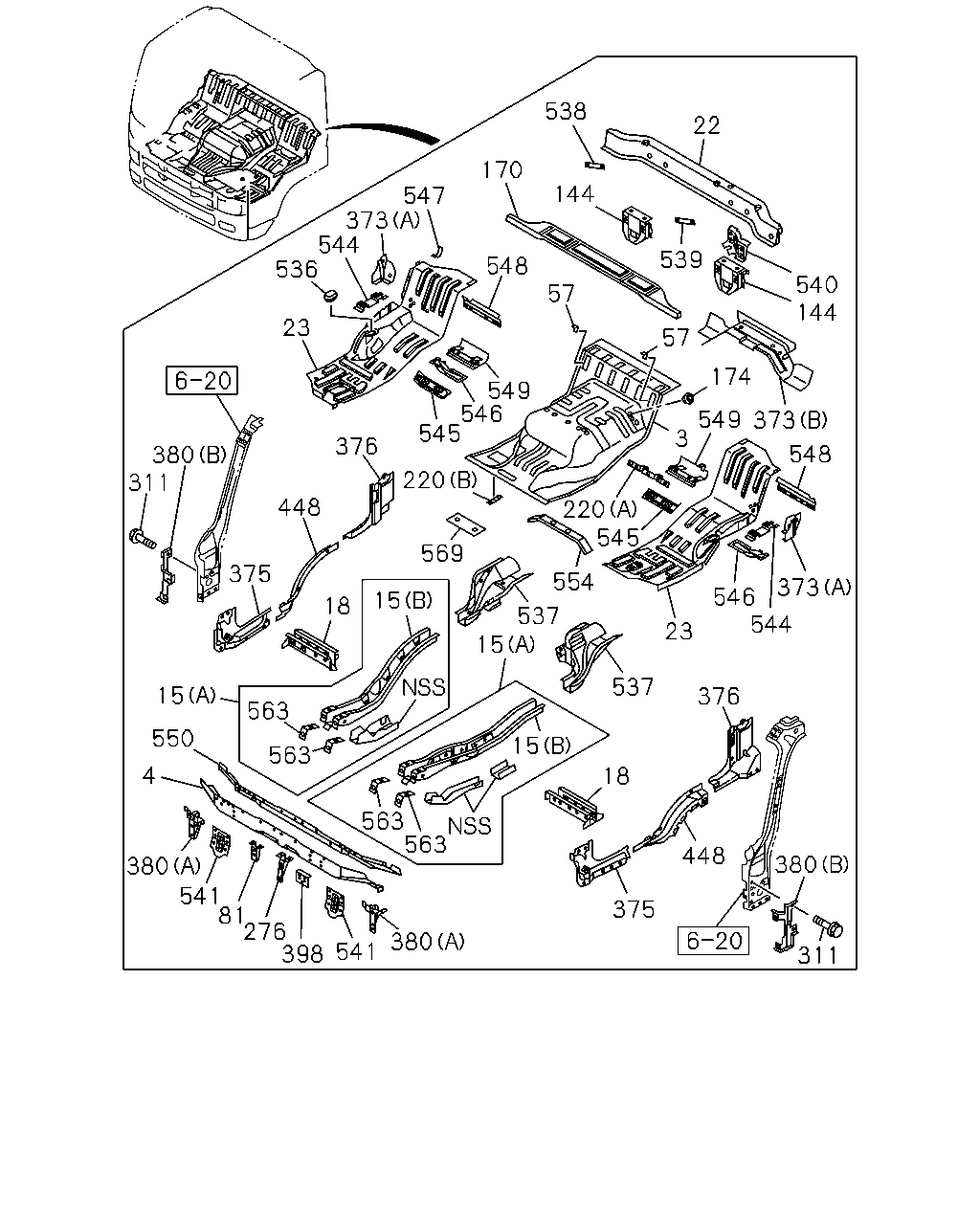

çizim 407291
380 541 398 276 81 541 380 4 15 563 563 563 563 375 448 380 376 537 18 15 15 554 220 569 448 376 18 15 375 380 311 23 536 544 373 547 170 538 22 144 548 549 546 545 220 537 545 3 549 174 144 540 539 57 57 550 23 373 548 373 546 544 311
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1402-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1402-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1402-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1402-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1402-
15 FRAME; UNDER
(B) THA 		8-97584-412-6 01 1 1402-
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1402-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1402-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1402-
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1402-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1402-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1402-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1402-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1402-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1402-
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1402-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1402-
220 PATCH
(A) 		8-97588-840-4 01 1 1402-
220 PATCH
(B) 		8-97589-603-3 01 1 1402-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1402-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1402-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1402-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1402-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1402-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1402-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1402-
376 CLOSING; PILLAR,LWR
THA 		8-97589-553-1 01 1 1402-
376 CLOSING; PILLAR,LWR
THA 		8-97589-555-1 01 1 1402-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1402-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1402-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1402-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1402-
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1402-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1402-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1402-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1402-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1402-
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1402-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1402-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1402-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1402-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1402-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1402-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1402-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1402-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1402-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1402-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1402-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1402-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1402-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1402-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1402-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1402-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1402-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1402-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1402-
