◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#13326) — 1332 parça

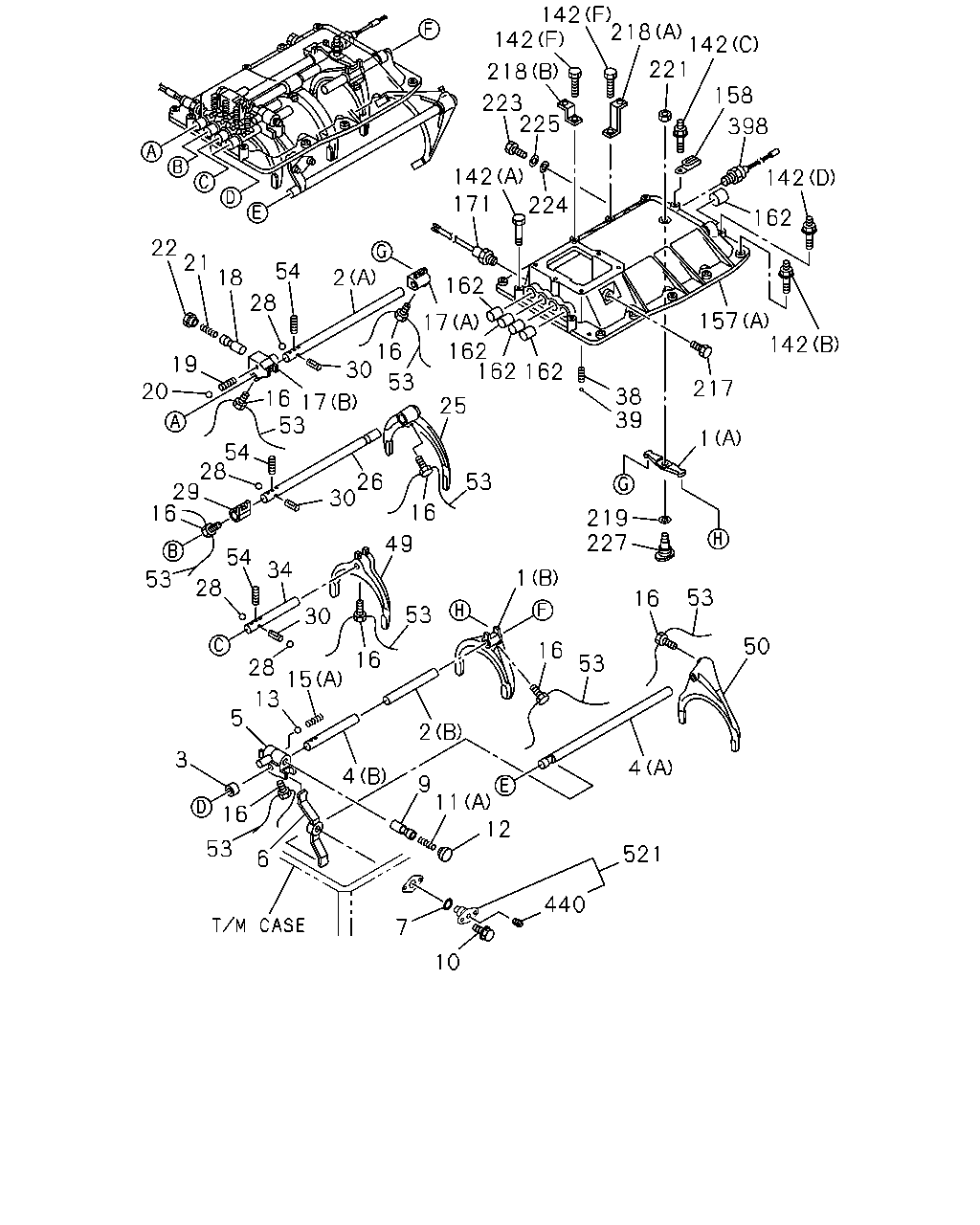

çizim 23067
10 7 440 521 4 12 11 9 4 2 6 53 16 3 5 13 28 15 53 30 16 16 53 1 16 53 50 227 219 1 217 142 157 38 39 162 162 162 17 162 224 171 142 162 142 398 158 142 221 218 142 142 218 223 225 2 16 30 53 53 25 16 49 26 30 34 54 28 53 16 29 28 54 53 16 17 20 19 28 54 18 21 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-175-1 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0105-0106 ●
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0107- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-408-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 0105- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0105-0106 ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0107- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0105-0106 ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0107- ● ●
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 0105- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-414-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-421-1 01 1 0105-0106 ●
4 ROD; SHIFT,6TH
(A) 		1-33531-421-1 01 1 0107- ● ●
4 ROD; SHIFT,6TH
(B) 		1-33531-422-1 01 1 0105-0106 ●
4 ROD; SHIFT,6TH
(B) 		1-33531-422-1 01 1 0107- ● ●
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 0105- ●
6 LEVER; RELAY 9-33511-402-1 01 1 0105- ●
6 LEVER; RELAY 1-33511-233-1 01 1 0105- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0105-0106 ● ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0107- ● ● ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 0105- ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 0105- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0105-0106 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0107- ● ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0105-0106 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0107- ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-0 01 1 0105-0106 ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0105-0106 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0107- ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0105-0106 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0107- ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0105-0106 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0107- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 0105- ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 0105- ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 07 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-038-2 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-371-2 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0105-0106 ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0107- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0105-0106 ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0107- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0105-0106 ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0107- ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-034-1 01 1 0105- ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 0105- ● ●
19 SPRING; COIL COMP 1-09580-519-0 01 1 0105- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105-0106 ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107- ● ● ● ● ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-0 01 1 0105-0106 ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-184-1 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0105-0106 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0107- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-410-1 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0105-0106 ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0107- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105-0106 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ● ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0105-0309 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0310- ● ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-364-1 01 1 0105- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0105-0106 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0107-0309 ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105-0106 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-412-1 01 1 0105- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-403-1 01 1 0105- ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105-0106 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0107- ● ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ●
39 BALL; DETENT 1-09843-012-0 04 1 0105-0106 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0107- ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-369-1 01 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-465-0 01 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0105-0106 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0107- ● ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 0105- ●
50 ARM; SHIFT,6TH 1-33511-437-0 01 1 0105-0106 ●
50 ARM; SHIFT,6TH 1-33511-437-0 01 1 0107- ● ●
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 0105- ●
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0105- ● ●
53 WIRE; BOLT
L=180 		1-09780-024-0 05 1 0105- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105-0106 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0107- ● ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105- ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105-0106 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105-0106 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-2 01 1 0105-0106 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-2 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0106 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0107- ● ● ● ●
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0105- ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 0105-0106 ● ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107- ● ● ● ● ● ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0105- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0107- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0107- ● ● ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0105- ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0105- ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0105- ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0105-0603 ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105-0106 ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0107- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 0105-0106 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0107-0602 ● ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ● ●
440 PLUG; OIL
PT1/4 		9-99204-513-0 01 1 0105- ●
521 SPINDLE; 6TH 1-33119-255-0 01 1 0105- ●

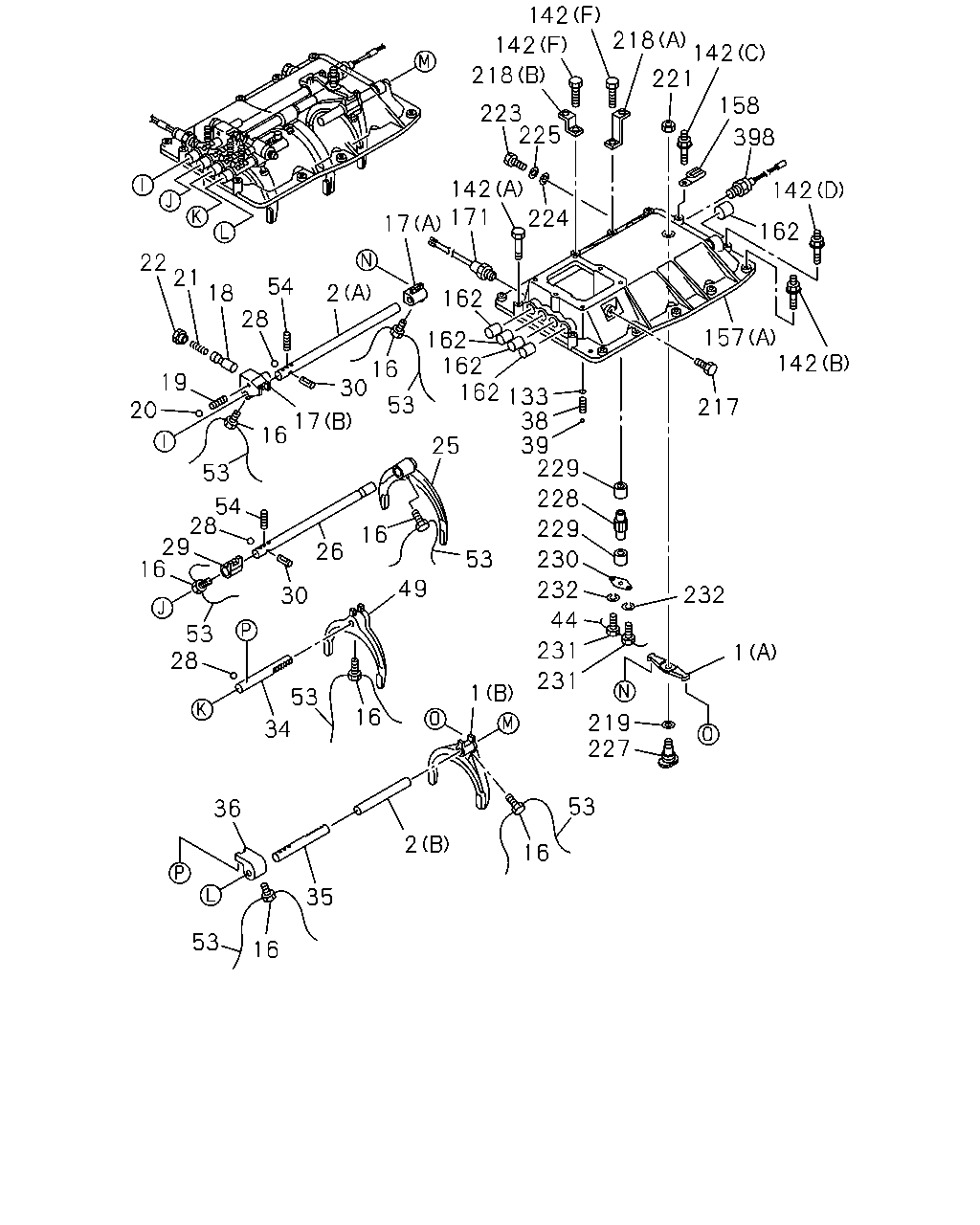

çizim 23068
16 53 35 36 2 16 53 227 219 1 232 231 1 231 44 232 230 229 228 229 39 38 133 217 142 157 162 142 398 158 142 221 218 142 142 218 223 225 224 142 171 17 162 162 162 162 16 53 25 53 49 16 26 30 16 53 34 28 53 16 54 28 29 53 16 17 30 20 19 28 18 21 22 54 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-175-1 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0105-0106 ●
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0107- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-408-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 0105- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0105-0106 ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0107- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0105-0106 ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0107- ● ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 0105- ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 07 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-038-2 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-371-2 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0105-0106 ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0107- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0105-0106 ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0107- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0105-0106 ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0107- ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-034-1 01 1 0105- ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 0105- ● ●
19 SPRING; COIL COMP 1-09580-519-0 01 1 0105- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105-0106 ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107- ● ● ● ● ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-0 01 1 0105-0106 ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-184-1 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0105-0106 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0107- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-410-1 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0105-0106 ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0107- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105-0106 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ● ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0105-0309 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0310- ● ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-364-1 01 1 0105- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0105-0106 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0107-0309 ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105-0106 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-412-1 01 1 0105- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-403-1 01 1 0105- ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-404-1 01 1 0105- ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-420-1 01 1 0105-0106 ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-420-1 01 1 0107- ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33511-367-1 01 1 0105- ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105-0106 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0107- ● ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ●
39 BALL; DETENT 1-09843-012-0 04 1 0105-0106 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0107- ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ●
44 WIRE; LK
L=200 		9-08351-020-0 01 1 0105- ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0105-0106 ● ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0107- ● ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 0105- ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0105-0106 ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0107- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-369-1 01 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-465-0 01 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0105-0106 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0107- ● ●
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 0105- ●
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0105- ● ●
53 WIRE; BOLT
L=180 		1-09780-024-0 05 1 0105- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105-0106 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0107- ● ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ●
133 SEAT; SPR 1-33549-072-0 03 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105- ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105-0106 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105-0106 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-2 01 1 0105-0106 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-2 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0106 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0107- ● ● ● ●
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0105- ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 0105-0106 ● ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107- ● ● ● ● ● ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0105- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0107- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0107- ● ● ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0105- ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0105- ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0105- ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0105-0603 ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105-0106 ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0107- ● ●
228 PINION; 4TH & 5TH SHIFT 1-33539-019-0 01 1 0105- ●
229 BEARING; NEEDLE,PINION 1-09811-202-0 02 1 0105- ●
230 COVER; BRG,PINION 1-33539-018-0 01 1 0105- ●
231 BOLT; BRG COVER,PINION
M8X20 		1-09050-005-1 02 1 0105- ●
232 WASHER; LK,BRG COVER
ID=8.2 		9-09150-508-0 02 1 0105-0603 ●
232 WASHER; LK,BRG COVER
ID=8.2 		0-91510-508-0 02 1 0604- ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 0105-0106 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0107-0602 ● ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ● ●

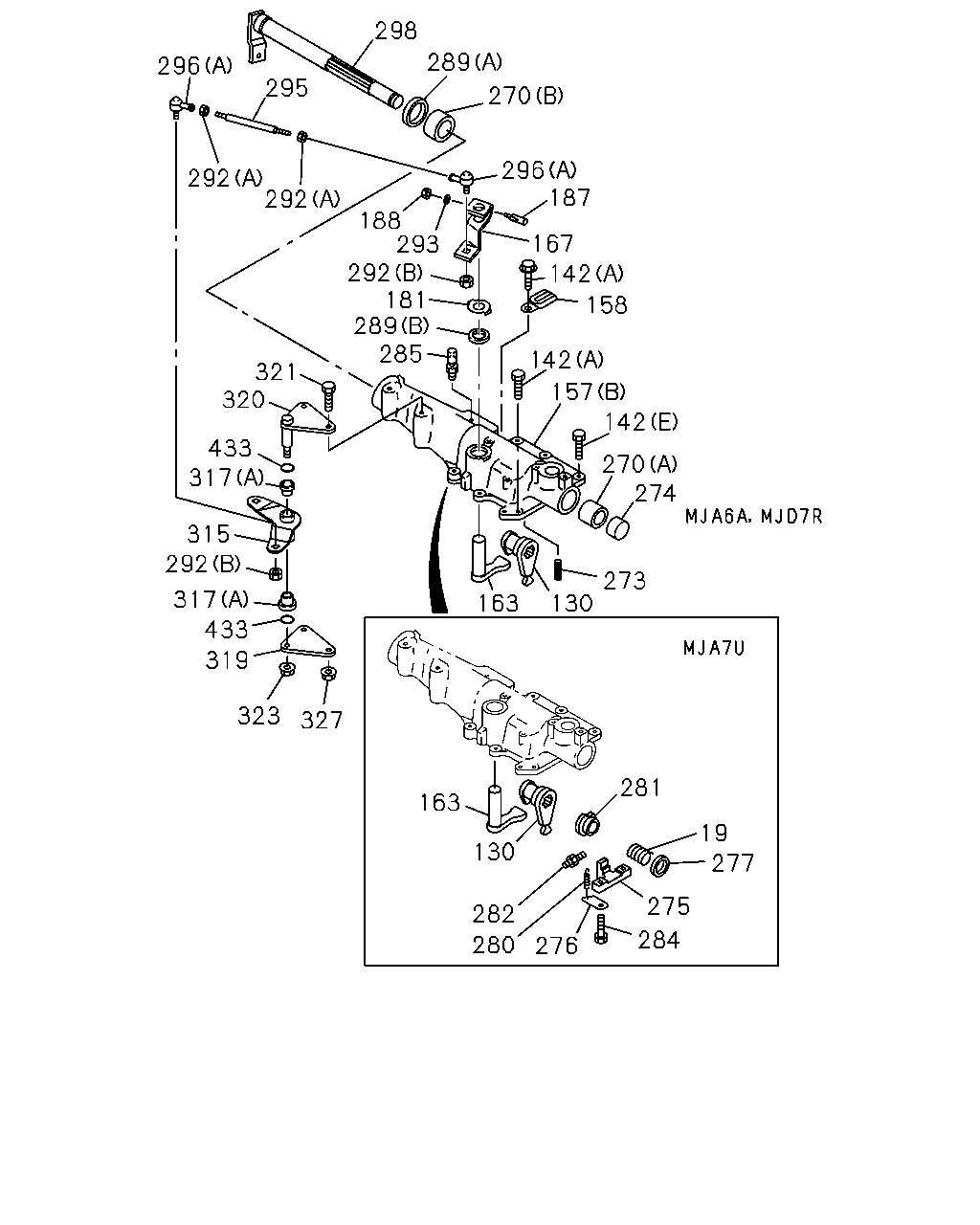

çizim 23069
284 275 277 19 281 130 163 282 280 276 130 163 273 274 270 142 157 142 158 142 167 187 296 270 289 298 295 296 292 292 188 293 292 181 289 285 321 320 433 317 315 292 317 433 319 323 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 SPRING; COIL COMP 1-09580-438-0 01 1 0105- ● ●
19 SPRING; COIL COMP 1-09580-519-0 01 1 0105- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-119-0 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0105-0106 ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0105-0106 ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0107- ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0107- ● ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105- ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105-0106 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105-0106 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-2 01 1 0105-0106 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-2 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0106 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0107- ● ● ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0105-0106 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0105-0106 ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-4 01 1 0105- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0105-0106 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0105-0106 ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0107- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0107- ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-138-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0105- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0105-0106 ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0105-0106 ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0105-0106 ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107-0201 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0202- ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN 		1-09811-006-0 01 1 0105- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK 		1-09811-057-0 01 1 0105- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN 		1-09811-260-0 01 1 0105- ● ● ● ●
273 PIN; SPR,STOPPER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09748-016-0 01 1 0105- ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0105-0106 ● ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107- ● ● ● ● ● ●
275 BLOCK; OBSTRUCT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-031-1 01 1 0105- ●
275 BLOCK; OBSTRUCT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-027-0 01 1 0105- ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 0105- ●
277 PLATE; SPRING SEAT 1-33529-009-0 01 1 0105- ●
280 SPRING; COIL TENSION
ASSISTOR SHIFT CONTROL<WX8> 		1-09583-285-0 01 1 0105- ●
280 SPRING; COIL TENSION
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09583-255-0 01 1 0105- ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-030-1 01 1 0105- ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 0105- ●
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 0105- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0105-0106 ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0107- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0105-0106 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0105-0106 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107- ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0105-0106 ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0107- ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0105-0106 ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0105-0106 ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0105-0106 ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0107-0507 ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0105-0106 ● ● ● ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0107- ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-146-0 01 1 0105- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0105-0106 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0105-0106 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0107-0109 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0107-0109 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0105-0307 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-179-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 0105- ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105- ● ● ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105- ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-756-0 01 1 0105- ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT 1-33651-754-0 01 1 0105-0106 ●
315 LEVER; SELECT 1-33651-754-0 01 1 0107- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0105-0106 ● ● ● ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0107- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105- ● ● ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-752-0 01 1 0105- ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0105-0106 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0107- ● ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-630-0 01 1 0105- ● ● ●
320 SHAFT; LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-630-0 01 1 0105- ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0105-0106 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0105-0106 ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 0105-0512 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0601- ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0105-0106 ● ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0107- ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 0105-0201 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 0202-0602 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0105-0106 ● ● ● ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0107- ● ● ● ● ● ●

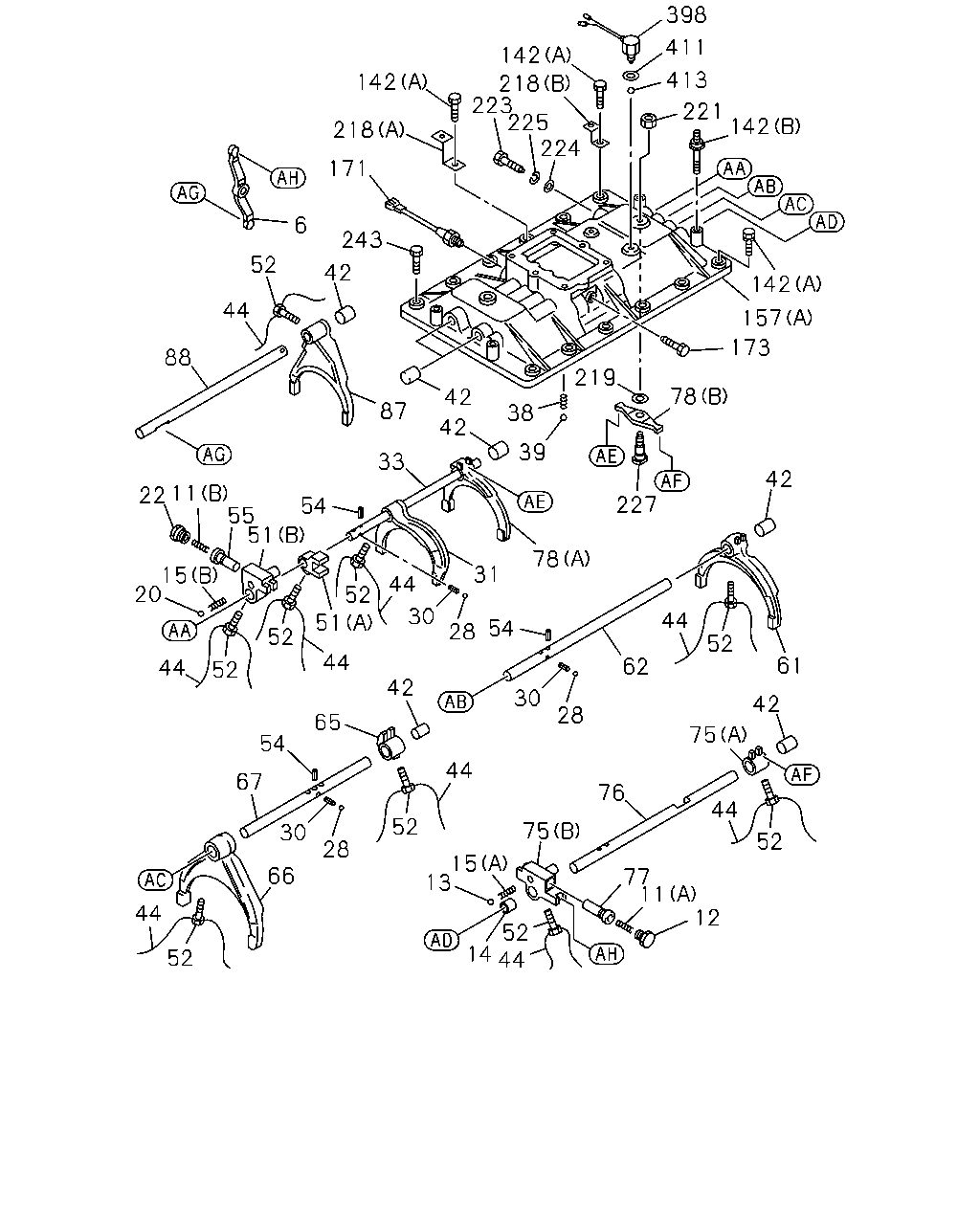

çizim 23070
12 11 77 52 44 14 75 15 13 76 44 52 42 75 61 52 44 42 62 28 30 44 52 28 66 52 44 30 67 54 65 42 28 54 31 30 44 52 51 52 44 52 44 20 15 51 55 11 22 54 33 87 42 42 38 39 219 78 227 78 173 157 142 142 221 413 411 398 142 223 218 225 224 142 218 171 243 6 52 42 44 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 LEVER; RELAY 9-33511-402-1 01 1 0105- ●
6 LEVER; RELAY 1-33511-233-1 01 1 0105- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0105-0106 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0107- ● ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0105-0106 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0107- ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-0 01 1 0105-0106 ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0105-0106 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0107- ● ● ● ● ●
14 STOPPER; SHIFT ROD,7TH TO RR 1-33537-019-0 01 1 0105- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0105-0106 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0107- ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0105-0106 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0107- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 0105- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105-0106 ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107- ● ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-0 01 1 0105-0106 ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105-0106 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ● ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105-0106 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-386-1 01 1 0105- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-291-1 01 1 0105- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-425-1 01 1 0105- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-426-1 01 1 0105- ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105-0106 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0107- ● ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ●
39 BALL; DETENT 1-09843-012-0 04 1 0105-0106 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0107- ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0105-0106 ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0107- ● ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 01 1 0105- ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0105-0106 ● ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0107- ● ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 0105- ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0105-0106 ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0107- ● ●
51 BLOCK; SHIFT,1ST & 2ND
(C) 		1-33511-286-1 01 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33511-298-4 01 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-605-0 01 1 0105- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 0105- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0105-0106 ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0107- ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105-0106 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0107- ● ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ●
55 SLEEVE; 1ST & 2ND 1-33516-022-1 01 1 0105- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-315-1 01 1 0105- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-314-2 01 1 0105- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-428-1 01 1 0105- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-293-2 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-605-0 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-286-1 01 1 0105- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-297-1 01 1 0105- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-273-1 01 1 0105- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-430-1 01 1 0105- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-429-1 01 1 0105- ●
75 BLOCK ASM; SHIFT,REV & 7TH
(A) 		1-33511-236-1 01 1 0105- ●
75 BLOCK ASM; SHIFT,REV & 7TH
(B) 		1-33511-300-4 01 1 0105- ●
76 ROD; SHIFT,REV & 7TH BLOCK 1-33531-432-1 01 1 0105- ●
77 SLEEVE; REV & 7TH 1-33516-022-1 01 1 0105- ●
78 ARM; SHIFT,REV
(A) 		1-33511-245-1 01 1 0105- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0105- ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-313-1 01 1 0105- ●
87 ARM; SHIFT,7TH 1-33511-275-1 01 1 0105- ●
88 ROD; SHIFT,REV & 7TH ARM 1-33531-433-1 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105- ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105-0106 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105-0106 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-2 01 1 0105-0106 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-2 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 0105-0106 ● ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107- ● ● ● ● ● ●
173 SCREW; SET,7TH TO REV 1-09000-446-1 01 1 0105- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0107- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0107- ● ● ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0105- ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0105- ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0105- ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0105-0603 ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105-0106 ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0107- ● ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28080-610-0 01 1 0105-0512 ● ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 0105-0106 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0107-0602 ● ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0105-0106 ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0107- ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0105-0106 ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0107- ● ● ● ●

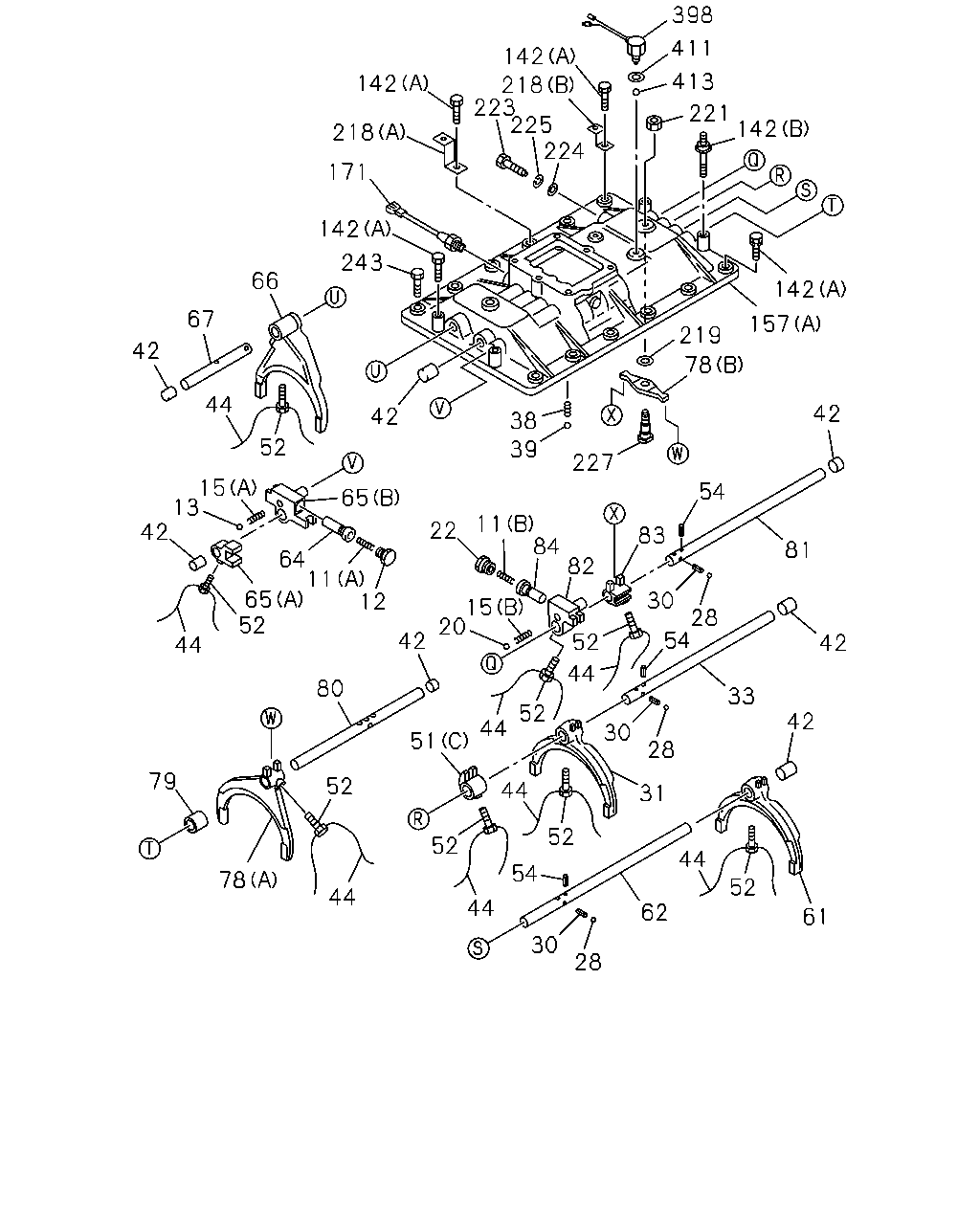

çizim 23071
61 52 44 62 28 30 54 44 52 31 28 30 33 42 42 81 42 54 83 28 30 54 52 44 82 84 11 22 15 20 42 52 44 44 52 51 52 44 78 79 80 12 11 64 65 52 44 42 13 15 65 52 44 67 42 66 42 38 39 227 78 219 157 142 142 221 413 411 398 142 218 223 225 224 142 218 171 142 243
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0105-0106 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0107- ● ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0105-0106 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0107- ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-0 01 1 0105-0106 ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0105-0106 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0107- ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0105-0106 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0107- ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0105-0106 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0107- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 0105- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105-0106 ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107- ● ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-0 01 1 0105-0106 ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105-0106 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ● ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105-0106 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-386-1 01 1 0105- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-291-1 01 1 0105- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-425-1 01 1 0105- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-426-1 01 1 0105- ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105-0106 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0107- ● ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ●
39 BALL; DETENT 1-09843-012-0 04 1 0105-0106 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0107- ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0105-0106 ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0107- ● ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 01 1 0105- ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0105-0106 ● ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0107- ● ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 0105- ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0105-0106 ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0107- ● ●
51 BLOCK; SHIFT,1ST & 2ND
(C) 		1-33511-286-1 01 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33511-298-4 01 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-605-0 01 1 0105- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 0105- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0105-0106 ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0107- ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105-0106 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0107- ● ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-315-1 01 1 0105- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-314-2 01 1 0105- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-428-1 01 1 0105- ● ●
64 SLEEVE; SHIFT BLOCK,5TH TO 6TH 1-33516-022-1 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-293-2 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-605-0 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-286-1 01 1 0105- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-297-1 01 1 0105- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-273-1 01 1 0105- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-430-1 01 1 0105- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-429-1 01 1 0105- ●
78 ARM; SHIFT,REV
(A) 		1-33511-245-1 01 1 0105- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0105- ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-313-1 01 1 0105- ●
79 STOPPER; REV BLOCK 9-33537-018-0 01 1 0105- ●
80 ROD; SHIFT,REV ARM 1-33531-427-1 01 1 0105- ●
81 ROD; SHIFT,REV BLOCK 1-33531-424-1 01 1 0105- ●
82 BLOCK; SHIFT,REV 1-33511-298-4 01 1 0105- ●
83 BLOCK; SHIFT,REV LEVER 1-33511-038-2 01 1 0105- ●
84 SLEEVE; REV 1-33516-022-1 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105- ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105-0106 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105-0106 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-2 01 1 0105-0106 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-2 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 0105-0106 ● ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0107- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0107- ● ● ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0105- ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0105- ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0105- ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0105-0603 ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105-0106 ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0107- ● ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28080-610-0 01 1 0105-0512 ● ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 0105-0106 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0107-0602 ● ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0105-0106 ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0107- ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0105-0106 ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0107- ● ● ● ●
çizim 23175
52 44 52 44 12 11 520 28 30 44 52 514 4 54 44 52 1 2 518 35 15 13 28 30 517 44 52 49 50 4 44 52 30 54 28 52 44 44 52 26 54 44 52 20 15 22 11 18 54 2 17 30 28 52 25 29 44 17 152 227 342 7 171 39 38 516 70 515 42 157 142 71 218 218 142 142 142 158 398 411 413 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-175-1 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0105-0106 ●
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0107- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-408-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 0105- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0105-0106 ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0107- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0105-0106 ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0107- ● ●
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-414-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-421-1 01 1 0105-0106 ●
4 ROD; SHIFT,6TH
(A) 		1-33531-421-1 01 1 0107- ● ●
4 ROD; SHIFT,6TH
(B) 		1-33531-422-1 01 1 0105-0106 ●
4 ROD; SHIFT,6TH
(B) 		1-33531-422-1 01 1 0107- ● ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0105-0106 ● ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0107- ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0105-0106 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0107- ● ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0105-0106 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0107- ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-0 01 1 0105-0106 ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0105-0106 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0107- ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0105-0106 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0107- ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0105-0106 ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0107- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-038-2 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-371-2 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0105-0106 ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0107- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0105-0106 ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0107- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0105-0106 ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0107- ● ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-034-1 01 1 0105- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105-0106 ● ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0107- ● ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-0 01 1 0105-0106 ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0107- ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-184-1 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0105-0106 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0107- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-410-1 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0105-0106 ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0107- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105-0106 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0107- ● ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0105-0309 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0310- ● ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-364-1 01 1 0105- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0105-0106 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0107-0309 ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105-0106 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0107- ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-404-1 01 1 0105- ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-420-1 01 1 0105-0106 ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-420-1 01 1 0107- ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105-0106 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0107- ● ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ●
39 BALL; DETENT 1-09843-012-0 04 1 0105-0106 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0107- ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0105-0106 ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0107- ● ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 01 1 0105- ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0105-0106 ● ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0107- ● ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 0105- ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0105-0106 ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0107- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-369-1 01 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-465-0 01 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0105-0106 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0107- ● ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 0105- ●
50 ARM; SHIFT,6TH 1-33511-437-0 01 1 0105-0106 ●
50 ARM; SHIFT,6TH 1-33511-437-0 01 1 0107- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 0105- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0105-0106 ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0107- ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105-0106 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0107- ● ● ● ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0105-0106 ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0107- ● ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 0105-0106 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 0107-0602 ● ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105- ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105-0106 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105-0106 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ● ● ● ●
152 LEVER; RELAY,SELECT 1-33511-428-0 01 1 0105-0106 ●
152 LEVER; RELAY,SELECT 1-33511-428-0 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-2 01 1 0105-0106 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-2 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0106 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0107- ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 0105-0106 ● ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0107- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0107- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105-0106 ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0107- ● ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105-0106 ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0107- ● ●
342 BOLT
M14X20 		1-09044-078-0 02 1 0105-0106 ●
342 BOLT
M14X20 		1-09044-078-0 02 1 0107- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 0105-0106 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0107-0602 ● ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0105-0106 ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0107- ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0105-0106 ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0107- ● ● ● ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 0105-0106 ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 0107- ● ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-082-0 01 1 0105-0106 ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-082-0 01 1 0107- ● ●
516 SPINDLE; 6TH & 7TH 1-33519-012-0 01 1 0105-0106 ●
516 SPINDLE; 6TH & 7TH 1-33519-012-0 01 1 0107- ● ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-395-1 01 1 0105-0106 ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-395-1 01 1 0107- ● ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-293-2 01 1 0105-0106 ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-293-2 01 1 0107- ● ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 0105-0106 ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 0107- ● ●
çizim 23176
272 274 271 157 142 292 167 142 187 296 188 181 293 289 285 130 163 335 323 321 319 324 433 317 315 292 317 433 292 292 295 296 297 271 289 298 306 306
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-119-0 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0105-0106 ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0105-0106 ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0107- ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0107- ● ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105- ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105-0106 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105-0106 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-2 01 1 0105-0106 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-2 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0105-0106 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0105-0106 ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-4 01 1 0105- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0105-0106 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0105-0106 ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0107- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0107- ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-138-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0105- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0105-0106 ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0105-0106 ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0105-0106 ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107-0201 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0202- ● ● ● ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0105-0106 ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0105-0106 ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0107- ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0107- ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0105-0106 ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0105-0106 ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0107- ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0107- ● ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0105-0106 ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0105-0106 ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0107- ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0107- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0105-0106 ● ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107- ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0105-0106 ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0107- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0105-0106 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0105-0106 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107- ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0105-0106 ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0107- ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0105-0106 ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0105-0106 ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0105-0106 ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0107-0507 ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0105-0106 ● ● ● ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0107- ● ● ● ● ● ●
297 STOPPER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33537-020-0 01 1 0105- ●
297 STOPPER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33537-012-0 01 1 0105- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-146-0 01 1 0105- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0105-0106 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0105-0106 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0107-0109 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0107-0109 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0105-0307 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-179-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 0105- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0105-0106 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0105-0106 ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0107-0512 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0107-0512 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0105-0106 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0105-0106 ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0107-0512 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0107-0512 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105- ● ● ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105- ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-756-0 01 1 0105- ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT 1-33651-754-0 01 1 0105-0106 ●
315 LEVER; SELECT 1-33651-754-0 01 1 0107- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0105-0106 ● ● ● ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0107- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105- ● ● ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-752-0 01 1 0105- ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0105-0106 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0107- ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0105-0106 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0105-0106 ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 0105-0512 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0601- ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0105-0106 ● ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0107- ● ● ● ● ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE 		0-28081-060-0 01 1 0105-0106 ● ● ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0105-0106 ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE 		0-28081-060-0 01 1 0107- ● ● ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0107- ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0105-0106 ● ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0105-0106 ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0107- ● ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0107- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0105-0106 ● ● ● ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0107- ● ● ● ● ● ●
çizim 23177
130 163 273 274 270 142 157 142 167 187 296 297 270 289 298 295 296 292 292 188 293 292 289 181 285 321 320 433 317 315 292 317 433 319 323 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-119-0 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0105-0106 ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0105-0106 ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0107- ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0107- ● ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105- ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105-0106 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105-0106 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-2 01 1 0105-0106 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-2 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0105-0106 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0105-0106 ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-4 01 1 0105- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0105-0106 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0105-0106 ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0107- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0107- ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-138-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0105- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0105-0106 ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0105-0106 ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0105-0106 ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107-0201 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0202- ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN 		1-09811-006-0 01 1 0105- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK 		1-09811-057-0 01 1 0105- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN 		1-09811-260-0 01 1 0105- ● ● ● ●
273 PIN; SPR,STOPPER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09748-016-0 01 1 0105- ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0105-0106 ● ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107- ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0105-0106 ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0107- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0105-0106 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0105-0106 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107- ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0105-0106 ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0107- ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0105-0106 ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0105-0106 ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0105-0106 ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0107-0507 ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0105-0106 ● ● ● ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0107- ● ● ● ● ● ●
297 STOPPER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33537-020-0 01 1 0105- ●
297 STOPPER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33537-012-0 01 1 0105- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-146-0 01 1 0105- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0105-0106 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0105-0106 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0107-0109 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0107-0109 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0105-0307 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-179-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 0105- ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105- ● ● ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105- ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-756-0 01 1 0105- ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT 1-33651-754-0 01 1 0105-0106 ●
315 LEVER; SELECT 1-33651-754-0 01 1 0107- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0105-0106 ● ● ● ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0107- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105- ● ● ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-752-0 01 1 0105- ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0105-0106 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0107- ● ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-630-0 01 1 0105- ● ● ●
320 SHAFT; LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-630-0 01 1 0105- ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0105-0106 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0105-0106 ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 0105-0512 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0601- ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0105-0106 ● ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0107- ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 0105-0201 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 0202-0602 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0105-0106 ● ● ● ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0107- ● ● ● ● ● ●
çizim 24917
277 19 279 283 272 275 284 276 280 130 281 282 163 433 317 335 292 315 317 433 324 319 321 323 163 130 272 274 271 157 142 142 158 142 167 187 296 271 289 298 306 306 295 296 292 292 188 293 292 289 285 181
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 SPRING; COIL COMP 1-09580-438-0 01 1 0105- ● ●
19 SPRING; COIL COMP 1-09580-519-0 01 1 0105- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-119-0 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0105-0106 ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0105-0106 ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0107- ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0107- ● ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105- ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105-0106 ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0107- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105-0106 ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0107- ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0107- ● ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0106 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0107- ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-2 01 1 0105-0106 ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-2 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0107- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105-0106 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0107- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0106 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0107- ● ● ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0105-0106 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0105-0106 ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0107- ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-4 01 1 0105- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0105-0106 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0105-0106 ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0107- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0107- ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-138-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0105- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0105-0106 ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0107- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0105-0106 ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0107- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0105-0106 ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0107-0201 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0202- ● ● ● ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0105-0106 ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0105-0106 ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0107- ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0107- ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0105-0106 ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0105-0106 ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0107- ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0107- ● ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0105-0106 ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0105-0106 ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0107- ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0107- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0105-0106 ● ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0107- ● ● ● ● ● ●
275 BLOCK; OBSTRUCT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-031-1 01 1 0105- ●
275 BLOCK; OBSTRUCT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-027-0 01 1 0105- ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 0105- ●
277 PLATE; SPRING SEAT 1-33529-009-0 01 1 0105- ●
279 BOLT; STOPPER
ASSISTOR SHIFT CONTROL<WX8> M5X8 		0-20800-508-0 01 1 0105- ●
280 SPRING; COIL TENSION
ASSISTOR SHIFT CONTROL<WX8> 		1-09583-285-0 01 1 0105- ●
280 SPRING; COIL TENSION
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09583-255-0 01 1 0105- ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-030-1 01 1 0105- ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 0105- ●
283 STOPPER; SHIFT SHAFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-032-0 01 1 0105- ●
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 0105- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0105-0106 ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0107- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0105-0106 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0107-0307 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0105-0106 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0107- ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0105-0106 ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0107- ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0105-0106 ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0105-0106 ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0107- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0105-0106 ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0107-0507 ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0105-0106 ● ● ● ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0107- ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-146-0 01 1 0105- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0105-0106 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0105-0106 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0107-0109 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0107-0109 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0105-0307 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-179-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 0105- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0105-0106 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0105-0106 ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0107-0512 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0107-0512 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0105-0106 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0105-0106 ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0107-0512 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0107-0512 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105- ● ● ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105- ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-756-0 01 1 0105- ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT 1-33651-754-0 01 1 0105-0106 ●
315 LEVER; SELECT 1-33651-754-0 01 1 0107- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0105-0106 ● ● ● ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0107- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105- ● ● ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-752-0 01 1 0105- ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0105-0106 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0107- ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0105-0106 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0105-0106 ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0107- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 0105-0512 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0601- ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0105-0106 ● ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0107- ● ● ● ● ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE 		0-28081-060-0 01 1 0105-0106 ● ● ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0105-0106 ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE 		0-28081-060-0 01 1 0107- ● ● ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0107- ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0105-0106 ● ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0105-0106 ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0107- ● ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0107- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0105-0106 ● ● ● ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0107- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
