6-20 — SIDE PANEL AND STEP (#133258) — 49 parça

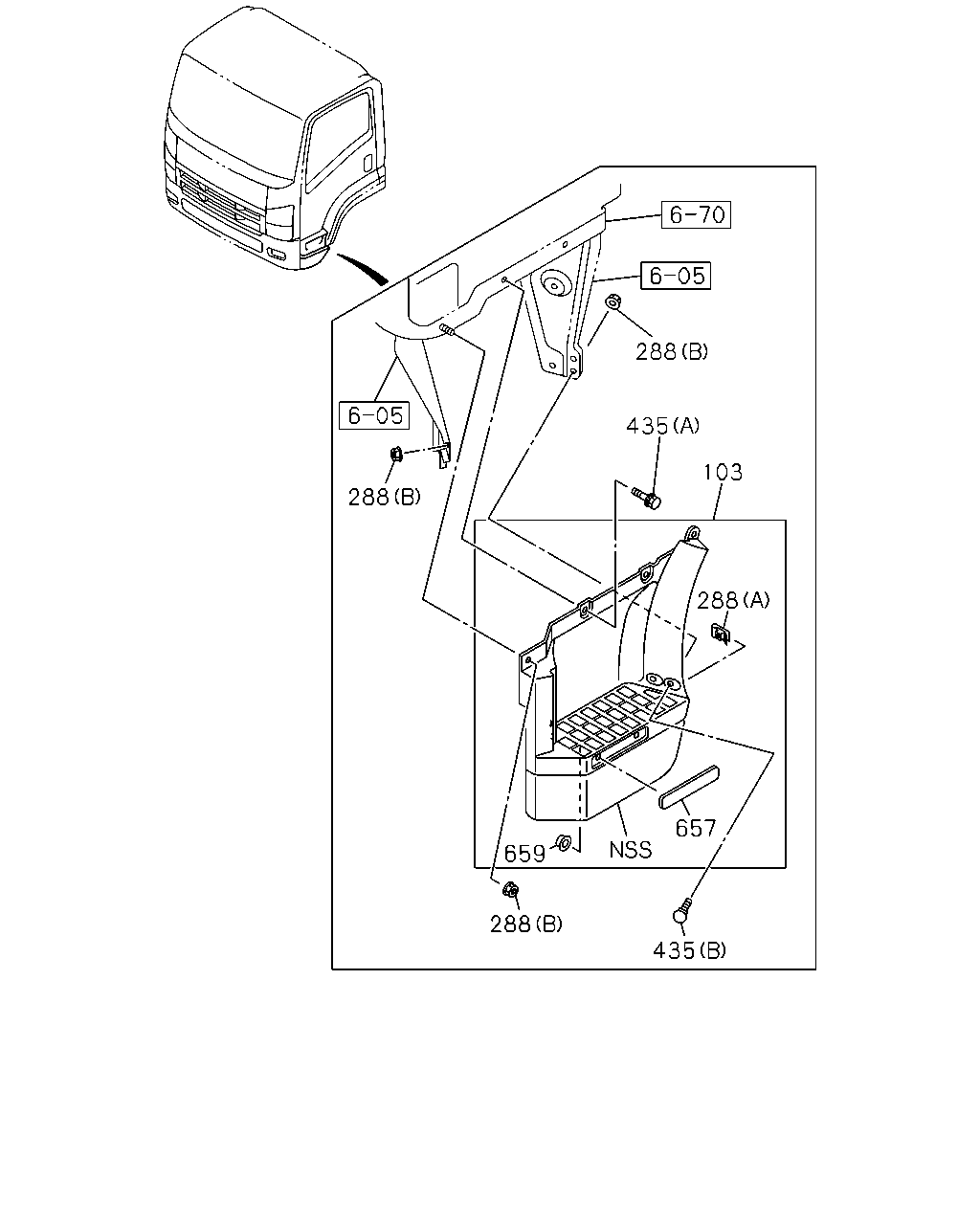

çizim 406733
288 435 103 288 288 659 657 288 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-329-3 01 1 1402-
103 PLATE; STEP 8-98037-327-3 01 1 1402-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1402-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1402-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1402-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1402-
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1402-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1402-

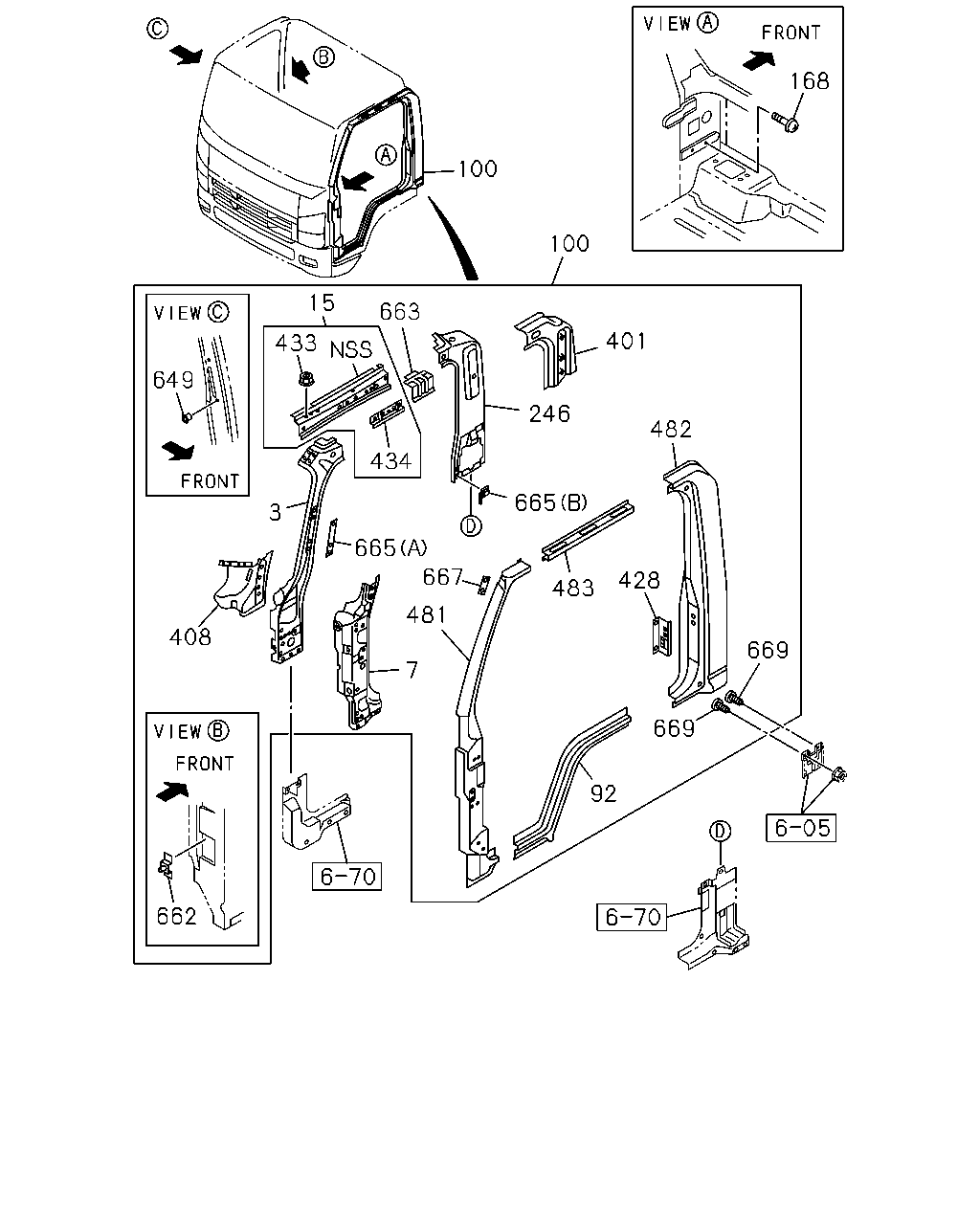

çizim 407748
100 100 168 649 433 15 663 401 482 665 667 665 434 3 408 662 92 669 483 428 669 7 481 246
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1402-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1402-
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1402-
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1402-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1402-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1402-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1402-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1402-
100 PANEL ASM; BODY SIDE
THA 		8-97948-574-1 01 1 1402-
100 PANEL ASM; BODY SIDE
THA 		8-97948-560-1 01 1 1402-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1402-
246 PANEL; RR PILLAR,INNER
THA 		8-97585-301-3 01 1 1402-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 1402-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97585-303-2 01 1 1402-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98065-791-0 01 1 1402-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1402-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1402-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1402-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1402-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1402-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1402-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1402-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1402-
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1402-
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1402-
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 1402-
482 PANEL; SIDE RR PILLAR 8-98055-466-1 01 1 1402-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1402-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1402-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1402-
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1402-
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1402-
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1402-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1402-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1402-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1402-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1402-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1402-
667 BRACKET; MIRROR 8-98109-948-0 02 1 1402-
669 STUD; FENDER
M8X18 		8-98013-113-1 02 1 1402-
669 STUD; FENDER
M8X18 		8-98013-113-1 02 1 1402-
