◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#133256) — 114 parça

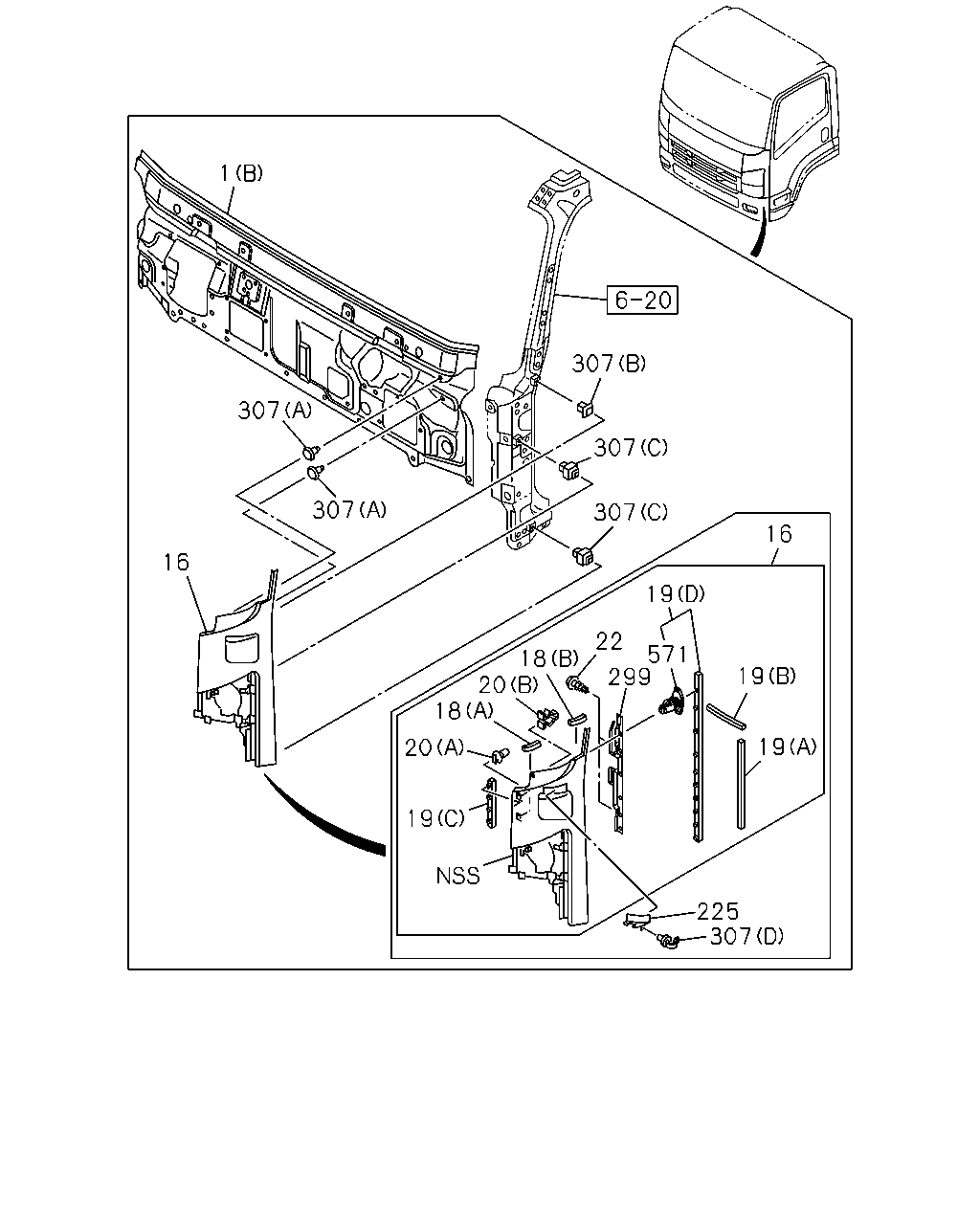

çizim 407491
307 225 19 19 16 19 571 299 22 18 20 18 20 19 16 307 307 1 307 307 307
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1402-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-931-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1402-
16 PANEL; FRONT,SIDE
WHITE THA 		8-97421-186-5 01 1 1402-
16 PANEL; FRONT,SIDE
WHITE THA 		8-97413-419-4 01 1 1402-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1402-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1402-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 02 1 1402-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 02 1 1402-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1402-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1402-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1402-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1402-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 1402-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 1402-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1402-
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1402-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1402-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1402-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1402-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1402-
307 GROMMET; FRT PANEL
(A) 		8-98034-363-1 04 1 1402-
307 GROMMET; FRT PANEL
(D) 		8-98028-743-0 01 1 1402-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1402-

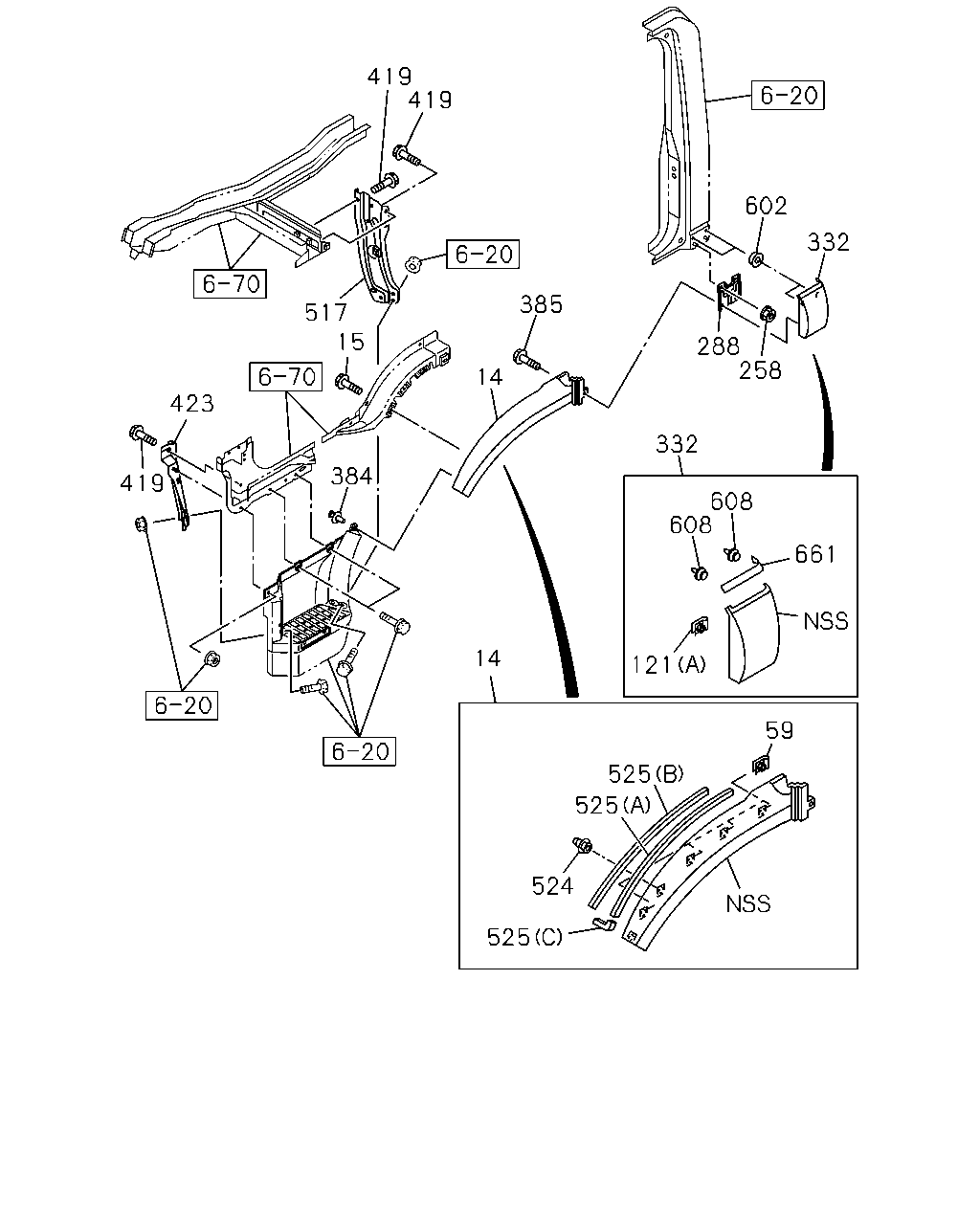

çizim 407610
525 524 525 59 525 121 608 608 661 332 258 288 332 602 385 14 384 14 419 423 517 419 419 15
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
THA 		8-98132-740-0 01 1 1402-
14 FENDER; FRT
THA 		8-98132-739-0 01 1 1402-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1402-
59 GROMMET; SCREW 8-94279-723-0 06 1 1402-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1402-
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1402-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1402-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1402-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1402-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1402-
258 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 04 1 1402-
288 BRACKET; FENDER SKIRT 8-98041-162-1 02 1 1402-
332 FENDER; RR
WHITE THA 		8-97413-426-0 01 1 1402-
332 FENDER; RR
WHITE THA 		8-97413-425-0 01 1 1402-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1402-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1402-
419 BOLT; STEP
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1402-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1402-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1402-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1402-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1402-
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 1402-
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 1402-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1402-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 04 1 1402-
608 CLIP
D5.4X8 		1-09983-154-0 04 1 1402-
661 FINISHER; FENDER RR 8-98072-722-0 01 1 1402-
661 FINISHER; FENDER RR 8-98041-171-1 01 1 1402-

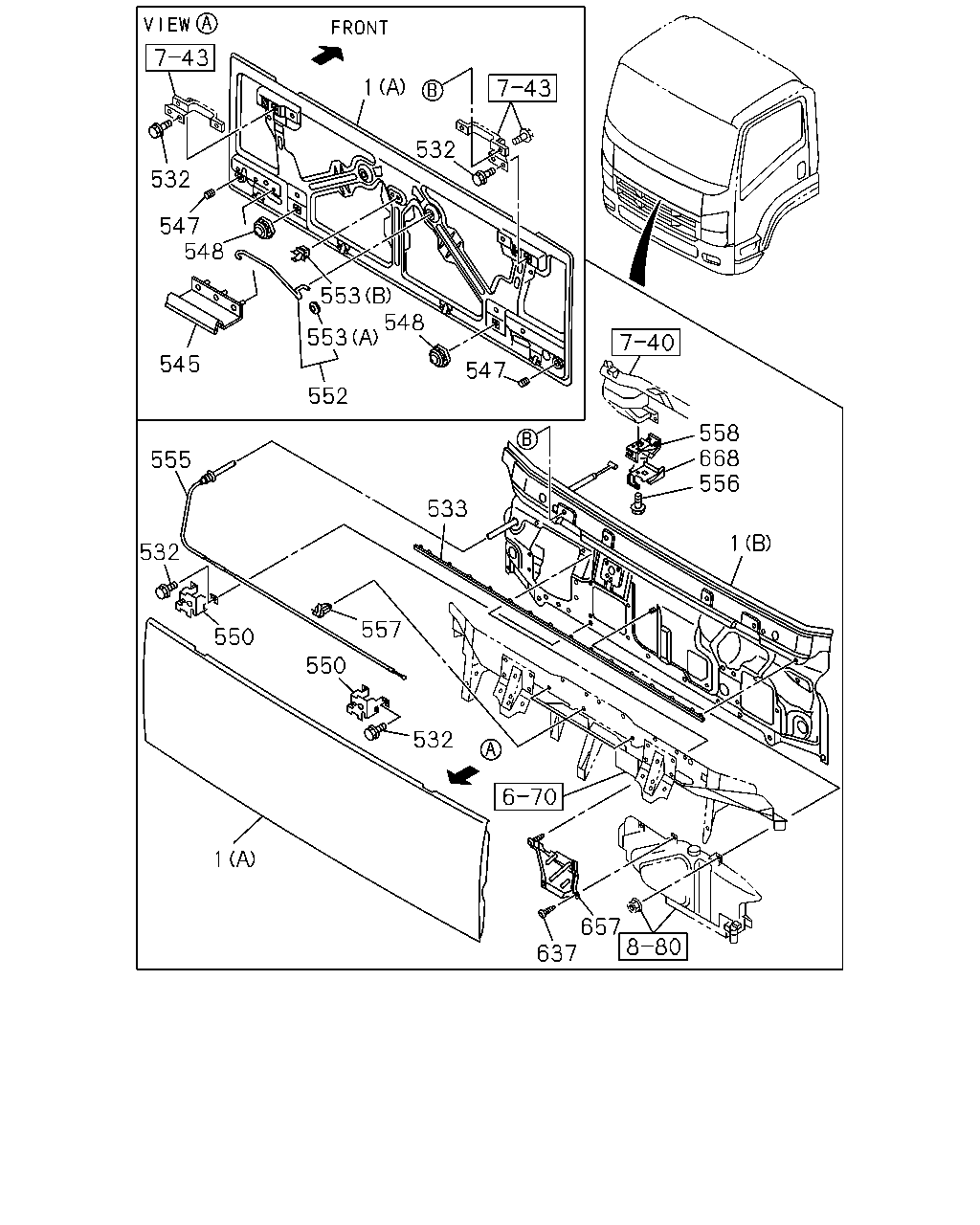

çizim 407744
1 556 668 558 547 552 548 553 553 532 1 532 547 548 545 555 532 550 550 557 533 532 1 657 637
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1402-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-931-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1402-
532 BOLT; FRT PANEL
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
533 SEAL; FRT PANEL
THA 		8-97926-492-0 01 1 1402-
545 SEAL; FRT LID
THA 		8-97926-488-0 01 1 1402-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1402-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1402-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1402-
552 STAY; FRT LID 8-98089-836-0 01 1 1402-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1402-
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 1402-
555 CABLE; FRT LID 8-98036-573-1 01 1 1402-
556 BOLT; CABLE
M6X16 FLANGE THA 		0-28650-616-0 01 1 1402-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1402-
558 LEVER; FRT LID 1-79338-007-1 01 1 1402-
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1402-
657 COVER; WIPER IDLER 8-98060-908-0 01 1 1402-
668 COVER; LEVER,FRT LID
THA 		8-97926-883-0 01 1 1402-

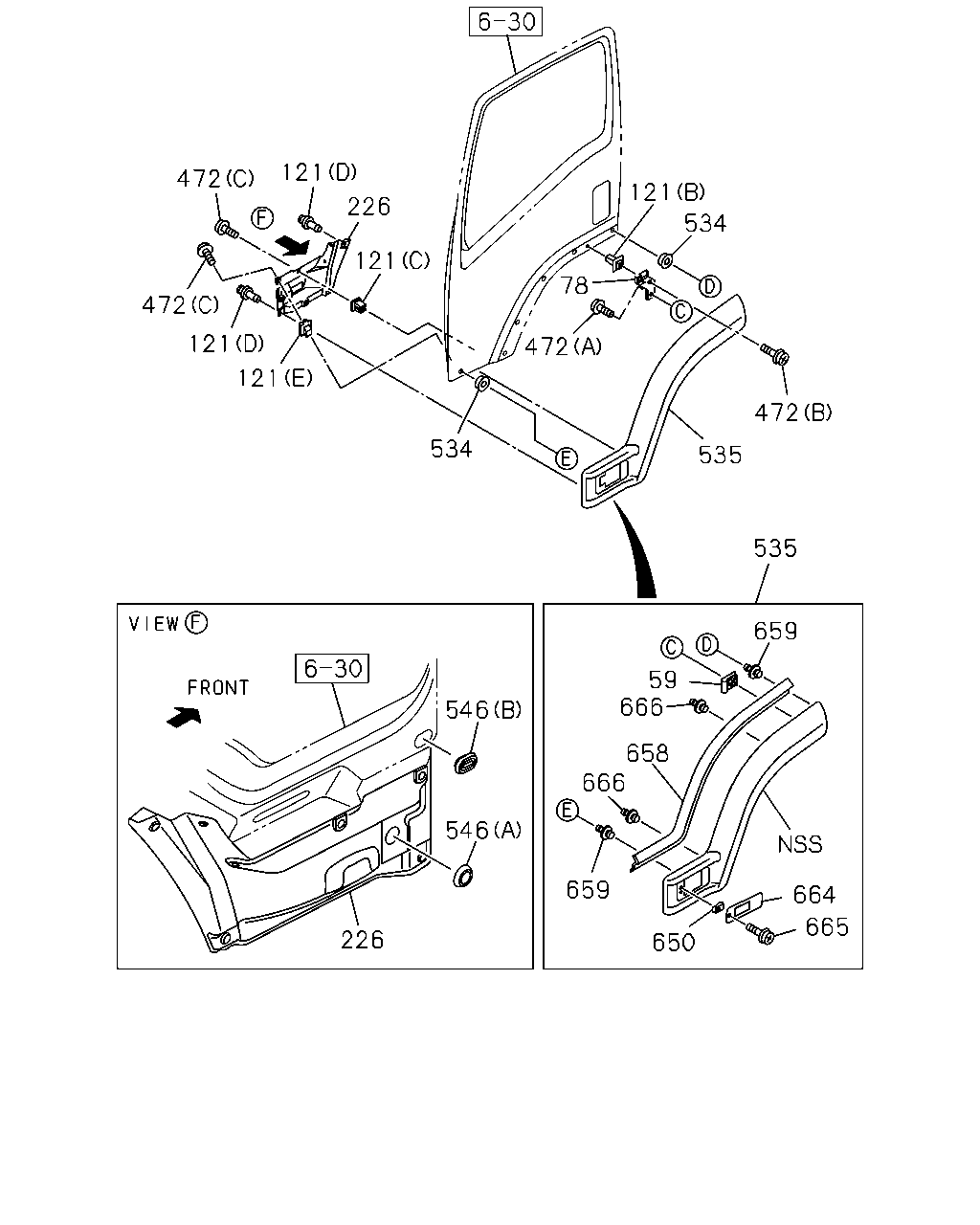

çizim 407775
659 650 664 665 666 658 666 59 659 535 535 472 534 121 472 78 534 121 121 472 472 121 121 226 546 546 226
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 06 1 1402-
78 BRACKET; FENDER 8-98041-166-1 01 1 1402-
78 BRACKET; FENDER 8-98041-165-1 01 1 1402-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1402-
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1402-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1402-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1402-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1402-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1402-
226 PROTECTOR; FRT 8-98037-713-2 01 1 1402-
226 PROTECTOR; FRT 8-98037-712-2 01 1 1402-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1402-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1402-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1402-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1402-
535 FENDER; BLISTER
WHITE THA 		8-97415-347-1 01 1 1402-
535 FENDER; BLISTER
WHITE THA 		8-97415-327-1 01 1 1402-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1402-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1402-
650 NUT; SPIRE 8-94279-501-0 02 1 1402-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1402-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1402-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1402-
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-557-0 01 1 1402-
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-529-0 01 1 1402-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1402-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1402-

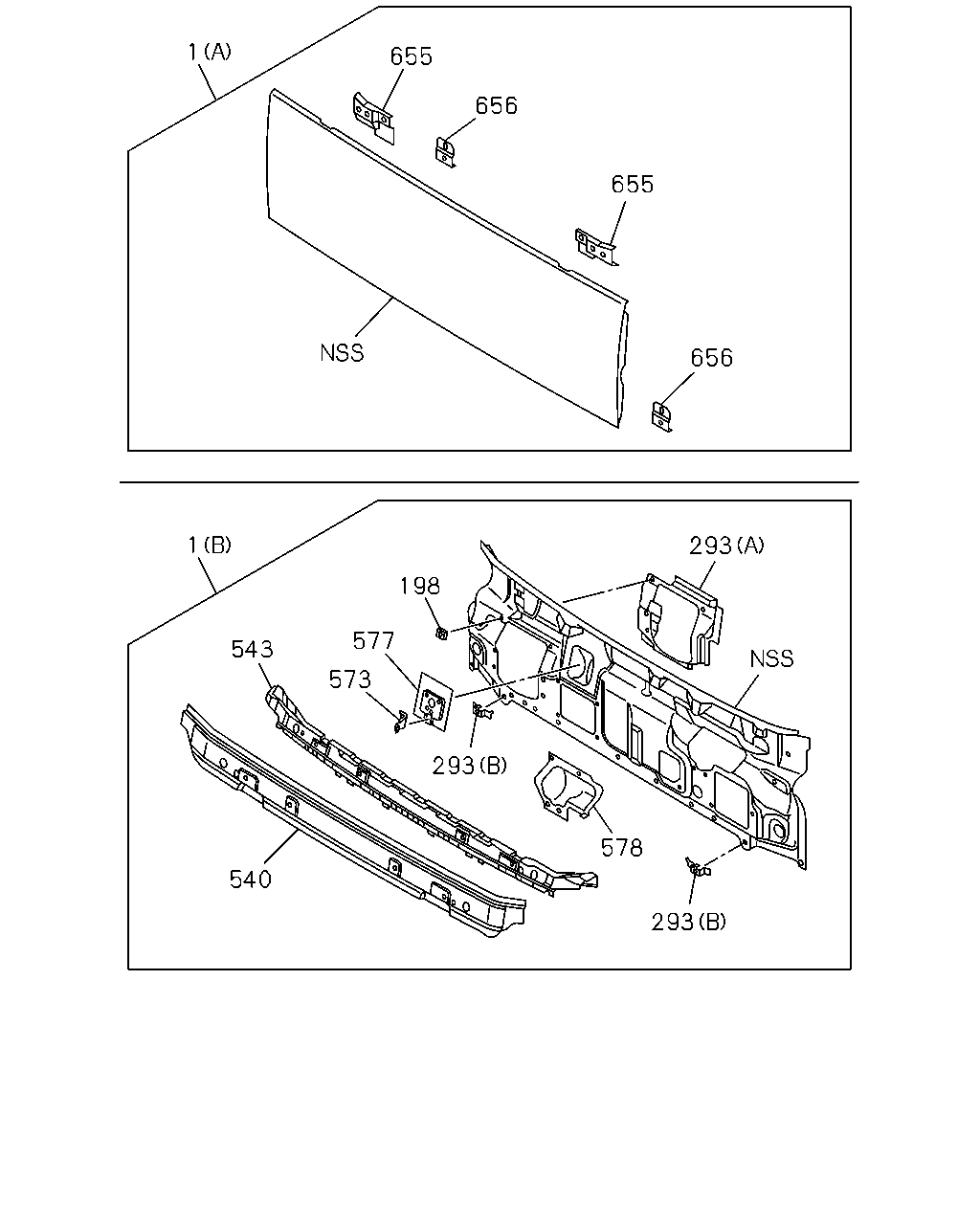

çizim 407845
293 656 655 656 655 1 1 543 577 198 573 540 293 578 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1402-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-931-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1402-
198 NUT; PANEL
M6 THA 		9-09114-086-0 02 1 1402-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1402-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1402-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1402-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1402-
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 1402-
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1402-
577 BRACKET; IDLER 8-97586-019-1 01 1 1402-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1402-
655 PATCH; HINGE 8-98031-263-0 01 1 1402-
655 PATCH; HINGE 8-98031-264-0 01 1 1402-
656 PATCH; STRIKER 8-98031-265-0 02 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
