Isuzu WW
▶
TRUCKS
▶
FRR
▶
11574 - FRR THAILAND EURO3
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

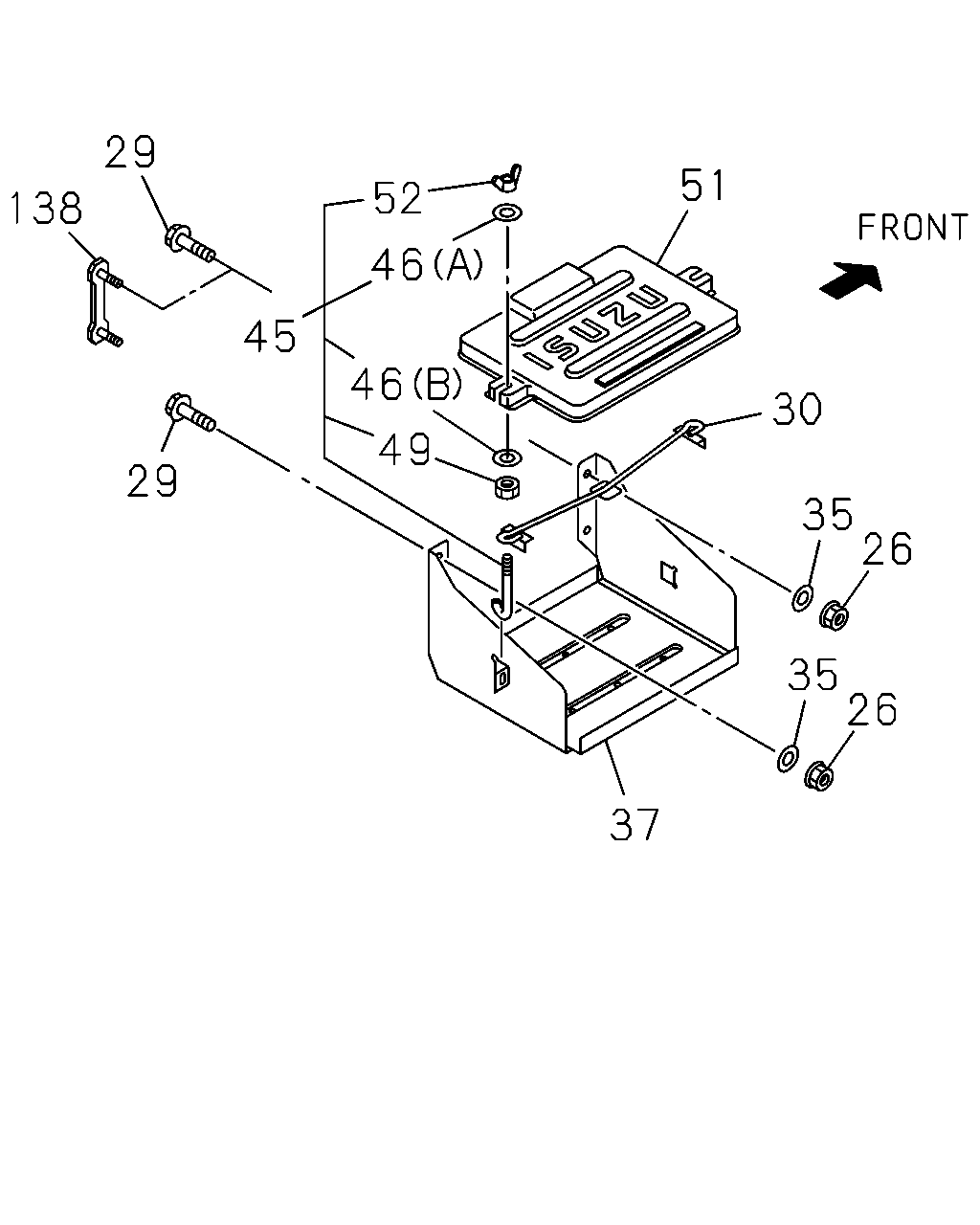

5-20 — BATTERY CARRIER
(#133252) — 14 parça
26
26
35
30
35
37
49
46
46
52
51
29
45
138
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1402-
29
BOLT; BRKT TO FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> M10X40 FLANGE THA
0-28651-040-0
04
1
1402-
29
BOLT; BRKT TO FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M10X40 FLANGE THA
0-28651-040-0
04
1
1402-
29
BOLT; BRKT TO FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M10X40 FLANGE THA
0-28651-040-0
02
1
1402-
30
PLATE; BATTERY
THA
8-97910-232-0
01
1
1402-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
1402-
37
BRACKET; BATTERY
THA
8-97923-653-1
01
1
1402-
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1402-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91614-608-0
02
1
1402-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1402-
49
NUT; ROD,BATTERY
M8
0-91110-508-0
02
1
1402-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1402-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1402-
138
STUD
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W>
8-98255-710-0
01
1
1402-
