5-01 — FRAME AND OTHER PARTS (#133249) — 77 parça

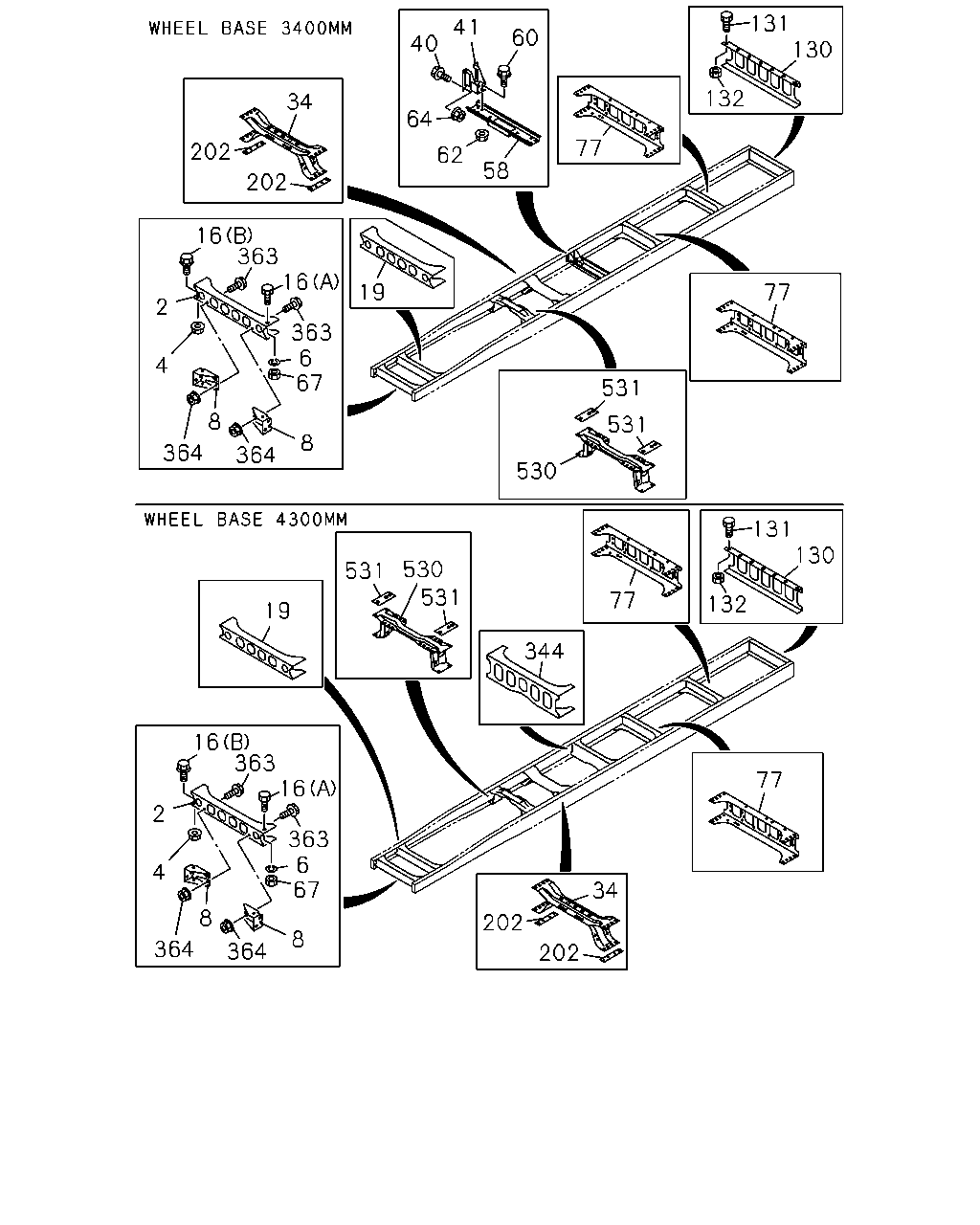

çizim 407113
530 531 77 131 132 77 77 344 530 531 19 531 16 2 4 364 67 6 363 16 363 364 8 8 19 202 202 34 40 64 41 62 60 58 77 531 131 132 130 130 2 4 364 364 67 16 363 16 363 6 8 8 202 202 34
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1402- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 FLANGE THA 		0-91180-214-0 02 1 1402- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1402- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-1 01 1 1402- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-2 01 1 1402- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1402- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X35 FLANGE 		0-28851-435-0 02 1 1402- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1402- ● ● ●
34 MEMBER; CROSS,3RD
THA 		8-97948-171-0 01 1 1402- ● ● ●
40 BOLT; BRKT TO FRAME
MZZ6W M/T<RSA> M10X35 FLANGE THA 		0-28651-035-0 08 1 1402- ●
41 BRACKET; CENTER BRG,FRAME SIDE
MZZ6W M/T<RSA> THA 		8-97615-973-2 01 1 1402- ●
41 BRACKET; CENTER BRG,FRAME SIDE
MZZ6W M/T<RSA> THA 		8-97615-974-2 01 1 1402- ●
58 MEMBER; CENTER BRG
MZZ6W M/T<RSA> 		8-97638-924-0 01 1 1402- ●
60 BOLT; MBR
MZZ6W M/T<RSA> M10X25 FLANGE THA 		0-28651-025-0 08 1 1402- ●
62 NUT; MBR
MZZ6W M/T<RSA> M10 FLANGE THA 		0-91180-110-0 08 1 1402- ●
64 NUT; BRKT TO FRAME
MZZ6W M/T<RSA> M10 FLANGE THA 		0-91180-110-0 08 1 1402- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1402- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1402- ● ● ●
130 MEMBER; CROSS,END
THA 		8-97924-239-0 01 1 1402- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER THA 		0-50541-025-0 04 1 1402- ● ● ●
132 NUT; END C/MBR
M10 THA 		0-91110-510-0 04 1 1402- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1402- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1402- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1402- ●
363 BOLT; GUSSET
M12X25 FLANGE THA 		0-28661-225-0 04 1 1402- ● ● ●
364 NUT; GUSSET
M12 FLANGE THA 		0-91180-212-0 04 1 1402- ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T<RSZ> 		8-97609-809-3 01 1 1402- ● ● ●
530 MEMBER; CROSS,T/M
MZZ6W M/T<RSA> 		8-97609-814-1 01 1 1402- ● ● ●
531 SPACER; C/MBR,T/M
MZW6P M/T<RSZ> THA 		8-97616-461-1 02 1 1402- ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T<RSA> THA 		8-97948-173-0 02 1 1402- ● ● ●

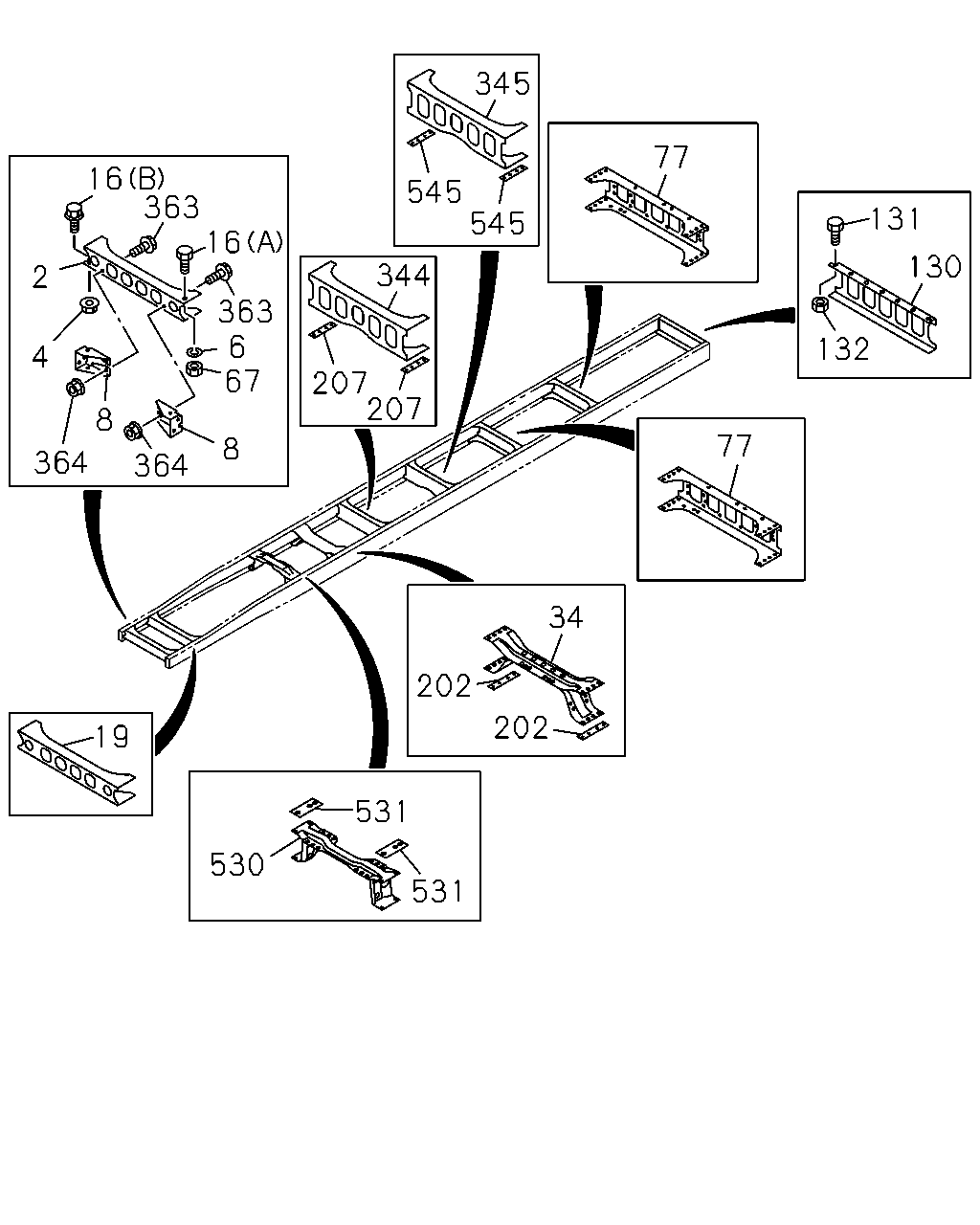

çizim 407577
16 16 363 363 67 6 8 364 364 8 4 2 545 545 345 344 207 207 19 530 531 531 202 202 34 77 77 131 130 132
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1402- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 FLANGE THA 		0-91180-214-0 02 1 1402- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1402- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-1 01 1 1402- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-2 01 1 1402- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1402- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X35 FLANGE 		0-28851-435-0 02 1 1402- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1402- ● ● ●
34 MEMBER; CROSS,3RD
THA 		8-97948-171-0 01 1 1402- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1402- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1402- ● ● ●
130 MEMBER; CROSS,END
THA 		8-97924-239-0 01 1 1402- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER THA 		0-50541-025-0 04 1 1402- ● ● ●
132 NUT; END C/MBR
M10 THA 		0-91110-510-0 04 1 1402- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1402- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1402- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1402- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1402- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1402- ●
363 BOLT; GUSSET
M12X25 FLANGE THA 		0-28661-225-0 04 1 1402- ● ● ●
364 NUT; GUSSET
M12 FLANGE THA 		0-91180-212-0 04 1 1402- ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T<RSZ> 		8-97609-809-3 01 1 1402- ● ● ●
530 MEMBER; CROSS,T/M
MZZ6W M/T<RSA> 		8-97609-814-1 01 1 1402- ● ● ●
531 SPACER; C/MBR,T/M
MZW6P M/T<RSZ> THA 		8-97616-461-1 02 1 1402- ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T<RSA> THA 		8-97948-173-0 02 1 1402- ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1402- ●

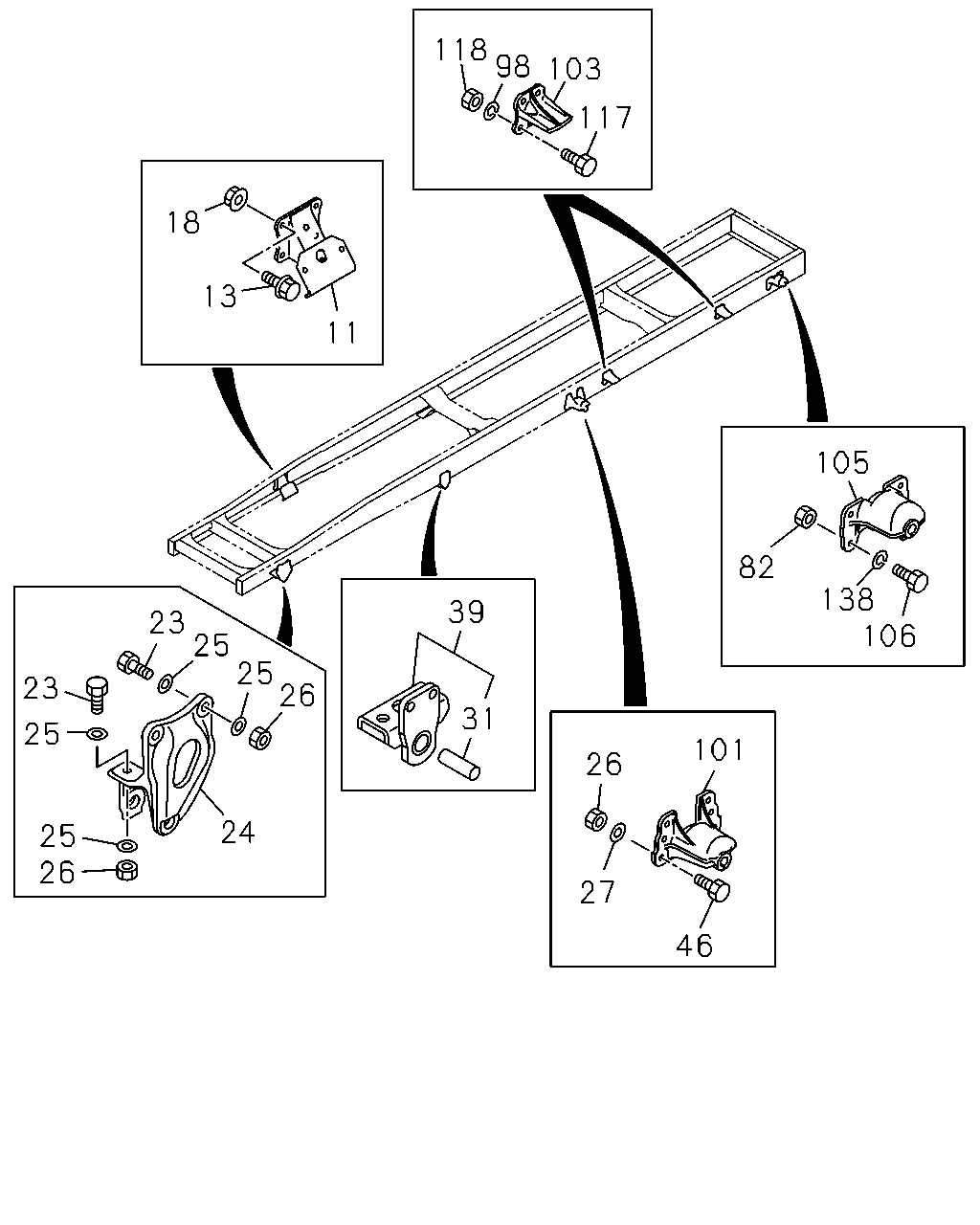

çizim 407605
118 117 103 98 11 13 18 23 25 25 26 24 26 25 25 23 39 31 26 101 27 46 106 138 82 105
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
THA 		8-97924-152-1 02 1 1402- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE THA 		0-28661-235-0 08 1 1402- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE THA 		0-91180-212-0 08 1 1402- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1402- ● ● ●
24 BRACKET; FRT SPR,FRT
THA 		8-97948-159-0 01 1 1402- ● ● ●
24 BRACKET; FRT SPR,FRT
THA 		8-97948-161-0 01 1 1402- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1402- ● ● ●
26 NUT; BRKT,SPR
M14 THA 		0-91110-514-0 20 1 1402- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-814-0 12 1 1402- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1402- ● ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-566-0 02 1 1402- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1402- ● ● ●
82 NUT; BRKT
M14 THA 		0-91110-514-0 10 1 1402- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1402- ● ● ●
101 BRACKET; RR SPR,FRT
THA 		8-97948-184-0 02 1 1402- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1402- ● ● ●
105 BRACKET; RR SPR,RR
THA 		8-97948-185-0 02 1 1402- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1402- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1402- ● ● ●
118 NUT; STOPPER
M14 THA 		0-91110-514-0 16 1 1402- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 10 1 1402- ● ● ●
