4-65 — REAR LEAF SPRING (#133247) — 24 parça

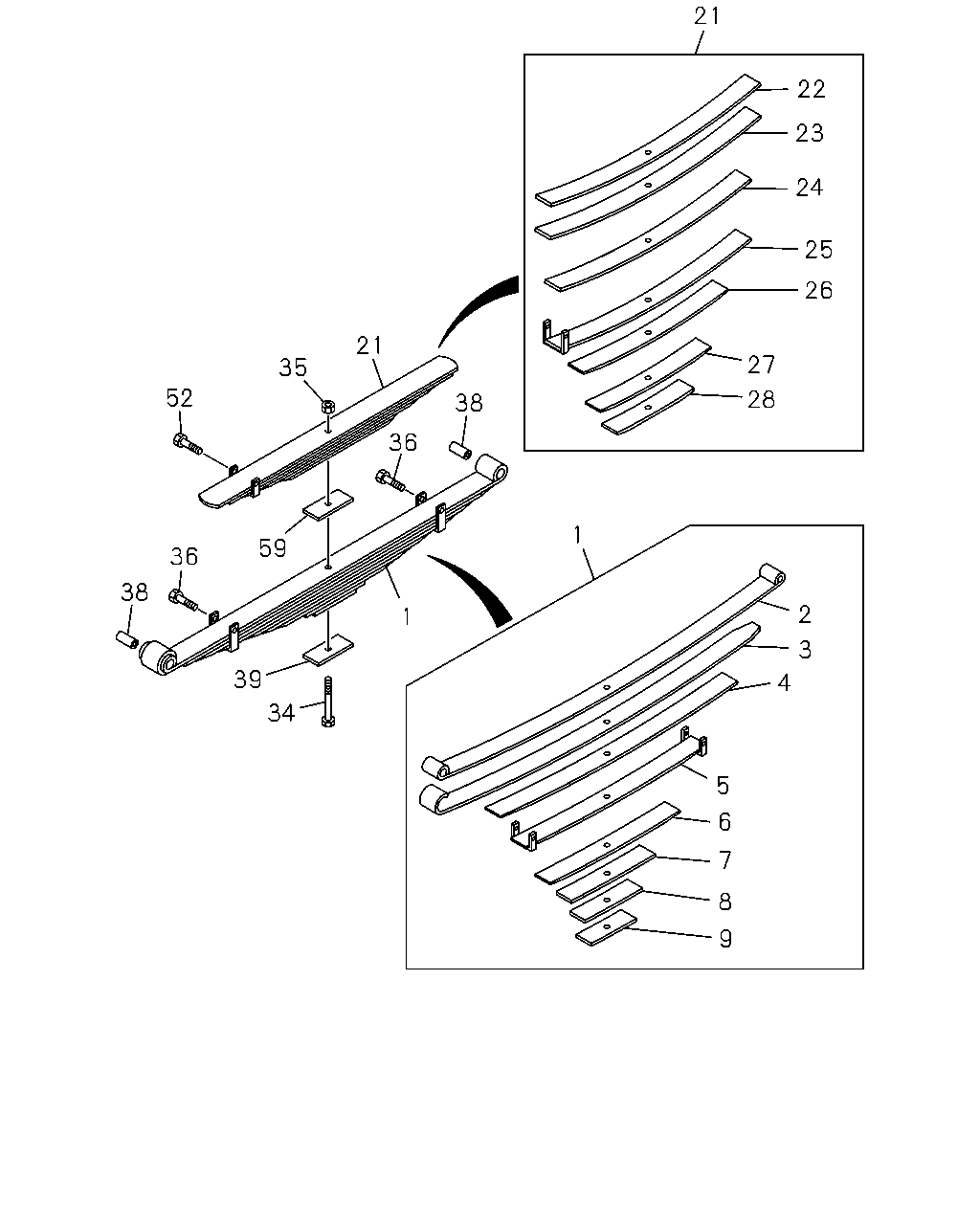

çizim 407638
9 8 7 5 6 4 2 3 1 1 34 39 36 38 59 52 35 21 36 38 28 27 26 25 24 23 22 21
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: A = 8-97924-265-0 		8-97924-492-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-97924-265-0 		8-98081-635-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-97924-265-0 		8-98081-636-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-97924-265-0 		8-98081-637-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: A = 8-97924-265-0 		8-97924-432-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: A = 8-97924-265-0 		8-98081-639-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: A = 8-97924-265-0 		8-98081-640-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
THA ASM PART: A = 8-97924-265-0 		8-98081-641-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
THA ASM PART: A = 8-97924-265-0 		8-98081-642-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: A = 8-97924-265-0 		8-97924-493-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: A = 8-97924-265-0 		8-98081-644-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: A = 8-97924-265-0 		8-98081-645-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: A = 8-97924-265-0 		8-98081-646-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: A = 8-97924-265-0 		8-97924-433-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: A = 8-97924-265-0 		8-98081-648-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
THA ASM PART: A = 8-97924-265-0 		8-98081-649-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
THA ASM PART: A = 8-97924-265-0 		8-98081-650-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190, THA ASM PART: A = 8-97924-265-0 		1-51356-352-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97924-265-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X87, THA ASM PART: A = 8-97924-265-0 		1-09000-335-0 02 1 -
38 BUSHING; LEAF SPR,RR
ID=25, THA ASM PART: A = 8-97924-265-0 		9-51151-032-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=6, THA ASM PART: A = 8-97924-265-0 		1-51377-359-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X87, THA ASM PART: A = 8-97924-265-0 		1-09000-335-0 01 1 -
59 SEAT; RR SPRING,SUB
T=6, THA ASM PART: A = 8-97924-265-0 		1-51377-359-0 01 1 -
