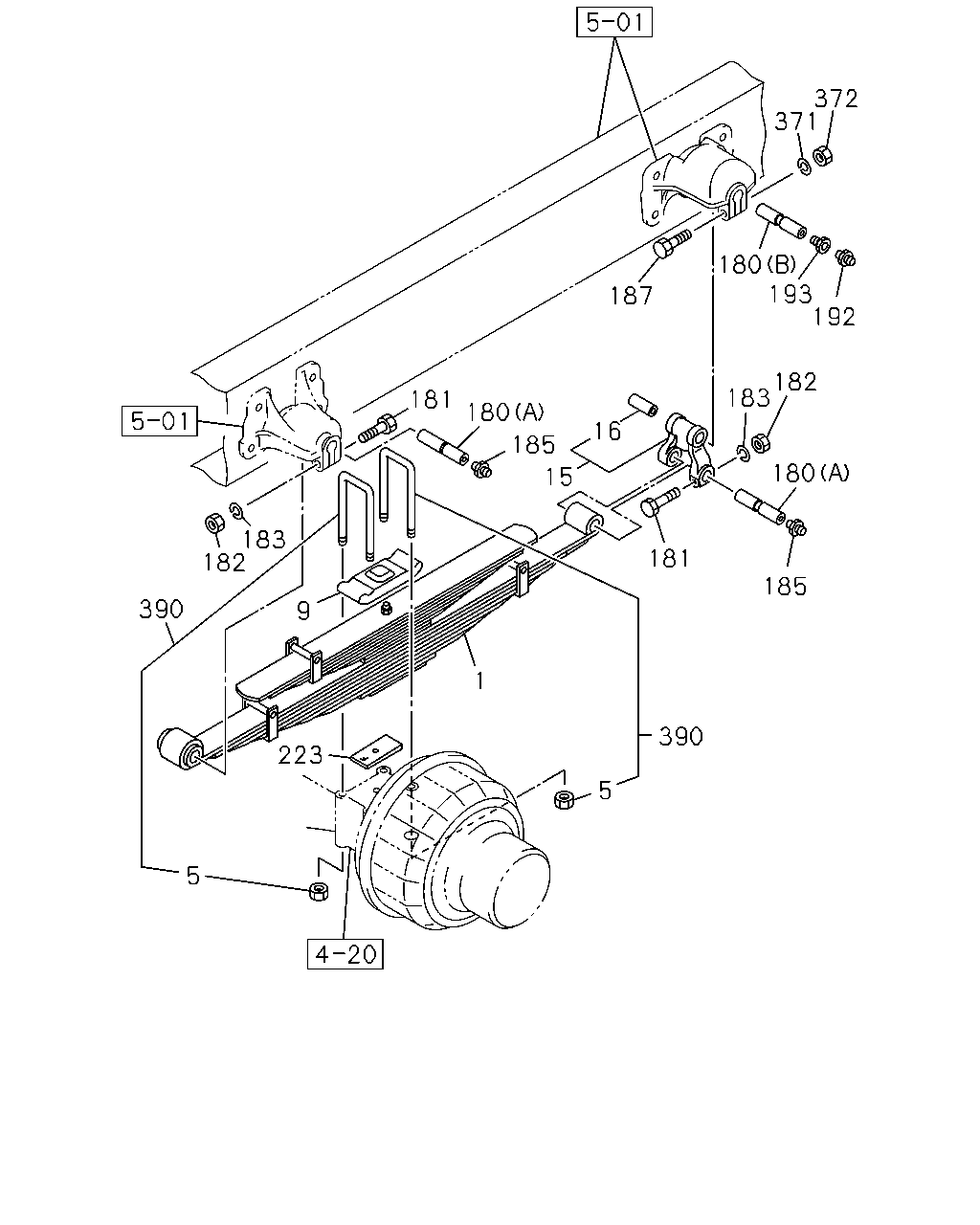

4-60 — REAR SUSPENSION
(#133246) — 22 parça
390
5
5
223
390
183
182
181
16
180
15
185
181
185
180
183
182
371
372
180
187
193
192
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA
8-97924-265-0
02
1
1402-
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
1402-
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
1402-
15
SHACKLE; RR SPR
1-51362-038-2
02
1
1402-
16
BUSHING; SHACKLE,RR SPR
ID=25
8-98082-176-0
02
1
1402-
180
PIN; RR SPR
(A) DO=25 L=115 PT1/8
1-51361-016-0
04
1
1402-
180
PIN; RR SPR
(B) DO=25 L=115 M12
1-51361-017-0
02
1
1402-
181
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
04
1
1402-
182
NUT; PIN,RR SPR
M12
0-91110-512-0
04
1
1402-
183
WASHER; LK,PIN,RR SPR
ID=12.2
0-91510-612-0
04
1
1402-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
187
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
02
1
1402-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
193
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
02
1
1402-
223
SPACER; U BOLT,RR SPR
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W>
1-51377-329-1
02
1
1402-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4300MM<43W>
8-98043-891-0
02
1
1402-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4900MM<49W>
8-98063-307-0
02
1
1402-
223
SPACER; U BOLT,RR SPR
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W>
8-98063-307-0
02
1
1402-
371
WASHER; LK,SHACKLE
ID=12.2
0-91510-612-0
02
1
1402-
372
NUT; SHACKLE
M12
0-91110-512-0
02
1
1402-
390
U-BOLT SET; RR SPRING
L=390
1-87870-508-0
04
1
1402-
