◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-02 - PROPELLER SHAFT GUARD ▶
4-02 — PROPELLER SHAFT GUARD (#133232) — 14 parça

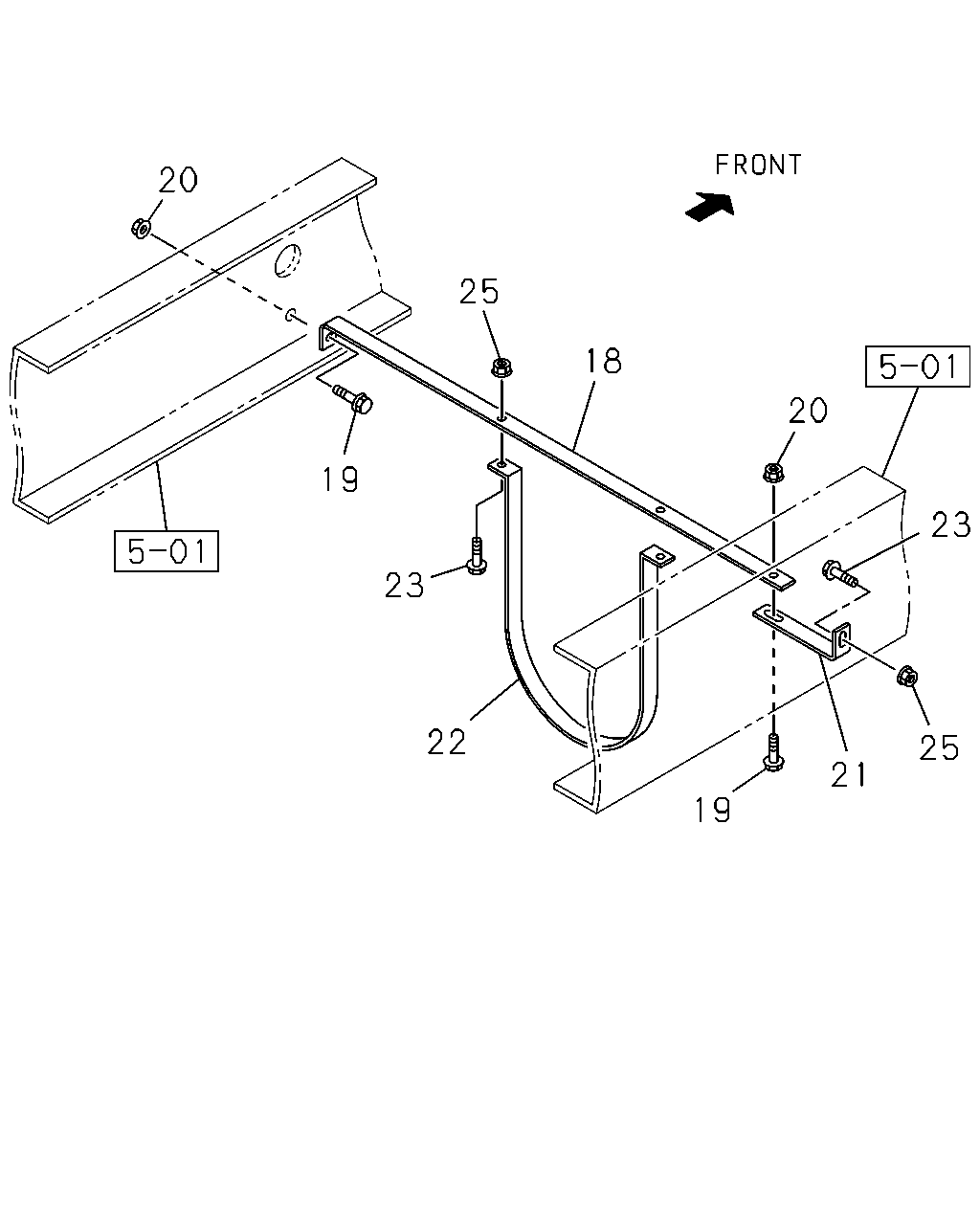

çizim 406689
20 23 25 21 19 22 23 19 18 25 20
BalonParca AdiParca NoAdetTipApplied Date
18 BRACKET; PROP SHAFT GUARD
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA 		1-53279-226-2 01 1 1402-
18 BRACKET; PROP SHAFT GUARD
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA 		1-53279-226-2 01 1 1402-
18 BRACKET; PROP SHAFT GUARD
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA 		8-98131-128-0 01 1 1402-
19 BOLT; BRKT,PROP SHAFT GUARD
M10X35 FLANGE THA 		0-28051-035-0 02 1 1402-
20 NUT; BRKT,PROP SHAFT GUARD
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
21 BRACKET; PROP GUARD
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA 		1-53279-228-1 01 1 1402-
21 BRACKET; PROP GUARD
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA 		1-53279-228-1 01 1 1402-
21 BRACKET; PROP GUARD
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA 		8-98098-347-0 01 1 1402-1410
21 BRACKET; PROP GUARD
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA 		8-98277-933-0 01 1 1411-
22 GUARD; PROP SHAFT
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> H=260 THA 		1-53279-230-0 01 1 1402-
22 GUARD; PROP SHAFT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> H=260 THA 		1-53279-230-0 01 1 1402-
22 GUARD; PROP SHAFT
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA 		8-98111-296-0 01 1 1402-
23 BOLT; GUARD
M10X35 FLANGE THA 		0-28051-035-0 03 1 1402-
25 NUT; GUARD
M10 FLANGE THA 		0-91180-210-0 03 1 1402-
