Sayfa 2-26A - Isuzu EPC

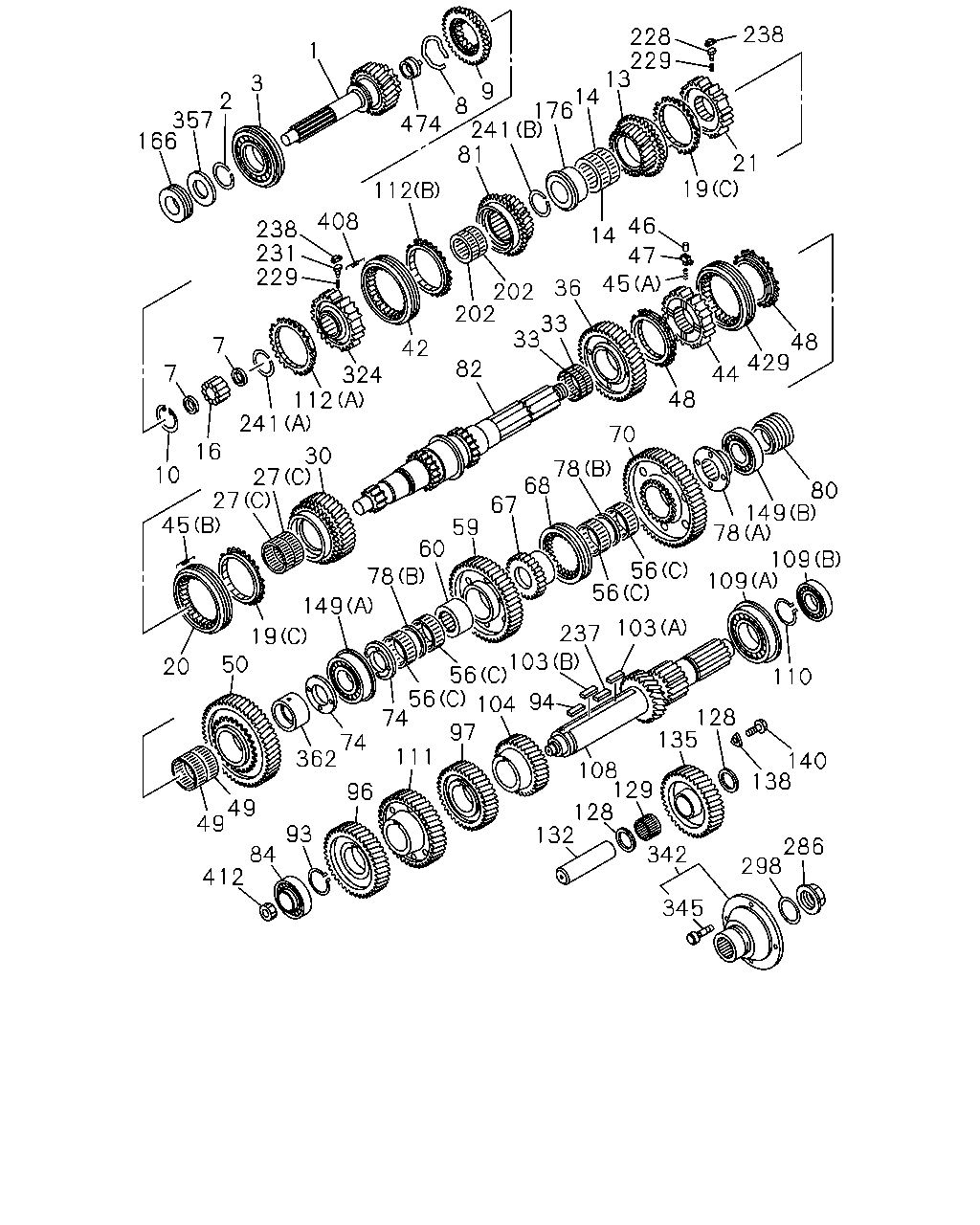

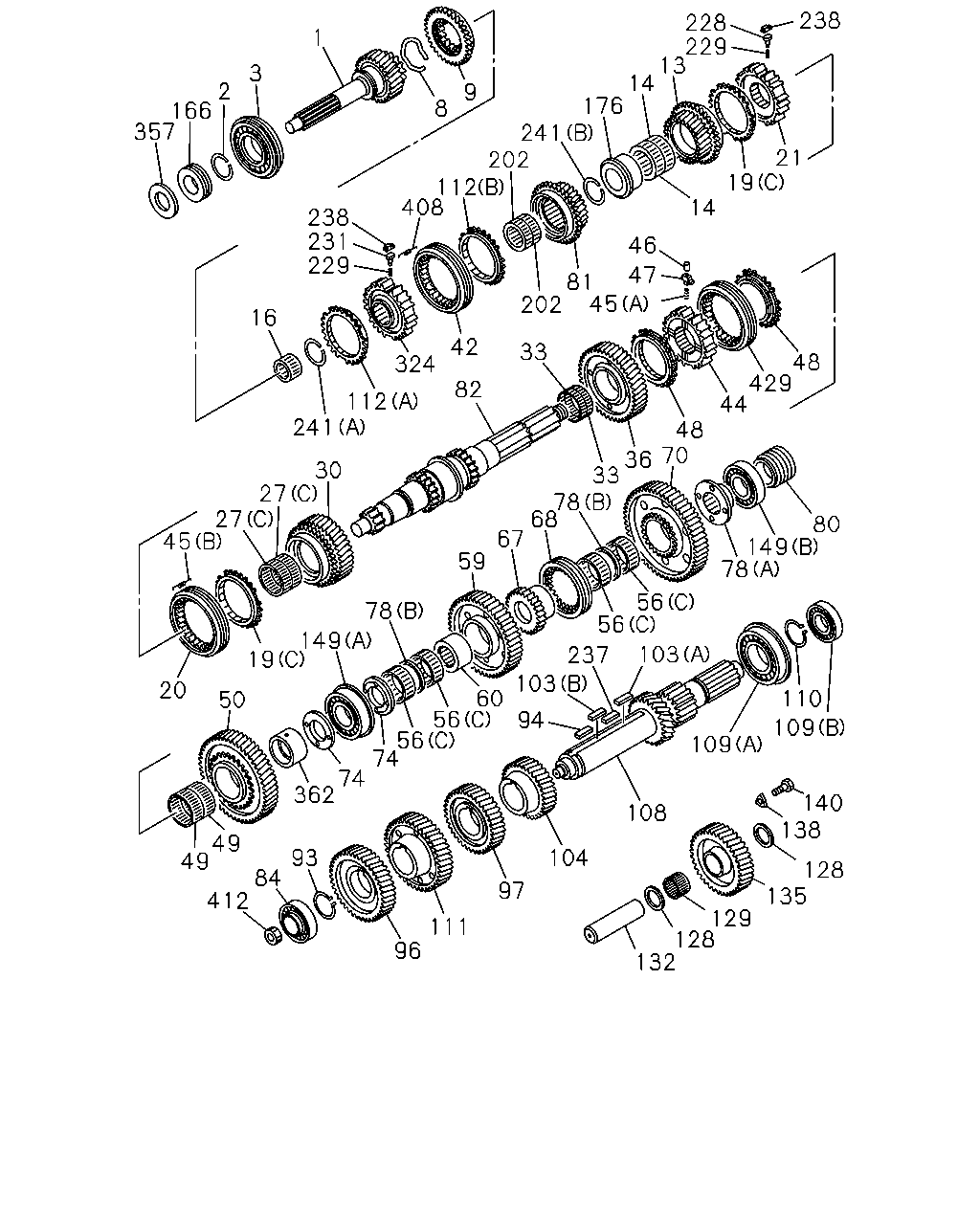

2-26A — MANUAL TRANSMISSION GEAR (#13323) — 1445 parça

132 128 129 135 128 138 140 109 110 109 108 104 97 111 96 93 84 412 49 49 362 74 74 56 56 60 94 103 103 237 56 56 78 149 80 48 429 44 48 70 36 33 78 68 67 59 78 149 19 50 20 45 27 27 30 241 112 324 42 82 33 202 81 47 46 45 14 19 21 238 228 229 13 14 176 241 202 112 408 229 231 238 16 8 9 1 3 2 166 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-833-2	01	1	0105-0112					●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33215-003-0	01	1	0201-					●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0107-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0107-					●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-0106					●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0107-					●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-0106					●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0107-					●	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	0105-		●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	0105-			●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0105-				●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-705-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0107-						●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0105-0106					●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0107-					●	●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0105-0106					●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0107-					●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-0112	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0201-	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-0112		●			●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0201-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0201-					●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0201-					●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0105-0106					●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0107-					●	●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●
20	SLEEVE	1-33262-222-0	01	1	0105-0106					●
20	SLEEVE	1-33262-222-0	01	1	0107-					●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0105-0106					●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0107-					●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	0105-	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	0105-	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-			●	●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0107-					●	●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0107-					●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0105-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0105-			●	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-559-1	01	1	0105-					●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-695-0	01	1	0107-						●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0105-			●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0105-0106					●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0107-					●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0105-0106					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0107-					●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-		●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-			●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-0106					●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0107-					●	●
42	SLEEVE	1-33262-222-0	01	1	0105-0106			●	●	●
42	SLEEVE	1-33262-222-0	01	1	0107-			●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0105-0106					●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0107-					●	●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0105-0106		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0105-0106					●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0107-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0107-					●	●
45	SPRING; BLOCK INSERT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	03	1	0105-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0105-0106			●	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0107-			●	●	●	●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0105-0106		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0105-0106					●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0107-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0107-					●	●
46	PLUNGER; DETENT,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	03	1	0105-		●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-			●	●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0105-0106		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0105-0106					●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0107-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0107-					●	●
47	BLOCK; INDEX,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	03	1	0105-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0105-0106					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0107-0404					●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0405-					●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0105-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0105-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0105-0106					●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0107-					●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0105-0106					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0107-					●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-	●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-		●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-			●	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-0106					●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-410-0	04	1	0105-	●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0107-					●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-		●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-			●	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-0106					●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0107-					●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	0105-			●	●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0105-0106					●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0107-					●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0105-0106					●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0107-					●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-0106		●			●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0107-		●			●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-		●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-			●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-0106					●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0107-					●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	0105-			●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0105-0106					●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0107-					●	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0105-	●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-070-0	01	1	0105-			●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-069-2	01	1	0105-				●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0105-0106					●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0107-					●	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0105-0106					●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0107-					●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-0106			●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0107-			●	●	●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	0105-				●
81	GEAR; 7TH,MAIN Z=23-66	1-33253-531-0	01	1	0105-					●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	0107-						●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	0105-0112					●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0107-0112						●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0201-					●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-0106			●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0107-			●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-0106					●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0107-					●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=43	1-33331-268-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0107-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	0105-		●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	0105-			●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0105-				●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	0105-					●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0107-						●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-			●	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0107-					●	●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0107-					●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0105-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0105-			●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-381-0	01	1	0105-					●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0107-						●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-	●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-		●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0106					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0107-0308					●	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0107-					●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-			●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-0106					●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0107-					●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	0105-				●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-387-0	01	1	0105-					●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0107-						●
112	RING; BLOCK,7TH SYN (C) Z=54	1-33265-356-0	01	1	0105-				●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-4	01	1	0105-0106					●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-6	01	1	0107-					●	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0105-0106					●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0107-					●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-0106	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0107-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-			●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0107-					●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0107-					●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-			●	●
132	SHAFT; REV	1-33351-025-4	01	1	0105-0106					●
132	SHAFT; REV	1-33351-025-4	01	1	0107-					●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-		●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-			●	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-0106					●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0107-					●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0105-0106			●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0107-			●	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0105-0106			●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0107-			●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0107-					●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0107-					●	●
166	PIECE; DIST	1-33363-032-1	01	1	0105-0106					●
166	PIECE; DIST	1-33363-032-1	01	1	0107-					●	●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0105-0106					●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0107-					●	●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0105-0106					●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0107-					●	●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0105-0106					●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0107-					●	●
228	PLUNGER; SYN	1-33263-020-0	03	1	0105-0106					●
228	PLUNGER; SYN	1-33263-020-0	03	1	0107-					●	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0105-0106					●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0107-					●	●
231	PLUNGER	1-33263-020-0	03	1	0105-0106					●
231	PLUNGER	1-33263-020-0	03	1	0107-					●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	0105-			●	●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0105-0106					●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0107-					●	●
238	INSERT	1-33263-025-2	03	1	0105-				●
238	INSERT	1-33263-025-2	06	1	0105-0106					●
238	INSERT	1-33263-025-2	06	1	0107-					●	●
241	RING; SNAP (A)	1-09588-185-0	01	1	0105-0106					●
241	RING; SNAP (A)	1-09588-185-0	01	1	0107-					●	●
241	RING; SNAP (B)	1-09588-189-0	01	1	0105-0106					●
241	RING; SNAP (B)	1-09588-189-0	01	1	0107-					●	●
324	HUB; CLU	1-33261-238-0	01	1	0105-0106					●
324	HUB; CLU	1-33261-238-0	01	1	0107-					●	●
357	RING	1-31349-015-0	01	1	0105-0106					●
357	RING	1-31349-015-0	01	1	0107-					●	●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0105-0106					●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0107-					●	●
408	SPRING	1-09583-171-0	03	1	0105-0106					●
408	SPRING	1-09583-171-0	03	1	0107-					●	●
412	GEAR; DRIVE Z=36	1-33339-029-1	01	1	0105-0106					●
412	GEAR; DRIVE Z=36	1-33339-029-1	01	1	0107-					●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0105-		●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0105-0106					●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0107-					●	●

135 128 138 140 126 126 113 114 112 111 117 132 129 129 128 110 109 108 103 103 237 101 94 117 238 122 26 37 105 104 97 102 96 93 84 345 298 286 56 342 56 59 149 80 149 78 81 74 56 60 57 70 58 56 69 38 39 50 37 82 16 18 11 12 121 11 27 17 27 30 31 43 42 31 33 33 36 45 216 46 218 27 15 13 27 22 25 23 124 2 3 1 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-833-2	01	1	0105-0112					●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33215-003-0	01	1	0201-					●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0107-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0107-					●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-0106					●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0107-					●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-0106					●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0107-					●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-7	01	1	0105-			●	●
11	RING; BLOCK,5TH & 6TH (B) Z=54	1-33265-544-0	01	1	0105-			●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	0105-			●	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	0105-		●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	0105-			●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0105-				●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-705-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0107-						●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	0105-			●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-0112	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0201-	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-0112		●			●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0201-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0201-					●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0201-					●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	0105-			●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-			●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●	●	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	0105-	●			●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	0105-	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	0105-	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-			●	●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0107-					●	●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0107-					●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0105-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0105-			●	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-559-1	01	1	0105-					●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-695-0	01	1	0107-						●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-545-0	02	1	0105-			●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0105-			●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0105-0106					●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0107-					●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0105-0106					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0107-					●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-		●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-			●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-0106					●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0107-					●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-409-0	04	1	0105-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	0105-			●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	0105-			●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	0105-			●	●
42	SLEEVE	1-33262-222-0	01	1	0105-0106			●	●	●
42	SLEEVE	1-33262-222-0	01	1	0107-			●	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-241-0	01	1	0105-			●	●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0105-0106		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0105-0106					●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0107-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0107-					●	●
45	SPRING; BLOCK INSERT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	03	1	0105-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0105-0106			●	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0107-			●	●	●	●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0105-0106		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0105-0106					●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0107-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0107-					●	●
46	PLUNGER; DETENT,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	03	1	0105-		●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-			●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-	●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-		●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-			●	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-0106					●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-410-0	04	1	0105-	●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0107-					●	●
57	SLEEVE; REV	1-33262-112-1	01	1	0105-			●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	0105-			●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-		●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-			●	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-0106					●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0107-					●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	0105-			●	●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0105-0106					●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0107-					●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	0105-	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	0105-			●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-		●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-			●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-0106					●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0107-					●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	0105-			●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0105-0106					●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0107-					●	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0105-	●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-070-0	01	1	0105-			●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-069-2	01	1	0105-				●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0105-0106					●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0107-					●	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0105-0106					●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0107-					●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-0106			●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0107-			●	●	●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	0105-				●
81	GEAR; 7TH,MAIN Z=23-66	1-33253-531-0	01	1	0105-					●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	0107-						●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	0105-0112					●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0107-0112						●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0201-					●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-0106			●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0107-			●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-0106					●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0107-					●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=43	1-33331-268-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0107-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	0105-		●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	0105-			●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0105-				●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	0105-					●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0107-						●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0105-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0105-			●	●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-			●	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0107-					●	●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0107-					●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0105-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0105-			●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-381-0	01	1	0105-					●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0107-						●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0105-	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	0105-		●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0105-			●	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-	●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-		●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0106					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0107-0308					●	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0107-					●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-			●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-0106					●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0107-					●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	0105-				●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-387-0	01	1	0105-					●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0107-						●
112	RING; BLOCK,7TH SYN (C) Z=54	1-33265-356-0	01	1	0105-				●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-4	01	1	0105-0106					●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-6	01	1	0107-					●	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0105-0106					●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0107-					●	●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	0105-				●
114	HUB; CLU,7TH	1-33261-177-2	01	1	0105-				●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	0105-				●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	0105-				●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0105-	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	0105-			●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●			●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0105-	●	●	●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0105-	●			●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●			●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-0106	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0107-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-			●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0107-					●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0107-					●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-			●	●
132	SHAFT; REV	1-33351-025-4	01	1	0105-0106					●
132	SHAFT; REV	1-33351-025-4	01	1	0107-					●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-		●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-			●	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-0106					●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0107-					●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0105-0106			●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0107-			●	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0105-0106			●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0107-			●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0107-					●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0107-					●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	0105-			●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	0105-			●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	0105-			●	●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0105-0106					●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0107-					●	●
238	INSERT	1-33263-025-2	03	1	0105-				●
238	INSERT	1-33263-025-2	06	1	0105-0106					●
238	INSERT	1-33263-025-2	06	1	0107-					●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0105-0106			●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0107-			●	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-0106			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0107-			●	●		●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0105-	●	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0105-0106			●	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0107-			●			●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	1-37243-314-1	01	1	0107-				●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-0106	●	●	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0105-0106				●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0107-	●	●	●			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0107-				●

345 298 286 140 138 128 135 108 129 342 128 132 110 109 109 80 149 78 56 56 237 103 94 104 97 111 96 93 84 412 49 49 362 74 74 56 56 103 48 429 44 48 70 78 68 67 59 60 78 149 19 50 20 45 27 27 30 10 16 241 112 324 42 82 33 33 36 45 47 46 19 21 238 229 228 13 14 176 241 81 112 14 202 202 229 231 238 408 7 7 166 357 2 3 1 474 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-833-2	01	1	0105-0112					●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33215-003-0	01	1	0201-					●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0107-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0107-					●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0107-0112						●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0201-					●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-0106					●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0107-					●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-0106					●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0107-					●	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0107-0112						●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0201-					●	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	0105-		●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	0105-			●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0105-				●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-705-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0107-						●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0105-0106					●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0107-					●	●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0105-0106					●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0107-					●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-0112	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0201-	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-0112		●			●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0201-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0201-					●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0201-					●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0105-0106					●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0107-					●	●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●
20	SLEEVE	1-33262-222-0	01	1	0105-0106					●
20	SLEEVE	1-33262-222-0	01	1	0107-					●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0105-0106					●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0107-					●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	0105-	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	0105-	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-			●	●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0107-					●	●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0107-					●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0105-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0105-			●	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-559-1	01	1	0105-					●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-695-0	01	1	0107-						●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0105-			●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0105-0106					●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0107-					●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0105-0106					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0107-					●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-		●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-			●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-0106					●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0107-					●	●
42	SLEEVE	1-33262-222-0	01	1	0105-0106			●	●	●
42	SLEEVE	1-33262-222-0	01	1	0107-			●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0105-0106					●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0107-					●	●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0105-0106		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0105-0106					●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0107-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0107-					●	●
45	SPRING; BLOCK INSERT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	03	1	0105-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0105-0106			●	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0107-			●	●	●	●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0105-0106		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0105-0106					●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0107-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0107-					●	●
46	PLUNGER; DETENT,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	03	1	0105-		●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-			●	●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0105-0106		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0105-0106					●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0107-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0107-					●	●
47	BLOCK; INDEX,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	03	1	0105-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0105-0106					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0107-0404					●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0405-					●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0105-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0105-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0105-0106					●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0107-					●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0105-0106					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0107-					●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-	●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-		●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-			●	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-0106					●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-410-0	04	1	0105-	●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0107-					●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-		●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-			●	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-0106					●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0107-					●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	0105-			●	●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0105-0106					●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0107-					●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0105-0106					●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0107-					●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-0106		●			●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0107-		●			●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-		●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-			●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-0106					●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0107-					●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	0105-			●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0105-0106					●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0107-					●	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0105-	●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-070-0	01	1	0105-			●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-069-2	01	1	0105-				●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0105-0106					●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0107-					●	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0105-0106					●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0107-					●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-0106			●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0107-			●	●	●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	0105-				●
81	GEAR; 7TH,MAIN Z=23-66	1-33253-531-0	01	1	0105-					●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	0107-						●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	0105-0112					●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0107-0112						●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0201-					●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-0106			●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0107-			●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-0106					●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0107-					●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=43	1-33331-268-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0107-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	0105-		●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	0105-			●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0105-				●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	0105-					●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0107-						●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-			●	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0107-					●	●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0107-					●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0105-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0105-			●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-381-0	01	1	0105-					●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0107-						●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-	●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-		●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0106					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0107-0308					●	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0107-					●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-			●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-0106					●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0107-					●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	0105-				●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-387-0	01	1	0105-					●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0107-						●
112	RING; BLOCK,7TH SYN (C) Z=54	1-33265-356-0	01	1	0105-				●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-4	01	1	0105-0106					●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-6	01	1	0107-					●	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0105-0106					●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0107-					●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-0106	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0107-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-			●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0107-					●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0107-					●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-			●	●
132	SHAFT; REV	1-33351-025-4	01	1	0105-0106					●
132	SHAFT; REV	1-33351-025-4	01	1	0107-					●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-		●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-			●	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-0106					●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0107-					●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0105-0106			●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0107-			●	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0105-0106			●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0107-			●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0107-					●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0107-					●	●
166	PIECE; DIST	1-33363-032-1	01	1	0105-0106					●
166	PIECE; DIST	1-33363-032-1	01	1	0107-					●	●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0105-0106					●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0107-					●	●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0105-0106					●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0107-					●	●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0105-0106					●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0107-					●	●
228	PLUNGER; SYN	1-33263-020-0	03	1	0105-0106					●
228	PLUNGER; SYN	1-33263-020-0	03	1	0107-					●	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0105-0106					●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0107-					●	●
231	PLUNGER	1-33263-020-0	03	1	0105-0106					●
231	PLUNGER	1-33263-020-0	03	1	0107-					●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	0105-			●	●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0105-0106					●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0107-					●	●
238	INSERT	1-33263-025-2	03	1	0105-				●
238	INSERT	1-33263-025-2	06	1	0105-0106					●
238	INSERT	1-33263-025-2	06	1	0107-					●	●
241	RING; SNAP (A)	1-09588-185-0	01	1	0105-0106					●
241	RING; SNAP (A)	1-09588-185-0	01	1	0107-					●	●
241	RING; SNAP (B)	1-09588-189-0	01	1	0105-0106					●
241	RING; SNAP (B)	1-09588-189-0	01	1	0107-					●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0105-0106			●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0107-			●	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-0106			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0107-			●	●		●
324	HUB; CLU	1-33261-238-0	01	1	0105-0106					●
324	HUB; CLU	1-33261-238-0	01	1	0107-					●	●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0105-	●	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0105-0106			●	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0107-			●			●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	1-37243-314-1	01	1	0107-				●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-0106	●	●	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0105-0106				●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0107-	●	●	●			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0107-				●
357	RING	1-31349-015-0	01	1	0105-0106					●
357	RING	1-31349-015-0	01	1	0107-					●	●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0105-0106					●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0107-					●	●
408	SPRING	1-09583-171-0	03	1	0105-0106					●
408	SPRING	1-09583-171-0	03	1	0107-					●	●
412	GEAR; DRIVE Z=36	1-33339-029-1	01	1	0105-0106					●
412	GEAR; DRIVE Z=36	1-33339-029-1	01	1	0107-					●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0105-		●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0105-0106					●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0107-					●	●
474	NOZZLE; OIL	1-33219-257-0	01	1	0107-						●

286 298 345 342 128 129 135 129 128 130 134 133 132 105 104 84 93 96 102 103 101 94 103 56 108 109 110 115 118 119 121 126 115 56 69 70 76 26 122 125 120 126 149 77 78 149 80 56 68 67 59 56 82 16 17 19 20 21 19 37 37 36 28 44 37 37 50 48 32 27 27 30 22 124 23 25 9 8 1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-833-2	01	1	0105-0112					●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33215-003-0	01	1	0201-					●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0107-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0107-					●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-0106					●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0107-					●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-0106					●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0107-					●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-0112	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0201-	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-0112		●			●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0201-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0201-					●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0201-					●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	0105-			●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0105-0106					●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0107-					●	●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●
20	SLEEVE	1-33262-222-0	01	1	0105-0106					●
20	SLEEVE	1-33262-222-0	01	1	0107-					●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0105-0106					●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0107-					●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●	●	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	0105-	●			●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	0105-	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	0105-	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-			●	●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0107-					●	●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0107-					●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0105-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0105-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0105-			●	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-559-1	01	1	0105-					●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-695-0	01	1	0107-						●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	0105-	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0105-		●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-		●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-			●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-0106					●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0107-					●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-409-0	04	1	0105-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	0105-			●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0105-0106					●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0107-					●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0105-0106					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0107-0404					●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0405-					●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-	●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-		●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-			●	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-0106					●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-410-0	04	1	0105-	●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0107-					●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-		●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-			●	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-0106					●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0107-					●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0105-0106					●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0107-					●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-0106		●			●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0107-		●			●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	0105-	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	0105-			●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-		●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-			●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-0106					●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0107-					●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	0105-	●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0105-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	0105-	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0105-	●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-070-0	01	1	0105-			●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-069-2	01	1	0105-				●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0105-0106					●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0107-					●	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0105-0106					●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0107-					●	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-0106			●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0107-			●	●	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	0105-0112					●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0107-0112						●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0201-					●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-0106			●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0107-			●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-0106					●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0107-					●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=43	1-33331-268-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0107-						●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0105-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0105-			●	●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-			●	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0107-					●	●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0107-					●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0105-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0105-			●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-381-0	01	1	0105-					●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0107-						●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0105-	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	0105-		●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0105-			●	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-	●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-		●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0106					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0107-0308					●	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0107-					●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-			●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-0106					●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0107-					●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0105-	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0105-	●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	0105-	●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0105-	●
120	SLEEVE	1-33262-098-2	01	1	0105-	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0105-	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	0105-			●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●			●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0105-	●	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0105-	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0105-	●			●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●			●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-0106	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0107-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-			●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0107-					●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0107-					●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0105-	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-			●	●
132	SHAFT; REV	1-33351-025-4	01	1	0105-0106					●
132	SHAFT; REV	1-33351-025-4	01	1	0107-					●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0105-	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0105-0603	●	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0604-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-		●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-			●	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-0106					●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0107-					●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0107-					●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0107-					●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0105-0106			●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0107-			●	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-0106			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0107-			●	●		●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0105-	●	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0105-0106			●	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0107-			●			●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	1-37243-314-1	01	1	0107-				●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-0106	●	●	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0105-0106				●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0107-	●	●	●			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0107-				●

286 298 345 342 133 132 134 130 128 129 135 129 128 110 109 108 105 97 102 96 93 84 94 101 103 103 56 70 76 80 149 56 68 67 59 56 56 82 16 17 19 20 21 19 27 33 36 28 48 44 50 49 49 48 429 47 46 45 33 32 27 9 8 1 3 2 13 22 25 124 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-833-2	01	1	0105-0112					●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33215-003-0	01	1	0201-					●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0107-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0107-					●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-0106					●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0107-					●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-0106					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0107-					●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-0106					●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0107-					●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-0106					●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0107-					●	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	0105-		●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	0105-			●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0105-				●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-705-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0107-						●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-0112	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0201-	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-0112		●			●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0201-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0201-					●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0107-0112						●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0201-					●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	0105-			●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0105-0106					●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0107-					●	●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●
20	SLEEVE	1-33262-222-0	01	1	0105-0106					●
20	SLEEVE	1-33262-222-0	01	1	0107-					●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0105-0106					●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0107-					●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	0105-	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	0105-	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-		●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-			●	●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NSK	1-09811-376-0	02	1	0107-					●	●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0105-0106					●
27	BEARING; 4TH GEAR (C) NTN	1-09811-401-0	02	1	0107-					●	●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0105-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	0105-	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0105-			●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0105-0106					●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0107-					●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0105-0106					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0107-					●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-		●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-			●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-0106					●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0107-					●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0105-0106					●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0107-					●	●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0105-0106		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0105-0106					●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0107-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0107-					●	●
45	SPRING; BLOCK INSERT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	03	1	0105-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0105-0106			●	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0107-			●	●	●	●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0105-0106		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0105-0106					●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0107-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0107-					●	●
46	PLUNGER; DETENT,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	03	1	0105-		●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-			●	●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0105-0106		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0105-0106					●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0107-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0107-					●	●
47	BLOCK; INDEX,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	03	1	0105-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0105-0106					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0107-0404					●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0405-					●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0105-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0105-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0105-0106					●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0107-					●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0105-0106					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0107-					●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-	●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-		●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-			●	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-0106					●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-410-0	04	1	0105-	●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-		●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-			●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-376-0	04	1	0107-					●	●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0105-0106					●
56	BEARING; NEEDLE,1ST,REV (C) NTN	1-09811-401-0	04	1	0107-					●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-		●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-			●	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-0106					●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0107-					●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0105-0106					●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0107-					●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-0106		●			●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0107-		●			●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-		●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-			●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-0106					●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0107-					●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	0105-	●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0105-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-0106			●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0107-			●	●	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	0105-0112					●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0107-0112						●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0201-					●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-0106	●		●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0107-	●		●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-0106			●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0107-			●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-0106					●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0107-					●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=43	1-33331-268-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0107-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	0105-		●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	0105-			●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0105-				●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	0105-					●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0107-						●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0105-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0105-			●	●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-			●	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0107-					●	●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-0106					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0107-					●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0105-	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	0105-		●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0105-			●	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-	●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-		●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0106					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0107-0308					●	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0107-					●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-0106					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0107-					●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-			●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-0106					●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0107-					●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0105-	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-0106	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0107-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-			●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0107-					●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-0106					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0107-					●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0105-	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-			●	●
132	SHAFT; REV	1-33351-025-4	01	1	0105-0106					●
132	SHAFT; REV	1-33351-025-4	01	1	0107-					●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0105-	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0105-0603	●	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0604-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-		●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-			●	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-0106					●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0107-					●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-0106	●			●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0107-	●			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0107-					●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-0106					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0107-					●	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0105-0106			●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0107-			●	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-0106			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0107-			●	●		●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0105-	●	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0105-0106			●	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0107-			●			●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	1-37243-314-1	01	1	0107-				●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-0106	●	●	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0105-0106				●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0107-	●	●	●			●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0107-				●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0105-		●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0105-0106					●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0107-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
