Sayfa 3-70 - Isuzu EPC

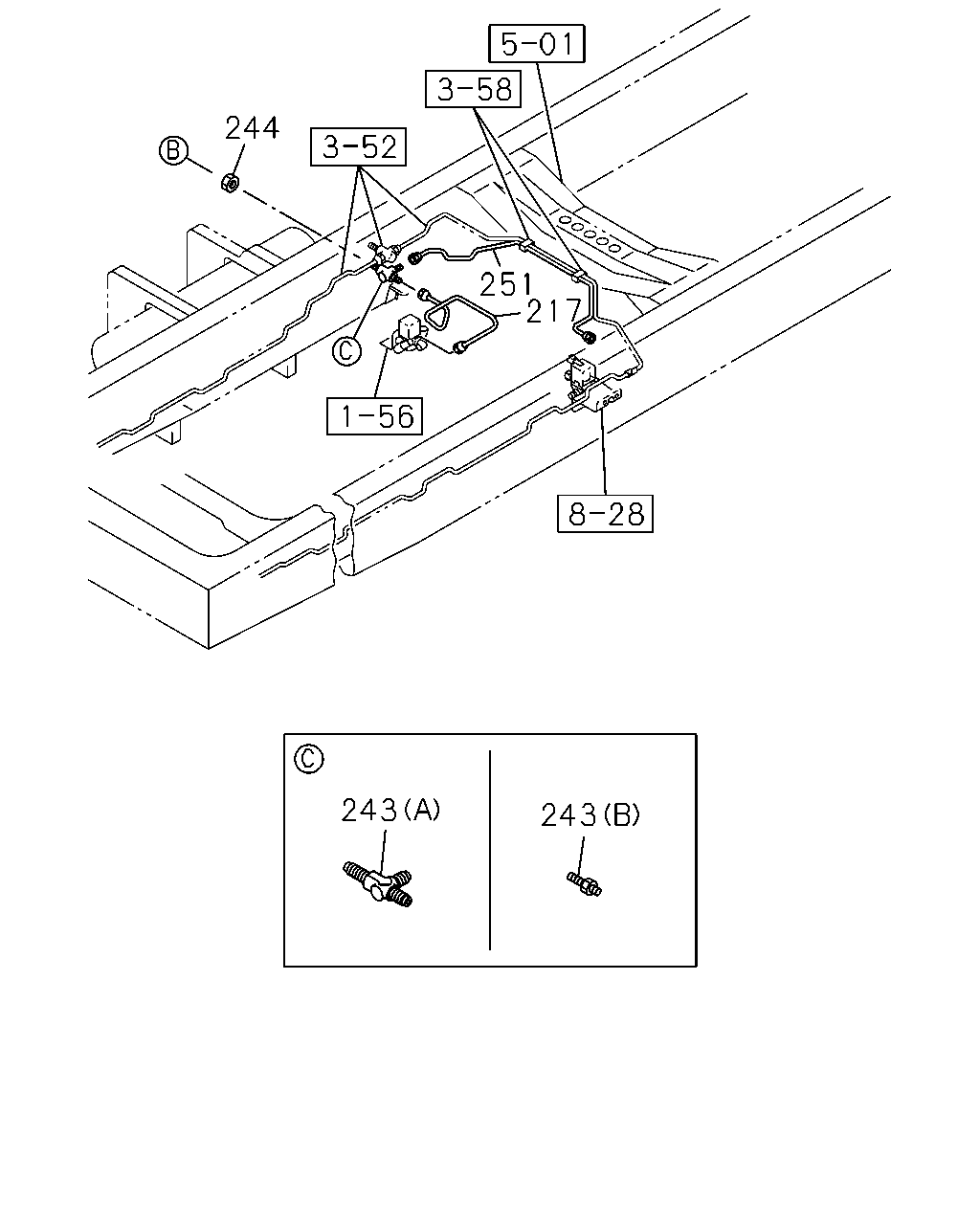

243 243 244 251 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=261 THA	8-98090-911-0	01	1	1402-
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 3400MM<34W> EXC. PTO CONTROL<SV6> L=280 THA	8-98090-912-0	01	1	1402-
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> PTO CONTROL<SV6> L=265	8-98067-433-0	01	1	1402-
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. PTO CONTROL<SV6> L=284 THA	8-98086-311-0	01	1	1402-
243	UNION; AIR PIPE PTO CONTROL<SV6> (A) M12 3WAY	0-92138-906-0	01	1	1402-
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6> (B) M12 L=66.5	0-92113-306-0	01	1	1402-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1402-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=837 SERVICED BY L=900	1-47428-813-0	01	1	1402-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> PTO CONTROL<SV6> L=1018 SERVICED BY L=1100	1-47428-815-0	01	1	1402-

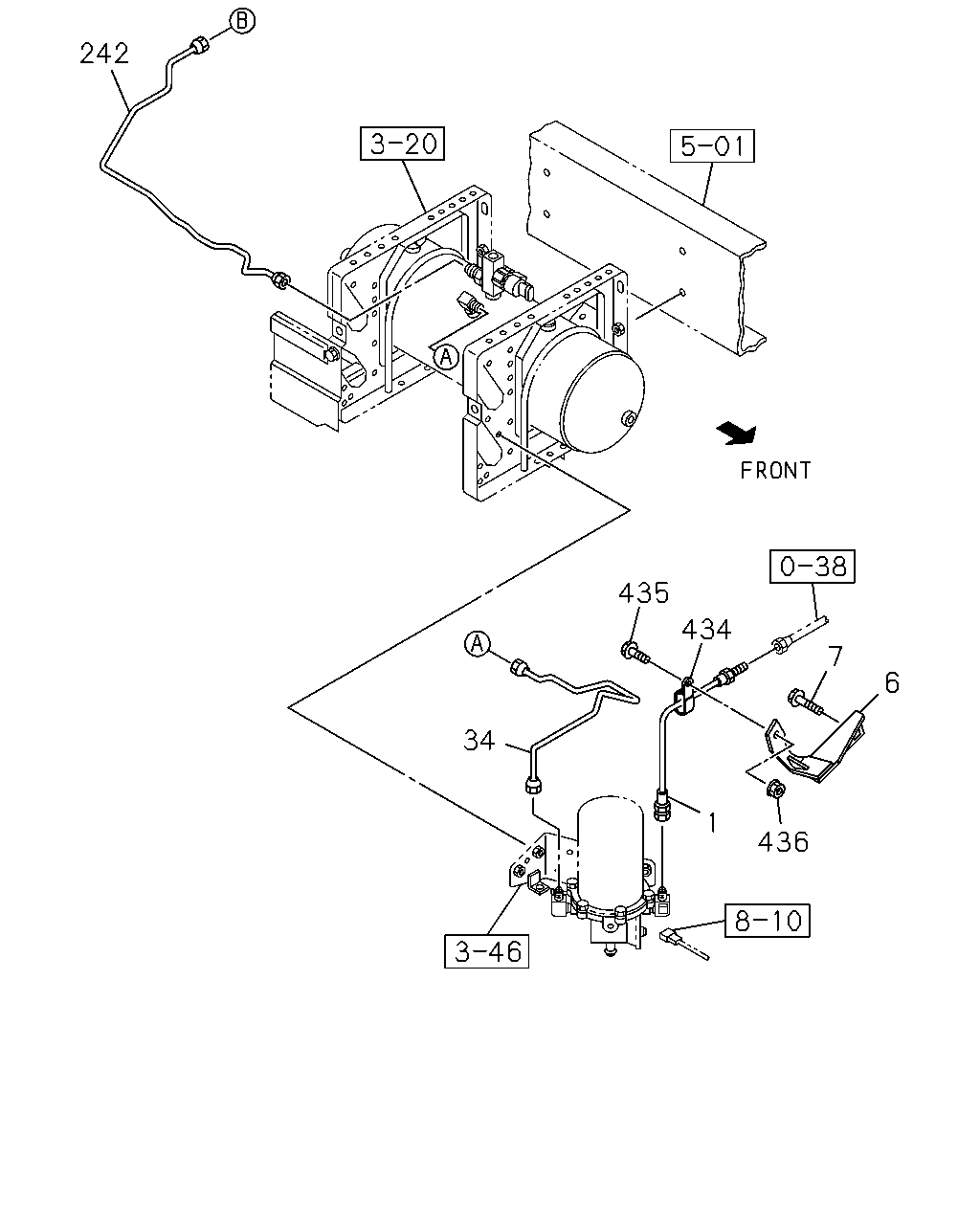

242 435 434 436 7 6 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98066-976-1	01	1	1402-
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1402-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
34	PIPE; AIR L=615 SERVICED BY L=660	1-49115-480-0	01	1	1402-
242	PIPE; AIR,AIR TANK TO UNION L=564 SERVICED BY L=600	1-47428-809-0	01	1	1402-
434	CLIP ID=35 L=33	1-09700-945-0	01	1	1402-
435	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
436	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1402-
