Isuzu WW
▶
TRUCKS
▶
FRR
▶
11574 - FRR THAILAND EURO3
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#133225) — 16 parça
◀

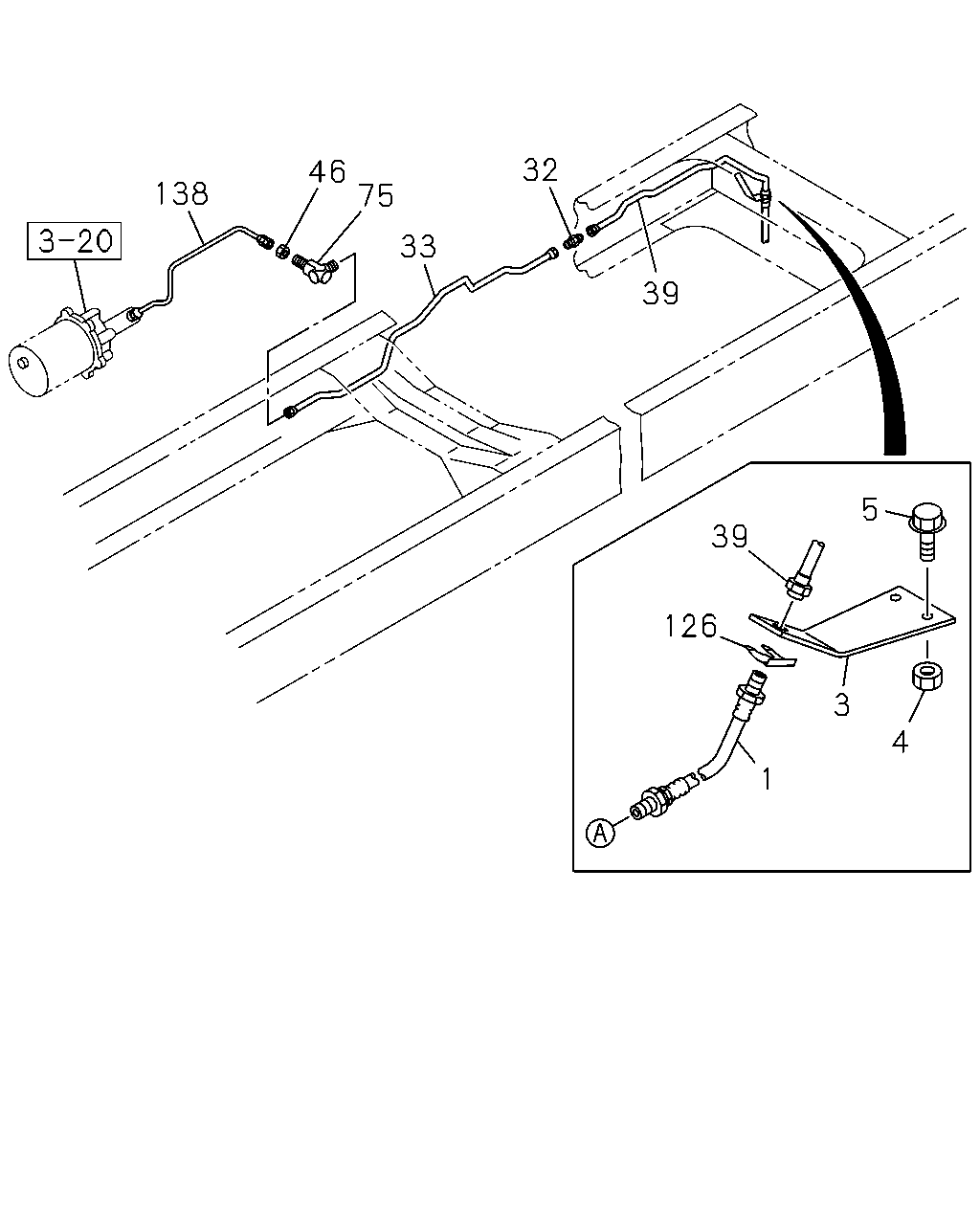

[355A] FRAME SIDE (14 parça)

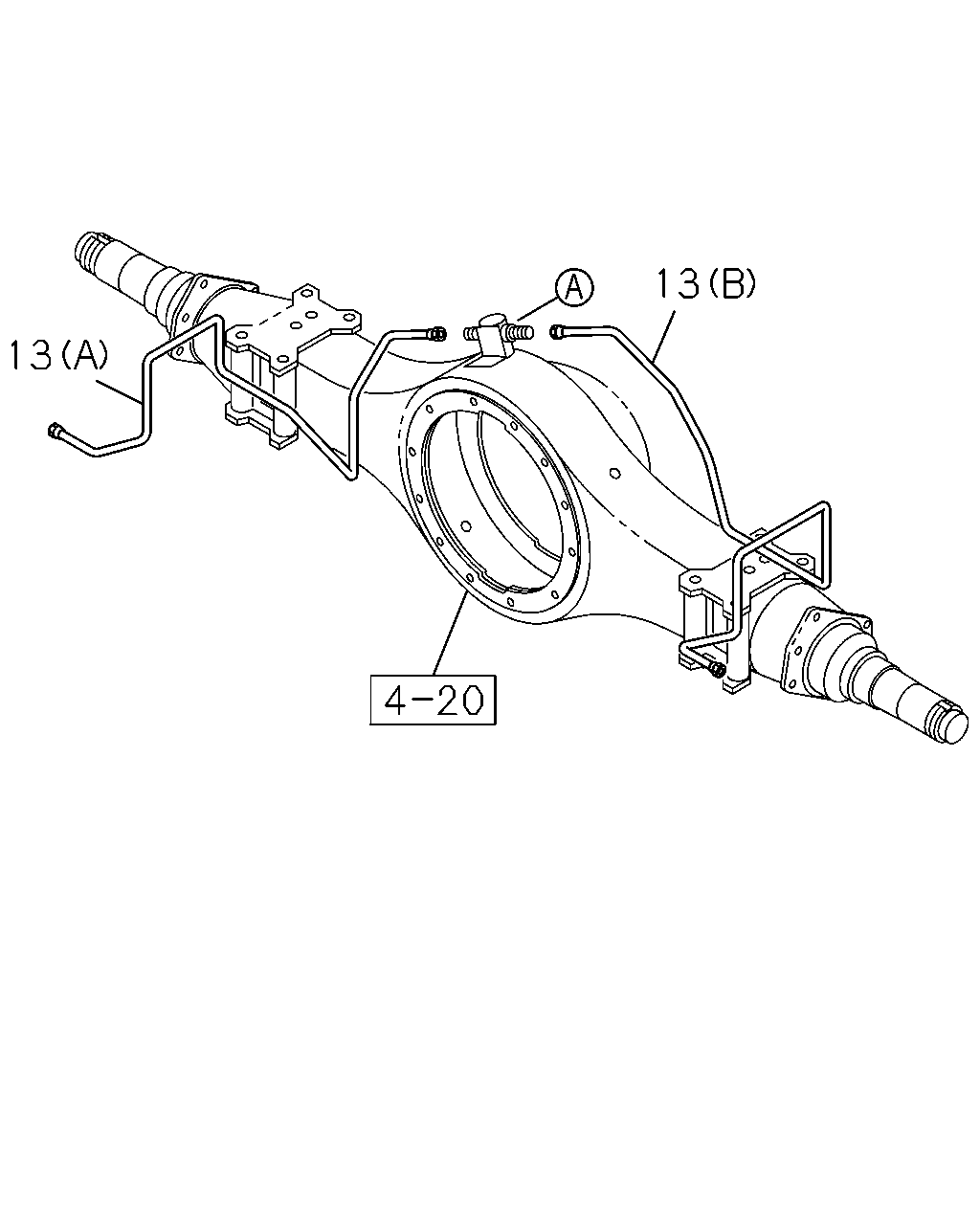

[355A] REAR AXLE SIDE (2 parça)
▶
138
46
33
75
32
39
39
126
3
4
1
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=520
8-98175-918-0
01
1
1402-
3
BRACKET; FLEX HOSE,RR BRK
8-98175-942-0
01
1
1402-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE THA
0-91180-108-0
02
1
1402-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE THA
0-28650-830-0
02
1
1402-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
01
1
1402-
33
PIPE; OIL,UNION TO UNION
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> L=971 THA
8-98218-134-0
01
1
1402-
33
PIPE; OIL,UNION TO UNION
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=980 THA
8-98218-135-0
01
1
1402-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM<43W> L=1963 THA
8-98183-298-0
01
1
1402-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM<49W> L=2593 THA
8-98183-302-0
01
1
1402-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2100 THA
8-97948-200-0
01
1
1402-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
01
1
1402-
75
UNION; OIL PIPE
8-98018-438-0
01
1
1402-
126
CLIP; FLEX HOSE
8-97360-054-0
01
1
1402-
138
PIPE; HYDRAULIC UNIT
L=697
8-98213-366-0
01
1
1402-
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; BRK,RR AXLE
(A) L=675 THA
1-47427-105-0
01
1
1402-
13
PIPE; BRK,RR AXLE
(B) L=847 THA
1-47427-106-0
01
1
1402-
