◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#133213) — 9 parça

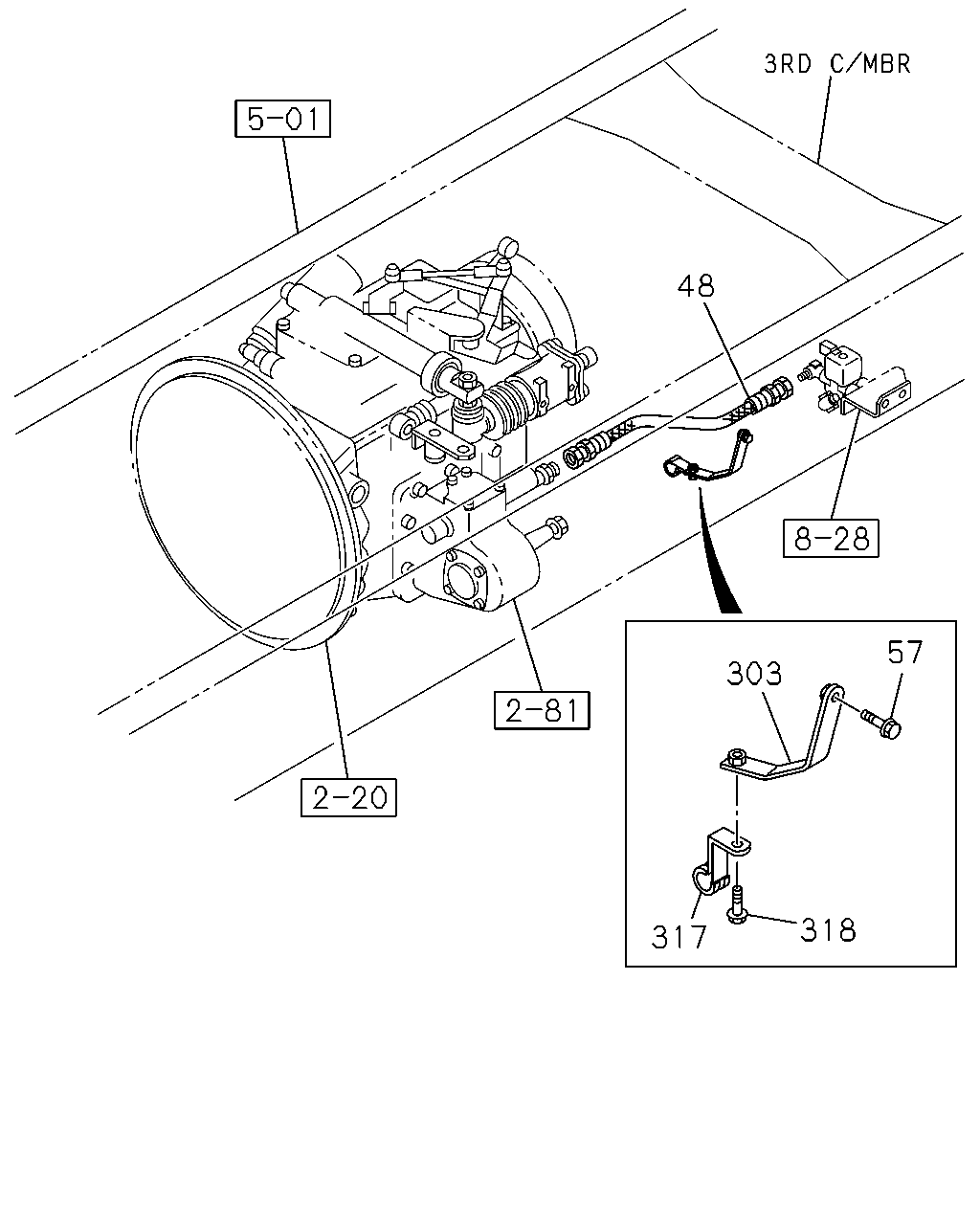

çizim 406758
48 318 317 303 57
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=450 		1-09363-965-0 01 1 1402-
48 HOSE; FLEX,PTO
MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> PTO CONTROL<SV6> L=560 		1-09363-914-0 01 1 1402-
48 HOSE; FLEX,PTO
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=490 		1-09363-966-0 01 1 1402-
48 HOSE; FLEX,PTO
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> PTO CONTROL<SV6> L=580 		1-09363-613-1 01 1 1402-
57 BOLT; BRKT
PTO CONTROL<SV6> M10X25 FLANGE THA 		0-28651-025-0 01 1 1402-
303 BRACKET; CLIP
MZW6P M/T<RSZ> PTO CONTROL<SV6> 		8-98136-973-0 01 1 1402-
303 BRACKET; CLIP
MZZ6W M/T<RSA> PTO CONTROL<SV6> 		8-98136-975-0 01 1 1402-
317 CLIP; NYLON TUBE
PTO CONTROL<SV6> ID=15 L=22 H=30 		1-09701-215-1 01 1 1402-
318 BOLT; CLIP
PTO CONTROL<SV6> M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-
