2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#133212) — 113 parça

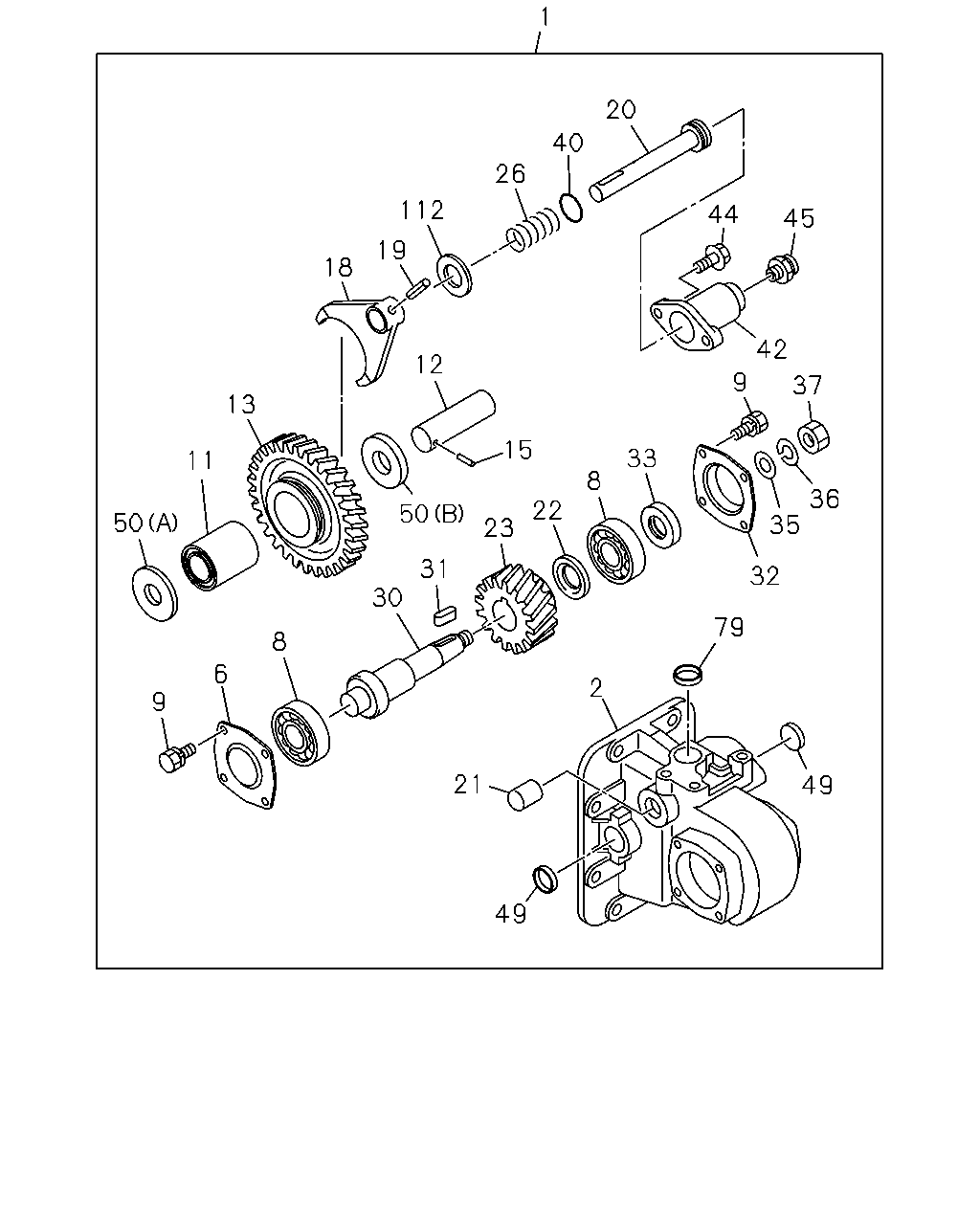

1 20 40 26 112 19 18 12 15 33 8 9 42 45 44 37 36 35 32 79 49 49 21 2 22 23 31 30 8 6 9 50 13 11 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-577-0	01	1	1402-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97257-443-4	01	1	1402-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-784-0	01	1	1402-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-792-1	01	1	1402-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-910-0	01	1	1402-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-612-0	01	1	1402-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	5-09820-017-0	02	1	1402-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=25 OD=62	8-94343-031-1	02	1	1402-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	08	1	1402-	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98068-087-0	01	1	1402-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-791-0	01	1	1402-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-817-0	01	1	1402-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27	8-98238-793-0	01	1	1402-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=36	8-97305-810-0	01	1	1402-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=20 OD=4	9-09678-514-0	01	1	1402-	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-797-0	01	1	1402-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98009-081-0	01	1	1402-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-596-0	01	1	1402-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38371-057-0	01	1	1402-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-820-1	01	1	1402-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-619-0	01	1	1402-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98068-086-0	01	1	1402-		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=37	8-98238-789-0	01	1	1402-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=26	8-97305-798-0	01	1	1402-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38121-004-1	01	1	1402-	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-787-0	01	1	1402-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97374-129-1	01	1	1402-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=25	8-98068-088-0	01	1	1402-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-794-0	01	1	1402-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38159-007-0	01	1	1402-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=15	0-91610-514-0	01	1	1402-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=14.2	0-91510-814-0	01	1	1402-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M14	0-91111-514-0	01	1	1402-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	9-09561-324-0	01	1	1402-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-798-0	01	1	1402-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-597-0	01	1	1402-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	04	1	1402-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	02	1	1402-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1402-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	01	1	1402-	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	02	1	1402-		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	1-38226-058-1	01	1	1402-		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-97305-818-0	01	1	1402-		●
79	COVER; DUST,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	01	1	1402-		●
112	COLLAR; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98149-248-0	01	1	1402-		●

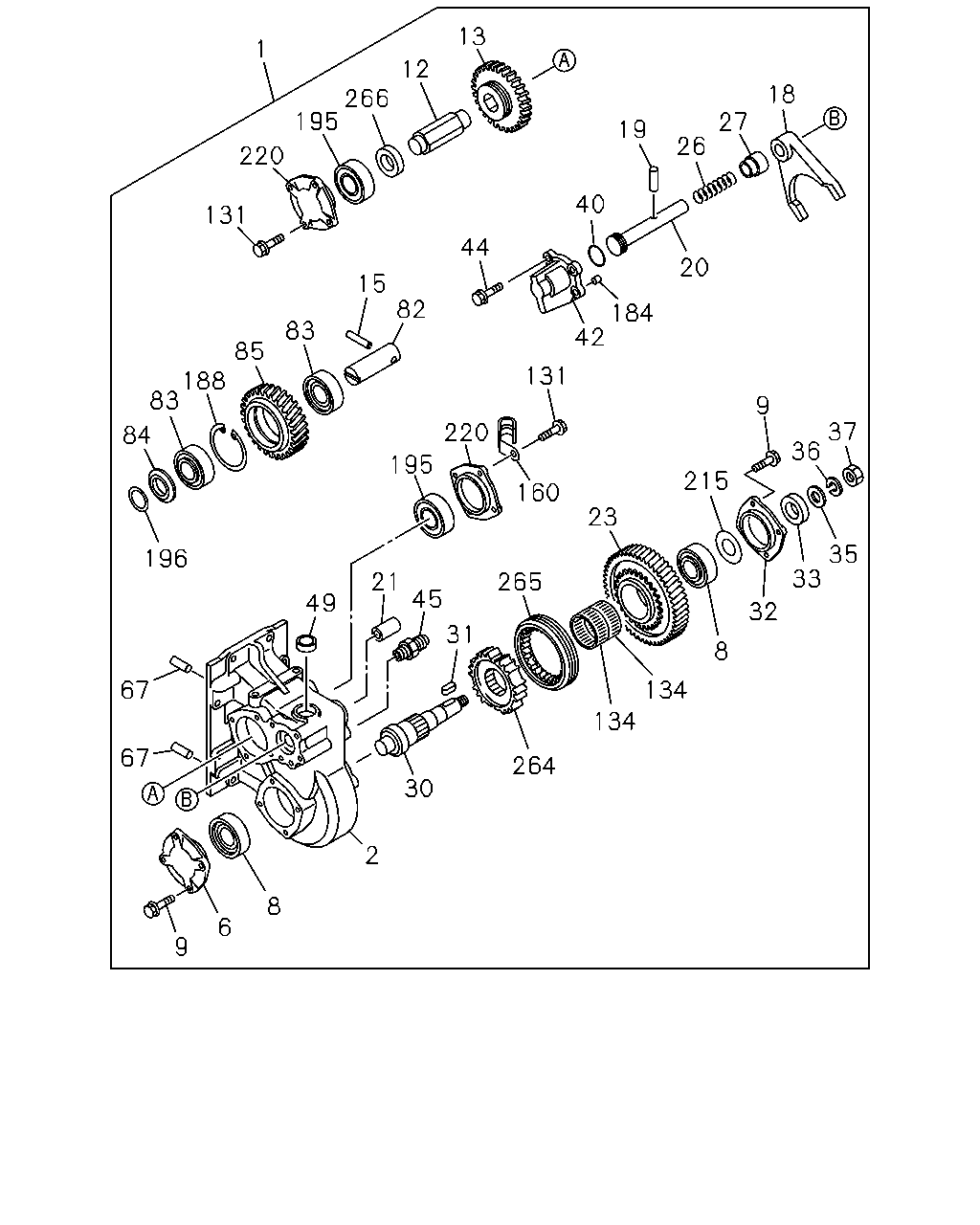

9 6 8 2 30 264 134 134 32 33 35 8 37 36 9 215 23 265 45 31 21 49 67 67 196 84 83 188 85 83 15 82 44 160 220 195 131 42 184 20 40 19 27 18 26 12 13 266 195 220 131 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-577-0	01	1	1402-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97257-443-4	01	1	1402-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-784-0	01	1	1402-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-792-1	01	1	1402-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-910-0	01	1	1402-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-612-0	01	1	1402-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	5-09820-017-0	02	1	1402-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=25 OD=62	8-94343-031-1	02	1	1402-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	08	1	1402-	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-791-0	01	1	1402-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-817-0	01	1	1402-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=27	8-98238-793-0	01	1	1402-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=36	8-97305-810-0	01	1	1402-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=20 OD=4	9-09678-514-0	01	1	1402-	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-797-0	01	1	1402-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98009-081-0	01	1	1402-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-596-0	01	1	1402-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38371-057-0	01	1	1402-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-820-1	01	1	1402-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98046-619-0	01	1	1402-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=37	8-98238-789-0	01	1	1402-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=26	8-97305-798-0	01	1	1402-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38121-004-1	01	1	1402-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98153-945-0	01	1	1402-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-787-0	01	1	1402-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97374-129-1	01	1	1402-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> L=25	8-98068-088-0	01	1	1402-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97305-794-0	01	1	1402-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38159-007-0	01	1	1402-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=15	0-91610-514-0	01	1	1402-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=14.2	0-91510-814-0	01	1	1402-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M14	0-91111-514-0	01	1	1402-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	9-09561-324-0	01	1	1402-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-798-0	01	1	1402-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-97306-597-0	01	1	1402-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	04	1	1402-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	02	1	1402-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1402-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	01	1	1402-	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98037-773-0	02	1	1402-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER<SH5> L=22	8-98238-799-0	02	1	1402-	●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-904-0	01	1	1402-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	5-09820-017-0	02	1	1402-	●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-800-0	01	1	1402-	●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> Z=28	8-98238-795-0	01	1	1402-	●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X20 FLANGE THA	0-28050-820-0	08	1	1402-	●
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-803-0	02	1	1402-	●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=8.5 THA	5-09700-275-0	01	1	1402-	●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> OD=11 L=8	9-11229-058-1	01	1	1402-	●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5> T=2.2 THA	1-09587-103-1	01	1	1402-	●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> NSK	8-97360-312-0	02	1	1402-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.50	8-97106-724-0	02	1	1402-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.60	8-97106-725-0	02	1	1402-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.65	8-97106-726-0	02	1	1402-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.70	8-97106-727-0	02	1	1402-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.80	8-97106-728-0	02	1	1402-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.85	8-97106-729-0	02	1	1402-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.1	5-33156-022-0	AR	1	1402-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.2	5-33156-024-0	AR	1	1402-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.15	8-98067-573-0	AR	1	1402-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.40	8-98067-574-0	AR	1	1402-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.65	8-98067-575-0	AR	1	1402-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=0.80	8-98067-576-0	AR	1	1402-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> T=1.00	8-98134-917-0	AR	1	1402-	●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98134-910-0	02	1	1402-	●
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-804-0	01	1	1402-	●
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-802-0	01	1	1402-	●
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98238-806-0	01	1	1402-	●
