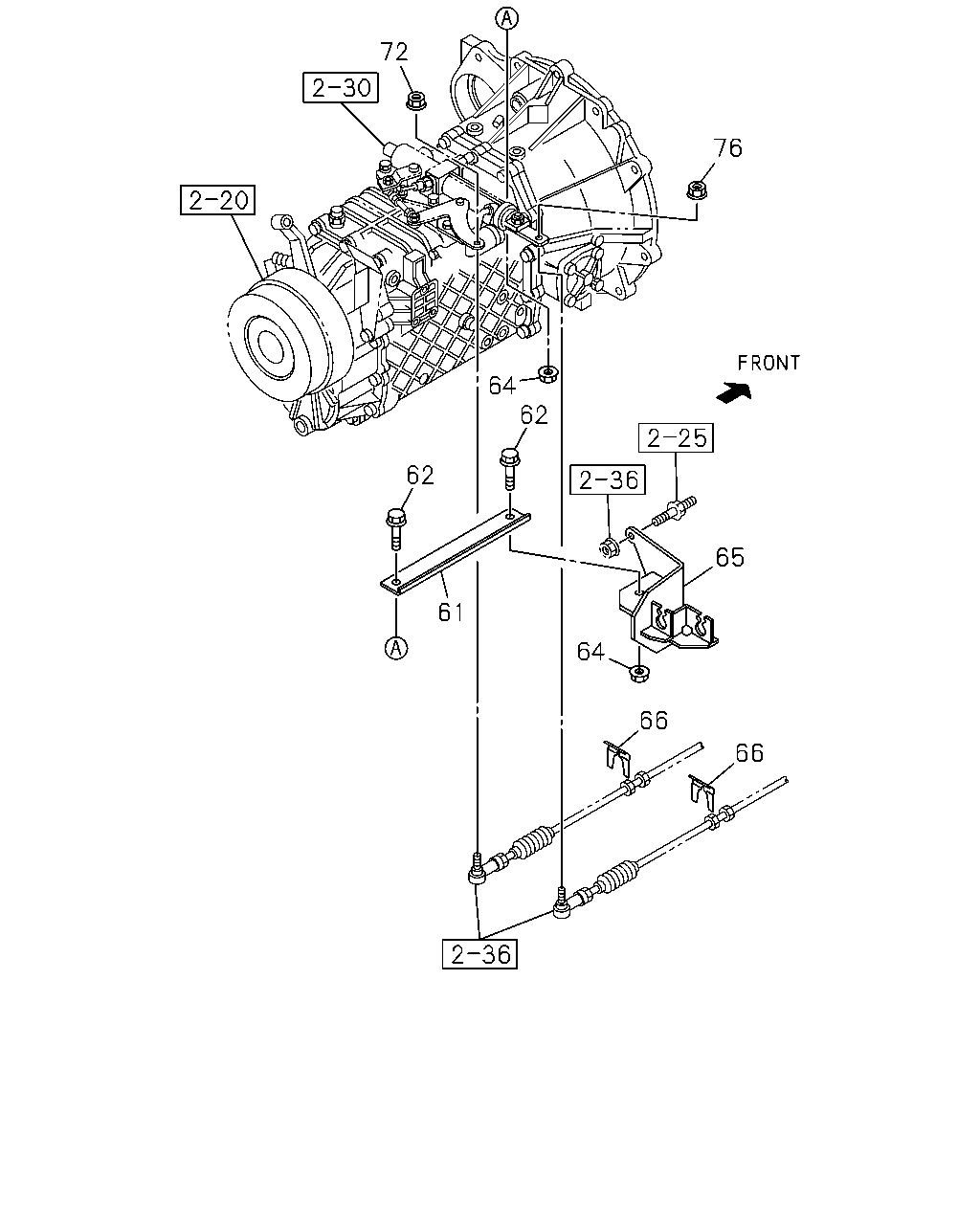

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#133211) — 9 parça

72 76 64 62 62 61 65 64 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	STAY; BRKT,TRANS CONT 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA>	1-33657-267-0	01	1	1402-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG<RJS> MZW6P M/T<RSZ>	8-98251-404-0	01	1	1402-
62	BOLT; STAY M10X30 FLANGE THA	0-28651-030-0	02	1	1402-
64	NUT; STAY M10 FLANGE THA	0-91180-210-0	02	1	1402-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCC ENG<RDV> MZZ6W M/T<RSA>	8-98167-239-0	01	1	1402-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG<RJS> MZW6P M/T<RSZ>	8-98050-563-1	01	1	1402-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1402-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1402-
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	1402-
