Isuzu WW
▶
TRUCKS
▶
FRR
▶
11574 - FRR THAILAND EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶

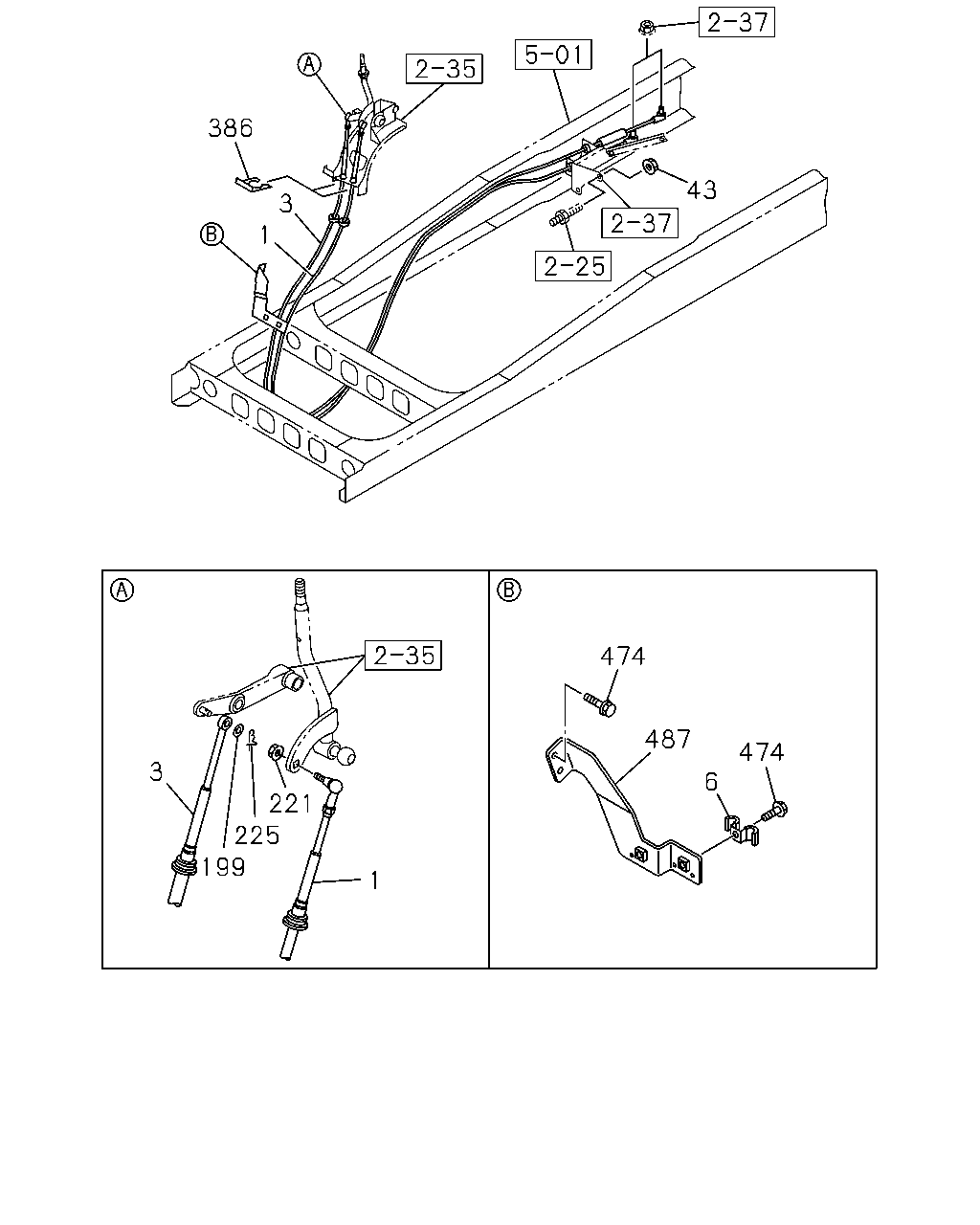

2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#133210) — 12 parça
43
386
3
1
221
225
199
3
1
474
487
474
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> L=2935 THA
8-97948-310-0
01
1
1402-
1
CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> L=3000 THA
8-98041-380-5
01
1
1402-
3
CABLE; SELECT,TRANS CONT
4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> L=3055 THA
8-97948-311-0
01
1
1402-
3
CABLE; SELECT,TRANS CONT
4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> L=3085 THA
8-98010-462-5
01
1
1402-
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
1402-
43
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1402-
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
1402-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1402-
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
1402-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
1402-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
03
1
1402-
487
BRACKET; CONT CABLE
8-98183-009-0
01
1
1402-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
