2-25B — SPEEDOMETER DRIVEN GEAR (#13321) — 11 parça

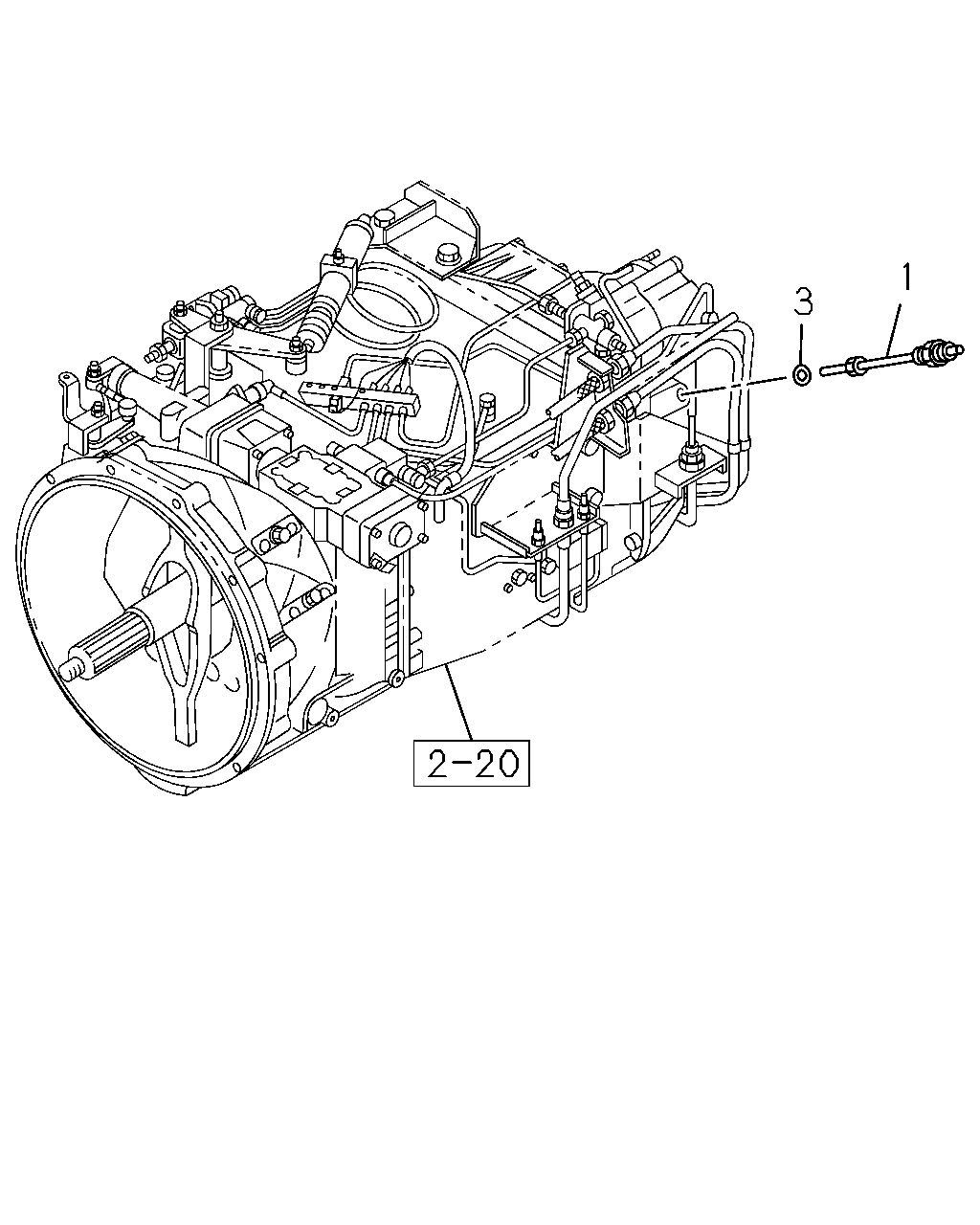

çizim 23905
1 3
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; DRIVEN,SPD 1-33372-164-0 01 1 0105-
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-33379-007-0 01 1 0105-

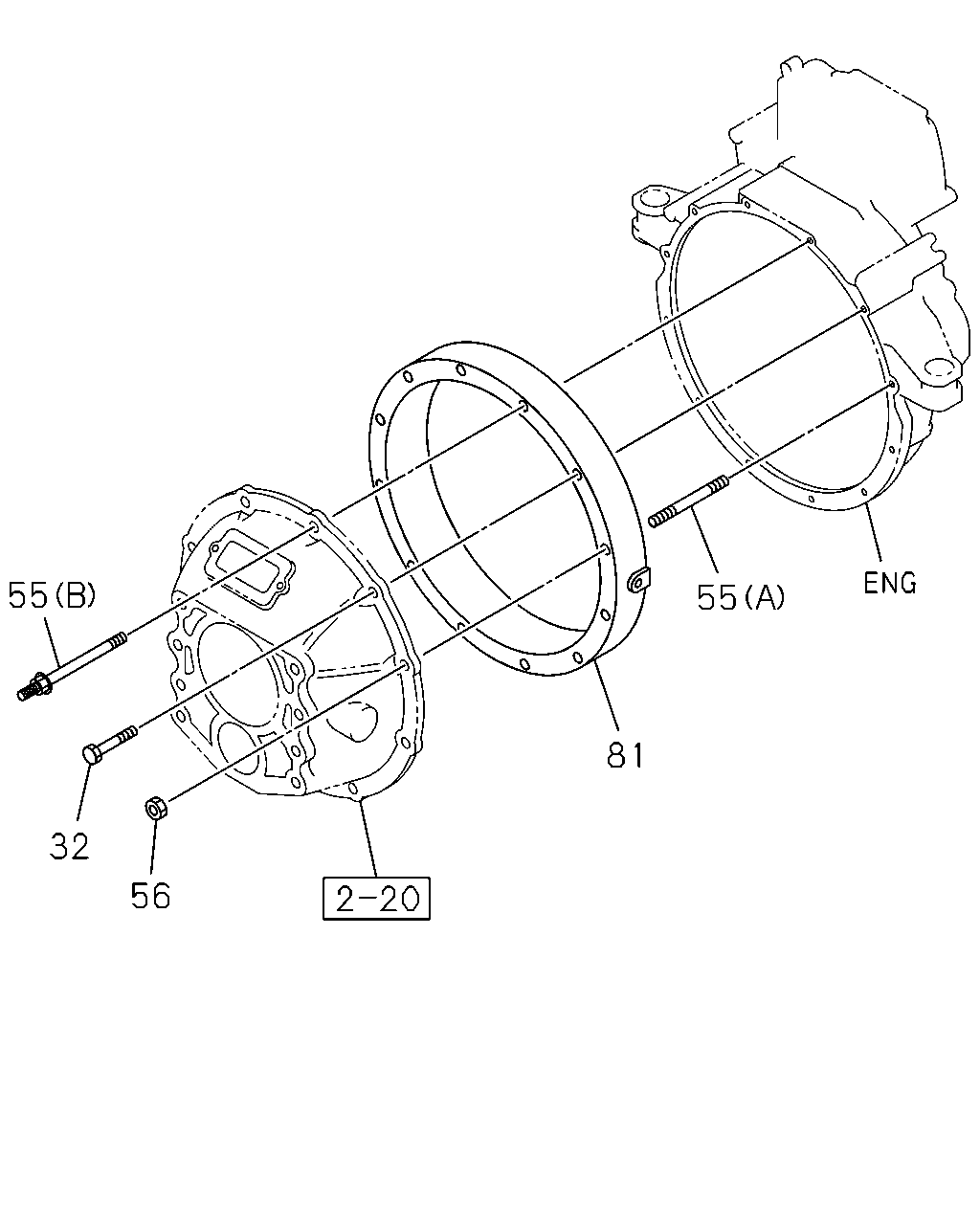

çizim 77181
55 81 56 32 55
BalonParca AdiParca NoAdetTipApplied Date
32 BOLT; CLU HSG TO FLYWHEEL HSG
6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L), 6WG1 TC-C(72L) M12X125 FLANGE 		1-09044-099-0 05 1 0312-
32 BOLT; CLU HSG TO FLYWHEEL HSG
M12X125 FLANGE 		1-09044-099-0 05 1 0105-0311
32 BOLT; CLU HSG TO FLYWHEEL HSG
6WF1 TC-C(1B8),6WF1 TC(84L) M12X125 FLANGE 		1-09044-099-0 07 1 0312-
55 STUD; FLYWHEEL HSG
(B) M10X18,M12X126 L=155.5 		1-09049-030-0 02 1 0105-0311
55 STUD; FLYWHEEL HSG
6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L), 6WG1 TC-C(72L) (B) M10X18,M12X126 L=155.5 		1-09049-030-0 02 1 0312-
55 STUD; FLYWHEEL HSG
(A) M12X124 L=142 		1-09302-164-0 05 1 0105-
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91150-212-0 05 1 0105-0602
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91180-212-0 05 1 0603-
81 SPACER 1-31119-018-3 01 1 0105-
