2-20 — MANUAL TRANSMISSION ASM AND CASE (#133205) — 115 parça

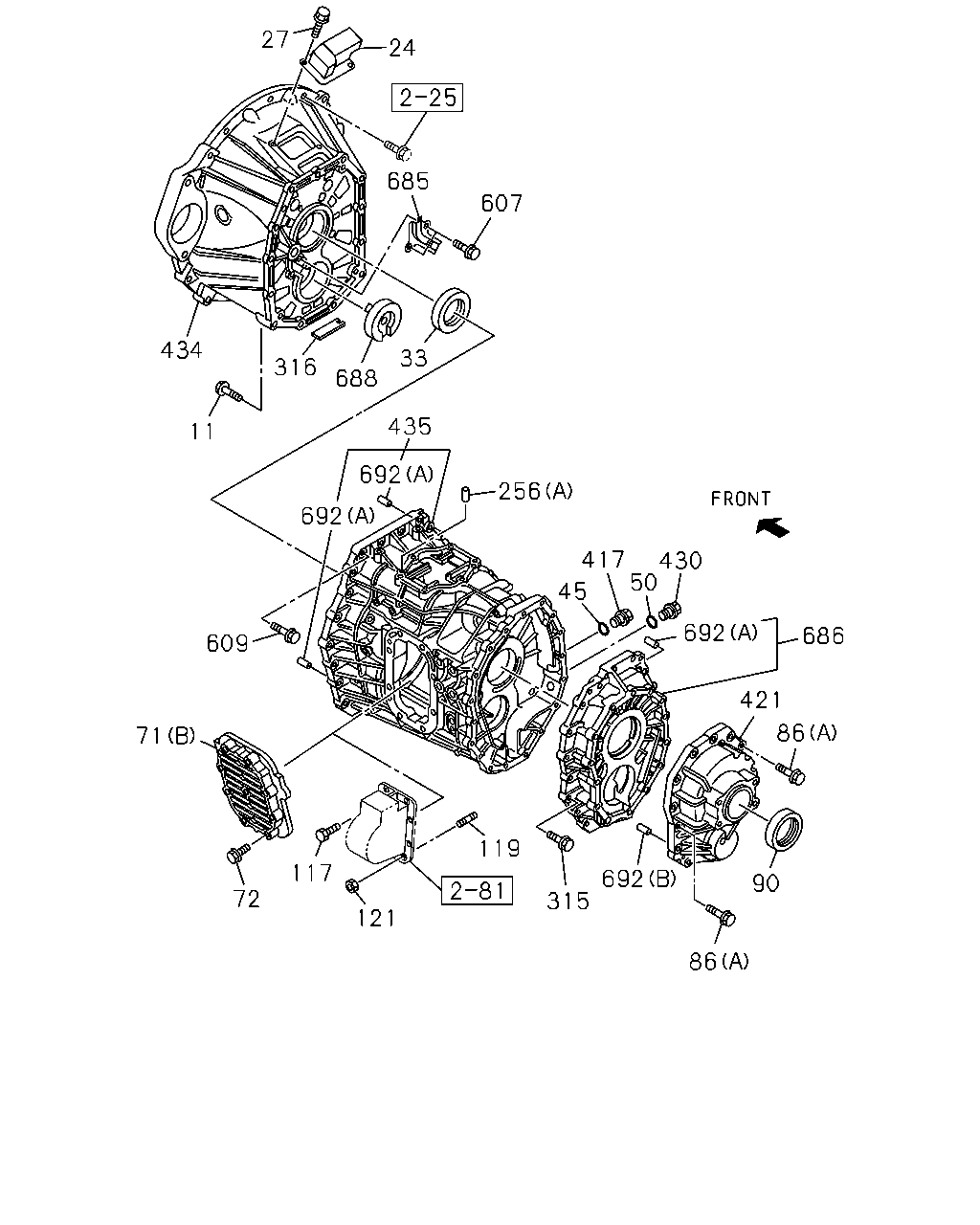

86 692 315 119 121 117 72 71 609 692 692 435 688 33 316 11 434 685 24 27 607 256 430 50 417 45 692 686 421 86 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M12X25 FLANGE	0-28151-225-0	01	1	1402-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1402-1410	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1402-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1402-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1402-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1402-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1402-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98122-318-0	01	1	1402-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98270-265-1	01	1	1409-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	8-97252-624-2	01	1	1402-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1402-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X20 FLANGE	8-98014-142-0	08	1	1402-	●
86	BOLT; RR COVER (B) M10X40 FLANGE	0-28151-040-0	10	1	1402-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-97365-377-0	02	1	1402-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1402-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1402-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1402-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1402-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	1402-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1402-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40 THA	0-44011-025-0	02	1	1402-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1402-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	1402-	●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1402-	●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1402-		●
256	PIN; KNOCK (C) ID=6 L=12 THA	9-08160-612-0	02	1	1402-	●
315	BOLT; CASE M8X40 FLANGE THA	0-28050-840-0	18	1	1402-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1402-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1402-	●	●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1402-	●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1402-		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1402-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
434	HOUSING; CLU	8-97382-931-1	01	1	1402-	●
434	HOUSING; CLU	8-98004-507-2	01	1	1402-		●
435	CASE; TRANS	8-97382-868-1	01	1	1402-	●
435	CASE; TRANS	8-98186-449-0	01	1	1402-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
607	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1402-		●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1402-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1402-	●
685	COVER; OIL PORT	8-98018-864-1	01	1	1402-		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	1402-		●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1402-		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1402-		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1402-		●

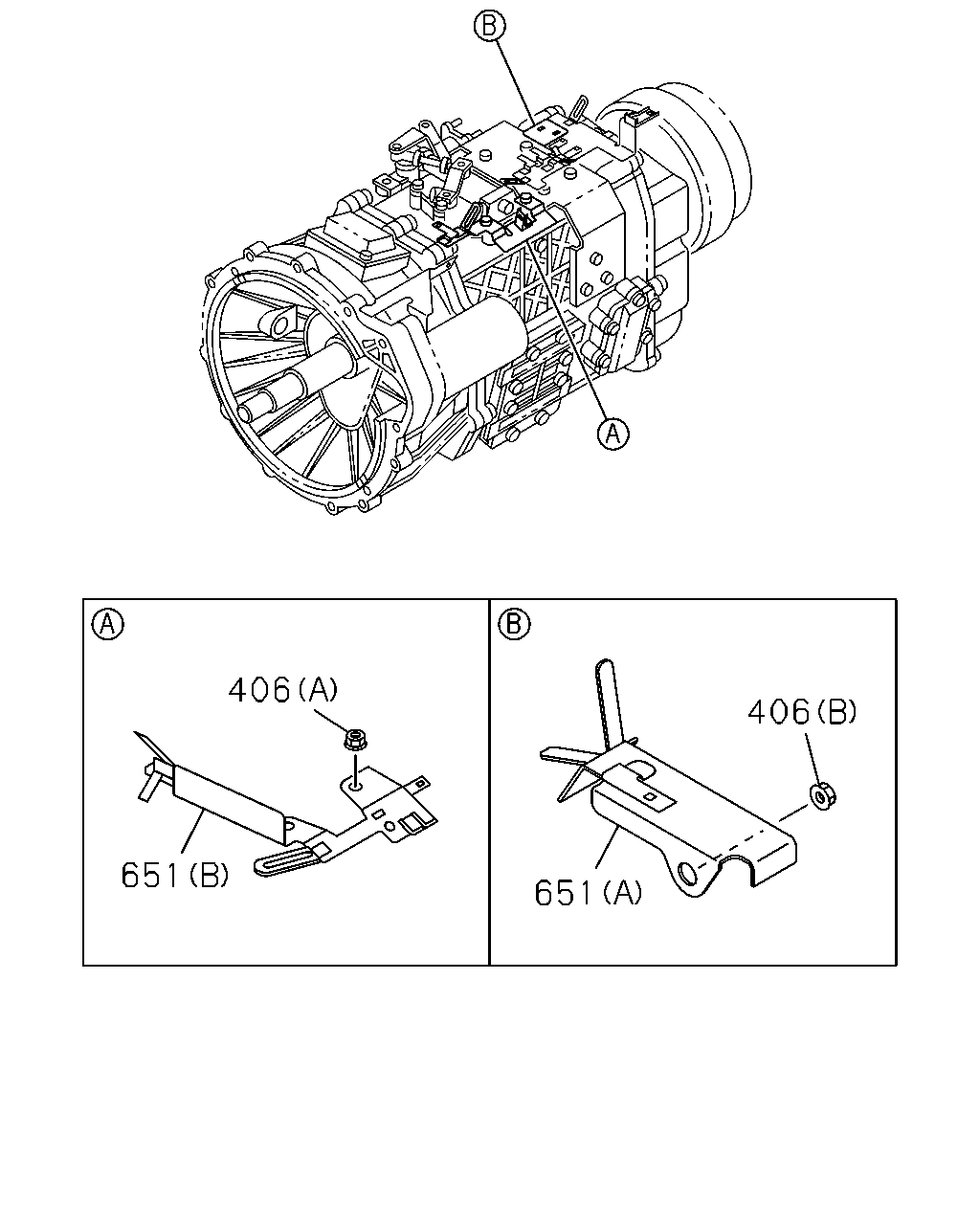

406 651 406 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
406	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-	●	●
406	NUT; BRKT (B) M10 FLANGE THA	0-91180-210-0	01	1	1402-	●
651	BRACKET; T/M HARNESS (B)	8-97609-800-3	01	1	1402-	●	●
651	BRACKET; T/M HARNESS (A)	8-98044-568-1	01	1	1402-	●

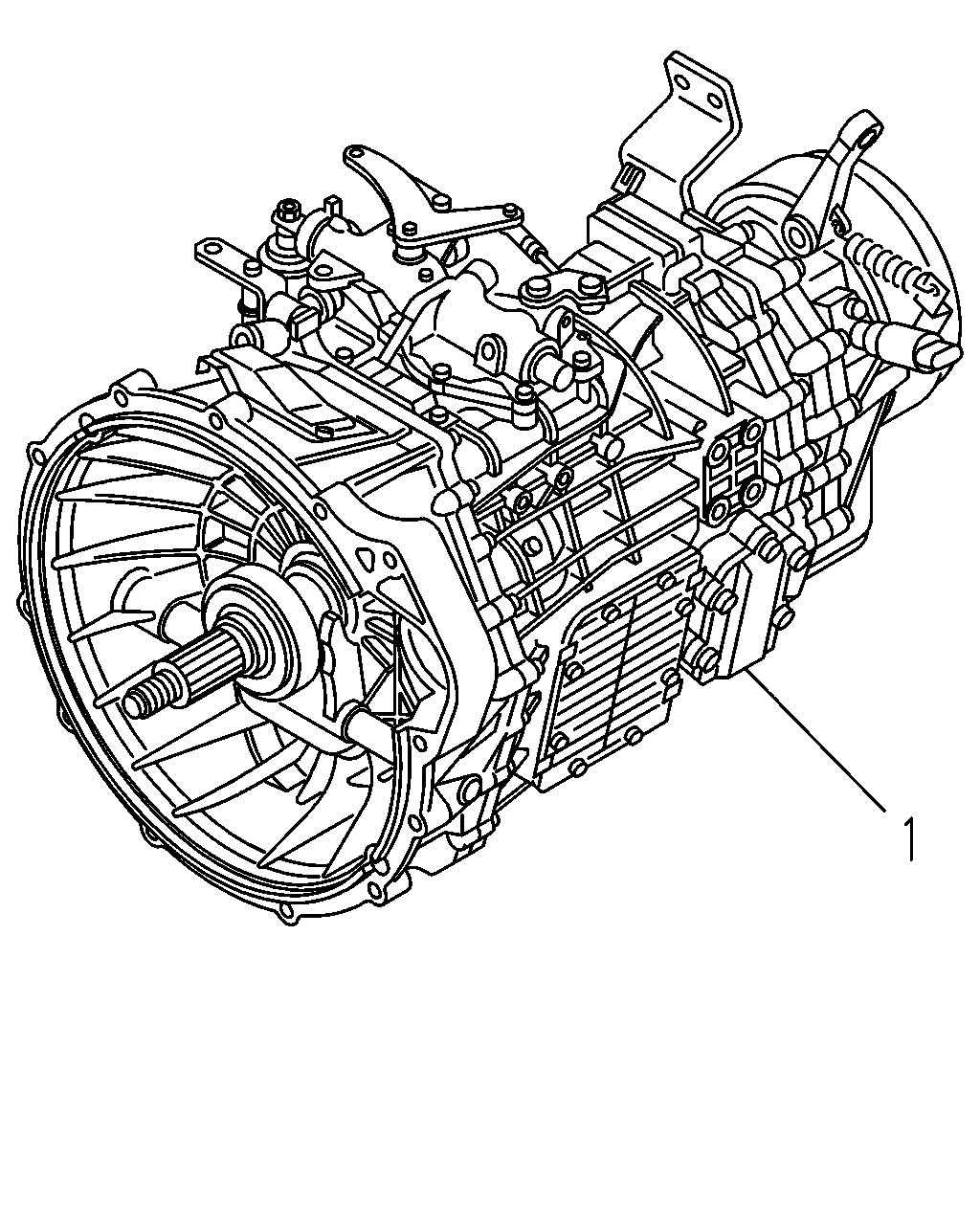

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98228-564-0	01	1	1402-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98228-564-0	01	1	1402-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1402-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1402-	●

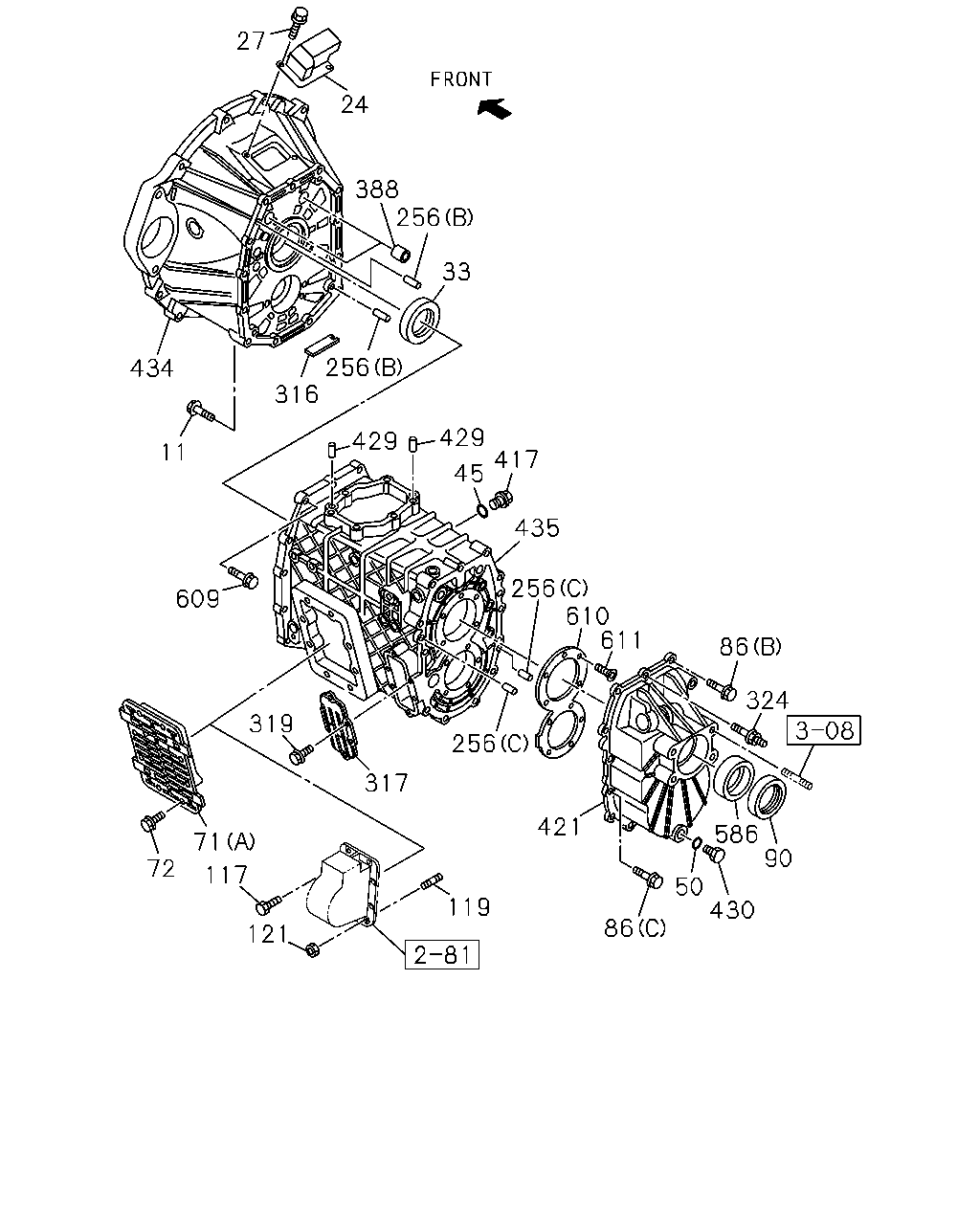

27 24 388 256 33 429 45 417 435 256 610 611 86 324 586 90 430 50 86 421 256 317 319 71 117 121 72 119 609 429 316 256 434 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M12X25 FLANGE	0-28151-225-0	01	1	1402-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1402-1410	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1402-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1402-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1402-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1402-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1402-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98122-318-0	01	1	1402-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (B)	8-98270-265-1	01	1	1409-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	8-97252-624-2	01	1	1402-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1402-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X20 FLANGE	8-98014-142-0	08	1	1402-	●
86	BOLT; RR COVER (B) M10X40 FLANGE	0-28151-040-0	10	1	1402-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-97365-377-0	02	1	1402-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1402-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1402-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1402-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1402-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	1402-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1402-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40 THA	0-44011-025-0	02	1	1402-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1402-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	1402-	●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1402-	●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1402-		●
256	PIN; KNOCK (C) ID=6 L=12 THA	9-08160-612-0	02	1	1402-	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1402-	●	●
317	COVER; CASE	8-97252-626-0	01	1	1402-	●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	1402-	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1402-	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1402-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1402-	●	●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1402-	●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1402-		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1402-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1402-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
434	HOUSING; CLU	8-97382-931-1	01	1	1402-	●
434	HOUSING; CLU	8-98004-507-2	01	1	1402-		●
435	CASE; TRANS	8-97382-868-1	01	1	1402-	●
435	CASE; TRANS	8-98186-449-0	01	1	1402-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
586	BEARING; NEEDLE	8-97253-108-0	01	1	1402-	●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1402-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1402-	●
610	RETAINER; BRG	8-97241-314-2	01	1	1402-	●
611	SCREW M10X27 TORQUES	8-97365-354-0	10	1	1402-	●

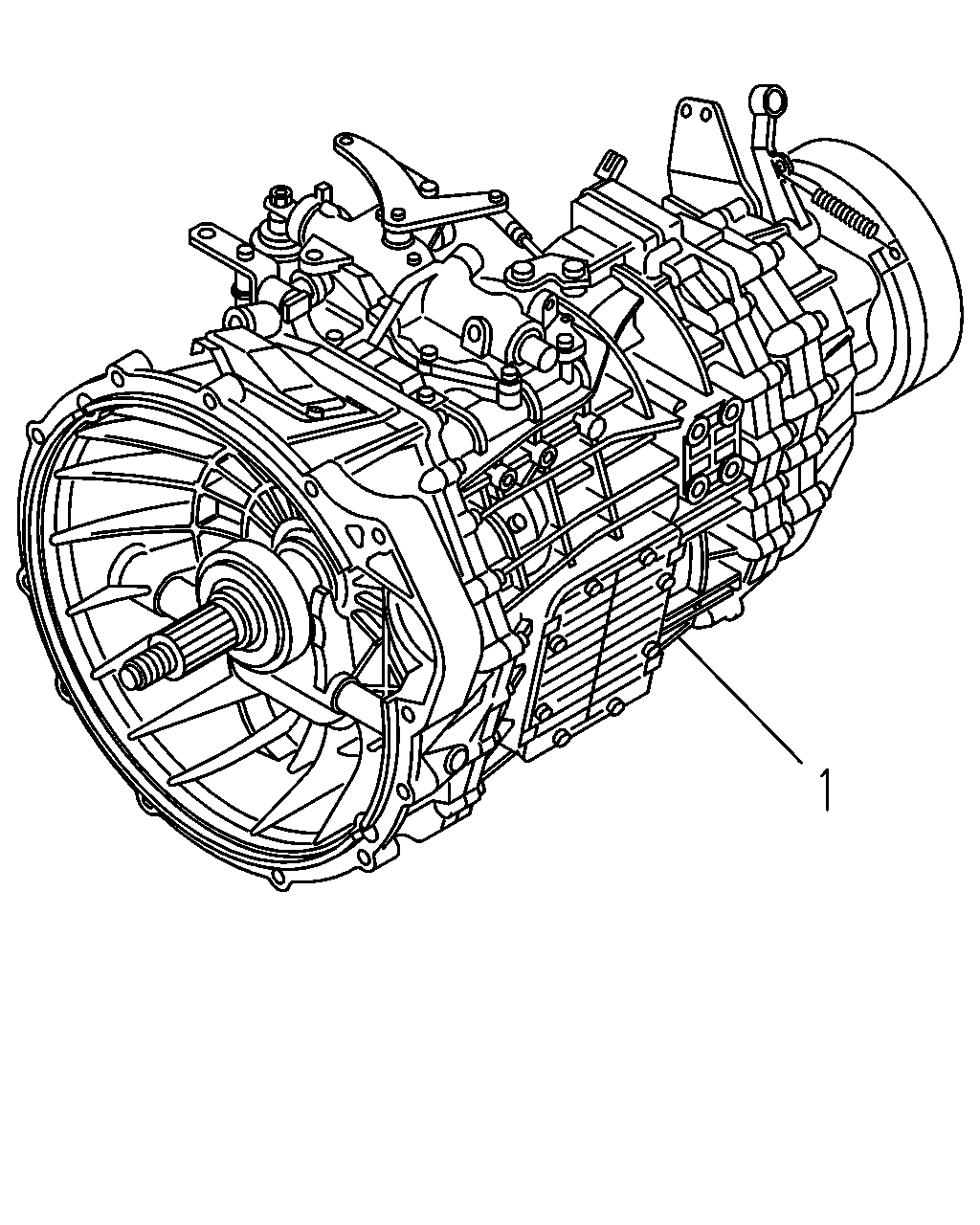

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98228-564-0	01	1	1402-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98228-564-0	01	1	1402-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1402-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	8-98171-396-0	01	1	1402-	●
