2-07 — CLUTCH BOOSTER; MINIPACK (#133202) — 67 parça

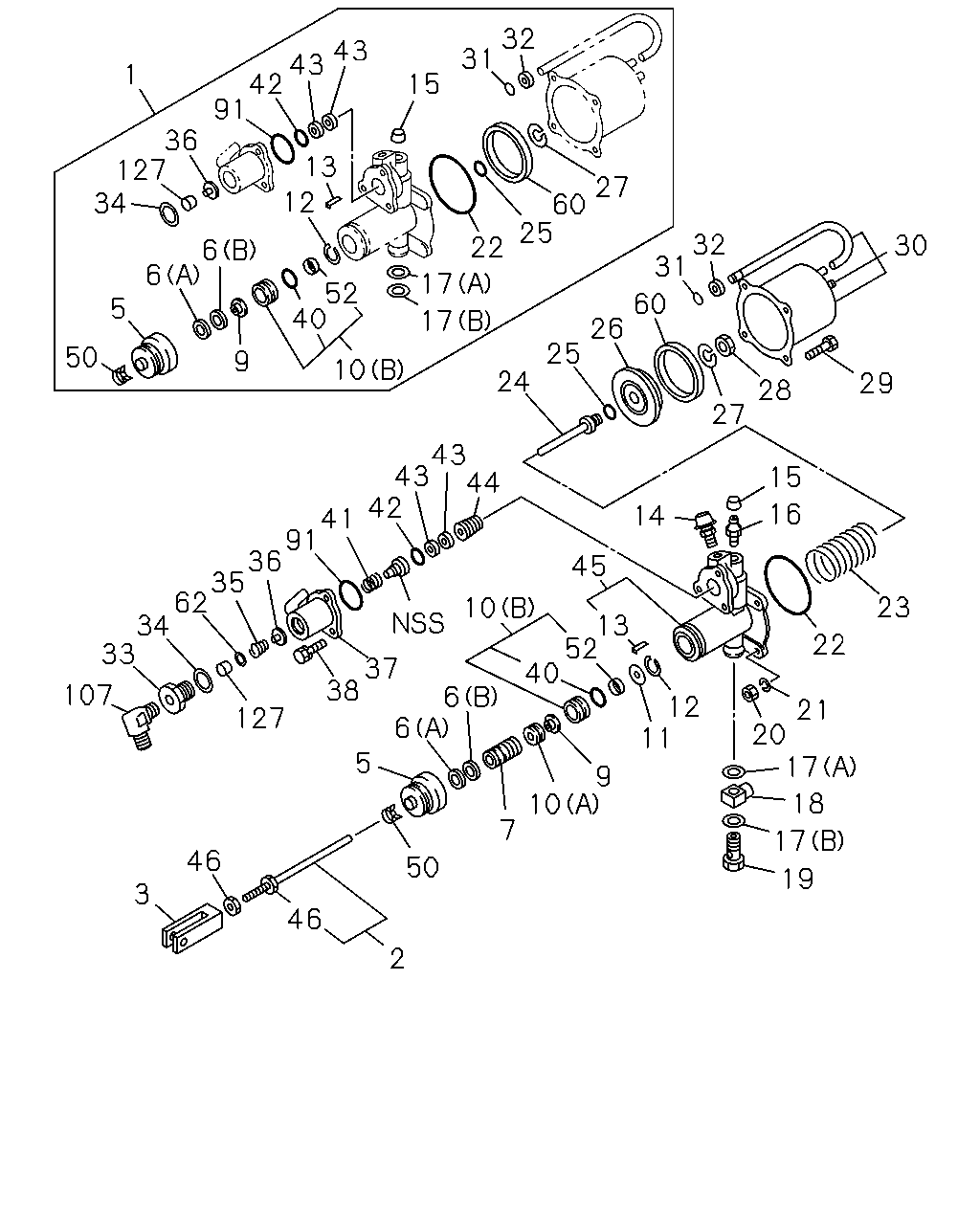

çizim 407383
30 32 31 60 26 25 24 17 17 22 25 60 27 32 31 15 43 43 42 13 12 91 36 1 34 127 6 6 5 50 9 40 52 10 43 43 42 41 91 36 35 62 34 33 107 127 46 3 46 2 50 5 38 6 7 6 37 10 10 40 9 52 13 11 45 12 20 17 18 17 19 21 22 23 14 16 15 27 28 29 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-602-0 01 1 1402- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-605-0 01 1 1402- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1402- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-251-0 01 1 1402- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1402- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1402- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-032-0 01 1 1402- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-033-0 01 1 1402- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 1402- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 1402- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1402- ●
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1402- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1402- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1402- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1402- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1402- ● ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 1402- ● ●
13 PIN; SPR 1-31829-109-0 01 1 1402- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1402- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1402- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1402- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1402- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1402- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1402- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1402- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 1402- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 1402- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 1402- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1402- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1402- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1402- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 1402- ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1402- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1402- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 1402- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 1402- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 1402- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 1402- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 1402- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1402- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1402- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1402- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-146-0 01 1 1402- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1402- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1402-1412 ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1501- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1402- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1402- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1402- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-507-0 01 1 1402- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1402- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-051-0 01 1 1402- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1402- ●
45 PLATE; END,CLU BOOSTER 1-31811-142-0 01 1 1402- ●
45 PLATE; END,CLU BOOSTER 1-31811-144-0 01 1 1402- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 1402- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1402- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1402-1412 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1501- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-599-0 01 1 1402-1412 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 1402-1412 ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 1501- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 1402- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1402- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1402- ● ●
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 1402- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 1402- ● ●
