◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#133201) — 31 parça

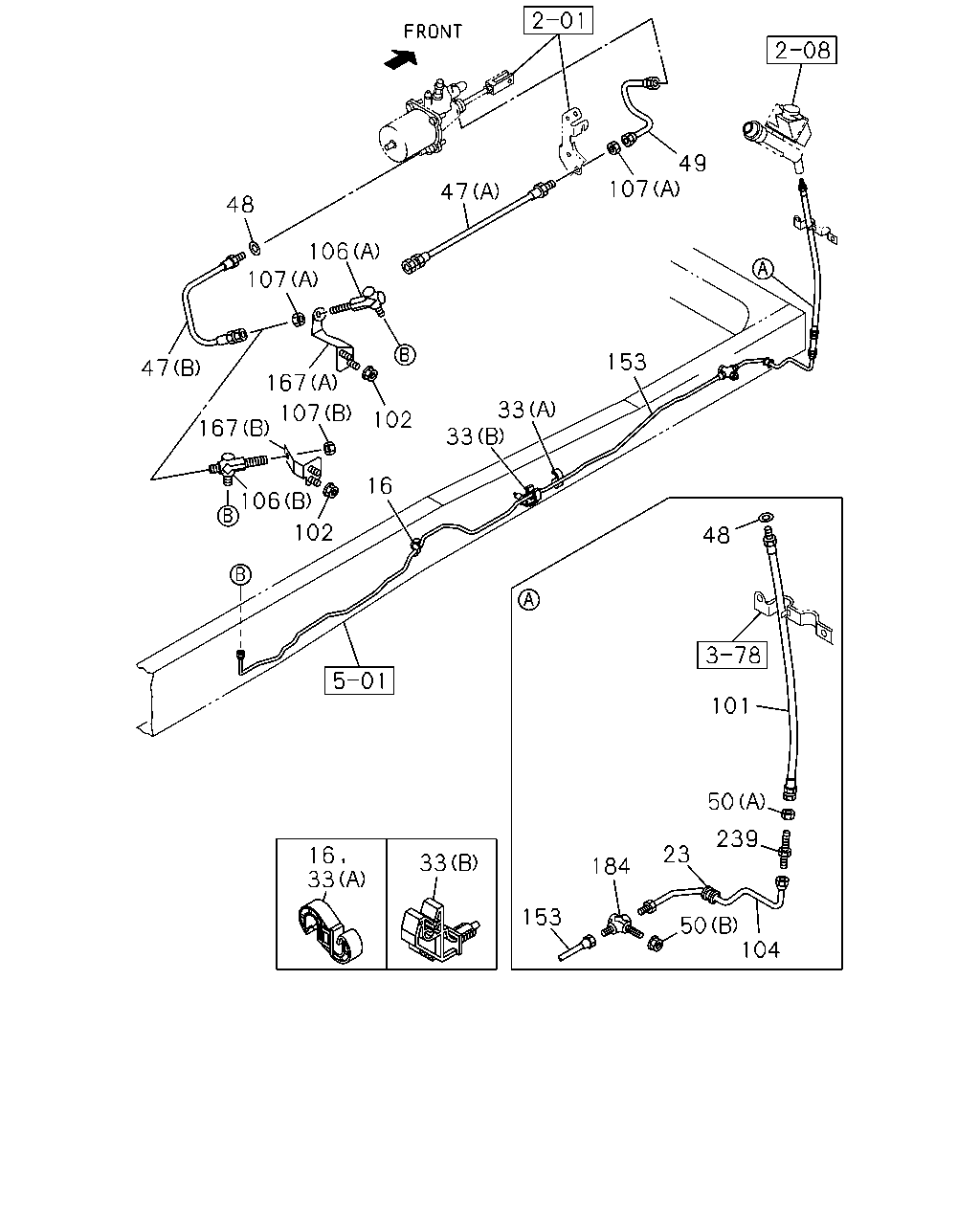

çizim 406466
48 47 167 107 106 47 107 49 153 33 33 102 107 167 106 102 16 33 33 101 48 50 239 23 184 153 50 104 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1402-
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1402-
33 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 1402-
33 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1402-
47 HOSE; FLEX,CLU CONT
MZW6P M/T<RSZ> (B) L=430 		8-98072-351-0 01 1 1402-
47 HOSE; FLEX,CLU CONT
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> (A) L=580 		1-09363-692-0 01 1 1402-
47 HOSE; FLEX,CLU CONT
MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) L=740 		1-09363-674-0 01 1 1402-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T<RSA> (B) L=390 		8-98080-980-0 01 1 1402-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=540 		1-09363-736-0 01 1 1402-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) L=720 		1-09363-801-0 01 1 1402-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1402-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZZ6W M/T<RSA> L=207 THA 		1-49124-782-0 01 1 1402-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T<RSZ> L=204 THA 		8-97948-220-0 01 1 1402-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1402-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1402-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1402-
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=336 THA 		8-97948-218-0 01 1 1402-
106 UNION; OIL PIPE
MZW6P M/T<RSZ> (A) M12 ELBOW 		0-92125-206-0 01 1 1402-
106 UNION; OIL PIPE
MZZ6W M/T<RSA> (B) M12 2WAY 		1-09654-059-2 01 1 1402-
107 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 01 1 1402-
107 NUT; UNION,OIL PIPE
MZW6P M/T<RSZ> (A) M12 		9-09840-280-0 01 1 1402-
107 NUT; UNION,OIL PIPE
MZZ6W M/T<RSA> (B) M12 		0-91111-512-0 01 1 1402-
153 PIPE ASM; CLU,UNION TO FLEX
MZW6P M/T<RSZ> L=2042 THA 		8-98123-177-0 01 1 1402-
153 PIPE ASM; CLU,UNION TO FLEX
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=2340 THA 		8-98174-342-0 01 1 1402-
153 PIPE ASM; CLU,UNION TO FLEX
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=2442 THA 		8-98078-087-1 01 1 1402-
167 BRACKET; UNION
MZW6P M/T<RSZ> (A) 		8-98078-147-0 01 1 1402-
167 BRACKET; UNION
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (B) 		8-98086-811-1 01 1 1402-
167 BRACKET; UNION
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) 		8-98078-090-1 01 1 1402-
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1402-
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
