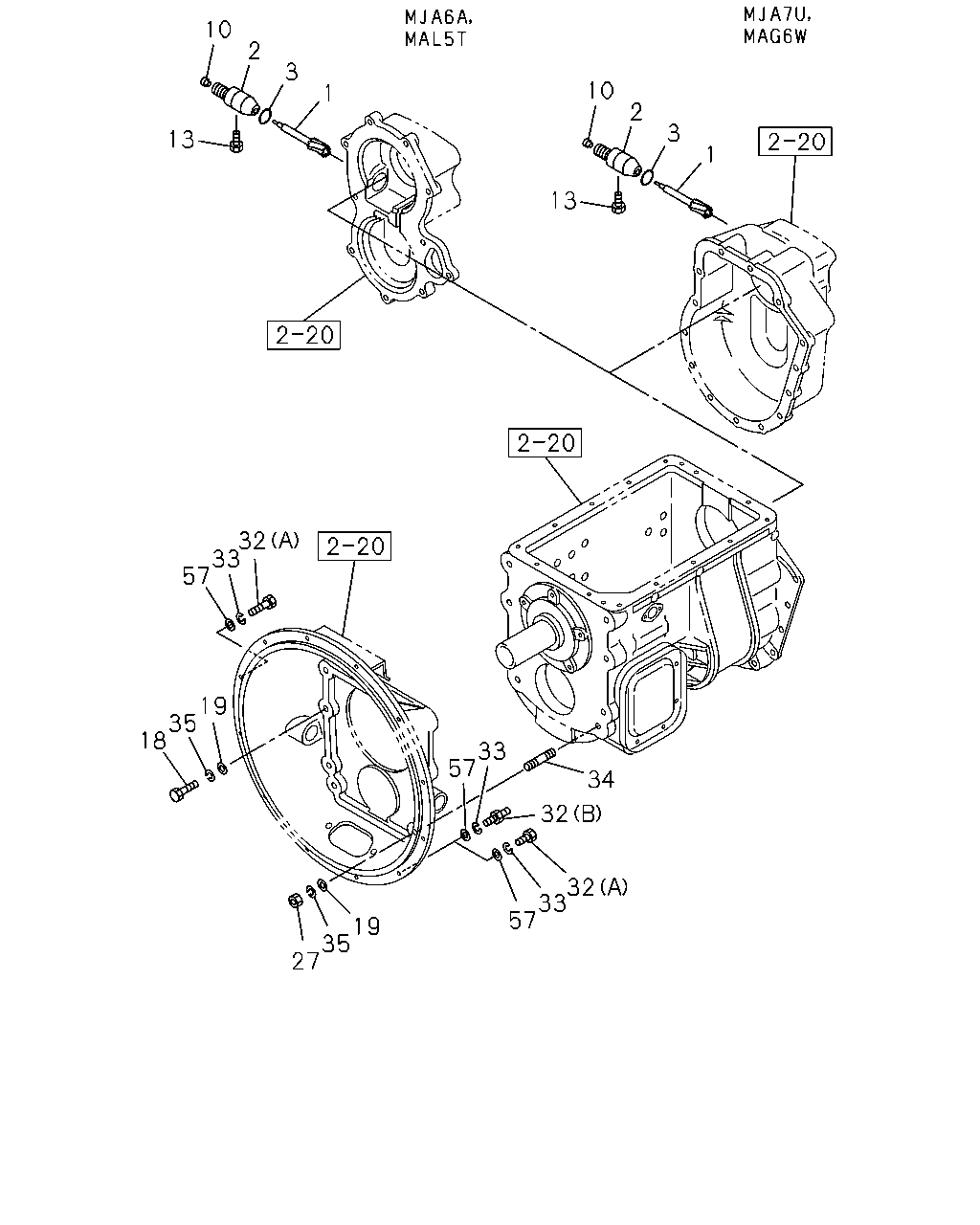

2-25A — SPEEDOMETER DRIVEN GEAR (#13320) — 94 parça

57 32 33 32 34 33 57 19 35 27 19 35 18 57 33 32 13 1 3 2 10 13 1 3 2 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0105-0106	●	●	●	●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0107-	●	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0105-0106	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0107-	●	●	●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0105-0106	●	●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0107-	●	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0105-0106	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0107-	●	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0105-0106	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0107-	●	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0105-0106	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0107-0512	●	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0105-0106	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0107-	●	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0105-0106	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0107-0512	●	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X35 FLANGE	0-28781-235-0	10	1	0312-0512						●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X35 FLANGE	0-28751-235-0	10	1	0601-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60	0-28181-260-0	08	1	0312-0512	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0312-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0312-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	08	1	0105-0311	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X35 FLANGE	0-28781-235-0	08	1	0312-0512	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X35 FLANGE	0-28751-235-0	08	1	0601-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0105-0311	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X35 L=59	1-09029-031-1	02	1	0312-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60	0-28181-260-0	08	1	0107-0311						●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60	0-28181-260-0	10	1	0312-0512						●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60 FLANGE	0-28151-260-0	10	1	0601-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0107-0311						●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X67 L=91	1-09029-043-1	02	1	0312-						●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0312-0603	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	0-91510-612-0	04	1	0604-	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0105-0311	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	02	1	0312-0603						●
33	WASHER; LK,CLU HSG ID=12.2	0-91510-612-0	02	1	0604-						●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0105-0106	●	●	●	●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0107-	●	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0105-0106	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0107-0603	●	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0312-	●	●	●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0105-0311	●	●	●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	0312-						●

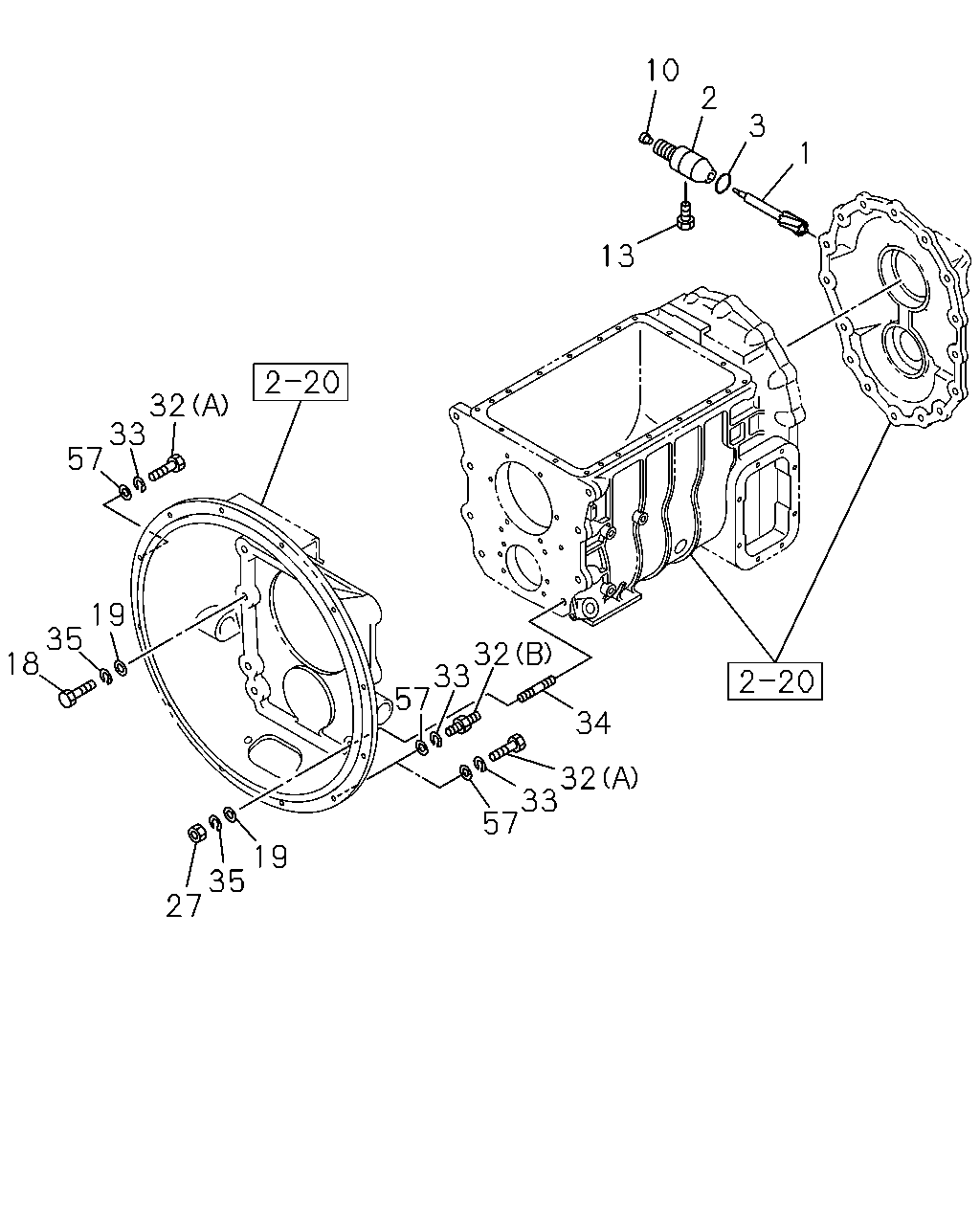

34 32 33 57 32 33 57 19 35 27 18 19 35 57 33 32 13 1 3 2 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0105-0106	●	●	●	●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0107-	●	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0105-0106	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0107-	●	●	●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0105-0106	●	●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0107-	●	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0105-0106	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0107-	●	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0105-0106	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0107-	●	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0105-0106	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0107-0512	●	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0105-0106	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0107-	●	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0105-0106	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0107-0512	●	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X35 FLANGE	0-28781-235-0	10	1	0312-0512						●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X35 FLANGE	0-28751-235-0	10	1	0601-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60	0-28181-260-0	08	1	0312-0512	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0312-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0312-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	08	1	0105-0311	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X35 FLANGE	0-28781-235-0	08	1	0312-0512	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X35 FLANGE	0-28751-235-0	08	1	0601-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0105-0311	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X35 L=59	1-09029-031-1	02	1	0312-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60	0-28181-260-0	08	1	0107-0311						●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60	0-28181-260-0	10	1	0312-0512						●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60 FLANGE	0-28151-260-0	10	1	0601-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0107-0311						●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X67 L=91	1-09029-043-1	02	1	0312-						●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0312-0603	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	0-91510-612-0	04	1	0604-	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0105-0311	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	02	1	0312-0603						●
33	WASHER; LK,CLU HSG ID=12.2	0-91510-612-0	02	1	0604-						●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0105-0106	●	●	●	●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0107-	●	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0105-0106	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0107-0603	●	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0312-	●	●	●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0105-0311	●	●	●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	0312-						●
