2-01 — CLUTCH (#133199) — 127 parça

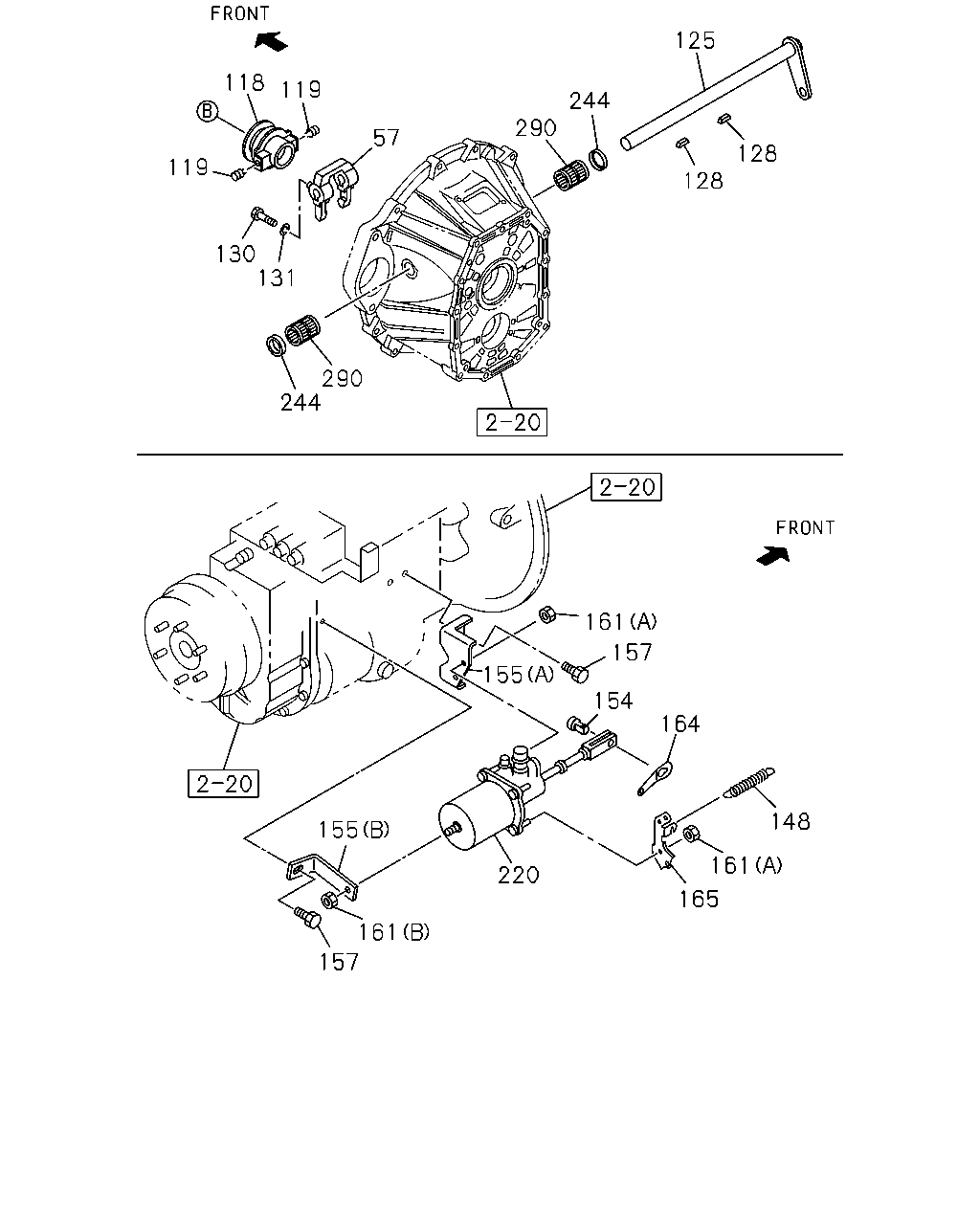

118 130 57 244 290 290 244 125 128 128 131 161 125 154 157 155 164 148 161 165 220 161 157 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	FORK; SHIFT,CLU	1-31341-031-0	01	1	1402-	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1402-		●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	1402-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1402-		●
118	BEARING; CLU RELEASE	1-31310-012-0	01	1	1402-	●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1402-		●
125	SHAFT; CLU	1-31342-331-0	01	1	1402-	●
125	SHAFT; CLU	1-31342-335-0	01	1	1402-		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1402-	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1402-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1402-	●	●
148	SPRING; CLU RETURN L=206.4	1-09583-291-1	01	1	1402-	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1402-		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1402-	●	●
155	BRACKET; MINIPACK (A)	1-31429-464-0	01	1	1402-	●
155	BRACKET; MINIPACK (C)	1-31429-474-1	01	1	1402-		●
155	BRACKET; MINIPACK (D)	1-31429-477-0	01	1	1402-		●
155	BRACKET; MINIPACK (B)	1-31429-465-1	01	1	1402-	●
157	BOLT; BRKT M10X20 FLANGE THA	0-28151-020-0	02	1	1402-	●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1402-		●
157	BOLT; BRKT M10X25 FLANGE THA	0-28051-025-0	01	1	1402-	●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	04	1	1402-	●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	05	1	1402-		●
161	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	01	1	1402-	●
164	EYE; SPRING	1-31426-019-1	01	1	1402-	●
164	EYE; SPRING	1-31426-041-0	01	1	1402-		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47471-291-0	01	1	1402-	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1402-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-510-2	01	1	1402-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	8-98177-654-1	01	1	1402-	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1402-	●	●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1402-	●	●

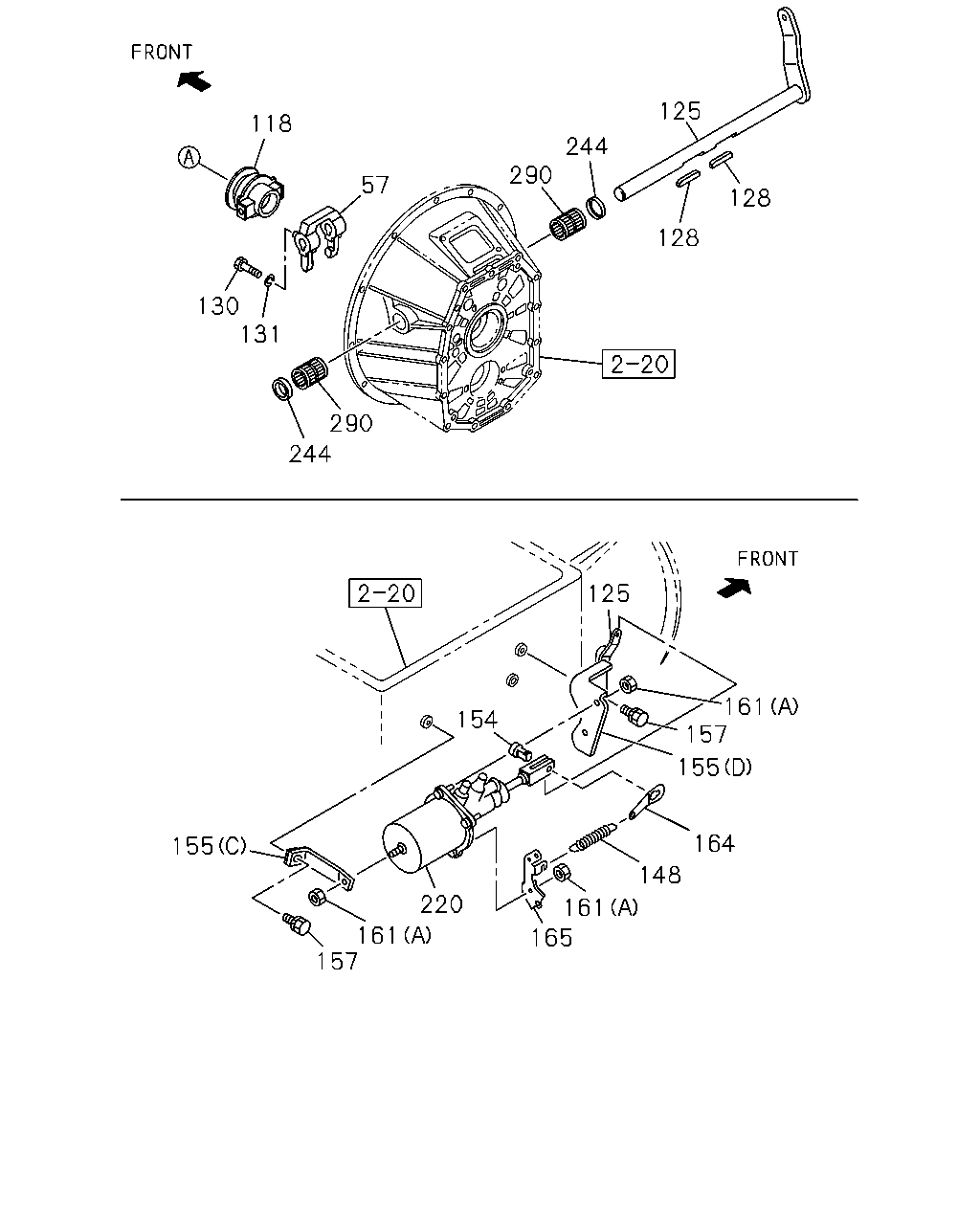

128 128 125 244 290 57 119 118 119 130 290 244 161 157 154 155 155 164 148 161 165 220 161 157 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	FORK; SHIFT,CLU	1-31341-031-0	01	1	1402-	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1402-		●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	1402-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1402-		●
118	BEARING; CLU RELEASE	1-31310-012-0	01	1	1402-	●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1402-		●
119	SPRING; SHIFT FORK	1-31329-024-0	02	1	1402-	●
125	SHAFT; CLU	1-31342-331-0	01	1	1402-	●
125	SHAFT; CLU	1-31342-335-0	01	1	1402-		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1402-	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1402-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1402-	●	●
148	SPRING; CLU RETURN L=206.4	1-09583-291-1	01	1	1402-	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1402-		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1402-	●	●
155	BRACKET; MINIPACK (A)	1-31429-464-0	01	1	1402-	●
155	BRACKET; MINIPACK (C)	1-31429-474-1	01	1	1402-		●
155	BRACKET; MINIPACK (D)	1-31429-477-0	01	1	1402-		●
155	BRACKET; MINIPACK (B)	1-31429-465-1	01	1	1402-	●
157	BOLT; BRKT M10X20 FLANGE THA	0-28151-020-0	02	1	1402-	●
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1402-		●
157	BOLT; BRKT M10X25 FLANGE THA	0-28051-025-0	01	1	1402-	●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	04	1	1402-	●
161	NUT; BRKT (A) M8 FLANGE THA	0-91180-208-0	05	1	1402-		●
161	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	01	1	1402-	●
164	EYE; SPRING	1-31426-019-1	01	1	1402-	●
164	EYE; SPRING	1-31426-041-0	01	1	1402-		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47471-291-0	01	1	1402-	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1402-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-510-2	01	1	1402-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	8-98177-654-1	01	1	1402-	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1402-	●	●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1402-	●	●

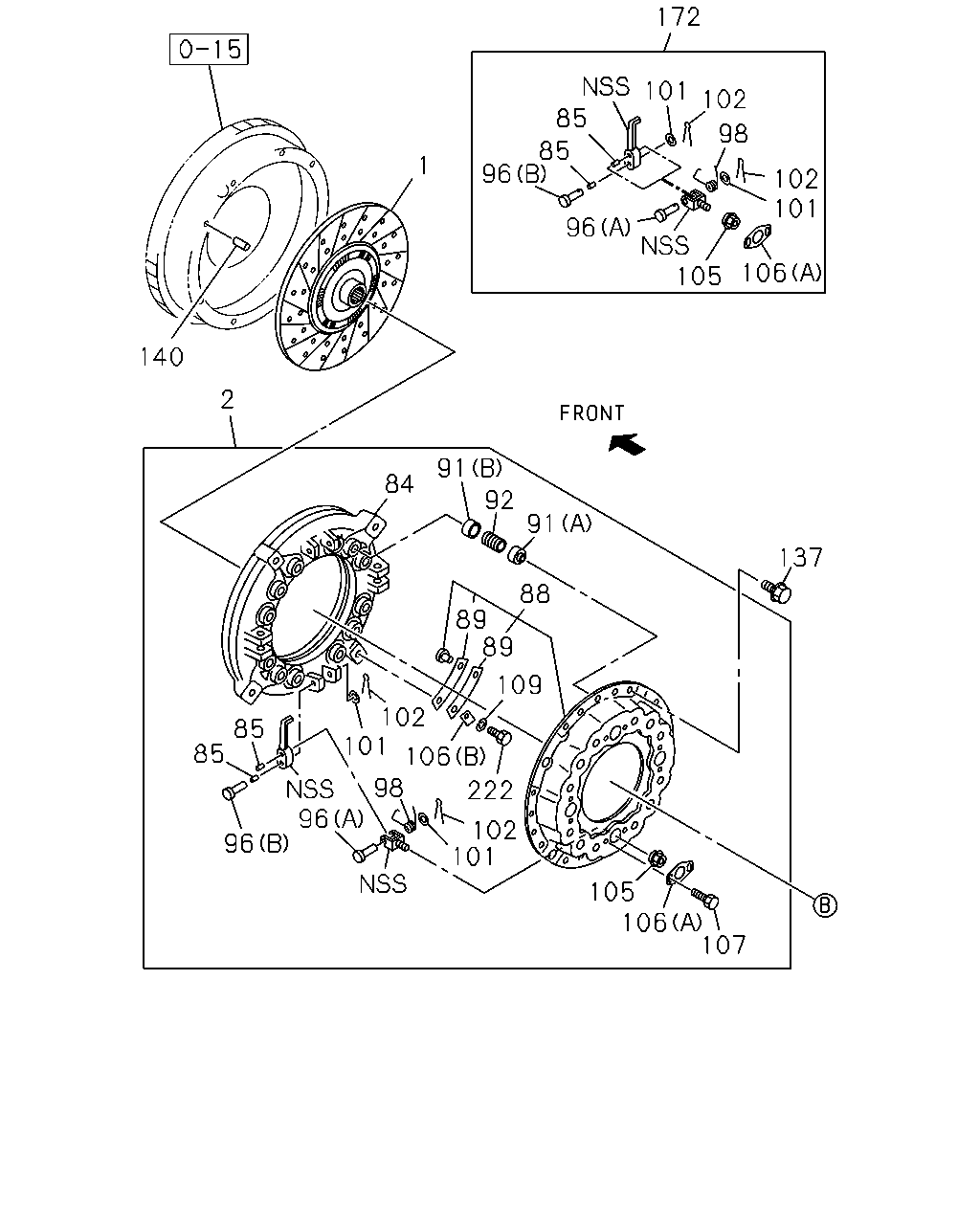

172 101 102 98 102 101 106 105 96 96 85 85 1 140 2 84 91 92 91 137 88 89 89 109 222 107 106 105 102 106 102 101 98 101 85 85 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 14"	1-31260-040-1	01	1	1402-		●
1	DISC; CLUTCH 14"	1-31240-949-2	01	1	1402-	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-140-0	01	1	1411-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-411-0	01	1	1402-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-454-0	01	1	1402-	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-147-0	01	1	1402-		●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	1402-	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1402-	●	●
88	COVER SUB ASM; CLU	1-31211-038-0	01	1	1402-	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	1402-	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1402-		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1402-		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1402-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1402-	●
92	SPRING; CLU	1-31214-095-0	08	1	1402-		●
92	SPRING; CLU	1-31214-088-0	12	1	1402-	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1402-	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1402-	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	1402-	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1402-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	1402-	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	1402-	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	1402-	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1402-	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	1402-	●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	1402-	●	●
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	1402-	●	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	1402-	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1402-		●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	1402-	●
222	BOLT; STRAP	1-31239-059-0	04	1	1402-	●	●

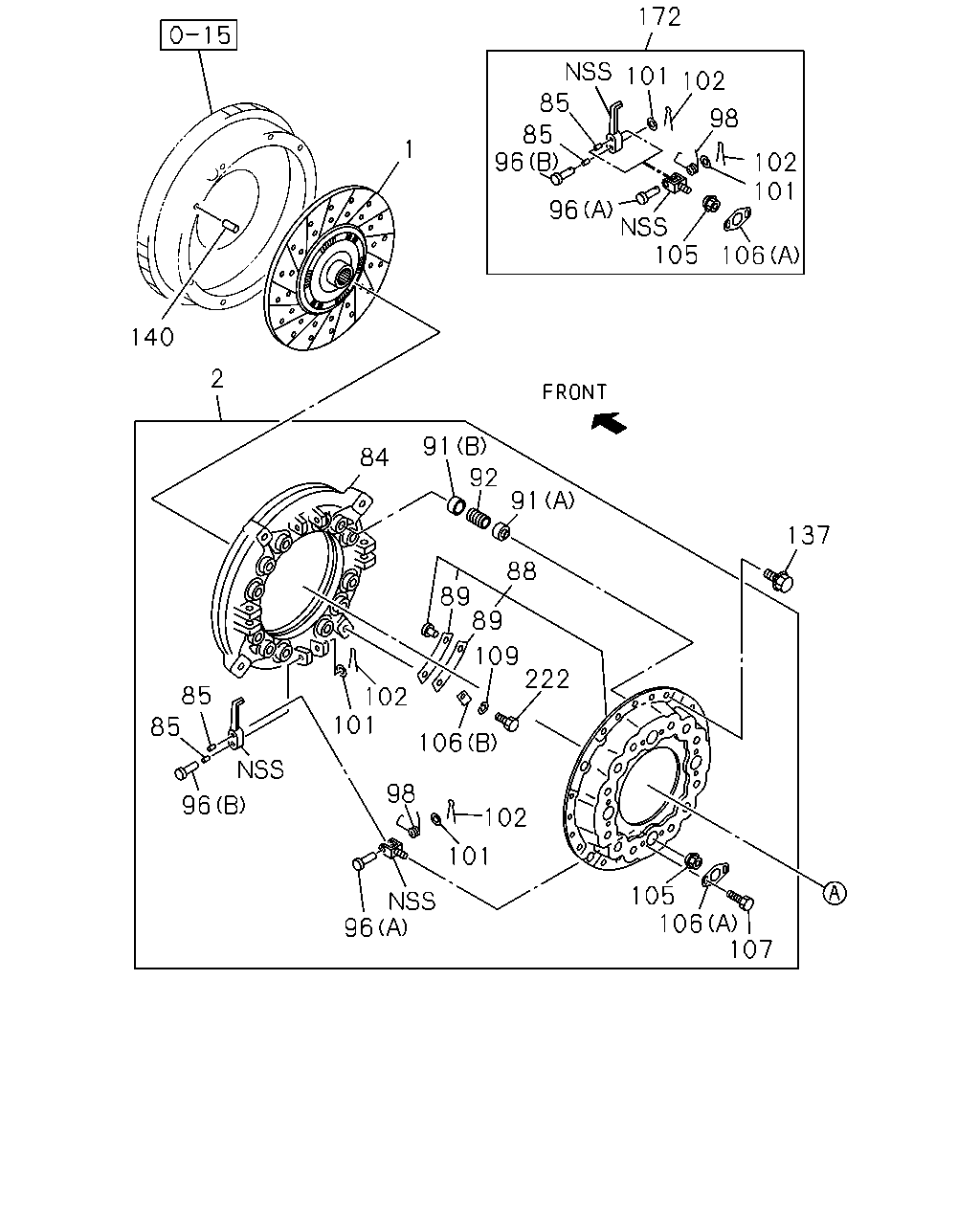

172 101 102 85 85 96 96 105 106 101 102 1 2 140 84 91 137 91 92 85 85 96 96 101 102 105 106 107 222 106 98 101 109 89 89 102 88 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 14"	1-31260-040-1	01	1	1402-		●
1	DISC; CLUTCH 14"	1-31240-949-2	01	1	1402-	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-140-0	01	1	1411-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-411-0	01	1	1402-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-454-0	01	1	1402-	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-147-0	01	1	1402-		●
84	PLATE; PRESSURE 14"	1-31221-136-0	01	1	1402-	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1402-	●	●
88	COVER SUB ASM; CLU	1-31211-038-0	01	1	1402-	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	1402-	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1402-		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1402-		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1402-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1402-	●
92	SPRING; CLU	1-31214-095-0	08	1	1402-		●
92	SPRING; CLU	1-31214-088-0	12	1	1402-	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1402-	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1402-	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	1402-	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1402-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	1402-	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	1402-	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	1402-	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1402-	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	1402-	●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	1402-	●	●
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	1402-	●	●
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	1402-	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1402-		●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	1402-	●
222	BOLT; STRAP	1-31239-059-0	04	1	1402-	●	●
