1-56 — EXHAUST BRAKE SYSTEM (#133198) — 16 parça

çizim 406524

87 95 92 94 88 86 87 87

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	86	VALVE; MAG,EXH BRK THA	8-97948-152-0	01	1	1402-	●	●
	87	CONNECTOR (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1402-	●	●
	87	CONNECTOR WHEEL BASE 3400MM<34W> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1402-	●	●
	87	CONNECTOR WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1402-	●	●
	88	PLUG PT1/4	9-99204-513-0	01	1	1402-	●	●
	92	BOLT; MAG VLV M10X30 FLANGE THA	0-28651-030-0	02	1	1402-	●	●
	94	BRACKET; MAG VLV,EXH BRAKE	8-98078-098-0	01	1	1402-	●	●
	95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE THA	0-28650-820-0	02	1	1402-	●	●

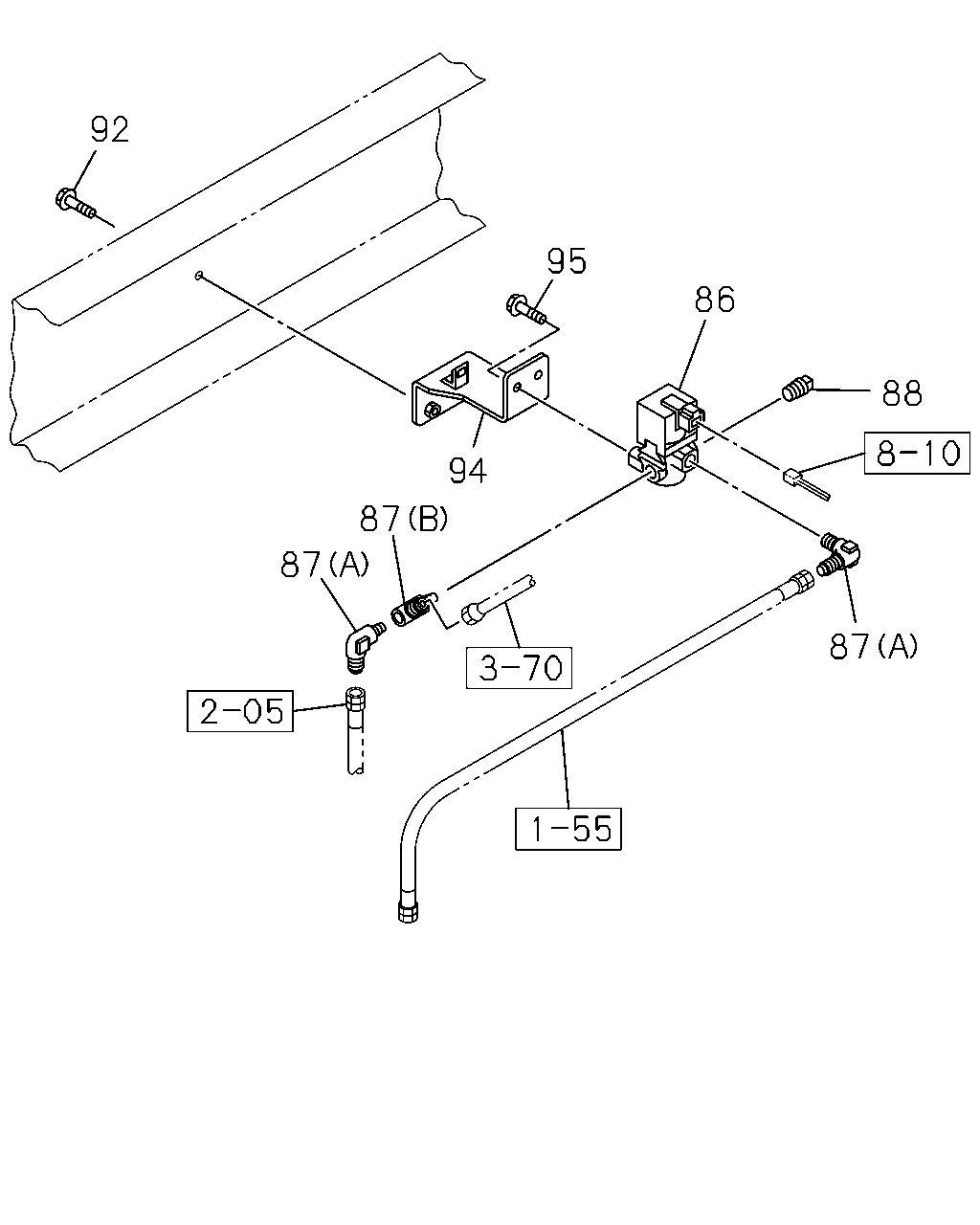

çizim 406526

87 88 86 95 92 94 87 87

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	86	VALVE; MAG,EXH BRK THA	8-97948-152-0	01	1	1402-	●	●
	87	CONNECTOR (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1402-	●	●
	87	CONNECTOR WHEEL BASE 3400MM<34W> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1402-	●	●
	87	CONNECTOR WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1402-	●	●
	88	PLUG PT1/4	9-99204-513-0	01	1	1402-	●	●
	92	BOLT; MAG VLV M10X30 FLANGE THA	0-28651-030-0	02	1	1402-	●	●
	94	BRACKET; MAG VLV,EXH BRAKE	8-98078-098-0	01	1	1402-	●	●
	95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE THA	0-28650-820-0	02	1	1402-	●	●
