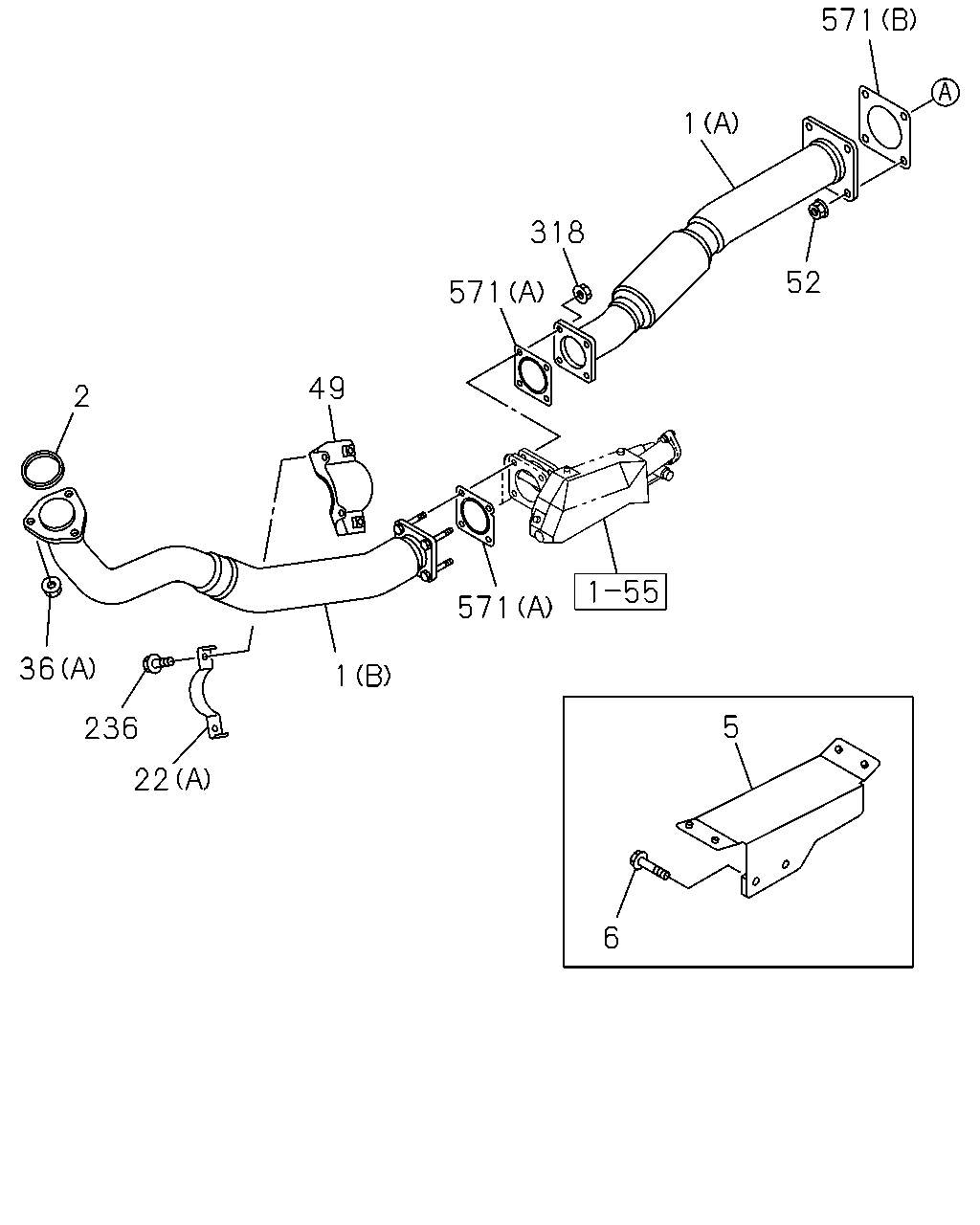

1-50 — EXHAUST PIPE AND SILENCER (#133196) — 56 parça

2 49 571 318 1 571 52 571 1 22 236 36 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (A) THA	8-97924-440-1	01	1	1402-
1	PIPE; EXH (B) THA	8-97924-565-0	01	1	1402-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	1402-
5	PROTECTOR; HEAT	8-98089-287-1	01	1	1402-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1402-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1402-
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1402-
36	NUT; EXH PIPE (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1402-
49	BRACKET; EXH PIPE TO TRANS	8-98234-530-0	01	1	1402-
52	NUT; BRKT M12 FLANGE THA	0-91180-212-0	04	1	1402-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1402-
318	NUT; EXH PIPE,FRT M8 W/LK WASHER THA	8-97581-234-0	04	1	1402-
571	GASKET (A) ID=64	8-97373-108-0	02	1	1402-
571	GASKET (B)	8-98096-305-0	01	1	1402-

11 128 126 12 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	PIPE; EXH,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-97924-043-0	01	1	1402-
12	SILENCER ASM; EXH THA	8-97926-369-0	01	1	1402-
17	BOLT; EXH PIPE (B) M12X35 FLANGE THA	0-28051-235-0	04	1	1402-
17	BOLT; EXH PIPE (A) M10X35 FLANGE THA	0-28651-035-0	02	1	1402-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-98210-836-0	01	1	1402-
128	PIPE; EXH,RR WHEEL BASE 3400MM<34W> THA	8-97924-096-0	01	1	1402-
128	PIPE; EXH,RR WHEEL BASE 4300MM<43W> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-97924-095-0	01	1	1402-
128	PIPE; EXH,RR WHEEL BASE 4900MM<49W> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-97924-042-0	01	1	1402-

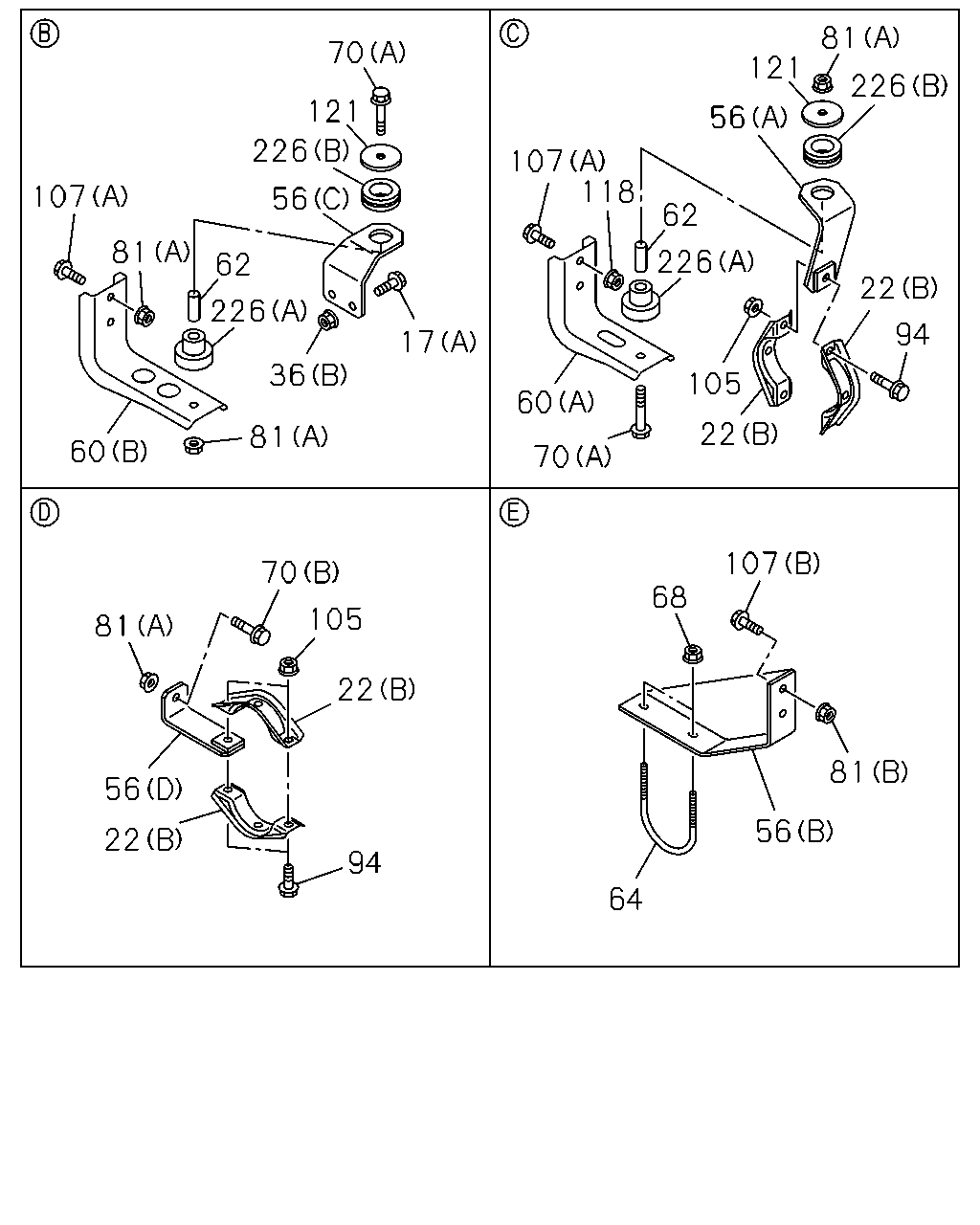

107 81 62 226 36 81 60 17 56 226 121 70 107 118 62 226 60 70 22 105 22 94 226 56 121 81 68 107 81 56 64 94 22 56 81 70 105 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; EXH PIPE (B) M12X35 FLANGE THA	0-28051-235-0	04	1	1402-
17	BOLT; EXH PIPE (A) M10X35 FLANGE THA	0-28651-035-0	02	1	1402-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1402-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1402-
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1402-
36	NUT; EXH PIPE (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1402-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98074-824-1	01	1	1402-
56	BRACKET; CLAMP,EXH PIPE (A)	8-98086-352-0	01	1	1402-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-98056-460-0	01	1	1402-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) THA	8-98085-168-0	01	1	1402-
60	BRACKET; FRAME TO BRKT (B)	1-22152-274-1	01	1	1402-
60	BRACKET; FRAME TO BRKT (A)	8-98245-530-0	01	1	1402-
62	TUBE; DIST,BRKT THA	8-97948-228-0	02	1	1402-
64	U-BOLT; EXH PIPE,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	1-22113-101-0	01	1	1402-
68	NUT; U BOLT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8 FLANGE THA	0-91180-108-0	02	1	1402-
70	BOLT; BRKT (A) M10X70 FLANGE THA	0-28051-070-0	02	1	1402-
70	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X35 FLANGE THA	0-28651-035-0	01	1	1402-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1402-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1402-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8 FLANGE THA	0-91180-108-0	02	1	1402-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE THA	0-91180-210-0	01	1	1402-
94	BOLT; CLAMP M10X40 FLANGE THA	0-28651-040-0	02	1	1402-
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE THA	0-28651-040-0	02	1	1402-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1402-
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE THA	0-91180-210-0	02	1	1402-
107	BOLT; BRKT (A) M10X35 FLANGE THA	0-28651-035-0	04	1	1402-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
118	NUT; SILENCER MTG BRKT M10 FLANGE THA	0-91180-210-0	02	1	1402-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1402-
226	RUBBER; CUSHION (A) THA	8-97948-226-0	02	1	1402-
226	RUBBER; CUSHION (B) THA	8-97948-227-0	02	1	1402-
