Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#133194) — 170 parça

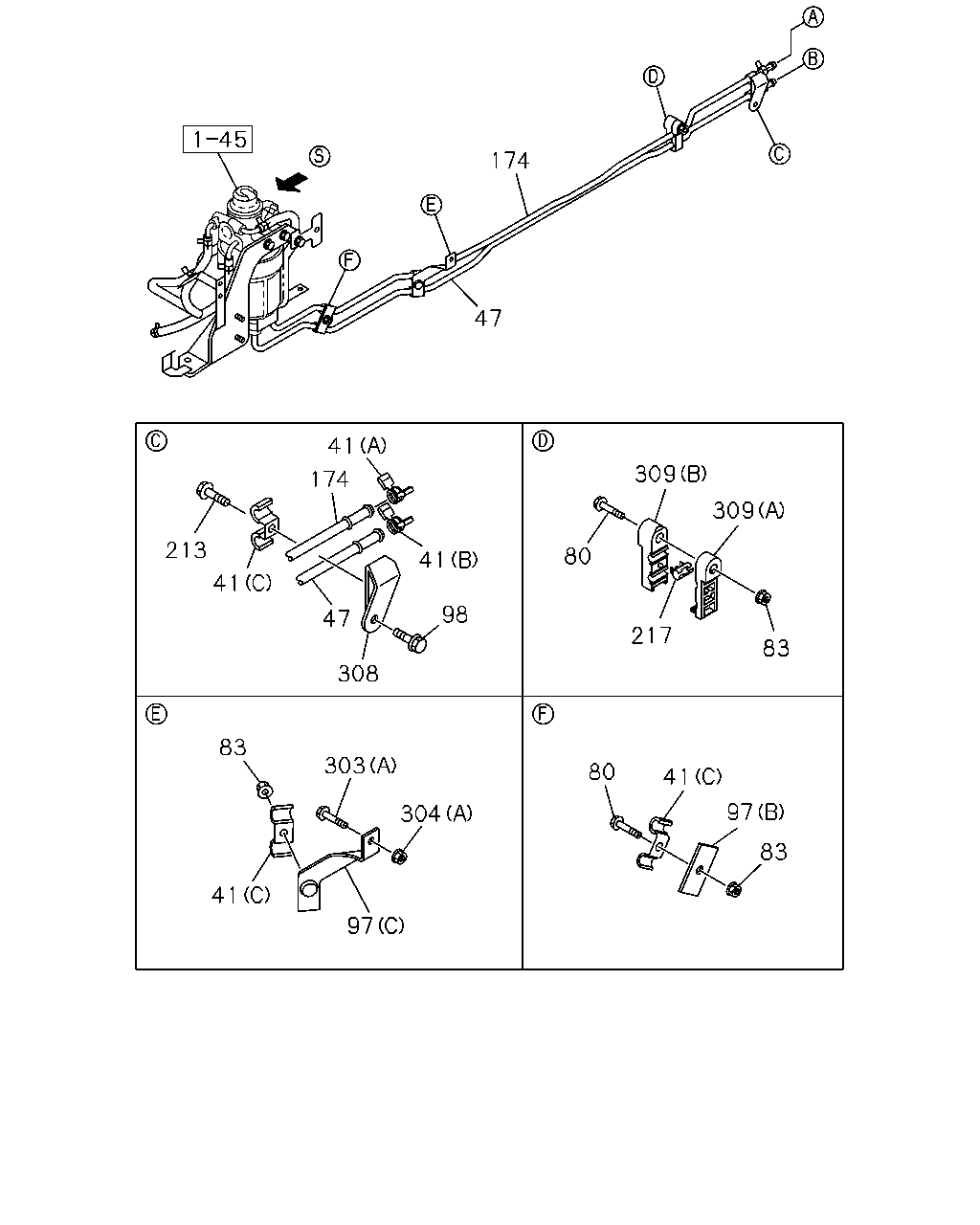

174 47 41 174 213 41 47 41 308 98 83 303 304 97 41 80 41 97 83 83 217 80 309 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (H) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (H) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20	0-95325-535-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (H) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (D) L=250	5-09707-030-1	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (D) L=250	5-09707-030-1	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=250	5-09707-030-1	01	1	1402-
47	PIPE; FUEL,RETURN L=1588	8-98208-975-0	01	1	1402-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE THA	0-28050-850-0	01	1	1402-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
80	BOLT; CLIP,FUEL TANK MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	03	1	1402-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	03	1	1402-
80	BOLT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
80	BOLT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	01	1	1402-
83	NUT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1402-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1402-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1402-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1402-
97	BRACKET; CLIP MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=65	1-47477-713-0	02	1	1402-
98	BOLT; BRKT,FUEL PIPE M10X30 FLANGE THA	0-28651-030-0	01	1	1402-
174	PIPE; FUEL,FEED,FRT L=1414	8-98208-965-0	01	1	1402-
213	BOLT; FUEL PIPE FIX M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	01	1	1402-
303	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
303	BOLT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
303	BOLT; BRKT WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (B) M10X35 FLANGE THA	0-28651-035-0	02	1	1402-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1402-
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
304	NUT; BRKT WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
308	BRACKET; FUEL PIPE	8-98117-691-0	01	1	1402-
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	01	1	1402-
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	01	1	1402-

41 95 41 41 55 41 41 83 80 304 80 303 97 41 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (H) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (H) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20	0-95325-535-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (H) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (D) L=250	5-09707-030-1	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (D) L=250	5-09707-030-1	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=250	5-09707-030-1	01	1	1402-
55	COVER; PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> ID=29 OD=39 L=100	1-09337-022-0	01	1	1402-
55	COVER; PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1402-
55	COVER; PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1402-
55	COVER; PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE THA	0-28050-850-0	01	1	1402-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
80	BOLT; CLIP,FUEL TANK MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	03	1	1402-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	03	1	1402-
80	BOLT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
80	BOLT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	01	1	1402-
83	NUT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1402-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1402-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1402-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1402-
97	BRACKET; CLIP MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=65	1-47477-713-0	02	1	1402-
303	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
303	BOLT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
303	BOLT; BRKT WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (B) M10X35 FLANGE THA	0-28651-035-0	02	1	1402-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1402-
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
304	NUT; BRKT WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-

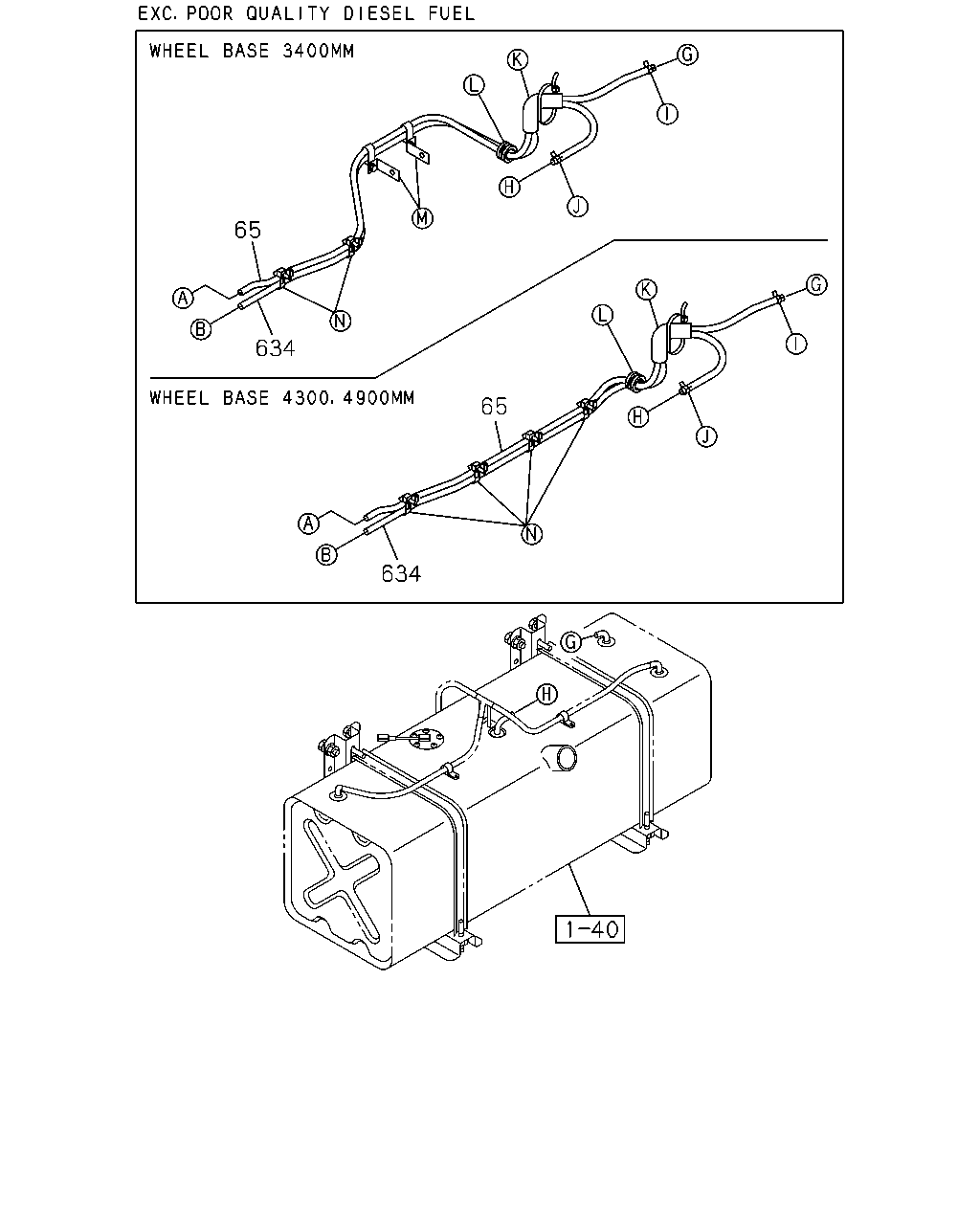

634 634 65 65 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=1450 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

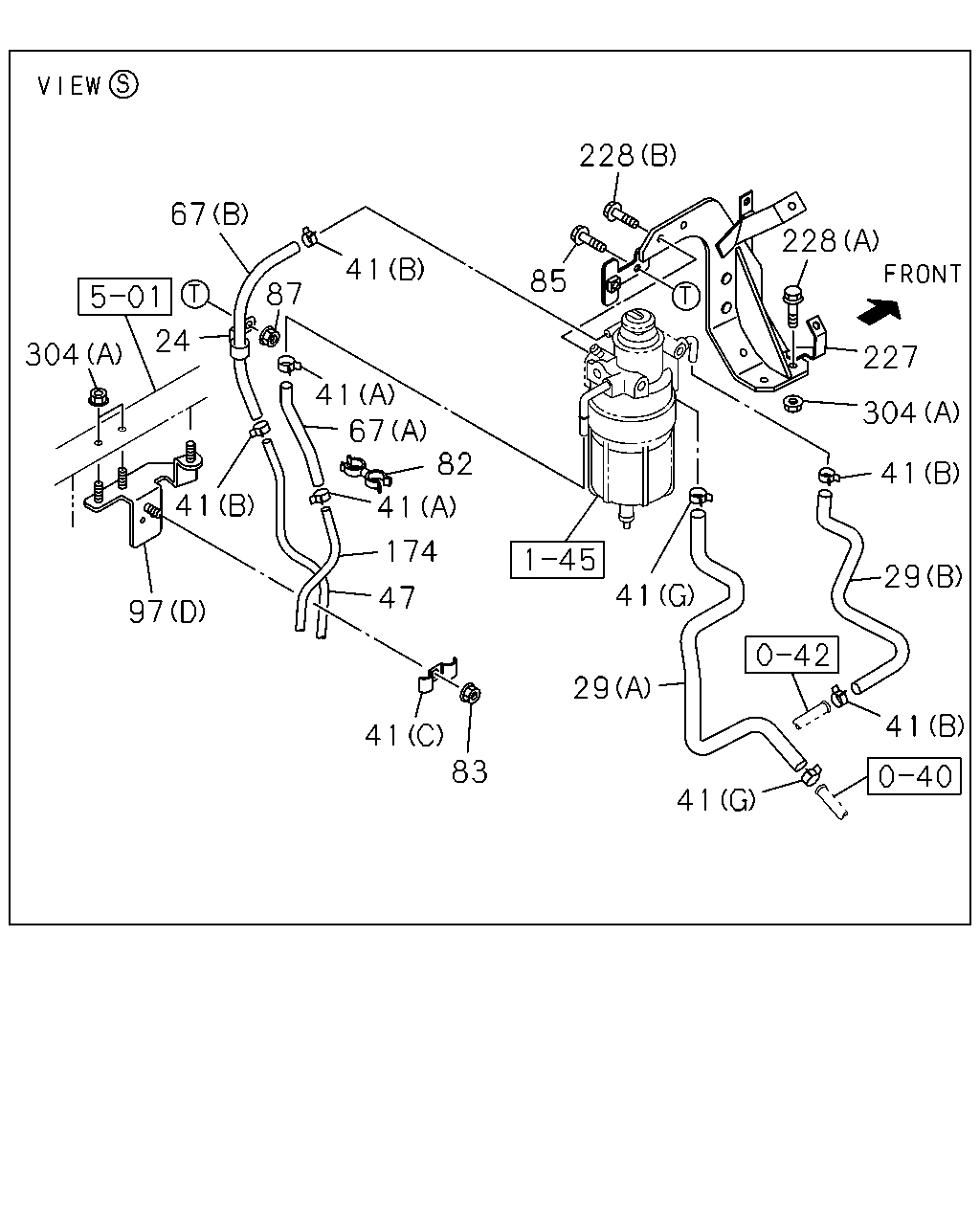

228 228 227 304 41 29 41 41 29 41 83 41 47 174 41 82 67 41 41 67 87 24 304 41 97 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
29	HOSE; FUEL (A)	8-98078-194-3	01	1	1402-
29	HOSE; FUEL (B) THA	8-98078-195-1	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (H) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (H) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20	0-95325-535-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (H) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14	1-09704-102-0	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5	1-09701-246-1	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (D) L=250	5-09707-030-1	04	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (D) L=250	5-09707-030-1	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=250	5-09707-030-1	01	1	1402-
47	PIPE; FUEL,RETURN L=1588	8-98208-975-0	01	1	1402-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1402-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	01	1	1402-
83	NUT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1402-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
87	NUT; CLIP,FUEL HOSE M8 FLANGE THA	0-91180-108-0	01	1	1402-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1402-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1402-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1402-
97	BRACKET; CLIP MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=65	1-47477-713-0	02	1	1402-
174	PIPE; FUEL,FEED,FRT L=1414	8-98208-965-0	01	1	1402-
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1402-
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1402-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1402-
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
304	NUT; BRKT WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-

228 279 345 345 304 39 39 39 39 303 304 418 304 345 345 279 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18 OD=10 THA	8-97948-254-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (C) M10X50 FLANGE THA	0-28051-050-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1402-
279	WASHER POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1402-
303	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
303	BOLT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
303	BOLT; BRKT WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (B) M10X35 FLANGE THA	0-28651-035-0	02	1	1402-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1402-
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
304	NUT; BRKT WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
345	PLUG POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	1402-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0>	8-98114-787-0	01	1	1402-

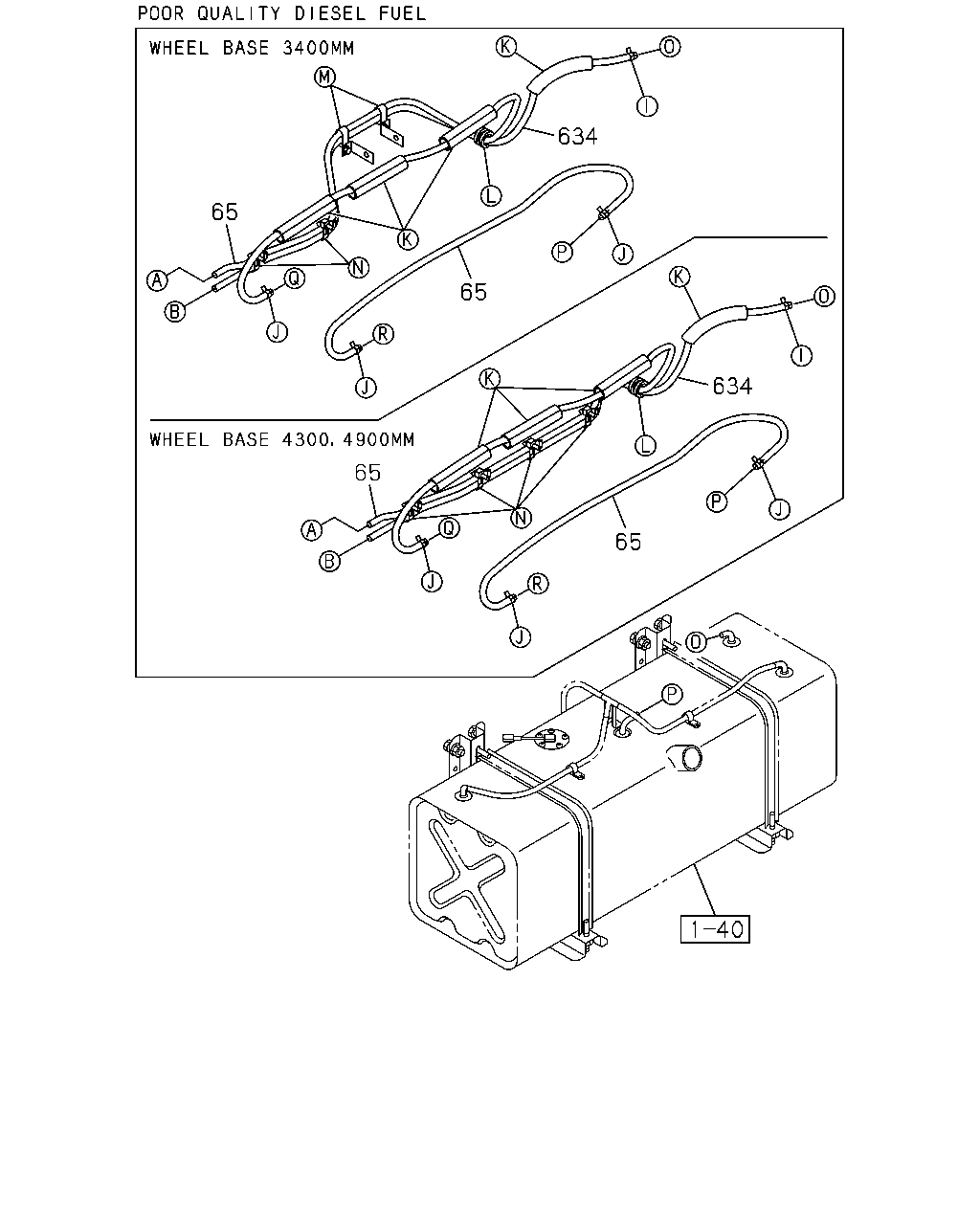

634 65 65 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=960 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=1450 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
