Isuzu WW
▶
TRUCKS
▶
FRR
▶
11574 - FRR THAILAND EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

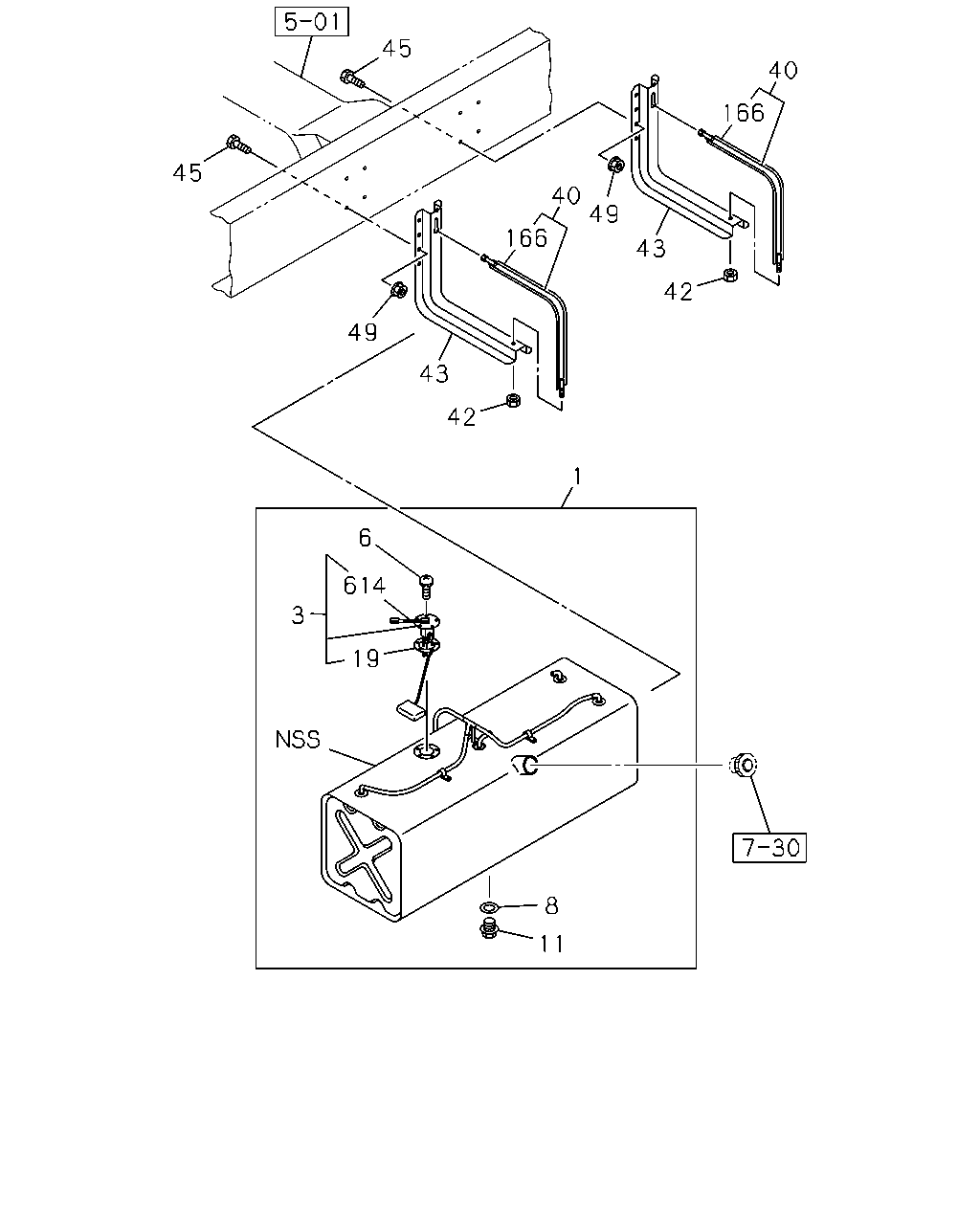

1-40 — FUEL TANK
(#133193) — 13 parça
1
42
43
49
166
40
49
43
42
166
40
45
45
6
614
3
19
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1000X340X327 100L THA
8-97924-529-0
01
1
1402-
3
UNIT; FUEL TANK,SUB
8-98108-254-0
01
1
1402-
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER
0-36220-512-0
05
1
1402-
8
GASKET; DRAIN PLUG,FUEL TANK
THA
8-97913-627-0
01
1
1402-
11
PLUG; DRAIN,FUEL TANK
THA
8-97913-628-0
01
1
1402-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1402-
40
BELT; SUPPORT,FUEL TANK
THA
8-97916-551-0
02
1
1402-
42
NUT; SUPPORT BELT
M8 FLANGE
9-09130-408-0
02
1
1402-
43
BRACKET; FUEL TANK
THA
8-97917-011-0
02
1
1402-
45
BOLT; BRKT,FUEL TANK
M10X35 FLANGE THA
0-28651-035-0
08
1
1402-
49
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
08
1
1402-
166
GASKET
THA
8-97916-543-0
02
1
1402-
614
HARNESS; FUEL
8-98115-319-0
01
1
1402-
