◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#133191) — 57 parça

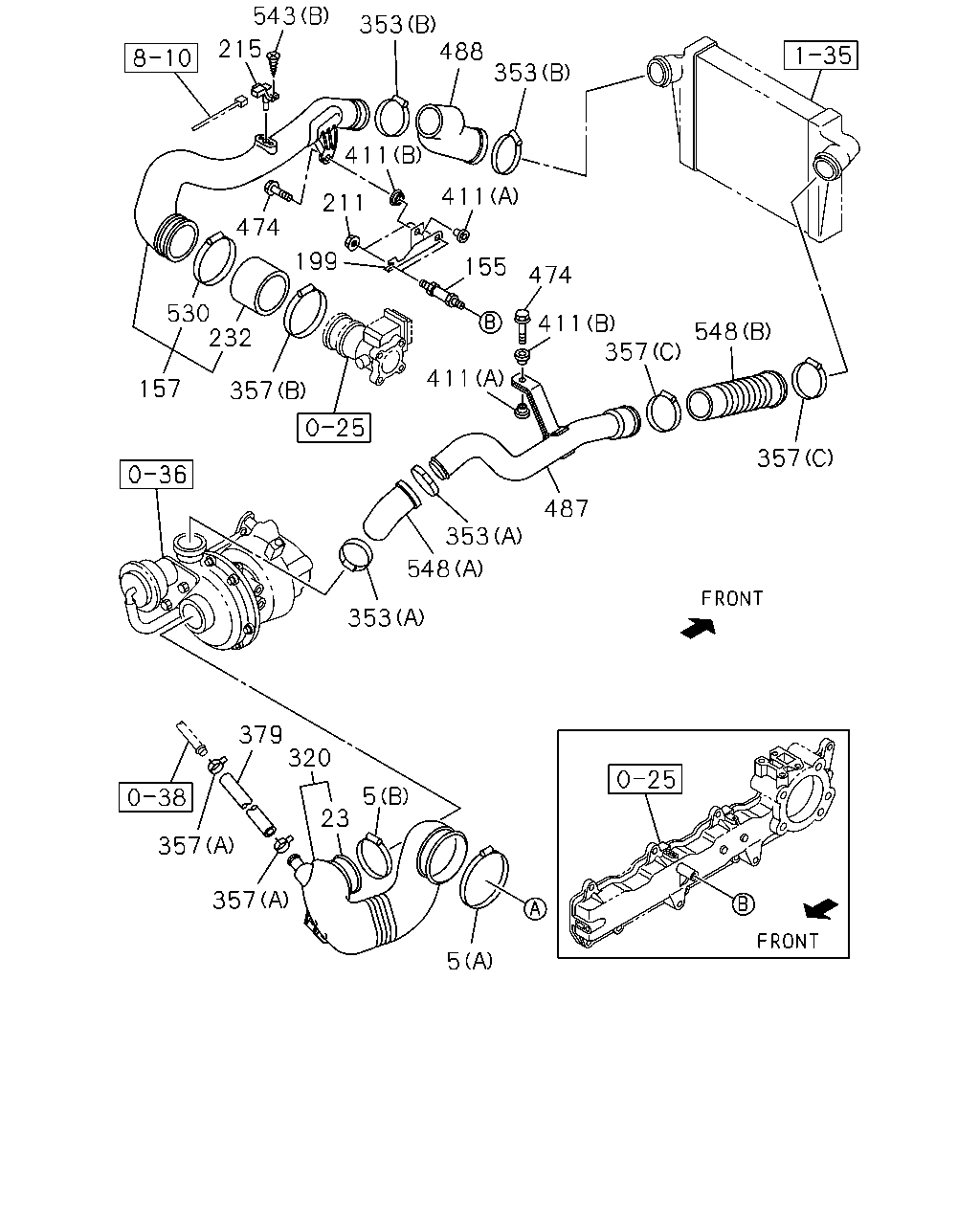

çizim 406005
5 5 23 320 379 357 357 353 548 353 487 411 357 357 357 157 411 474 548 155 199 474 211 411 530 232 353 488 353 543 215 411
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1402- ● ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1402- ● ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 01 1 1402- ● ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1402- ● ●
157 PIPE; AIR 8-98010-719-3 01 1 1402- ● ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1402- ● ●
211 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1402- ● ●
215 SENSOR; MAP 8-98009-418-0 01 1 1402- ● ●
232 HOSE; CONN 8-98067-929-0 01 1 1402- ● ●
320 HOSE; CONN,ACL 8-98073-539-3 01 1 1402- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1402- ● ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 1402- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1402- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1402- ● ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1402- ● ●
379 HOSE; RUBBER 8-98075-713-1 01 1 1402- ● ●
411 RUBBER; CUSHION
(A) 		8-94395-766-0 02 1 1402- ● ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1402- ● ●
474 BOLT; PIPE
M8X40 FLANGE THA 		0-28650-840-0 02 1 1402- ● ●
487 PIPE; TURBO TO CHARGE AIR COOLER
THA 		8-97948-213-0 01 1 1402- ● ●
488 HOSE; RUBBER,PIPE 8-97950-125-0 01 1 1402- ● ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1402- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1402- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1402- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1402- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-97950-135-0 01 1 1402- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-97950-136-0 01 1 1402- ● ●

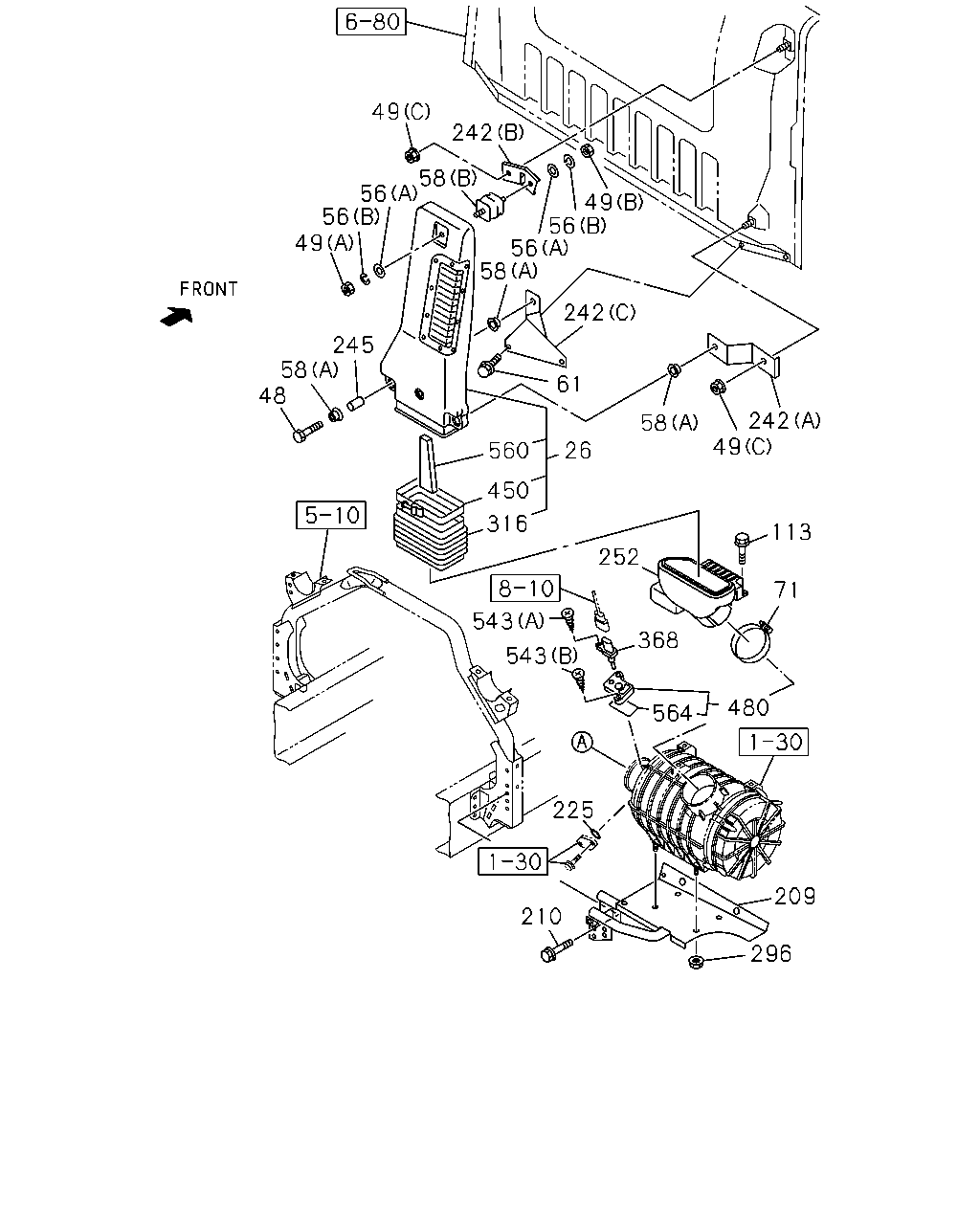

çizim 406958
296 209 225 210 564 543 543 252 71 113 368 316 480 49 242 58 26 560 450 245 58 48 61 242 58 56 56 49 242 49 58 56 56 49
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1402- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1402- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1402- ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 1402- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1402- ● ●
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1402- ● ●
209 BRACKET; ACL
THA 		8-97948-478-0 01 1 1402- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1402- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1402- ● ●
252 DUCT; AIR INT 8-98095-778-0 01 1 1402- ● ●
296 NUT; ACL
M8 FLANGE THA 		0-91180-108-0 04 1 1402- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1402- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1402- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1402- ● ●
480 ADAPTER 8-98086-417-0 01 1 1402- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1402- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1402- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1402- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1402- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1402- ● ●
