Isuzu WW
▶
TRUCKS
▶
FRR
▶
11574 - FRR THAILAND EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

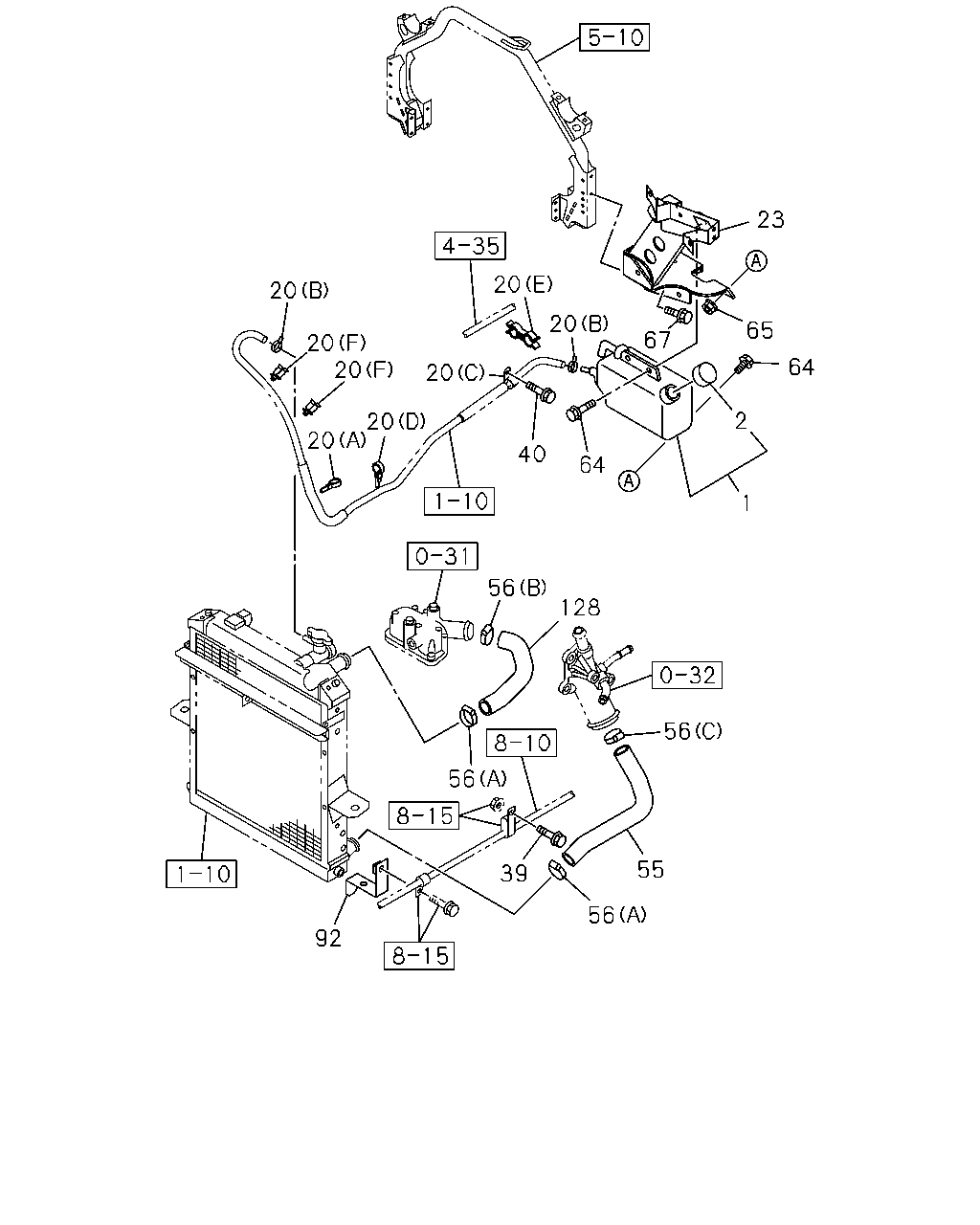

1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#133189) — 20 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
20
20
67
1
2
64
65
23
64
40
20
20
20
20
20
20
56
128
56
56
39
92
56
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1402-
●
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1402-
●
●
20
CLIP; HOSE,RAD
(C) ID=13 L=20
0-95235-235-0
01
1
1402-
●
●
20
CLIP; HOSE,RAD
(E) ID=10.5 & 18
8-94381-420-0
01
1
1402-
●
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
1402-
●
●
20
CLIP; HOSE,RAD
(F) ID=12
8-98029-256-0
03
1
1402-
●
●
20
CLIP; HOSE,RAD
(D) ID=14 L=44
9-09917-427-0
01
1
1402-
●
●
20
CLIP; HOSE,RAD
(A) ID=20 L=50
9-09917-430-0
01
1
1402-
●
●
23
BRACKET; RESERVE TANK
THA
8-97948-685-0
01
1
1402-
●
●
39
BOLT; BRKT FIX
M8X20 FLANGE THA
0-28650-820-0
01
1
1402-
●
●
40
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1402-
●
●
55
HOSE; WATER,RAD OUTLET
THA
8-97924-242-1
01
1
1402-
●
●
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1402-
●
●
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1402-
●
●
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1402-
●
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1402-
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE THA
0-91180-108-0
01
1
1402-
●
●
67
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
03
1
1402-
●
●
92
BRACKET; CLIP,RUBBER HOSE
8-98055-051-0
01
1
1402-
●
●
128
HOSE; WATER,RAD INL
THA
8-97924-241-0
01
1
1402-
●
●
