◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#133182) — 47 parça

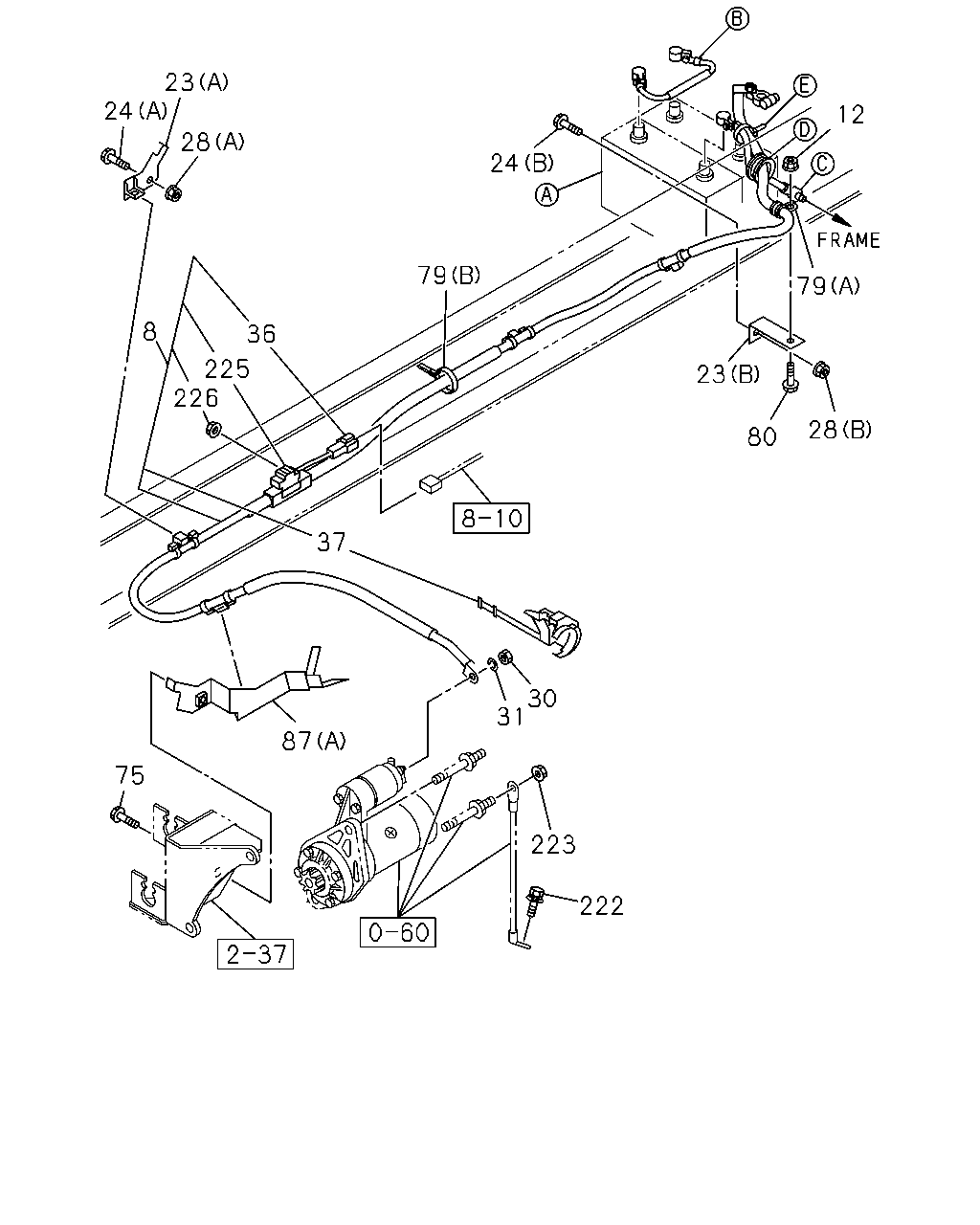

çizim 406350
24 23 28 8 226 225 36 79 24 12 79 28 80 23 37 75 87 31 30 223 222
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA 		8-97926-865-0 01 1 1402-
8 CABLE; BATTERY,STARTER
4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA 		8-97926-866-0 01 1 1402-
8 CABLE; BATTERY,STARTER
4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA 		8-97926-868-0 01 1 1402-
8 CABLE; BATTERY,STARTER
4HK1-TCS ENG<RJS> MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA 		8-97926-869-0 01 1 1402-
12 NUT; BATTERY CABLE CLIP
MZW6P M/T<RSZ> M8 FLANGE THA 		0-91180-108-0 01 1 1402-
12 NUT; BATTERY CABLE CLIP
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8 FLANGE THA 		0-91180-108-0 02 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98047-277-1 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95 		1-82699-085-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
MZW6P M/T<RSZ> (B) L=95 		1-82699-085-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
4HK1-TCC ENG<RDV> (C) 		8-98077-904-1 01 1 1402-
24 BOLT; BRKT TO FRAME
(A) M10X30 FLANGE THA 		0-28651-030-0 01 1 1402-
24 BOLT; BRKT TO FRAME
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
24 BOLT; BRKT TO FRAME
MZW6P M/T<RSZ> (B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
28 NUT; BRKT TO FRAME
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
28 NUT; BRKT TO FRAME
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
28 NUT; BRKT TO FRAME
MZW6P M/T<RSZ> (B) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1402-
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1402-
36 FUSIBLE LINK; BATTERY
THA 		8-97615-498-1 01 1 1402-
37 CAP; TERMINAL,BATTERY CABLE
THA 		8-97927-023-0 01 1 1402-
75 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-
79 CLIP; BATTERY CABLE
MZW6P M/T<RSZ> (A) ID=21 L=24 		8-98019-191-0 01 1 1402-
79 CLIP; BATTERY CABLE
MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) ID=20 L=50 		9-09917-430-0 01 1 1402-
79 CLIP; BATTERY CABLE
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) ID=21 L=24 		8-98019-191-0 02 1 1402-
80 BOLT; BATTERY CABLE CLIP
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
80 BOLT; BATTERY CABLE CLIP
MZW6P M/T<RSZ> M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
87 BRACKET; HARNESS
MZW6P M/T<RSZ> (B) 		8-98126-428-0 01 1 1402-
87 BRACKET; HARNESS
4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> (A) 		8-98171-733-0 01 1 1402-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1402-
223 NUT; EARTH CABLE
M10 FLANGE THA 		0-91180-210-0 01 1 1402-
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 1402-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1402-
çizim 406980
87 13 10 11 2 44 23 107 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 1402-
2 CABLE; BATTERY
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=335 THA 		8-97924-725-0 01 1 1402-
2 CABLE; BATTERY
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=240 THA 		8-97924-520-0 01 1 1402-
2 CABLE; BATTERY
MZW6P M/T<RSZ> L=240 THA 		8-97924-520-0 01 1 1402-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1402-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1402-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98047-277-1 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=95 		1-82699-085-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
MZW6P M/T<RSZ> (B) L=95 		1-82699-085-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
4HK1-TCC ENG<RDV> (C) 		8-98077-904-1 01 1 1402-
44 NUT; BRKT
4HK1-TCC ENG<RDV> M10 FLANGE THA 		0-91180-210-0 02 1 1402-
87 BRACKET; HARNESS
MZW6P M/T<RSZ> (B) 		8-98126-428-0 01 1 1402-
87 BRACKET; HARNESS
4HK1-TCC ENG<RDV> MZZ6W M/T<RSA> (A) 		8-98171-733-0 01 1 1402-
107 CLIP; BAND
L=140 THA 		8-97920-656-0 01 1 1402-
