Isuzu WW
▶
TRUCKS
▶
FRR
▶
11574 - FRR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

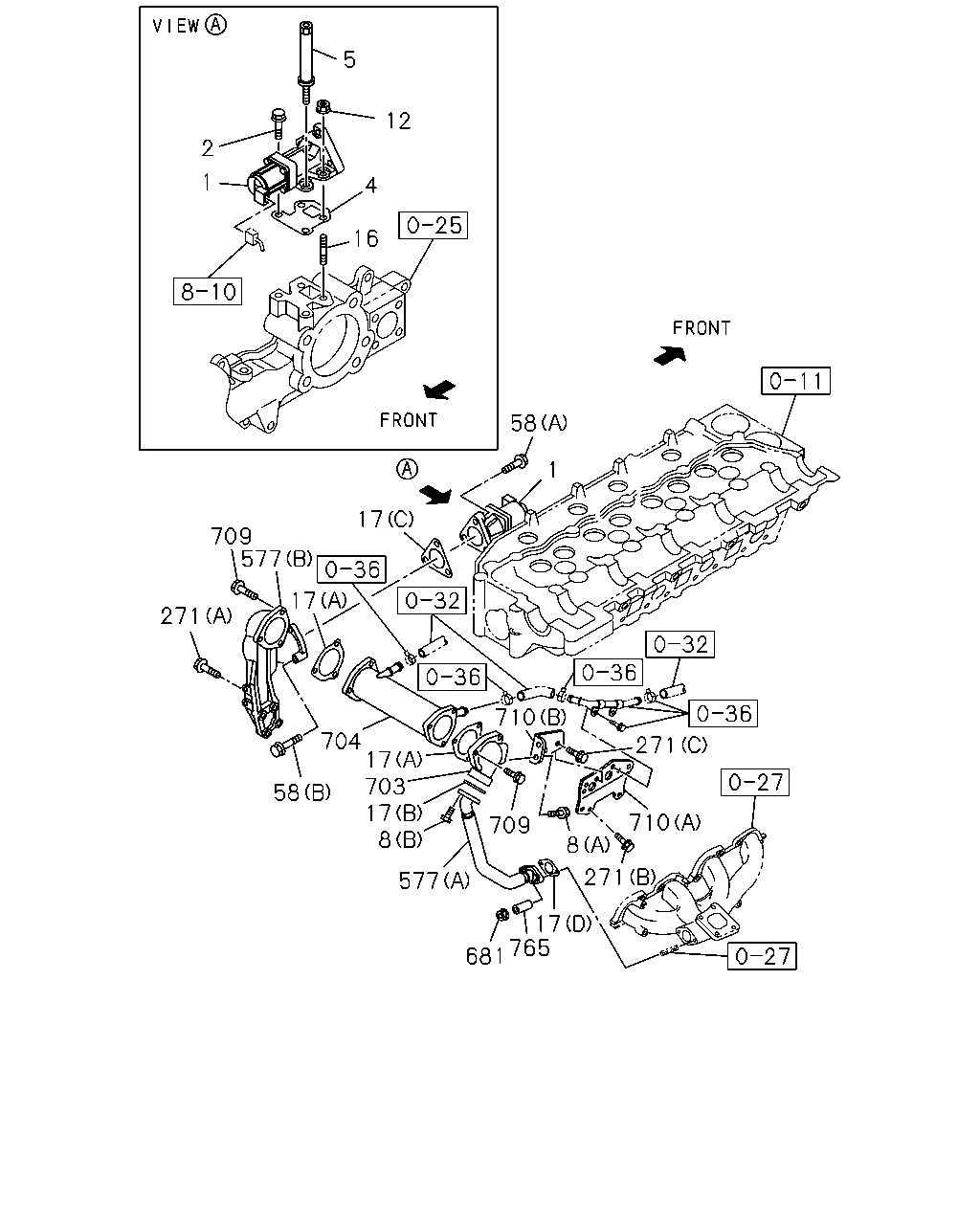

0-57 — EMISSION PIPING
(#133180) — 26 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
12
5
2
4
16
1
58
1
17
577
709
17
271
704
58
703
17
17
8
577
709
681
8
271
710
271
710
17
765
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; EGR
8-97377-509-8
01
1
1402-
●
●
2
BOLT; EGR VLV
M8X25 FLANGE THA
0-28650-825-0
01
1
1402-
●
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97306-040-0
01
1
1402-
●
●
5
ADAPTER ASM
8-97377-804-0
01
1
1402-
●
●
8
BOLT; EGR ADAPTER
(A) M8X16 FLANGE THA
0-28050-816-0
02
1
1402-
●
●
8
BOLT; EGR ADAPTER
(B) M8X28 FLANGE
8-98043-528-0
03
1
1402-
●
●
12
NUT; EGR VLV
M8 FLANGE THA
0-91180-108-0
02
1
1402-
●
●
16
STUD; EGR VLV
M8X20 L=32 THA
0-41010-820-0
02
1
1402-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97367-918-0
01
1
1402-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D)
8-97375-980-1
01
1
1402-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97388-919-0
02
1
1402-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
8-98036-507-0
01
1
1402-
●
●
58
BOLT; PIPE
(B) M8X45 FLANGE THA
0-28050-845-0
02
1
1402-
●
●
58
BOLT; PIPE
(A) M8X30 FLANGE THA
0-28650-830-0
01
1
1402-
●
●
271
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28050-820-0
02
1
1402-
●
●
271
BOLT; BRKT
(A) M12X50 FLANGE THA
0-28151-250-0
03
1
1402-
●
●
271
BOLT; BRKT
(C) M8X25 FLANGE THA
0-28650-825-0
02
1
1402-
●
●
577
PIPE; AIR,EGR
(B)
8-98055-858-2
01
1
1402-
●
●
577
PIPE; AIR,EGR
(A)
8-98063-655-2
01
1
1402-
●
●
681
NUT; EGR PIPE
M8 FLANGE THA
0-91180-208-0
02
1
1402-
●
●
703
DUCT; EGR
8-98061-100-2
01
1
1402-
●
●
704
COOLER ASM; EGR
8-98061-104-0
01
1
1402-
●
●
709
BOLT; EGR COOLER
M10X35 FLANGE THA
0-28751-035-0
06
1
1402-
●
●
710
BRACKET; EGR COOLER
(A)
8-98092-887-0
01
1
1402-
●
●
710
BRACKET; EGR COOLER
(B)
8-98092-888-0
01
1
1402-
●
●
765
SPACER; EGR PIPE
8-94225-562-0
02
1
1402-
●
●
