0-51 — OIL PUMP AND OIL STRAINER (#133178) — 11 parça

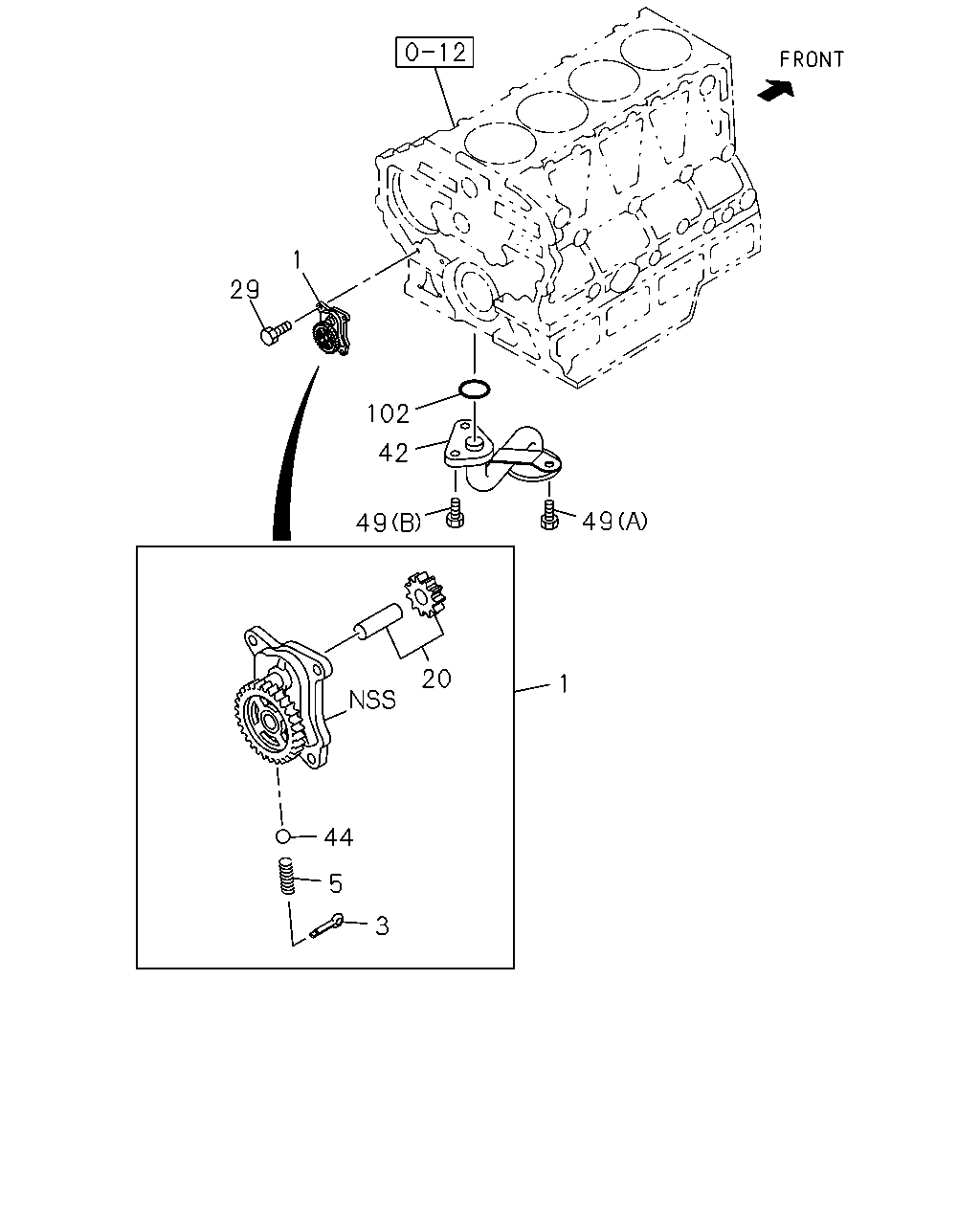

çizim 407417
1 29 102 42 49 49 1 20 44 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL 8-98017-585-1 01 1 1402- ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1402- ● ●
5 SPRING; COIL 5-09580-098-0 01 1 1402- ● ●
20 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1402- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28060-825-0 02 1 1402- ● ●
29 BOLT; OIL PUMP
M8X30 FLANGE 		0-28060-830-0 02 1 1402- ● ●
42 STRAINER; OIL,OIL PUMP 8-98213-867-0 01 1 1402- ● ●
44 BALL; RELIEF VLV 5-09843-003-0 01 1 1402- ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE 		0-28060-816-0 02 1 1402- ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 1402- ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 1402- ● ●
