0-40 — FUEL INJECTION SYSTEM (#133175) — 93 parça

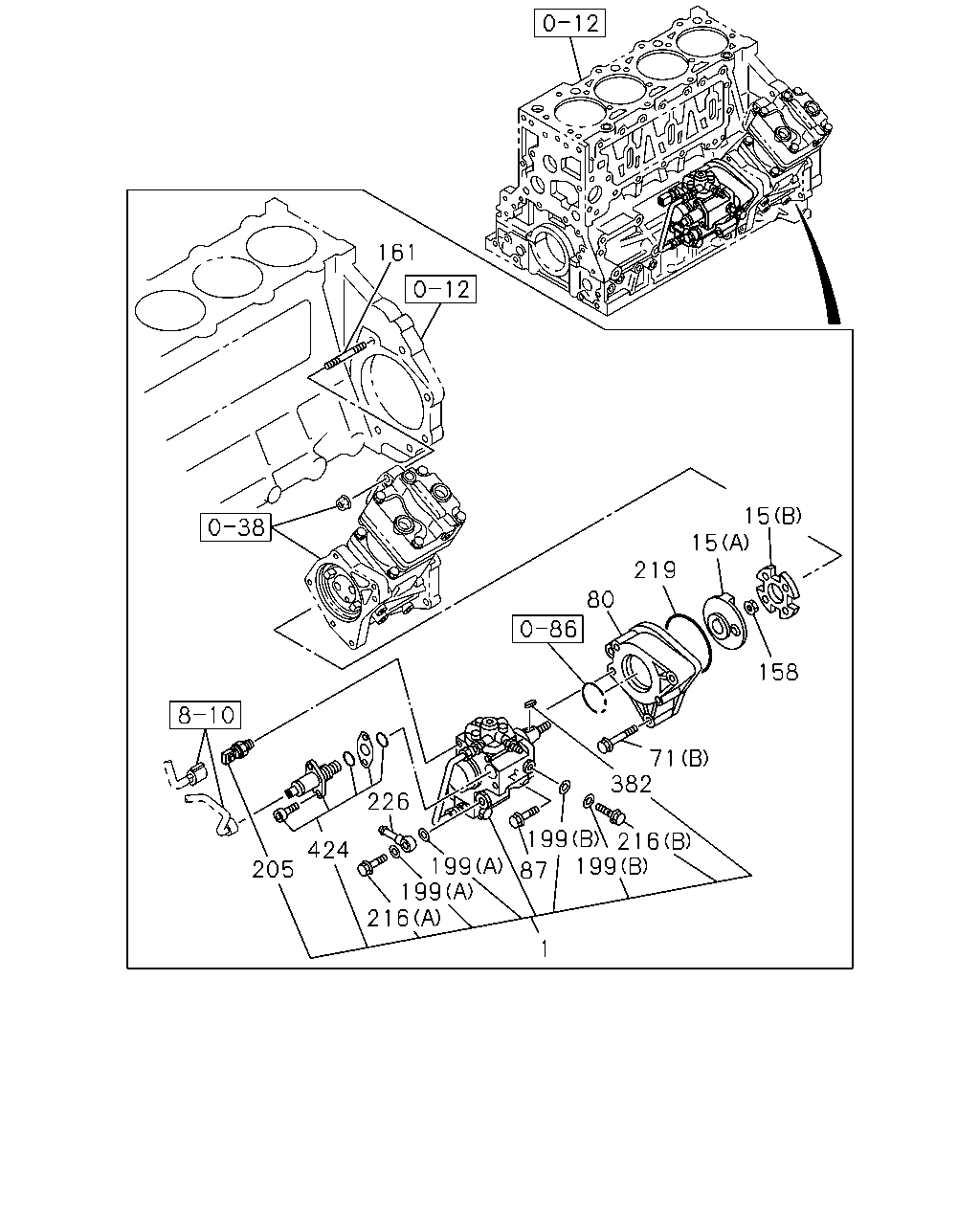

çizim 406266
161 205 424 226 199 199 216 87 199 1 80 219 15 15 158 71 382 216 199
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97386-557-5 01 1 1402- ● ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1402- ● ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1402- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28050-610-0 01 1 1407- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1402- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 1402- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 1402- ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE THA 		0-28051-060-0 03 1 1402- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28080-610-0 01 1 1402- ● ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1402- ● ●
87 BOLT; PUMP
M8X30 FLANGE THA 		0-28650-830-0 03 1 1402- ● ●
158 NUT; INJ PUMP
M14 FLANGE THA 		0-91180-114-0 01 1 1402- ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1402- ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1402- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1402- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1402- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1402- ● ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1402- ● ●
226 PIPE; FUEL 8-98126-332-0 01 1 1402- ● ●
382 KEY; DRIVE SHAFT
THA 		8-98161-995-0 01 1 1402- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-501-1 01 1 1402- ● ●

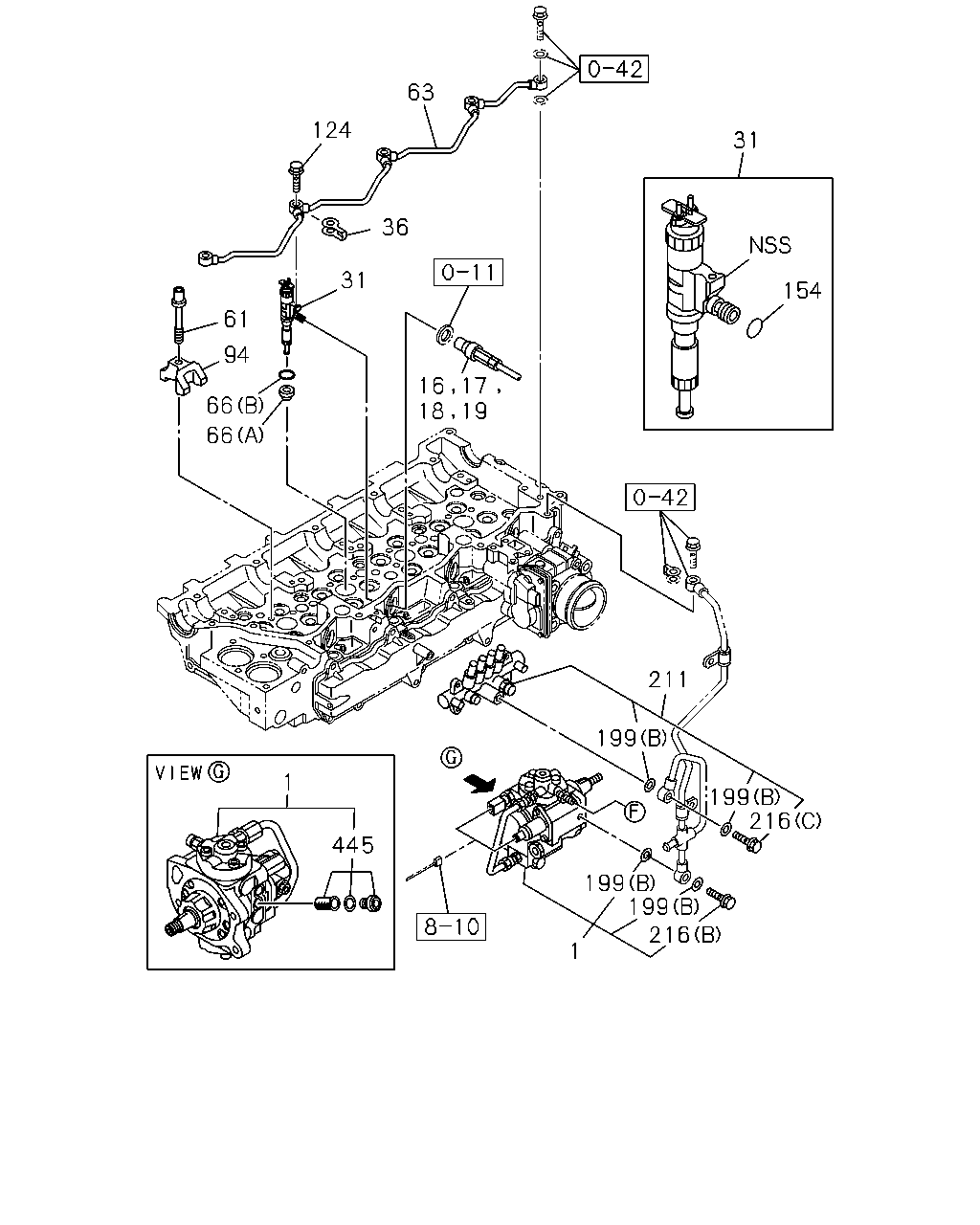

çizim 406282
63 124 36 31 61 66 16 17 18 19 66 94 31 154 211 199 199 199 199 216 1 445 1 216
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97386-557-5 01 1 1402- ● ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1402-1404 ● ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1402-1404 ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1402-1404 ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98245-980-0 01 1 1402-1404 ● ●
19 PIPE; INJ NO.4 8-98271-230-0 01 1 1405-1501 ● ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1402- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-98065-992-0 04 1 1402- ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1402- ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1402- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1402- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1402- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1402- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1402- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1402- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1402- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1402- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1402- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1402- ● ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 1402- ● ●

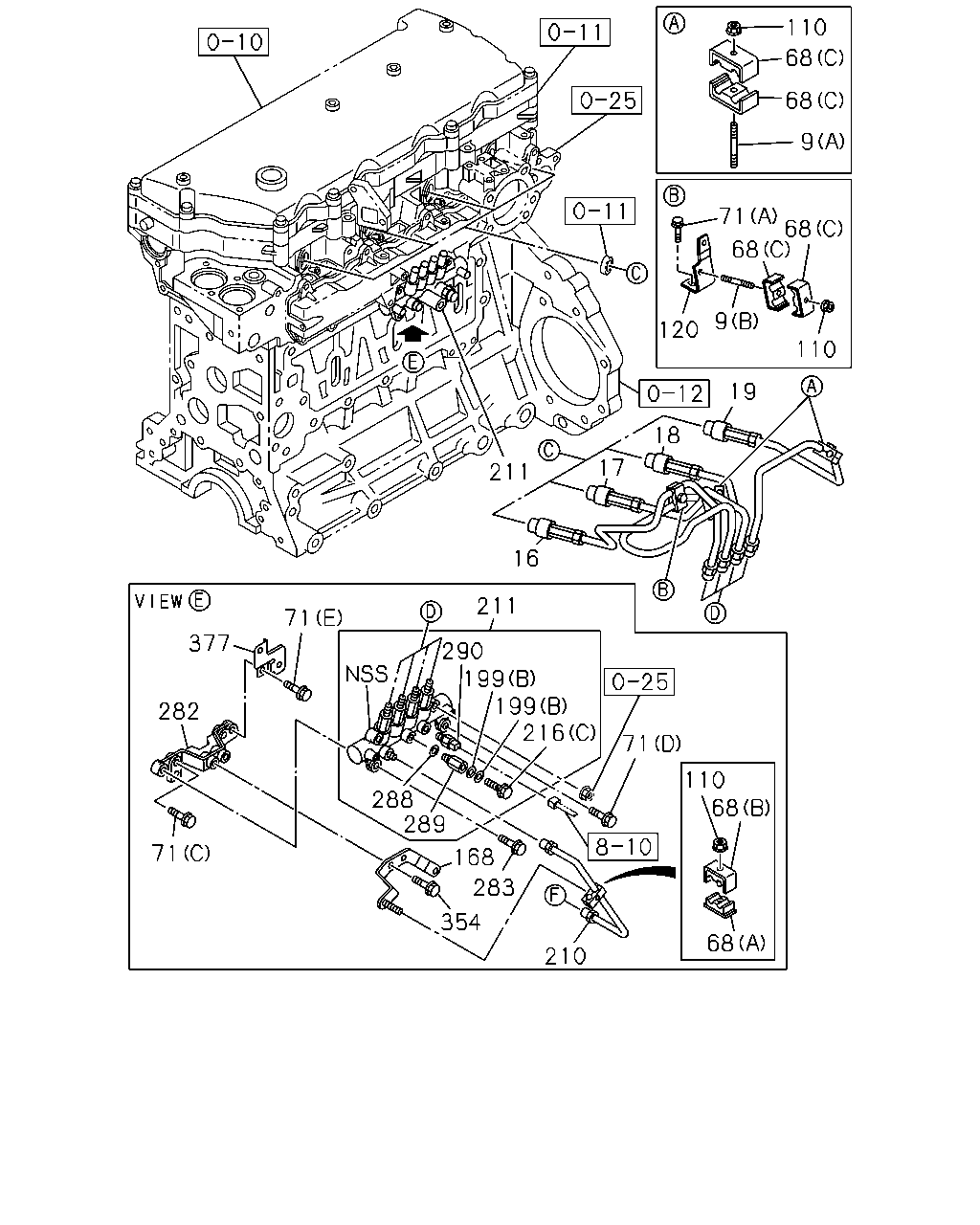

çizim 406862
110 68 68 9 68 71 9 120 110 68 19 16 17 18 211 377 211 199 290 199 216 71 110 68 68 210 283 354 168 289 288 71 282 71
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
(A) M6X30 L=38 THA 		0-41010-630-0 02 1 1402- ● ●
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1402- ● ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1402-1404 ● ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1402-1404 ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1402-1404 ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98245-980-0 01 1 1402-1404 ● ●
19 PIPE; INJ NO.4 8-98271-230-0 01 1 1405-1501 ● ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
68 CLIP; INJ PIPE
(A) 		8-97330-118-3 01 1 1402- ● ●
68 CLIP; INJ PIPE
(B) 		8-97330-119-3 01 1 1402- ● ●
68 CLIP; INJ PIPE
(C) 		8-98039-293-0 06 1 1402-1405 ● ●
68 CLIP; INJ PIPE
(C) 		8-98148-996-2 06 1 1406- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28050-610-0 01 1 1407- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1402- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 1402- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 1402- ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE THA 		0-28051-060-0 03 1 1402- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28080-610-0 01 1 1402- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 04 1 1402- ● ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1402- ● ●
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1402- ● ●
210 PIPE; INJ,C/R 8-97376-779-0 01 1 1402- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1402- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1402- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1402- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1402- ● ●
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1402- ● ●
283 BOLT; COMMON RAIL
M8X25 FLANGE THA 		0-28050-825-0 01 1 1402- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1402- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1402- ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1402- ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1402- ● ●
377 BRACKET; HARNESS 8-97379-783-1 01 1 1402- ● ●
