Isuzu WW
▶
TRUCKS
▶
FRR
▶
11574 - FRR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

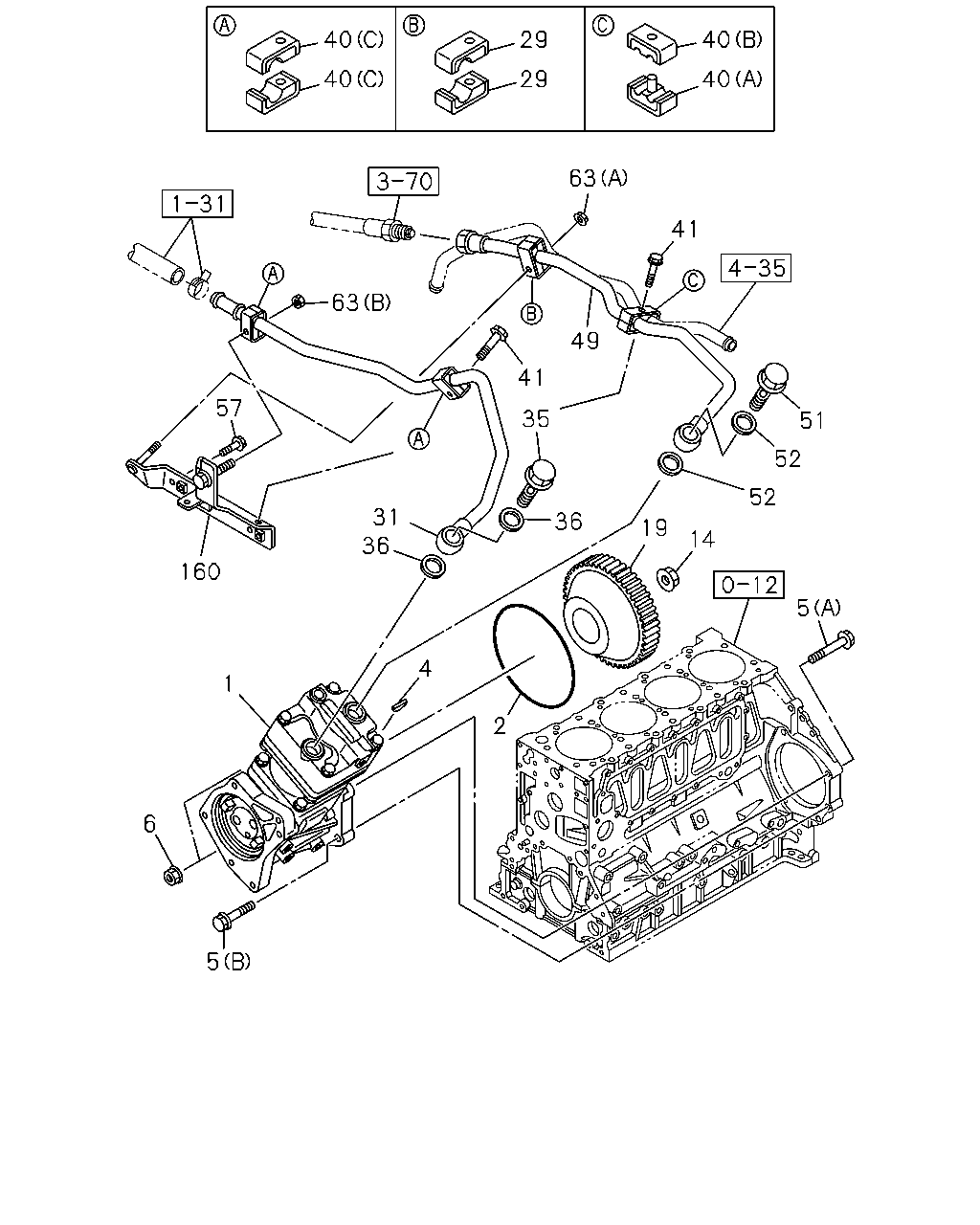

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#133173) — 26 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
41
63
29
29
40
40
40
40
63
49
41
35
51
52
52
14
19
36
31
36
57
160
1
4
2
6
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98187-308-0
01
1
1402-1405
●
●
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98270-233-0
01
1
1406-
●
●
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6
1-09623-464-0
01
1
1402-
●
●
4
KEY; INJ PUMP GEAR
9-08055-519-0
01
1
1402-
●
●
5
BOLT; AIR CMPR FIX
(B) M12X70 FLANGE
0-28151-270-0
01
1
1402-
●
●
5
BOLT; AIR CMPR FIX
(A) M12X95 FLANGE
8-94396-485-1
01
1
1402-
●
●
6
NUT; AIR CMPR
M10 FLANGE THA
0-91180-110-0
02
1
1402-
●
●
14
NUT; GEAR
M18
8-97141-154-0
01
1
1402-
●
●
19
GEAR; INJ PUMP
Z=35
8-97600-987-2
01
1
1402-
●
●
29
CLIP; AIR PIPE
1-09701-282-0
02
1
1402-
●
●
31
PIPE; AIR,AIR CMPR SUCTION
8-98233-806-1
01
1
1402-
●
●
35
BOLT; EYE,AIR PIPE
M24X39
1-09675-132-1
01
1
1402-1404
●
●
35
BOLT; EYE,AIR PIPE
M24X39
1-09675-175-2
01
1
1405-
●
●
36
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1402-
●
●
40
CLIP; AIR PIPE
(C)
1-09701-284-0
04
1
1402-
●
●
40
CLIP; AIR PIPE
(A)
8-97619-417-0
01
1
1402-
●
●
40
CLIP; AIR PIPE
(B)
8-97619-418-0
01
1
1402-
●
●
41
BOLT; CLIP
M8X45 FLANGE THA
0-28050-845-0
02
1
1402-
●
●
49
PIPE; AIR,CHARGE
8-98069-425-0
01
1
1402-
●
●
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-132-1
01
1
1402-1404
●
●
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
1405-
●
●
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1402-
●
●
57
BOLT; BRKT,AIR PIPE
M8X16 FLANGE THA
0-28050-816-0
02
1
1402-
●
●
63
NUT; CLIP
(A) M6 FLANGE THA
0-91180-106-0
01
1
1402-
●
●
63
NUT; CLIP
(B) M8 FLANGE THA
0-91180-108-0
01
1
1402-
●
●
160
BRACKET; AIR PIPE
8-98076-098-0
01
1
1402-
●
●
