Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#13317) — 459 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

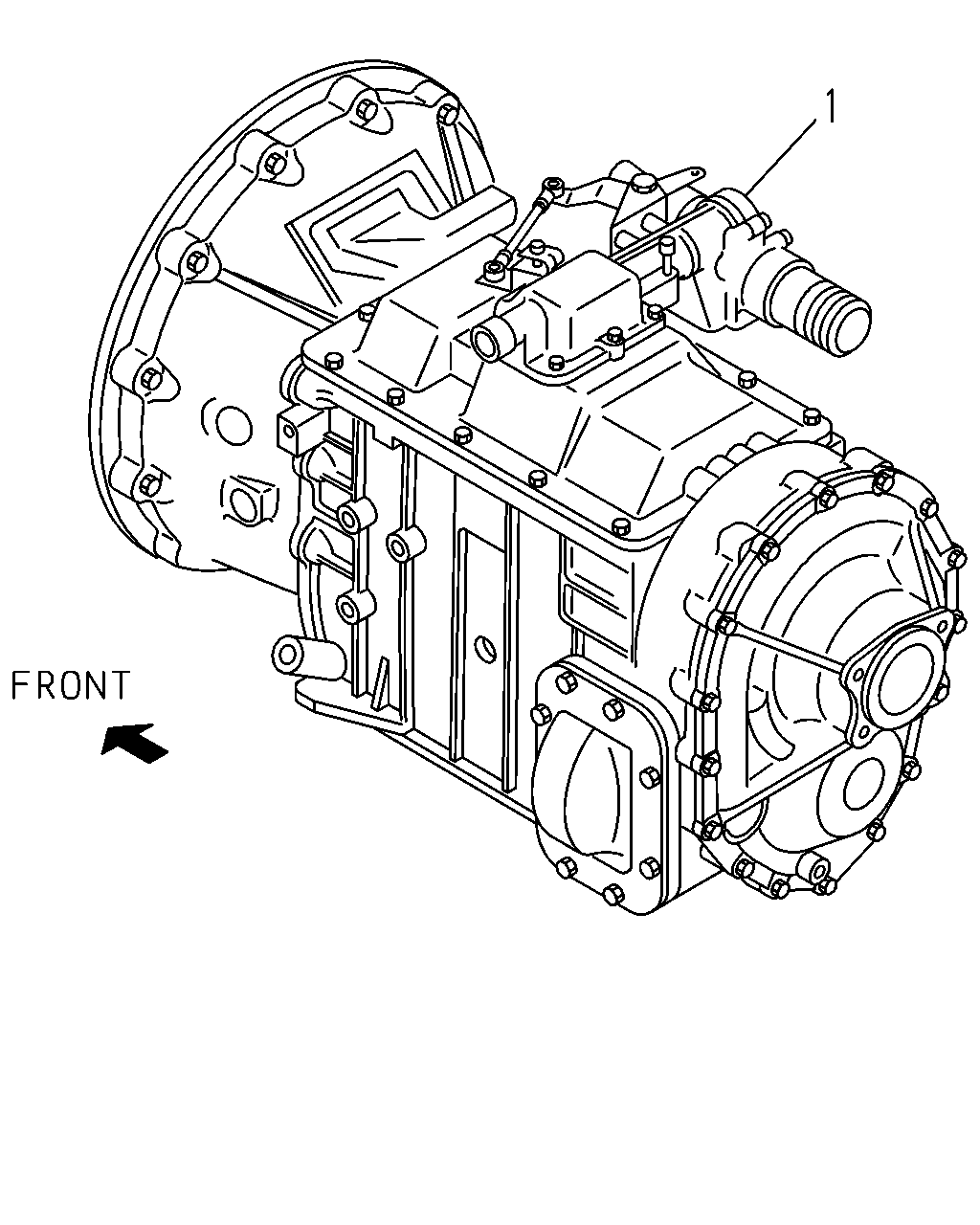

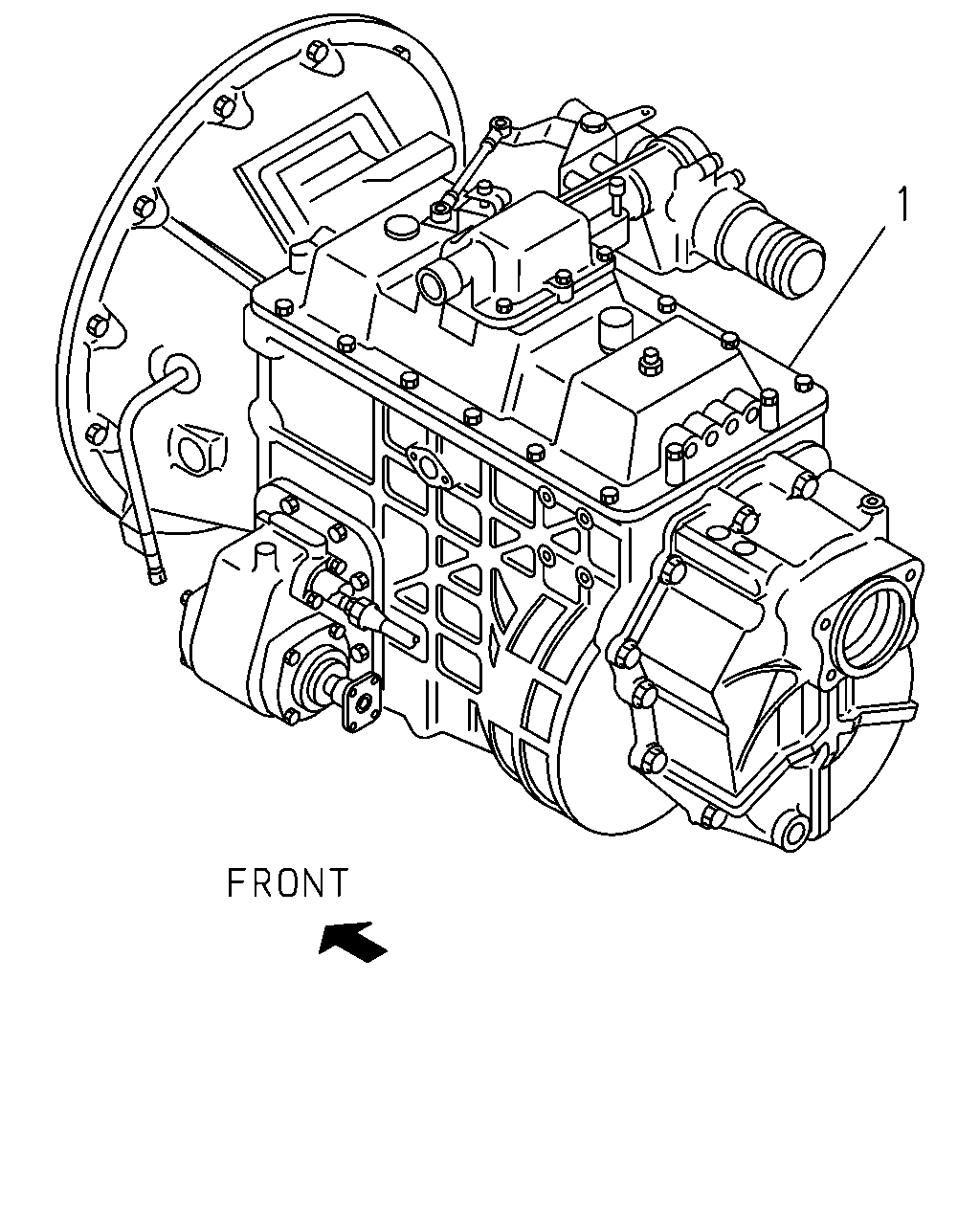

1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) PARKING BRAKE TRANSMISSION REAR<PJ8> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-251-0	01	1	0109-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) PARKING BRAKE TRANSMISSION REAR<PJ8> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-250-0	01	1	0109-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) PARKING BRAKE TRANSMISSION REAR<PJ8> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-251-0	01	1	0109-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-250-0	01	1	0109-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR<PJ8> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-231-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR<PJ8> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-230-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR<PJ8> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-231-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-230-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-227-0	01	1	0105-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-227-0	01	1	0105-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-226-0	01	1	0105-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-226-0	01	1	0105-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-215-0	01	1	0105-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-215-0	01	1	0105-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-214-0	01	1	0105-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-214-0	01	1	0105-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-273-0	01	1	0105-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-273-0	01	1	0105-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-272-0	01	1	0105-				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-272-0	01	1	0105-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-246-0	01	1	0105-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-246-0	01	1	0105-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-247-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-247-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-262-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-262-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-247-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-247-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-268-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-268-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-264-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-264-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-210-0	01	1	0105-					●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-210-0	01	1	0105-					●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0107-						●
1	TRANSMISSION ASM; MANUAL CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-204-0	01	1	0107-						●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-202-0	01	1	0107-						●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-33043-204-0	01	1	0107-						●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) PARKING BRAKE TRANSMISSION REAR<PJ8> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-251-0	01	1	0109-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) PARKING BRAKE TRANSMISSION REAR<PJ8> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-250-0	01	1	0109-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) PARKING BRAKE TRANSMISSION REAR<PJ8> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-251-0	01	1	0109-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-250-0	01	1	0109-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR<PJ8> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-231-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR<PJ8> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-230-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR<PJ8> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-231-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-230-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-227-0	01	1	0105-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-227-0	01	1	0105-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-226-0	01	1	0105-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-226-0	01	1	0105-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-215-0	01	1	0105-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-215-0	01	1	0105-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-214-0	01	1	0105-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-214-0	01	1	0105-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-273-0	01	1	0105-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-273-0	01	1	0105-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-272-0	01	1	0105-				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-272-0	01	1	0105-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-246-0	01	1	0105-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33043-246-0	01	1	0105-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-247-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-247-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-262-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-262-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-247-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL 10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-247-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-264-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-268-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-268-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-264-0	01	1	0105-0106	●
1	TRANSMISSION ASM; MANUAL 6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33043-264-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-210-0	01	1	0105-					●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-210-0	01	1	0105-					●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-202-0	01	1	0107-						●
1	TRANSMISSION ASM; MANUAL CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-204-0	01	1	0107-						●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-202-0	01	1	0107-						●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-33043-204-0	01	1	0107-						●

97 421 103 2 36 37 90 86 86 430 50 104 429 435 45 417 37 36 417 33 83 27 24 25 28 37 36 434 27 37 36 35 29 32 561 561 560 332 496 559 73 71 119 121 117 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

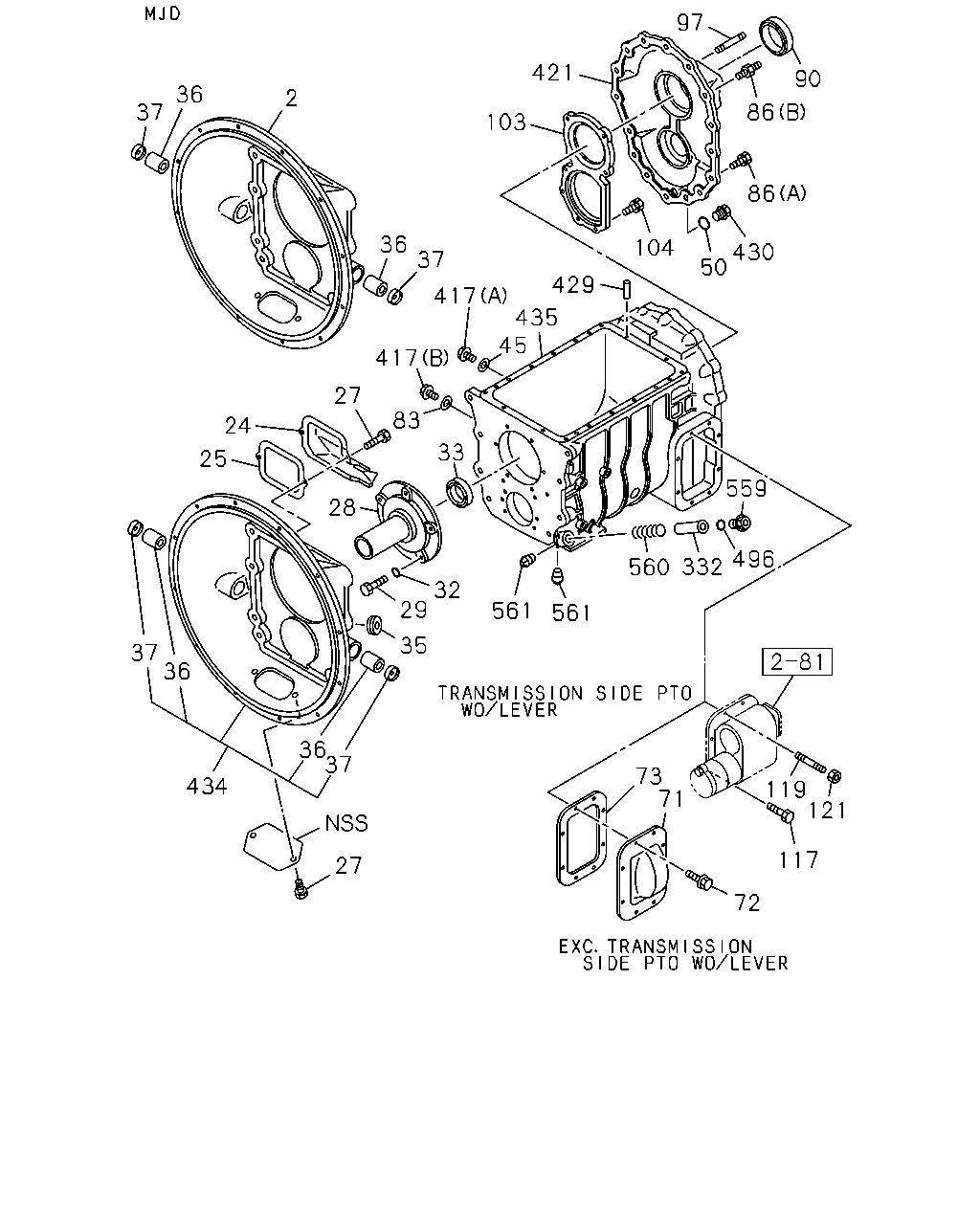

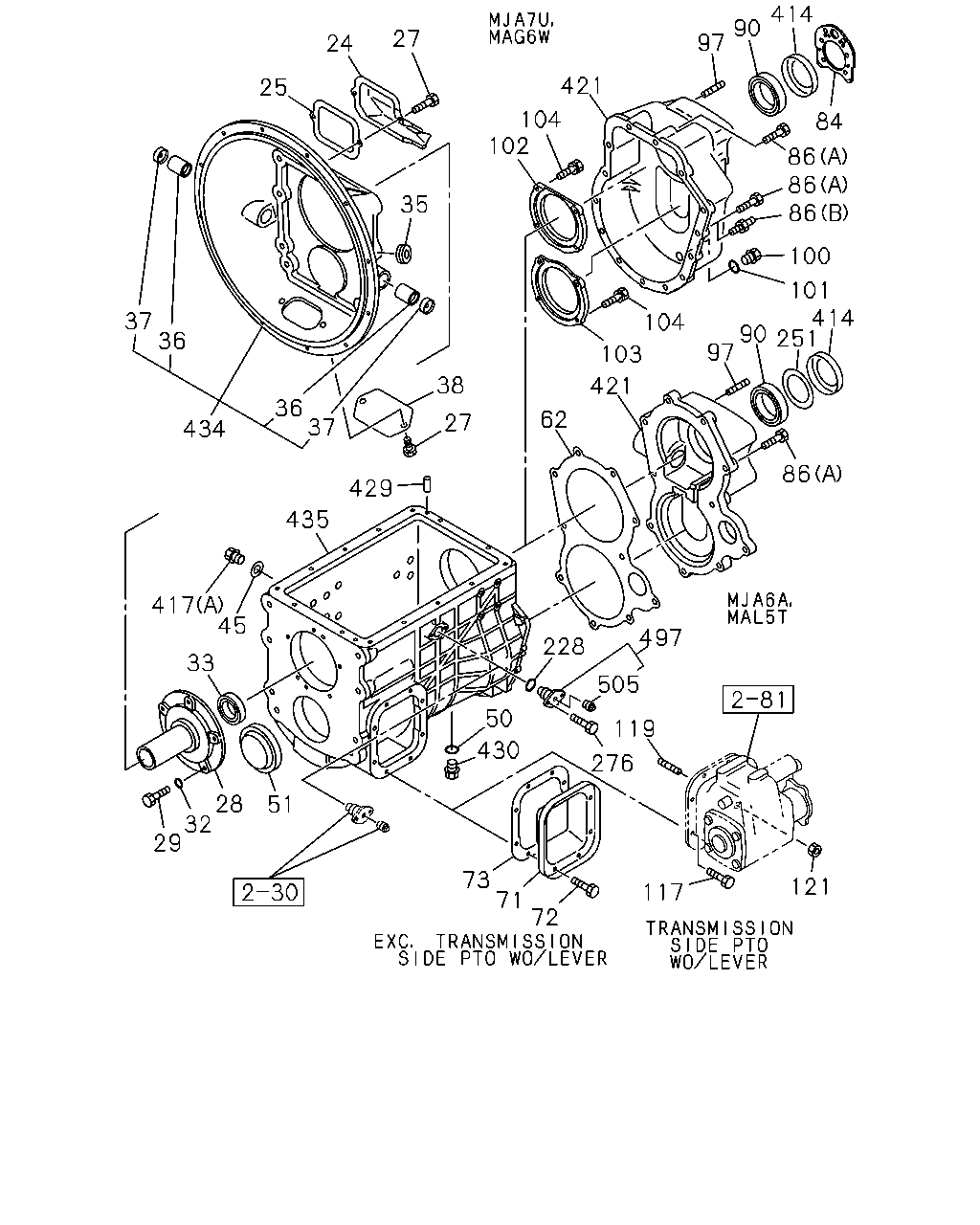

2	HOUSING; CLU	1-31111-176-1	01	1	0107-						●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0105-0106	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0107-	●	●	●	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0105-0106	●	●	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0107-	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-0106	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0107-0512	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0105-	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0105-0106					●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0107-					●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0105-	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0105-0106					●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0107-					●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0105-0106	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0107-					●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0105-0106					●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0107-	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0105-0106	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0107-	●	●	●	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0105-0106	●	●	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0107-	●	●	●	●	●
35	GROMMET; CLU HSG CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	9-09575-796-0	01	1	0107-						●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0107-						●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0105-0106	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0107-	●	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0105-0106	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0107-	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●	●	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	0105-	●	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0105-0106					●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0107-					●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0105-0512	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0105-0106					●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0107-0512					●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28151-220-0	08	1	0601-					●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	0105-	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0105-0106					●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0107-					●	●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	0105-0106					●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	0105-		●
86	BOLT; RR COVER (A) M16X40	9-09804-155-0	01	1	0105-		●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0105-	●	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0105-0106	●	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0107-					●	●
86	BOLT; RR COVER (A) M14X20	1-09044-078-0	01	1	0105-			●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	0105-	●		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	10	1	0105-				●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0105-0106					●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0107-0512					●	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-					●	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0105-0106					●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0107-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0105-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0105-0106	●			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0107-	●			●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0105-0106	●		●		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0107-0108			●	●	●	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M16X41 L=62	1-09302-151-0	01	1	0107-0108	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0109-0109			●		●	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M16X41 L=62	1-09302-151-0	01	1	0109-0109	●
97	STUD; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> M16X41 L=62	1-09302-151-0	01	1	0110-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0110-			●		●	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M16X41 L=62	1-09302-151-0	01	1	0110-	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X25 L=54	1-09302-086-0	04	1	0107-	●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	0105-0108					●
97	STUD; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> M16X51 L=72	1-09302-002-0	03	1	0109-0109	●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	0109-0109					●
97	STUD; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> M16X51 L=72	1-09302-002-0	03	1	0110-	●	●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	0110-					●
103	RETAINER; BRG	9-33151-014-0	01	1	0105-		●
103	RETAINER; BRG	1-33151-035-1	01	1	0105-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0105-0106					●
103	RETAINER; BRG	1-33151-059-0	01	1	0107-					●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0105-	●	●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0105-0106					●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0107-0512					●	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	01	1	0601-					●	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0105-0106					●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0107-					●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	0105-		●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	0105-	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	0105-0512	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28151-050-0	02	1	0601-	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28181-225-0	02	1	0105-0106					●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28181-225-0	02	1	0107-0512					●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28151-225-0	02	1	0601-					●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28186-212-0	02	1	0105-0106					●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28186-212-0	02	1	0107-0512					●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28156-212-0	02	1	0601-					●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0105-0604	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0105-0106					●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0107-0604					●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0605-					●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0105-0106					●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0107-0602					●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0603-					●	●
332	FILTER; OIL	1-41383-003-0	01	1	0105-0106					●
332	FILTER; OIL	1-41383-003-0	01	1	0107-					●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0105-0106	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0107-0201	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0105-0106					●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0107-					●	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	0105-		●
421	COVER; RR,TRANS	1-33131-188-1	01	1	0105-			●
421	COVER; RR,TRANS	1-33131-196-1	01	1	0105-				●
421	COVER; RR,TRANS	1-33131-197-2	01	1	0105-0106	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-197-2	01	1	0107-	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-198-2	01	1	0107-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0105-0106					●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0107-					●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0105-0106	●	●		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0107-					●	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	0105-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-0106					●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0107-	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0105-0106	●	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0107-	●	●	●	●	●	●
434	HOUSING; CLU	1-31110-163-3	01	1	0105-		●	●
434	HOUSING; CLU	1-31110-171-2	01	1	0105-	●			●
434	HOUSING; CLU	1-31110-178-1	01	1	0105-					●
435	CASE; TRANS	1-33111-224-1	01	1	0105-		●
435	CASE; TRANS	1-33111-241-3	01	1	0105-0202			●
435	CASE; TRANS	1-33111-329-0	01	1	0203-			●
435	CASE; TRANS	1-33111-223-1	01	1	0105-				●
435	CASE; TRANS	1-33111-195-1	01	1	0105-	●
435	CASE; TRANS	1-33111-321-0	01	1	0105-0106					●
435	CASE; TRANS	1-33111-321-0	01	1	0107-0510					●	●
435	CASE; TRANS	1-33111-356-0	01	1	0511-					●	●
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0105-0106					●
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0107-					●	●
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0105-0106					●
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0107-					●	●
560	SPRING; OIL	1-09580-504-0	01	1	0105-0106					●
560	SPRING; OIL	1-09580-504-0	01	1	0107-					●	●
561	PLUG PT1/4	9-99204-513-0	02	1	0105-0106					●
561	PLUG PT1/4	9-99204-513-0	02	1	0107-					●	●

121 117 72 71 73 276 119 505 497 228 50 430 51 28 32 29 33 45 417 435 429 27 38 62 86 421 103 104 97 90 251 414 101 100 86 86 86 84 414 90 97 421 104 102 27 24 25 35 36 37 434 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0105-0106	●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0107-	●	●	●	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0105-0106	●	●	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0107-	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-0106	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0107-0512	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0105-	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0105-0106					●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0107-					●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0105-	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0105-0106					●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0107-					●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0105-0106	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0107-					●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0105-0106					●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0107-	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0105-0106	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0107-	●	●	●	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0105-0106	●	●	●	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0107-	●	●	●	●	●
35	GROMMET; CLU HSG CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	9-09575-796-0	01	1	0107-						●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0107-						●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0105-0106	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0107-	●	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0105-0106	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0107-	●	●	●	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0105-	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-0106	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0107-	●	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0105-	●	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-026-0	01	1	0105-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	0105-	●	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0105-0106					●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0107-					●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0105-0512	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0105-0106					●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0107-0512					●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28151-220-0	08	1	0601-					●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	0105-	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0105-0106					●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0107-					●	●
84	SPACER; COVER,TRANS BRAKE SYSTEM RETARDER<RE2>	1-46213-103-0	01	1	0107-	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	0105-		●
86	BOLT; RR COVER (A) M16X40	9-09804-155-0	01	1	0105-		●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0105-	●	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0105-0106	●	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0107-					●	●
86	BOLT; RR COVER (A) M14X20	1-09044-078-0	01	1	0105-			●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	0105-	●		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	10	1	0105-				●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0105-0106					●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0107-0512					●	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-					●	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0105-0106					●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0107-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0105-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0105-0106	●			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0107-	●			●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0105-0106	●		●		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0107-0108			●	●	●	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M16X41 L=62	1-09302-151-0	01	1	0107-0108	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0109-0109			●		●	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M16X41 L=62	1-09302-151-0	01	1	0109-0109	●
97	STUD; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> M16X41 L=62	1-09302-151-0	01	1	0110-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0110-			●		●	●
97	STUD; PARKING BRK EXC. BRAKE SYSTEM RETARDER<RE2> M16X41 L=62	1-09302-151-0	01	1	0110-	●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X25 L=54	1-09302-086-0	04	1	0107-	●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	0105-0108					●
97	STUD; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> M16X51 L=72	1-09302-002-0	03	1	0109-0109	●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	0109-0109					●
97	STUD; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> M16X51 L=72	1-09302-002-0	03	1	0110-	●	●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	0110-					●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	0105-	●	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0105-		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	0105-	●
103	RETAINER; BRG	9-33151-014-0	01	1	0105-		●
103	RETAINER; BRG	1-33151-035-1	01	1	0105-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0105-0106					●
103	RETAINER; BRG	1-33151-059-0	01	1	0107-					●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0105-	●	●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0105-0106					●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0107-0512					●	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	01	1	0601-					●	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0105-0106					●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0107-					●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	0105-		●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	0105-	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	0105-0512	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28151-050-0	02	1	0601-	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28181-225-0	02	1	0105-0106					●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28181-225-0	02	1	0107-0512					●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28151-225-0	02	1	0601-					●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28186-212-0	02	1	0105-0106					●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28186-212-0	02	1	0107-0512					●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28156-212-0	02	1	0601-					●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0105-0604	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0105-0106					●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0107-0604					●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0605-					●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0105-0106					●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0107-0602					●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0603-					●	●
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	0105-	●			●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0105-			●
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	0105-	●			●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	0105-	●	●		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0105-0106	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0107-0201	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0105-0106					●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0107-					●	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	0105-		●
421	COVER; RR,TRANS	1-33131-188-1	01	1	0105-			●
421	COVER; RR,TRANS	1-33131-196-1	01	1	0105-				●
421	COVER; RR,TRANS	1-33131-197-2	01	1	0105-0106	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-197-2	01	1	0107-	●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-198-2	01	1	0107-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0105-0106					●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0107-					●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0105-0106	●	●		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0107-					●	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	0105-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-0106					●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0107-	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0105-0106	●	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0107-	●	●	●	●	●	●
434	HOUSING; CLU	1-31110-163-3	01	1	0105-		●	●
434	HOUSING; CLU	1-31110-171-2	01	1	0105-	●			●
434	HOUSING; CLU	1-31110-178-1	01	1	0105-					●
435	CASE; TRANS	1-33111-224-1	01	1	0105-		●
435	CASE; TRANS	1-33111-241-3	01	1	0105-0202			●
435	CASE; TRANS	1-33111-329-0	01	1	0203-			●
435	CASE; TRANS	1-33111-223-1	01	1	0105-				●
435	CASE; TRANS	1-33111-195-1	01	1	0105-	●
435	CASE; TRANS	1-33111-321-0	01	1	0105-0106					●
435	CASE; TRANS	1-33111-321-0	01	1	0107-0510					●	●
435	CASE; TRANS	1-33111-356-0	01	1	0511-					●	●
497	ADAPTER; PLUG	1-33119-255-0	01	1	0105-	●			●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	0105-	●			●

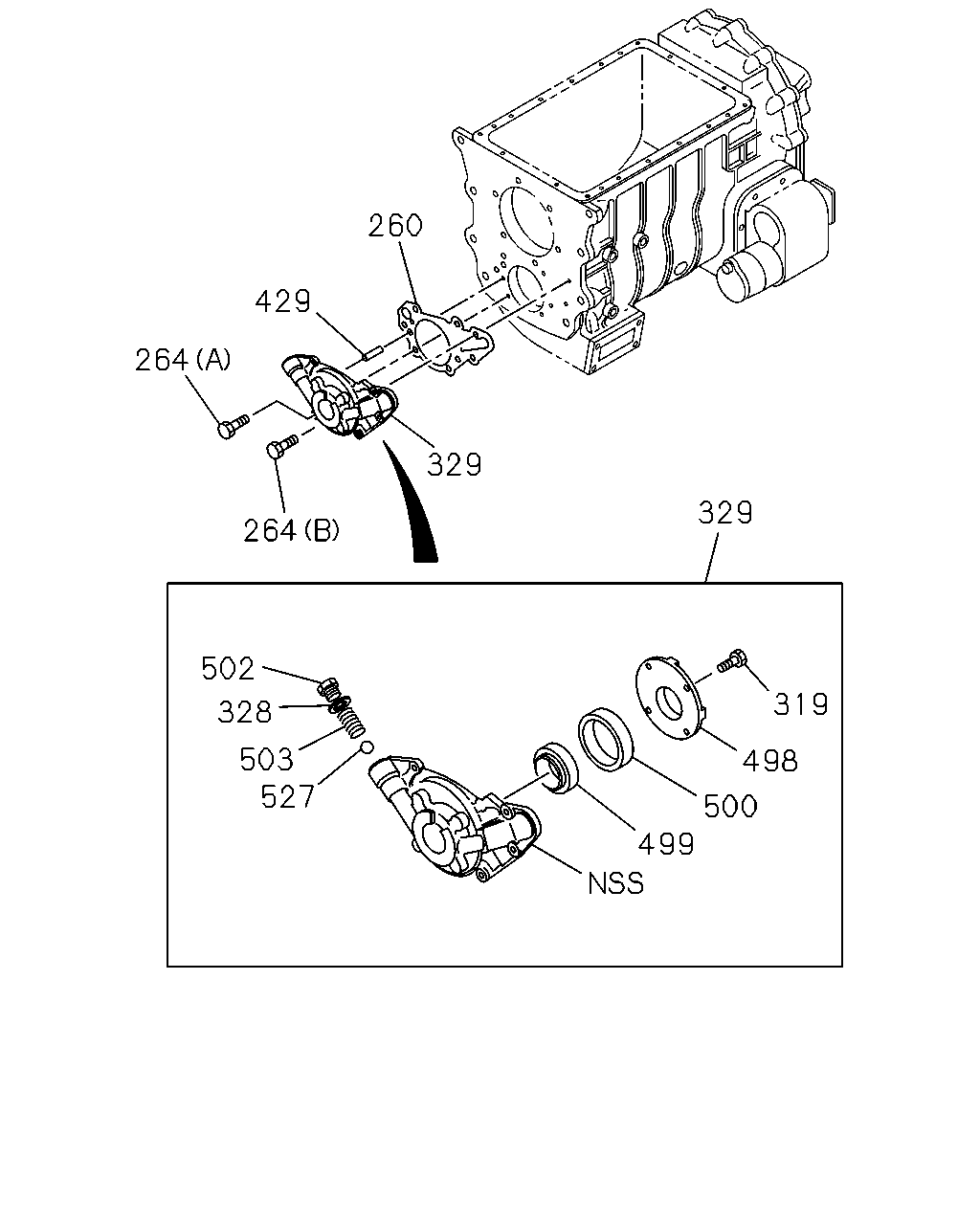

499 500 498 319 329 527 503 328 502 264 329 264 429 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
260	GASKET; OIL PUMP	1-34142-026-0	01	1	0105-0106					●
260	GASKET; OIL PUMP	1-34142-026-0	01	1	0107-					●	●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0105-0106					●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0107-0512					●	●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28151-030-0	05	1	0601-					●	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0105-0106					●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0107-0512					●	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	02	1	0601-					●	●
319	BOLT; COVER	1-34159-075-0	04	1	0105-0106					●
319	BOLT; COVER	1-34159-075-0	04	1	0107-					●	●
328	GASKET; PLUG	8-94244-656-0	01	1	0105-0106					●
328	GASKET; PLUG	8-94244-656-0	01	1	0107-					●	●
329	PUMP ASM; OIL	1-34150-099-0	01	1	0105-					●
329	PUMP ASM; OIL	1-34150-098-0	01	1	0107-						●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0105-0106	●	●		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0107-					●	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	0105-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-0106					●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0107-	●	●		●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0105-0106					●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0107-					●	●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0105-0106					●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0107-					●	●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0105-0106					●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0107-					●	●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0105-0106					●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0107-					●	●
503	SPRING; OIL PUMP	1-34159-083-0	01	1	0105-					●
503	SPRING; OIL PUMP	5-09580-098-0	01	1	0107-						●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0105-0106					●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0107-					●	●

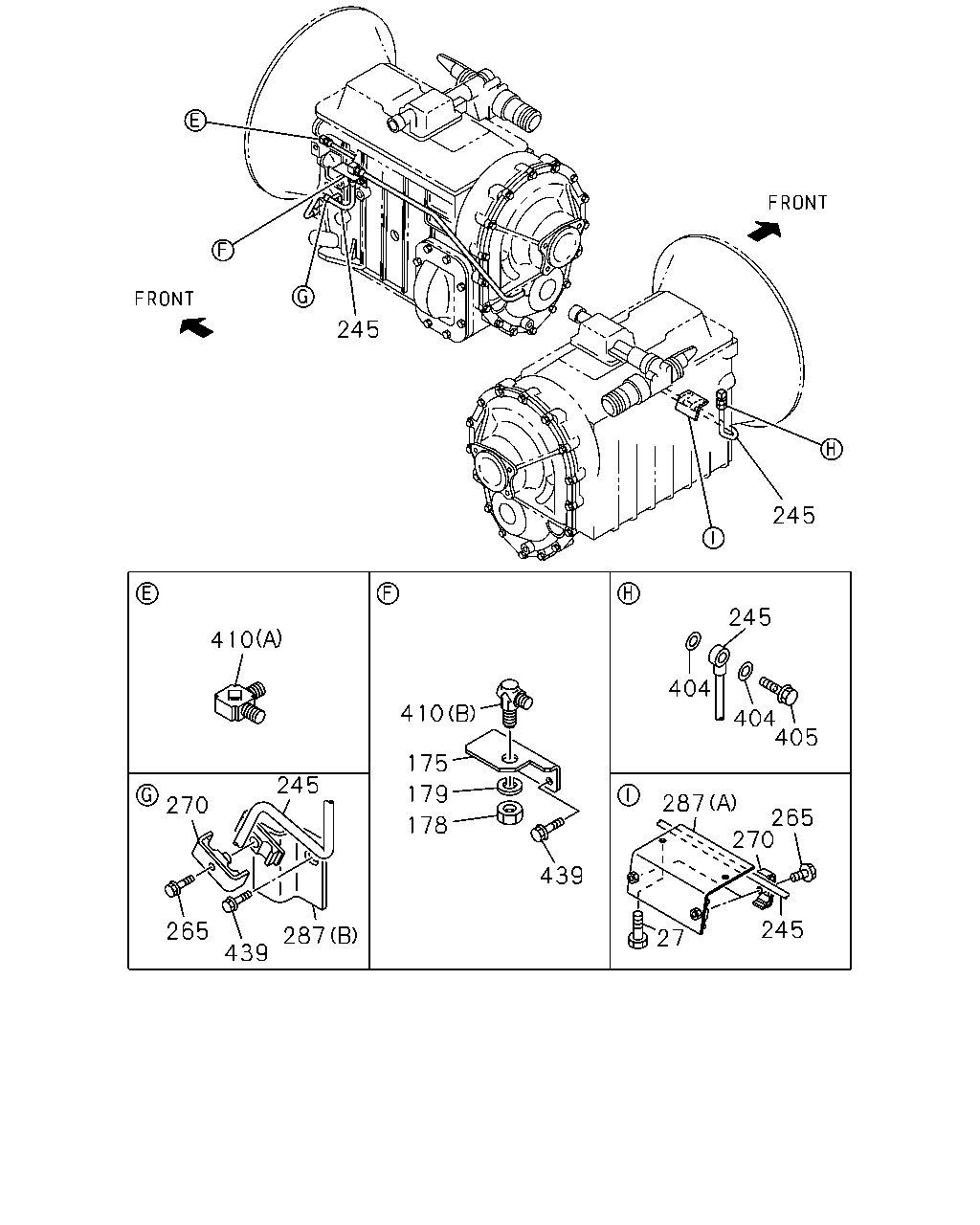

245 27 270 265 287 405 404 404 245 439 178 410 175 179 287 439 265 245 270 410 245 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-0106	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0107-0512	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●	●	●	●
175	BRACKET; UNION	1-46147-216-2	01	1	0107-						●
178	NUT; UNION M16	9-99111-516-0	01	1	0107-0512						●
178	NUT; UNION M16	0-91111-516-0	01	1	0601-						●
179	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	0107-0603						●
179	WASHER; LK,UNION ID=16.2	0-91510-516-0	01	1	0604-						●
245	PIPE; OIL L=753	1-32571-160-0	01	1	0105-					●
245	PIPE; OIL L=738	1-32571-147-0	01	1	0107-						●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0105-0106					●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0107-0512					●	●
265	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0601-					●	●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-0	03	1	0105-0106					●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0107-					●	●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0105-0106					●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0107-					●	●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0105-0106					●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0107-					●	●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-0106					●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-					●	●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-0106					●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0107-					●	●
410	UNION; OIL PIPE (B)	1-09654-371-0	01	1	0107-						●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0107-						●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	0105-0512					●
439	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	01	1	0601-					●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	0107-0512						●
439	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	03	1	0601-						●

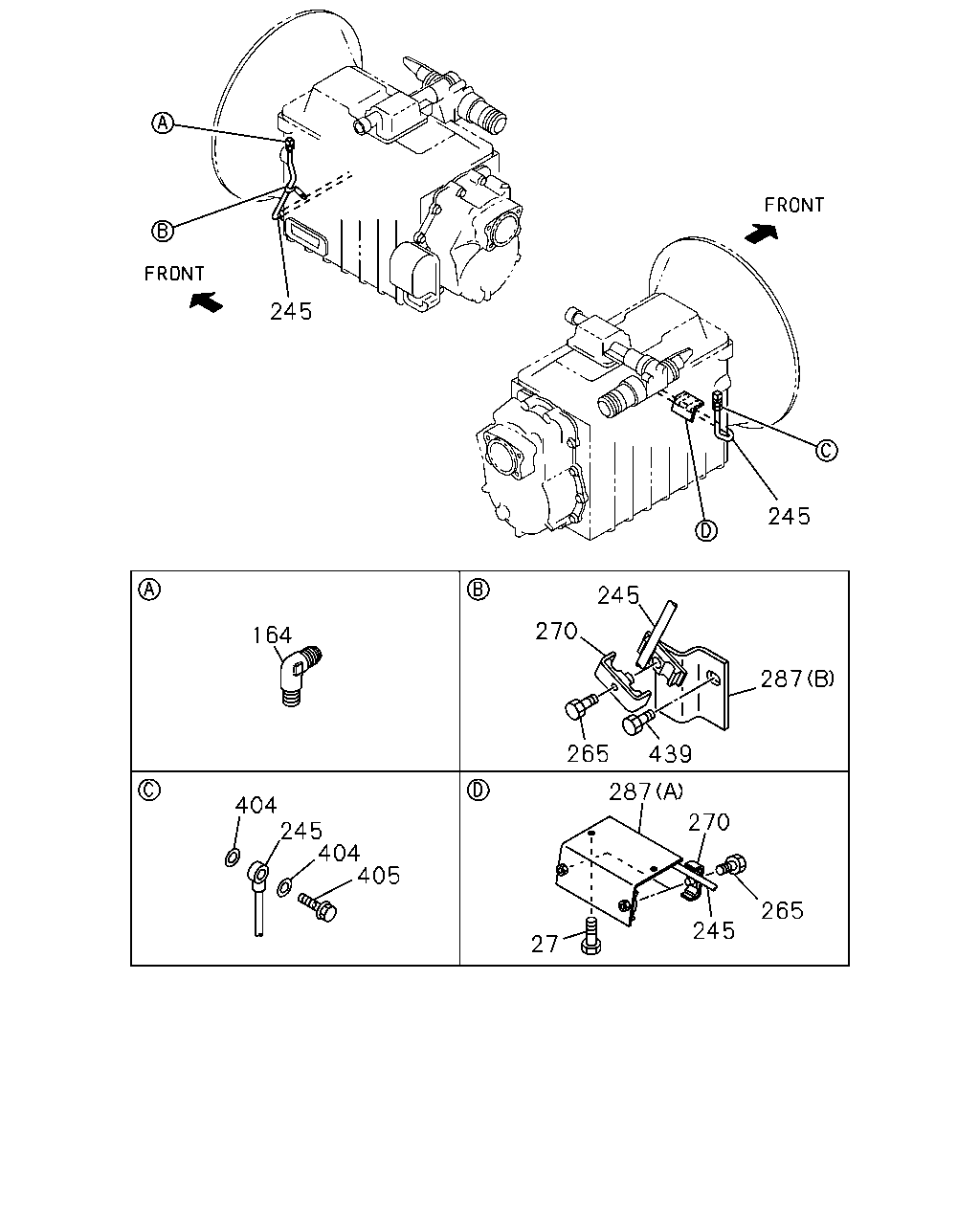

265 245 27 270 287 265 287 245 270 405 404 245 404 164 245 245 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-0106	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0107-0512	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●	●	●	●
164	CONNECTOR; ELBOW M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0105-					●
245	PIPE; OIL L=753	1-32571-160-0	01	1	0105-					●
245	PIPE; OIL L=738	1-32571-147-0	01	1	0107-						●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0105-0106					●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0107-0512					●	●
265	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0601-					●	●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-0	03	1	0105-0106					●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0107-					●	●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0105-0106					●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0107-					●	●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0105-0106					●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0107-					●	●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-0106					●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-					●	●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-0106					●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0107-					●	●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	0105-0512					●
439	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	01	1	0601-					●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	0107-0512						●
439	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	03	1	0601-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
