0-32 — WATER PIPING; ENGINE (#133168) — 25 parça

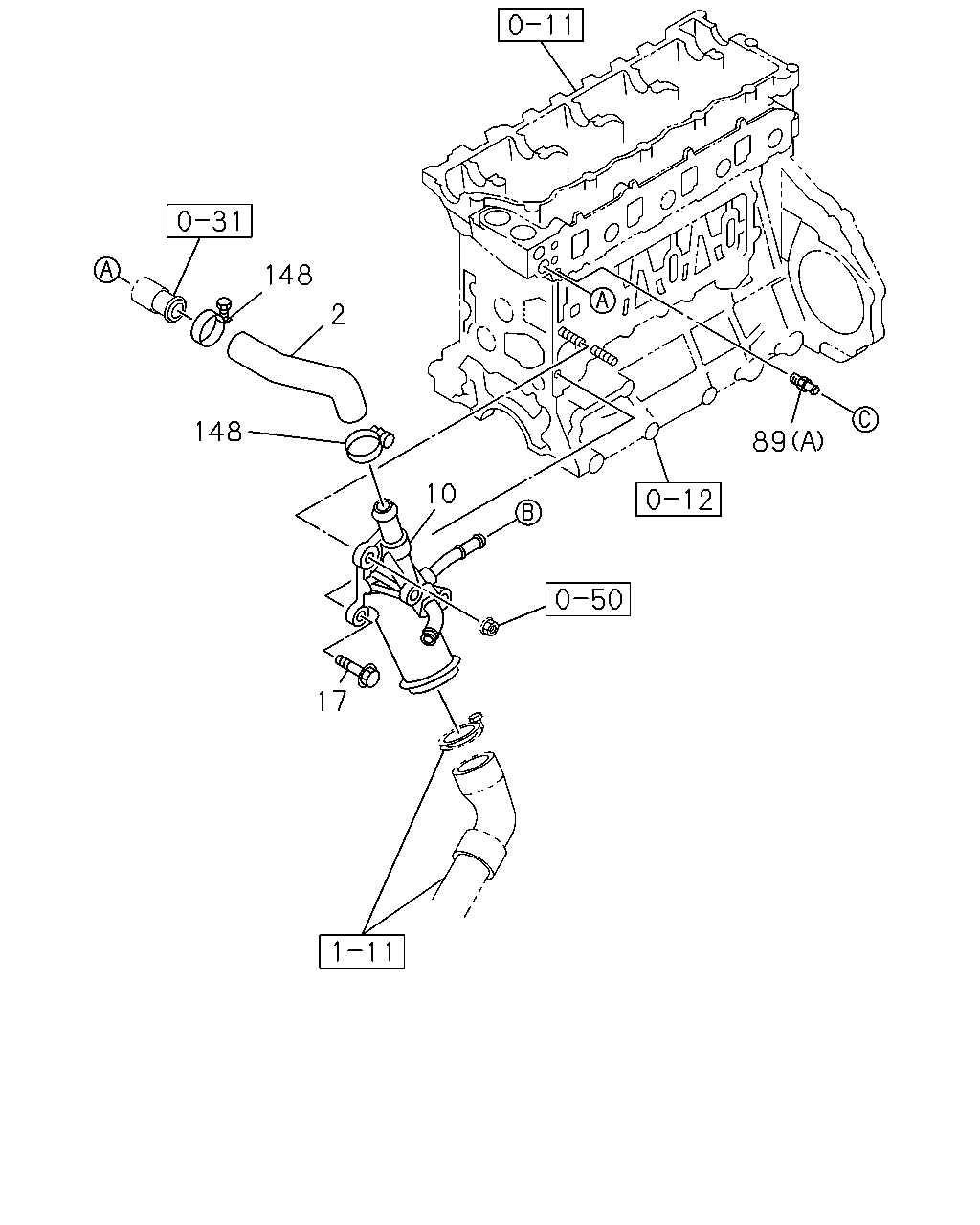

17 10 148 2 148 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1402-	●	●
10	PIPE; SUCTION	8-98166-995-0	01	1	1402-	●	●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1402-	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1402-	●	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1402-	●	●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1402-	●	●

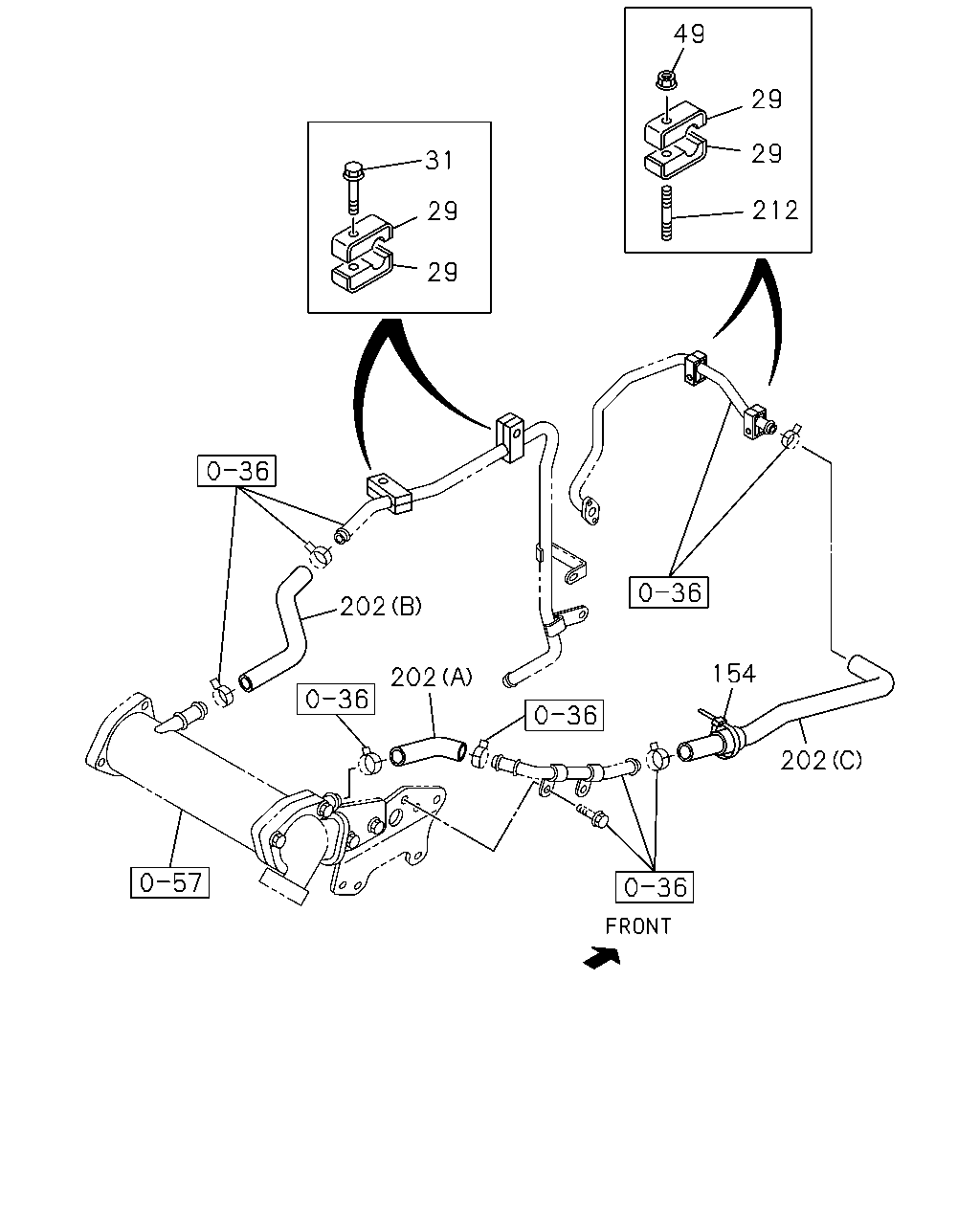

49 29 29 212 31 29 29 202 202 154 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; PIPE	1-09701-284-0	08	1	1402-	●	●
31	BOLT; CLIP M8X40 FLANGE THA	0-28050-840-0	02	1	1402-	●	●
49	NUT; WATER PIPE M8 FLANGE THA	0-91180-108-0	02	1	1402-	●	●
154	CLIP; WATER HOSE L=170.3 THA	1-09987-182-0	01	1	1402-	●	●
202	HOSE; RUBBER,EGR COOLER (B)	8-97386-586-1	01	1	1402-	●	●
202	HOSE; RUBBER,EGR COOLER (A)	8-98092-382-0	01	1	1402-	●	●
202	HOSE; RUBBER,EGR COOLER (C)	8-98097-605-1	01	1	1402-	●	●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1402-	●	●

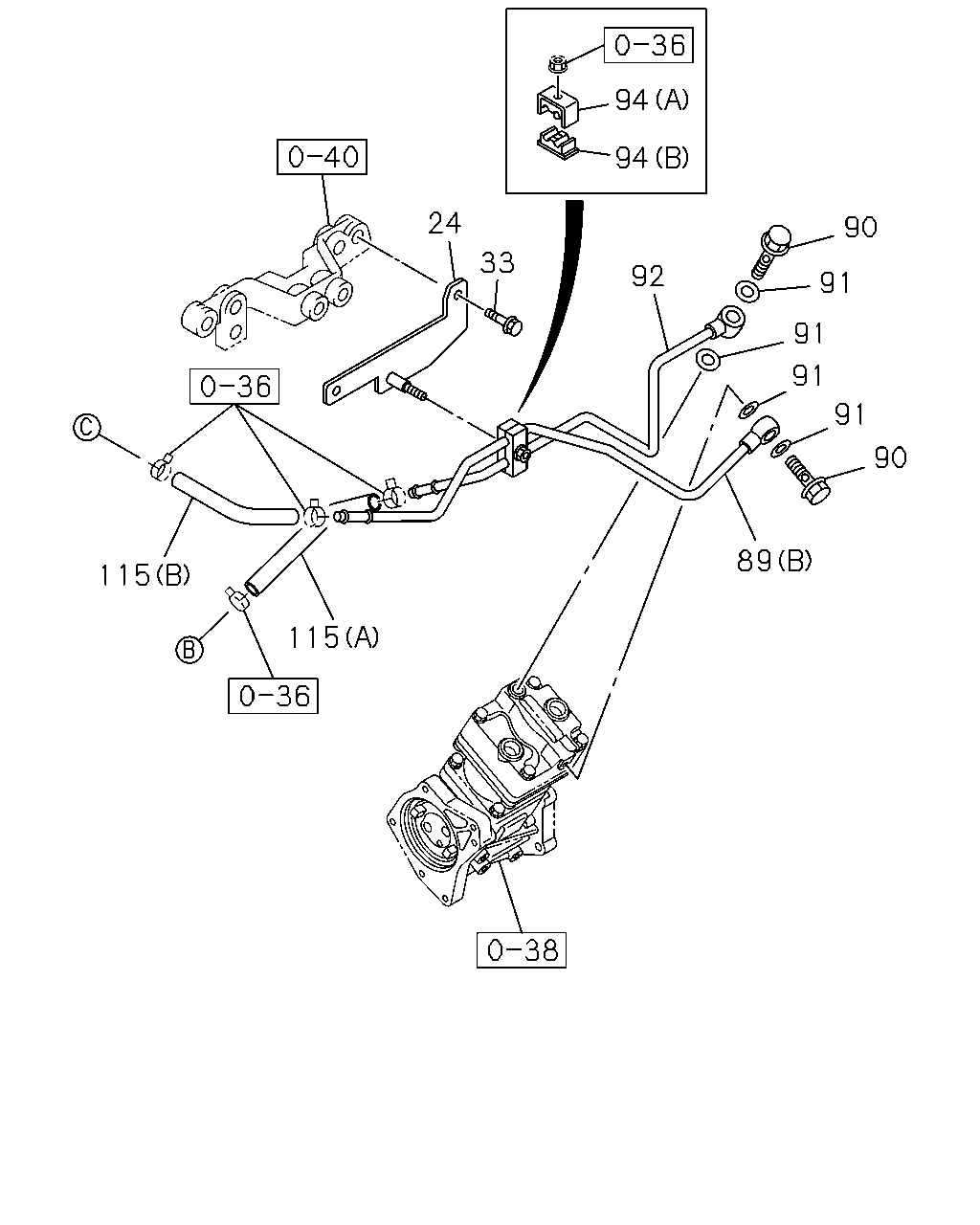

94 94 90 91 91 91 90 91 89 92 33 24 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE	8-97379-140-0	01	1	1402-	●	●
33	BOLT; BRKT M6X10 FLANGE THA	0-28050-610-0	02	1	1402-	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1402-	●	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1402-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	1402-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	04	1	1402-	●	●
92	PIPE; WATER,AIR CMPR,OUT	8-97376-784-0	01	1	1402-	●	●
94	CLIP; WATER PIPE (B)	1-09701-180-0	01	1	1402-	●	●
94	CLIP; WATER PIPE (A) ID=10 & 10 L=25	8-94393-280-3	01	1	1402-	●	●
115	HOSE; RUBBER (A) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	1402-	●	●
115	HOSE; RUBBER (B)	8-98009-361-0	01	1	1402-	●	●
