0-13 — OIL PAN AND LEVEL GAUGE (#133158) — 16 parça

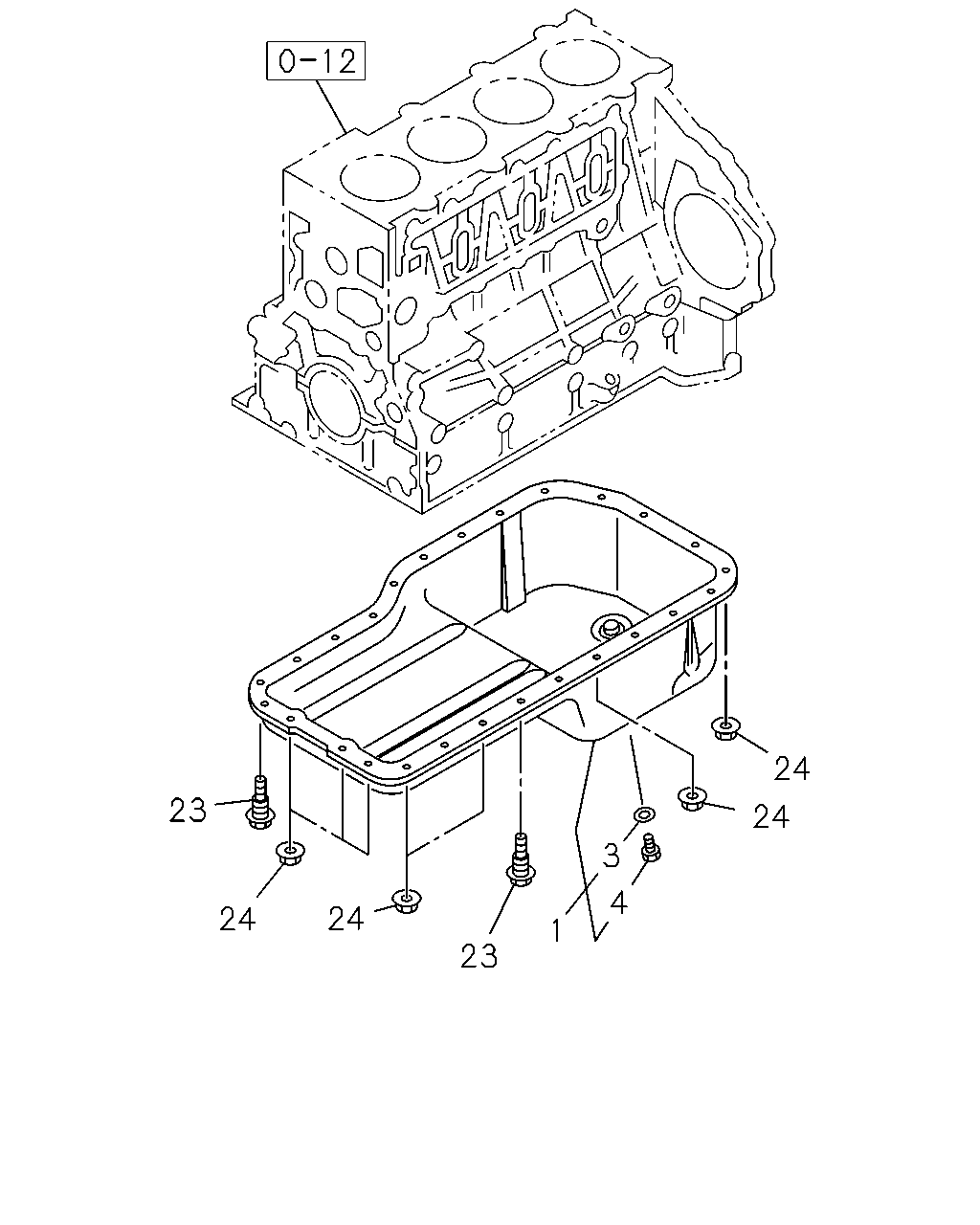

23 24 24 23 1 3 4 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	8-98191-050-0	01	1	1402-	●	●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1402-	●	●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1402-	●	●
23	BOLT; OIL PAN M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1402-	●	●
23	BOLT; OIL PAN M8X14	8-97047-005-0	18	1	1402-	●	●
24	NUT; OIL PAN M8 W/LK WASHER THA	8-97581-234-0	07	1	1402-	●	●

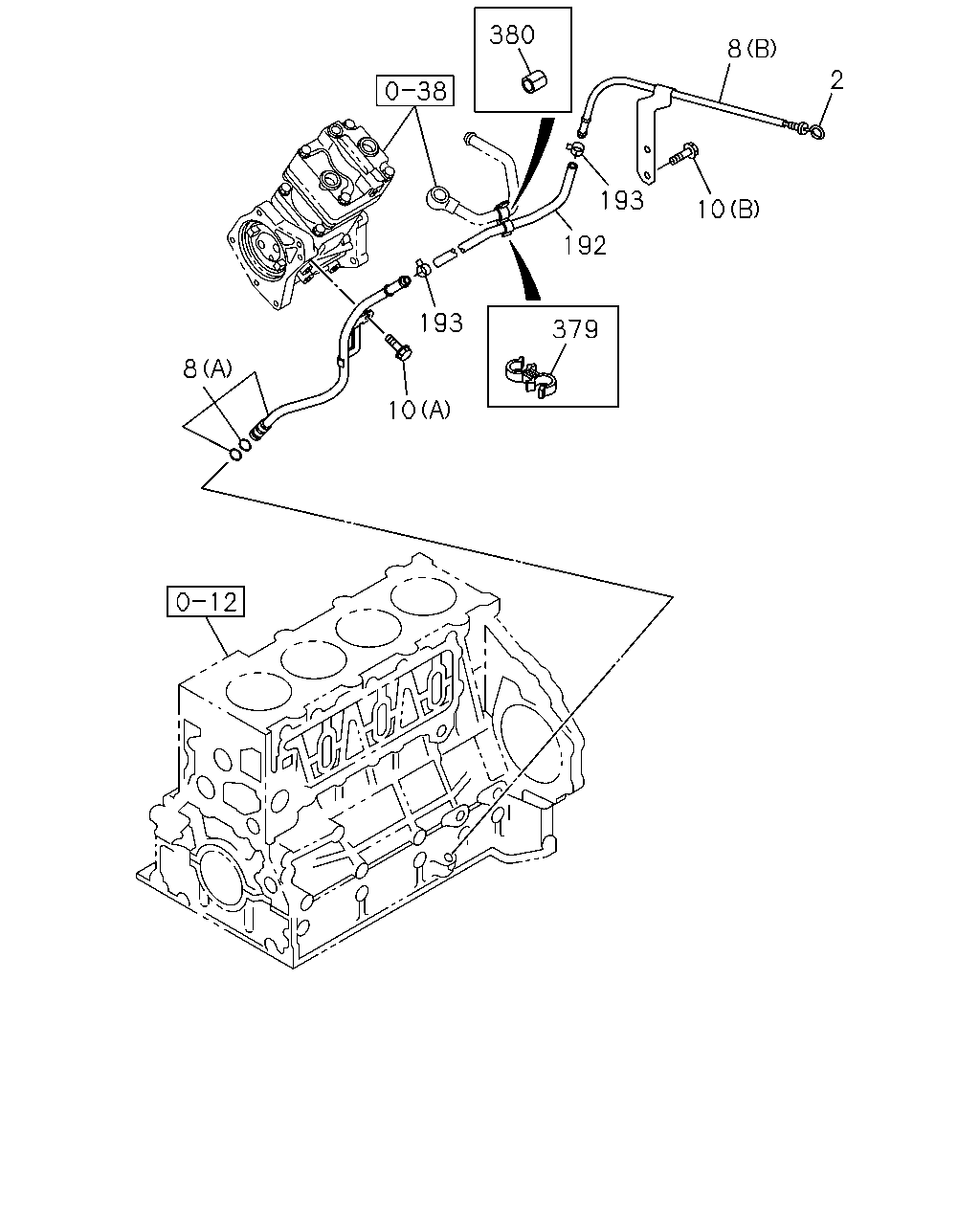

8 10 193 379 192 380 193 10 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GAUGE; OIL LEVEL	8-98085-153-0	01	1	1402-1406	●	●
2	GAUGE; OIL LEVEL	8-98245-514-0	01	1	1407-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98009-115-1	01	1	1402-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98010-328-1	01	1	1402-	●	●
10	BOLT; GUIDE TUBE (A) M6X12 FLANGE THA	0-28050-612-0	01	1	1402-	●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-	●	●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	1402-	●	●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	1402-	●	●
379	CLIP; PIPE TO HOSE ID=18 & 18	8-94323-068-0	01	1	1402-	●	●
380	PROTECTOR; PIPE ID=18 L=40	8-98070-445-0	01	1	1402-	●	●
