Sayfa 0-10 - Isuzu EPC

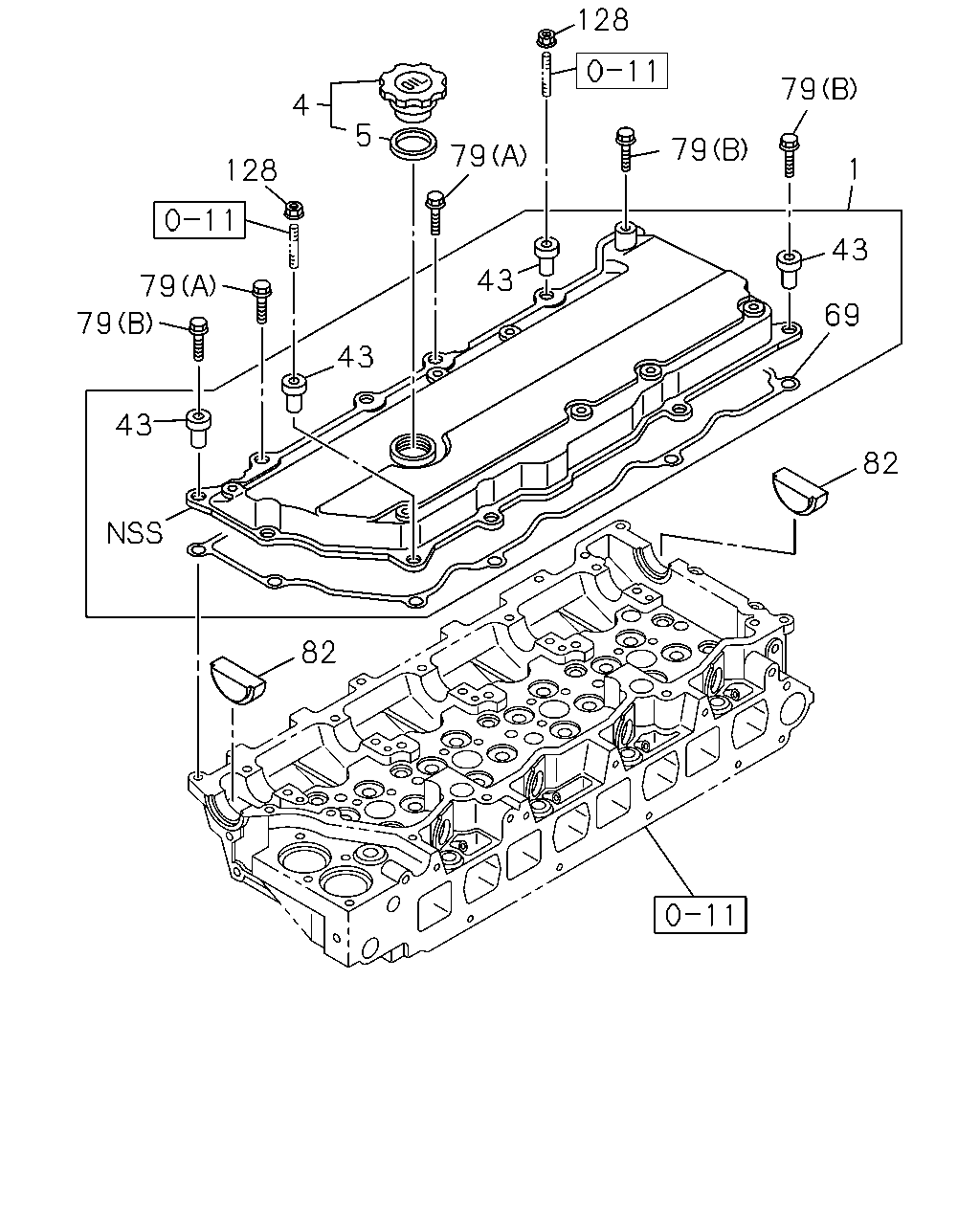

0-10 — CYLINDER HEAD COVER (#133155) — 9 parça

128 4 128 5 79 79 79 43 1 69 82 43 43 79 79 43 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD	8-97331-361-2	01	1	1402-	●	●
4	CAP; OIL FILLER	8-94133-207-5	01	1	1402-	●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-94123-623-1	01	1	1402-	●	●
43	RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1402-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	1402-	●	●
79	BOLT; COVER (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1402-	●	●
79	BOLT; COVER (B) M8X65 FLANGE	1-09044-072-1	07	1	1402-	●	●
82	PLUG; CYL HD COVER	8-98163-813-0	02	1	1402-	●	●
128	NUT; COVER,CYL HEAD COVER M8 FLANGE THA	0-91180-108-0	02	1	1402-	●	●
