2-08 — CLUTCH MASTER CYLINDER (#13315) — 24 parça

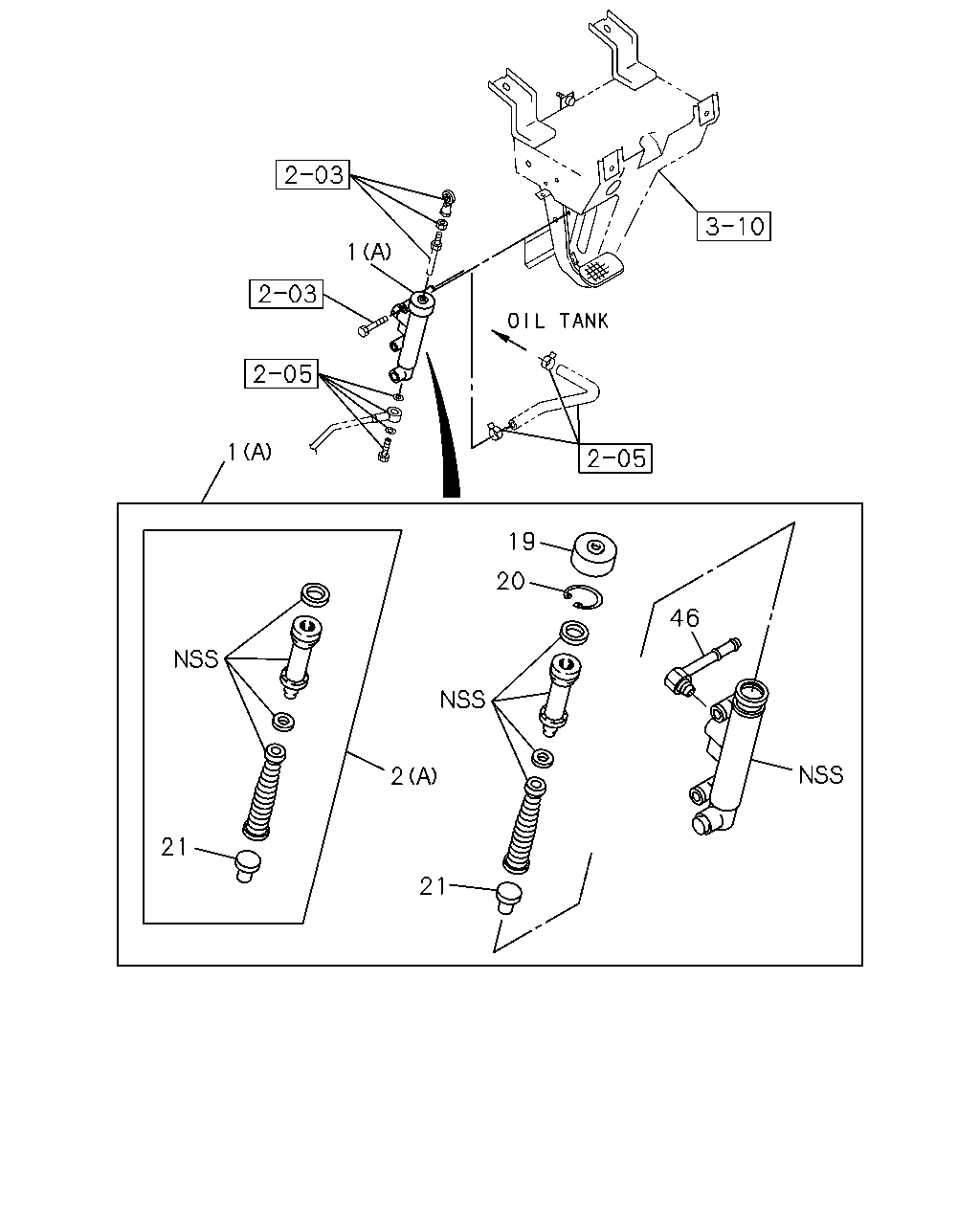

çizim 76966
21 2 46 20 19 21 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> (B) 		1-47500-242-2 01 1 0105- ● ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-47500-232-2 01 1 0105- ● ●
2 REPAIR KIT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> (B) 		1-47550-046-0 01 1 0105- ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-85576-114-0 01 1 0105- ● ●
19 BOOT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47545-011-0 01 1 0105- ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		9-47545-032-0 01 1 0105- ● ●
20 RING; SNAP,BODY
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47515-009-0 01 1 0105- ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A>,FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 0105- ● ●
21 VALVE; CHECK
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-47565-004-0 01 1 0105- ● ●
21 VALVE; CHECK
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47565-004-0 01 1 0105- ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-47517-004-0 01 1 0105- ● ●
46 CONNECTOR; PIPE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47517-004-0 01 1 0105- ● ●

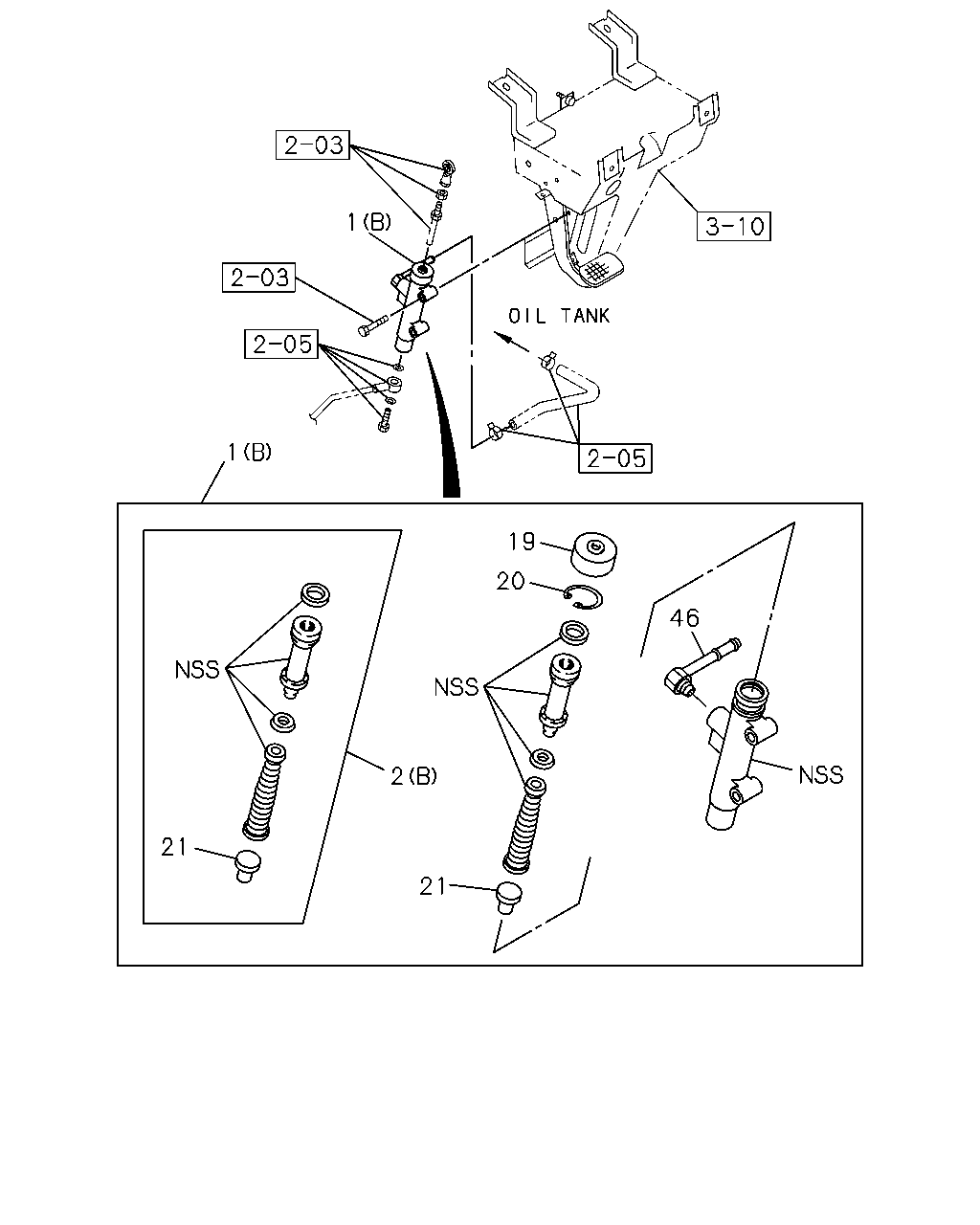

çizim 76967
21 2 21 46 20 19 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> (B) 		1-47500-242-2 01 1 0105- ● ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-47500-232-2 01 1 0105- ● ●
2 REPAIR KIT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> (B) 		1-47550-046-0 01 1 0105- ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-85576-114-0 01 1 0105- ● ●
19 BOOT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47545-011-0 01 1 0105- ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		9-47545-032-0 01 1 0105- ● ●
20 RING; SNAP,BODY
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47515-009-0 01 1 0105- ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A>,FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 0105- ● ●
21 VALVE; CHECK
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-47565-004-0 01 1 0105- ● ●
21 VALVE; CHECK
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47565-004-0 01 1 0105- ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-47517-004-0 01 1 0105- ● ●
46 CONNECTOR; PIPE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47517-004-0 01 1 0105- ● ●
