8-52 — PIPING; AIR CONDITIONING (#133145) — 29 parça

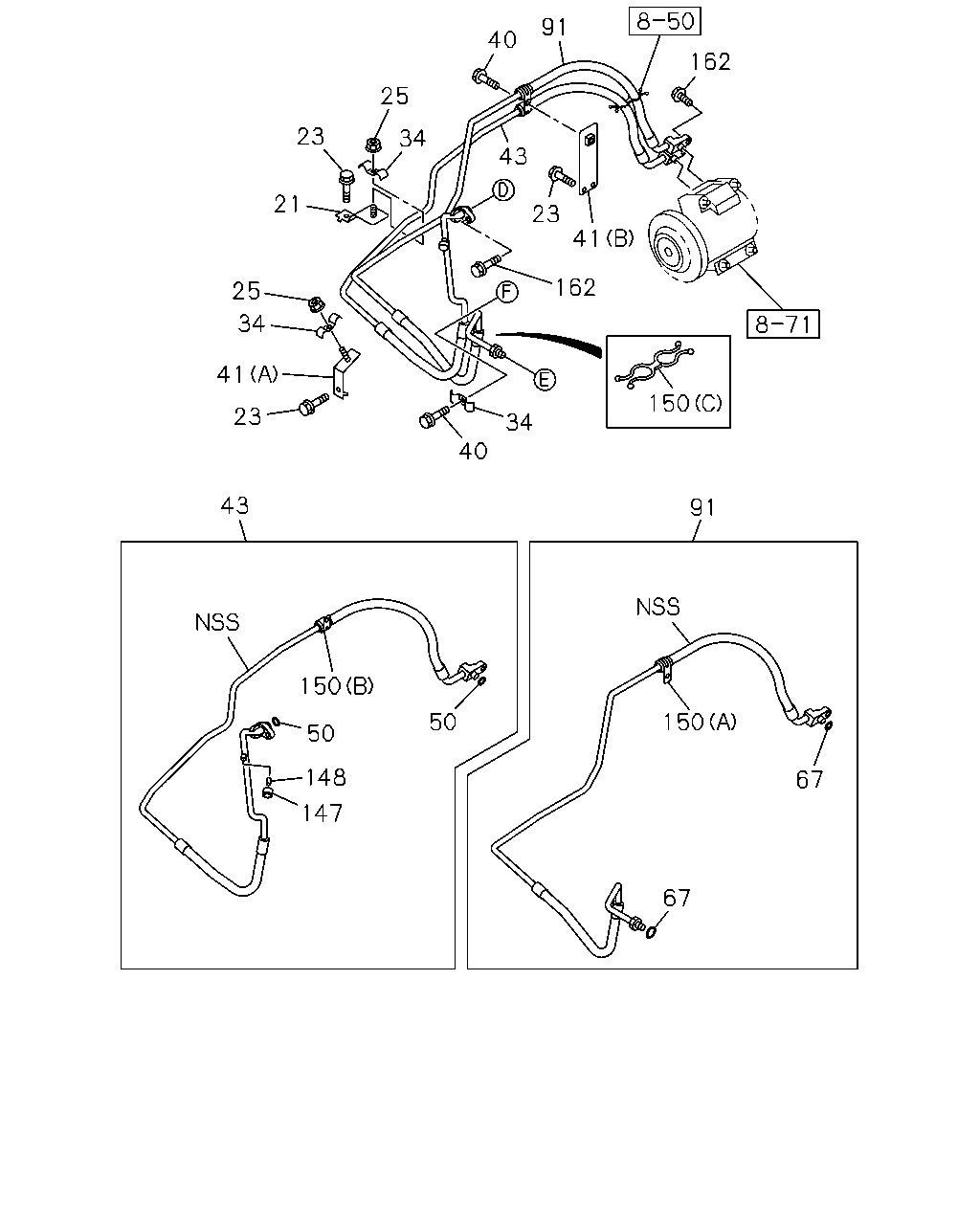

150 50 148 147 50 150 67 67 91 43 23 41 34 25 21 23 25 34 40 91 162 43 23 41 162 40 34 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98010-187-0	01	1	1402-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA	0-28650-825-0	04	1	1402-
25	NUT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA	0-91180-108-0	02	1	1402-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98043-673-0	03	1	1402-
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98010-188-1	01	1	1402-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98032-049-0	01	1	1402-
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97926-682-0	01	1	1402-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=14.5 THA	8-97095-908-0	02	1	1402-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=11.7 THA	8-97095-907-0	02	1	1402-
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97926-678-0	01	1	1402-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK L THA	1-83539-331-0	01	1	1402-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97095-909-0	01	1	1402-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	1-83574-249-0	01	1	1402-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	1-83574-264-0	01	1	1402-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C)	8-94423-042-0	01	1	1402-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE	0-28050-625-0	03	1	1402-

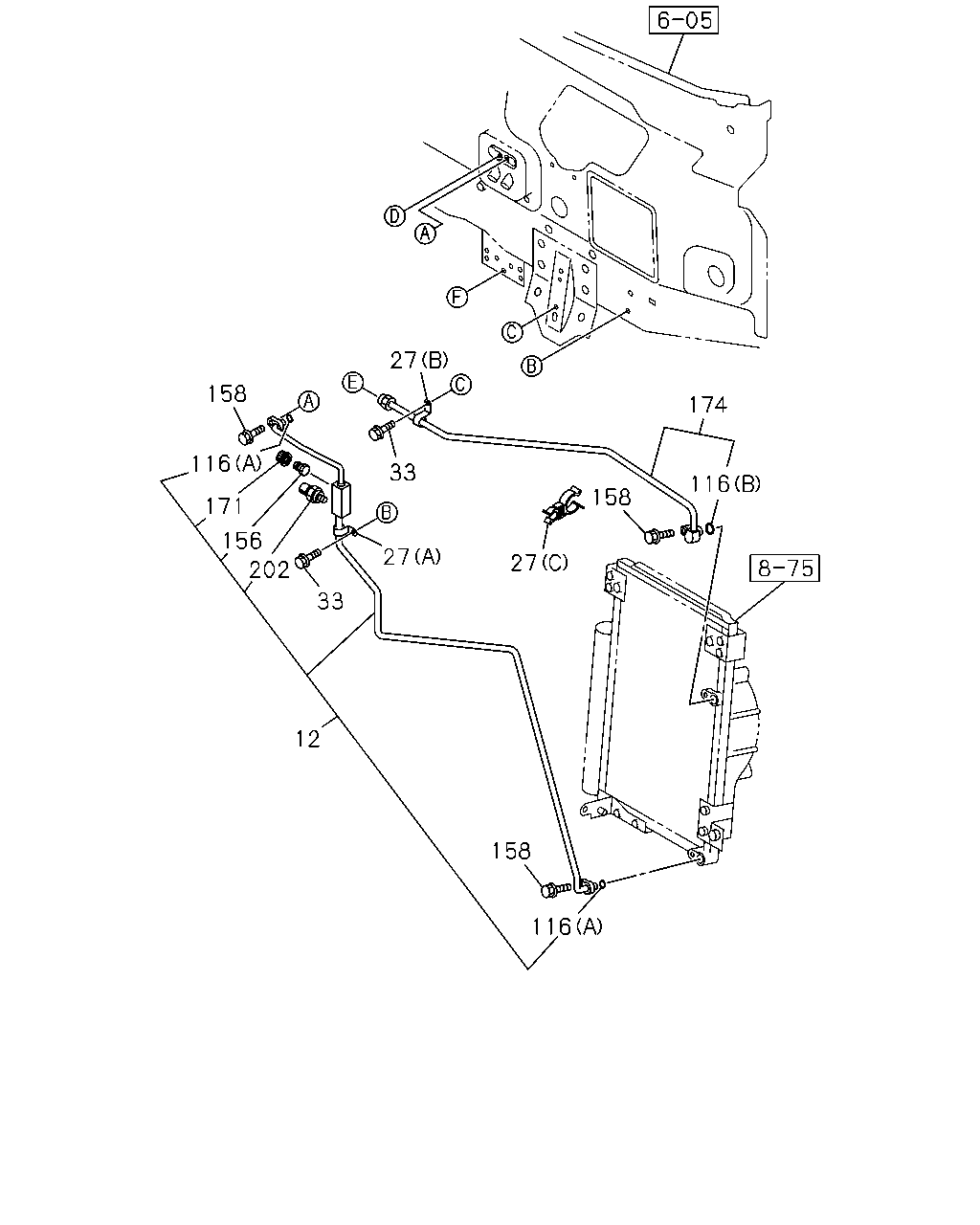

27 158 116 171 156 202 33 12 33 27 27 158 174 116 158 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97926-689-0	01	1	1402-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1402-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1402-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1402-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X16 FLANGE THA	0-28650-616-0	02	1	1402-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=7.4 THA	8-97095-906-0	02	1	1402-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=11.7 THA	8-97095-907-0	01	1	1402-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98151-702-0	01	1	1402-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE	0-28050-625-0	03	1	1402-
171	CAP; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK H THA	8-97095-911-0	01	1	1402-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98041-331-0	01	1	1402-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98246-370-0	01	1	1402-
