◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11581 - GVR CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#133140) — 29 parça

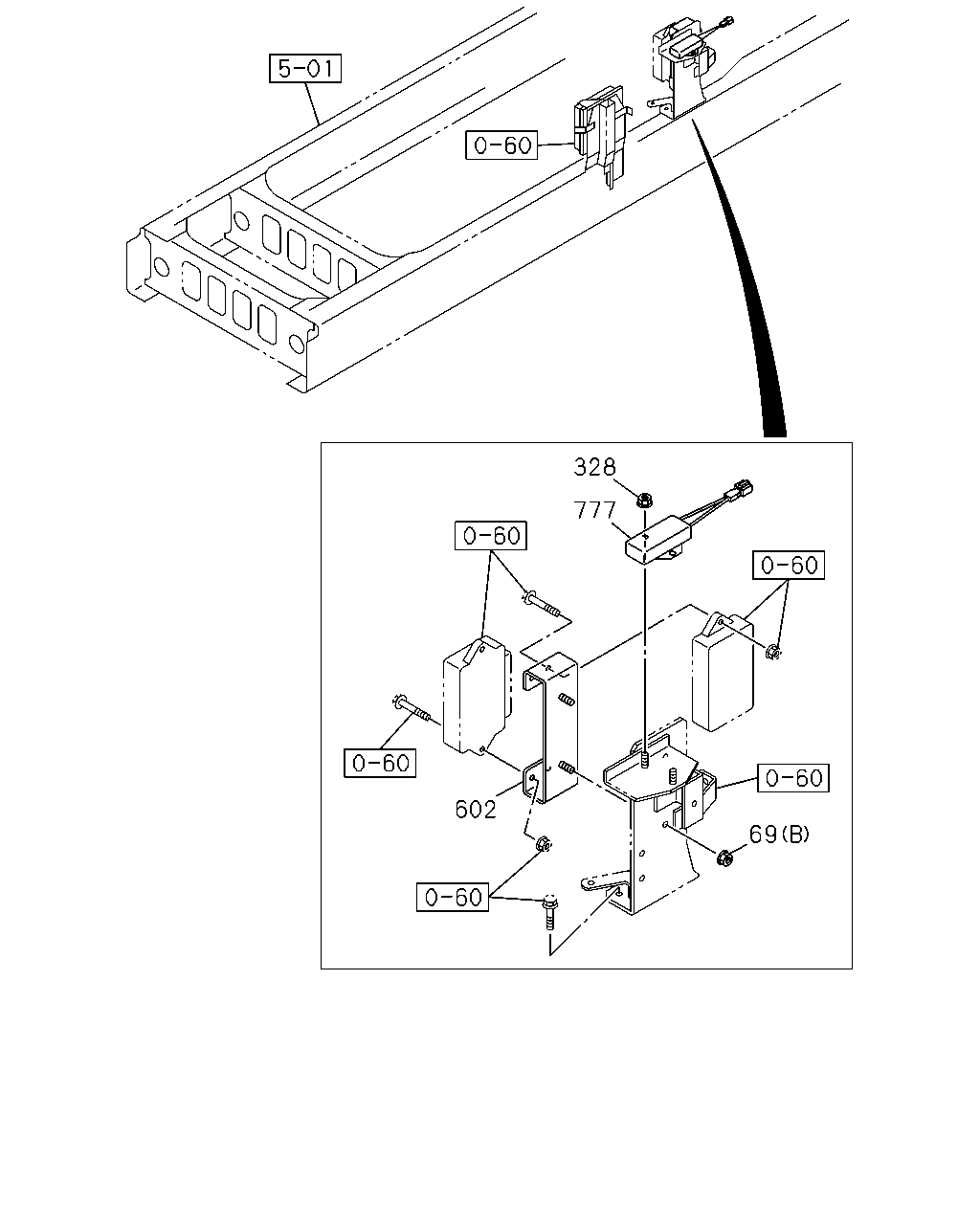

çizim 407010
777 328 602 69
BalonParca AdiParca NoAdetTipApplied Date
69 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1402-
69 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1402-
328 NUT
M6 FLANGE THA 		0-91180-106-0 06 1 1402-
602 BRACKET ASM; ELEC UNIT,CNG 8-97630-746-0 01 1 1402-
777 RESISTOR; EDU 8-98095-341-0 01 1 1402-

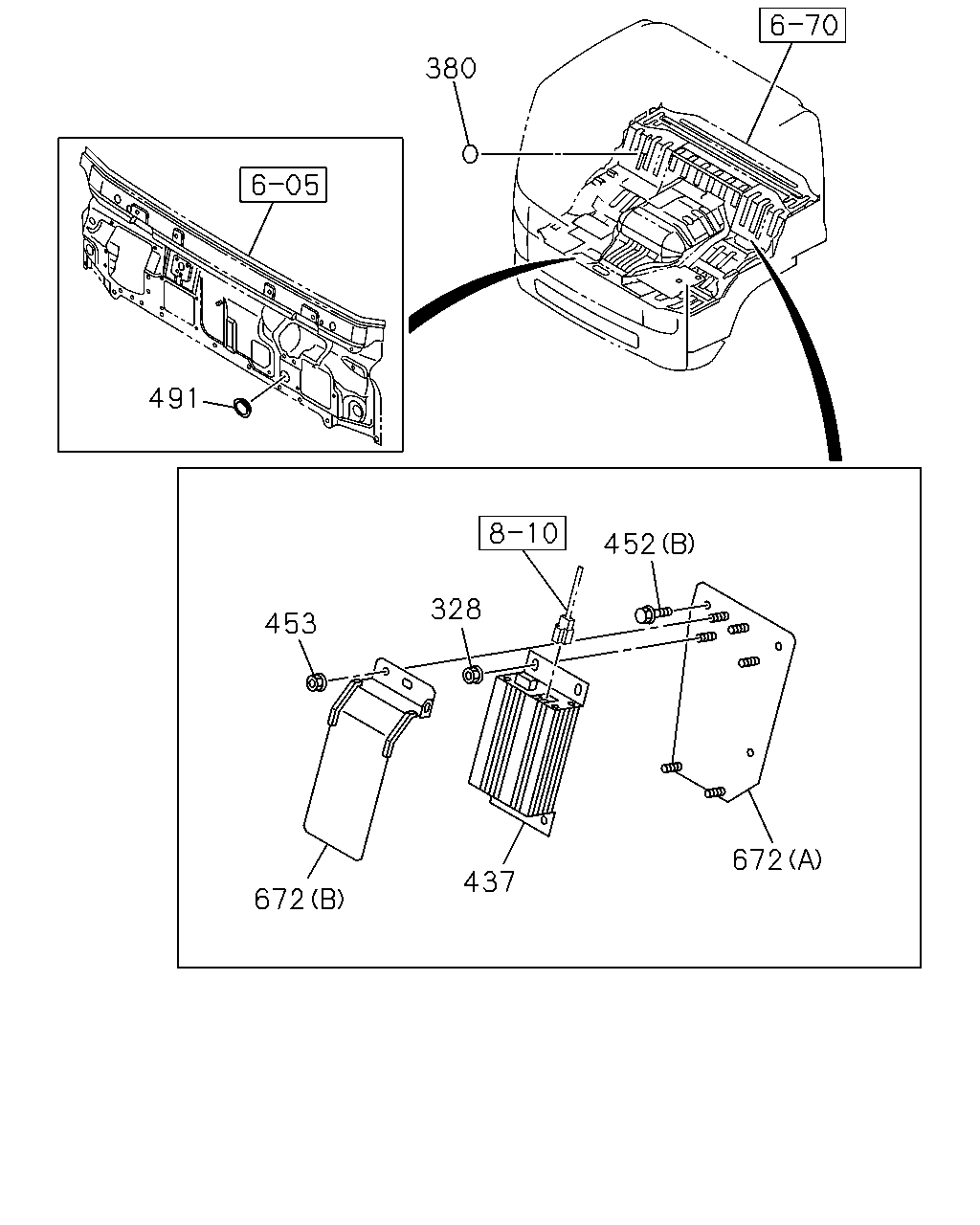

çizim 407207
380 491 453 328 452 437 672 672
BalonParca AdiParca NoAdetTipApplied Date
328 NUT
M6 FLANGE THA 		0-91180-106-0 06 1 1402-
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 1402-
437 CONVERTER; DC 8-97254-654-0 01 1 1402-
452 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 1402-
452 BOLT; BRKT
(B) M6X25 FLANGE THA 		0-28650-625-0 03 1 1402-
453 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1402-
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 1402-
672 BRACKET; CONV
(A) 		8-97617-472-3 01 1 1402-
672 BRACKET; CONV
(B) 		8-98092-601-0 01 1 1402-

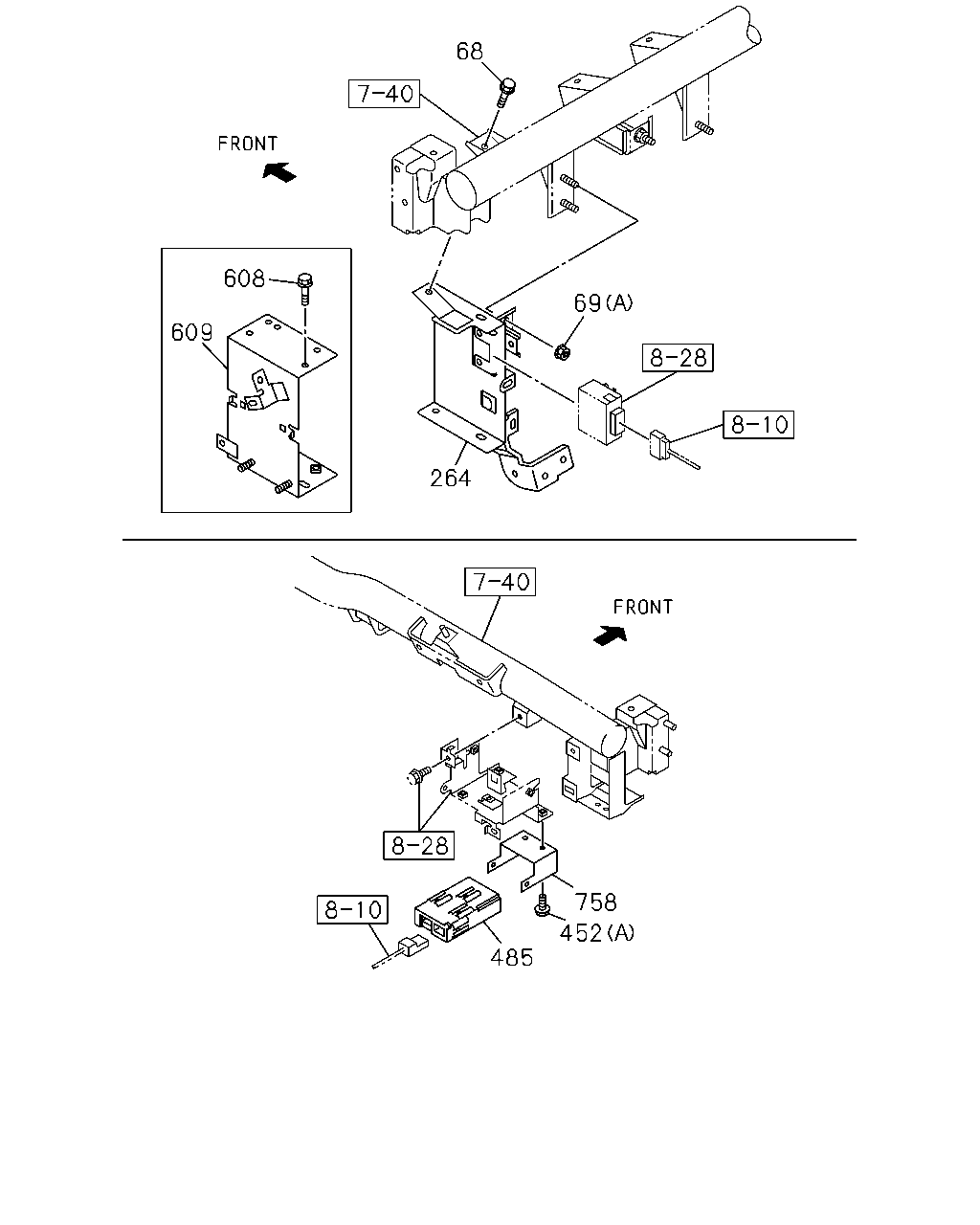

çizim 407339
69 264 608 609 758 452 485 68
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1402-
69 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1402-
69 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1402-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1402-
452 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 1402-
452 BOLT; BRKT
(B) M6X25 FLANGE THA 		0-28650-625-0 03 1 1402-
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 1402-1410
485 CONTROL UNIT; SPEED SENSOR 8-98232-695-0 01 1 1411-
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE THA 		0-28650-616-0 05 1 1402-
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1402-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1402-

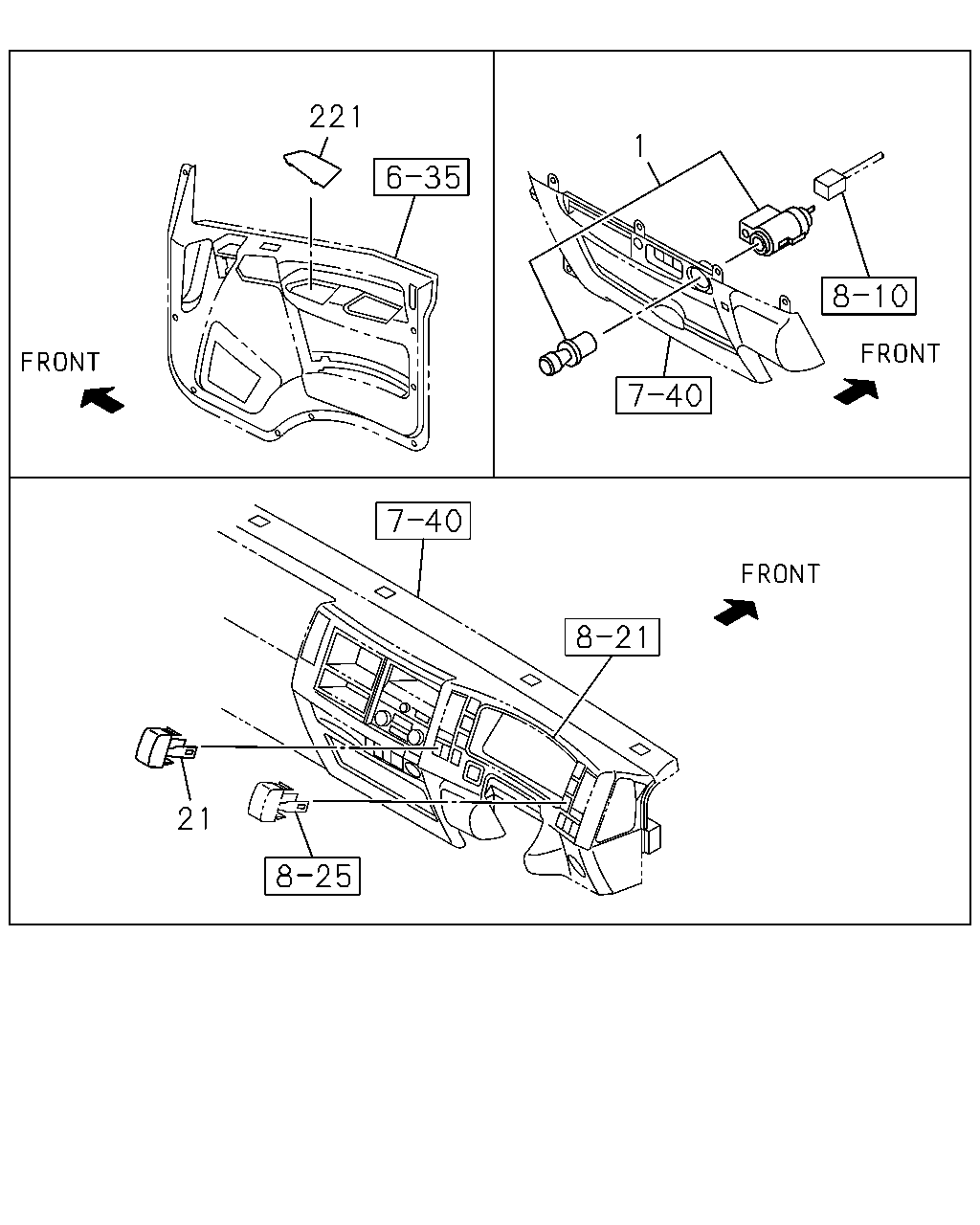

çizim 408245
1 221 21
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1402-
21 COVER; HOLE 8-98025-954-1 01 1 1402-
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1402-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
