8-15 — FIXING PARTS; WIRING HARNESS (#133137) — 202 parça

16 48 48 306 16 48 223 213 213 48 305 306 305 16 48 16 306 16 48 16 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1402-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	02	1	1402-
14	CLIP; BAND,HARNESS (D) L=140	8-97122-360-0	01	1	1402-
14	CLIP; BAND,HARNESS (B) L=180	8-98216-427-0	08	1	1402-
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	09	1	1402-
16	CLIP; HARNESS (K) ID=16 L=28	0-95235-556-0	02	1	1402-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	1402-
16	CLIP; HARNESS (O) ID=14 H=50 L=20	1-09700-843-0	02	1	1402-
16	CLIP; HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1402-
16	CLIP; HARNESS (H) ID=25 H=30 L=35	1-09700-944-0	01	1	1402-
16	CLIP; HARNESS (J) ID=19 L=32	1-09701-235-0	04	1	1402-
16	CLIP; HARNESS (I) L=180	1-09707-162-1	01	1	1402-
16	CLIP; HARNESS (P) L=350	1-09707-183-0	02	1	1402-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1402-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	1402-
16	CLIP; HARNESS (F) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1402-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1402-
16	CLIP; HARNESS (N) L=40.6 THA	8-97229-357-0	02	1	1402-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1402-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
48	CLIP; FRAME HARNESS (L) ID=11 L=41	1-09700-403-0	01	1	1402-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	04	1	1402-
48	CLIP; FRAME HARNESS (G) ID=19 H=70 L=25	1-09700-773-0	01	1	1402-
48	CLIP; FRAME HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1402-
48	CLIP; FRAME HARNESS (D) ID=25 L=50	1-09701-019-0	01	1	1402-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1402-
48	CLIP; FRAME HARNESS (M) L=300	1-09707-001-1	01	1	1402-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1402-
48	CLIP; FRAME HARNESS (I) ID=13-18 L=14.5	1-09709-290-0	03	1	1402-
48	CLIP; FRAME HARNESS (J) ID=13-18 L=22	1-09709-292-0	03	1	1402-
48	CLIP; FRAME HARNESS (K) ID=13-18 L=26	1-09709-293-0	01	1	1402-
48	CLIP; FRAME HARNESS (H) L=140 THA	8-97920-656-0	02	1	1402-
213	CLIP; END CROSS HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1402-
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	03	1	1402-
213	CLIP; END CROSS HARNESS (C) ID=20 L=50	9-09917-430-0	01	1	1402-
223	CLIP; AIR TANK HARNESS ID=11 L=61	1-09700-484-0	01	1	1402-
305	CLIP; ENG HARNESS (A) ID=16 L=40	0-95235-576-0	01	1	1402-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1402-1402
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1402-
306	CLIP; HARNESS,ELEC GOV (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1402-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1402-
306	CLIP; HARNESS,ELEC GOV (B) ID=30X2 L=28	1-09701-266-0	01	1	1402-

7 59 59 53 53 59 59 59 137 137 308 312 428 312 312 312 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1402-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1402-
53	BRACKET; HARNESS (B)	8-98127-093-0	01	1	1402-
59	BRACKET; FRAME HARNESS (D)	1-21464-170-2	01	1	1402-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1402-
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	1402-1502
59	BRACKET; FRAME HARNESS (E)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1402-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1402-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1402-
308	BRACKET; CLIP,ENG HARNESS	8-97602-870-1	01	1	1402-
312	BRACKET; CLIP HARNESS (A) L=55	1-47475-304-0	01	1	1402-
312	BRACKET; CLIP HARNESS (C) L=100	1-47477-620-1	01	1	1402-
312	BRACKET; CLIP HARNESS (B)	8-97609-110-1	01	1	1402-
312	BRACKET; CLIP HARNESS (D) THA	8-98133-253-0	01	1	1402-
428	BRACKET (B) THA	1-82699-630-1	01	1	1402-
428	BRACKET (A)	8-98220-123-0	01	1	1402-
428	BRACKET (C)	8-98220-124-0	01	1	1402-

16 49 305 16 48 206 48 48 16 16 48 206 116 16 470 16 16 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (K) ID=16 L=28	0-95235-556-0	02	1	1402-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	1402-
16	CLIP; HARNESS (O) ID=14 H=50 L=20	1-09700-843-0	02	1	1402-
16	CLIP; HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1402-
16	CLIP; HARNESS (H) ID=25 H=30 L=35	1-09700-944-0	01	1	1402-
16	CLIP; HARNESS (J) ID=19 L=32	1-09701-235-0	04	1	1402-
16	CLIP; HARNESS (I) L=180	1-09707-162-1	01	1	1402-
16	CLIP; HARNESS (P) L=350	1-09707-183-0	02	1	1402-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1402-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	1402-
16	CLIP; HARNESS (F) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1402-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1402-
16	CLIP; HARNESS (N) L=40.6 THA	8-97229-357-0	02	1	1402-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1402-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
48	CLIP; FRAME HARNESS (L) ID=11 L=41	1-09700-403-0	01	1	1402-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	04	1	1402-
48	CLIP; FRAME HARNESS (G) ID=19 H=70 L=25	1-09700-773-0	01	1	1402-
48	CLIP; FRAME HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1402-
48	CLIP; FRAME HARNESS (D) ID=25 L=50	1-09701-019-0	01	1	1402-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1402-
48	CLIP; FRAME HARNESS (M) L=300	1-09707-001-1	01	1	1402-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1402-
48	CLIP; FRAME HARNESS (I) ID=13-18 L=14.5	1-09709-290-0	03	1	1402-
48	CLIP; FRAME HARNESS (J) ID=13-18 L=22	1-09709-292-0	03	1	1402-
48	CLIP; FRAME HARNESS (K) ID=13-18 L=26	1-09709-293-0	01	1	1402-
48	CLIP; FRAME HARNESS (H) L=140 THA	8-97920-656-0	02	1	1402-
49	CLIP; GEN HARNESS (A) ID=19 L=20	0-95235-836-0	04	1	1402-
49	CLIP; GEN HARNESS (B) L=250	5-09707-030-1	01	1	1402-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1402-
206	CLIP; FUEL TANK HARNESS (B) ID=19 H=33 L=45	1-09701-045-0	01	1	1402-
206	CLIP; FUEL TANK HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1402-
213	CLIP; END CROSS HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	1402-
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	03	1	1402-
213	CLIP; END CROSS HARNESS (C) ID=20 L=50	9-09917-430-0	01	1	1402-
305	CLIP; ENG HARNESS (A) ID=16 L=40	0-95235-576-0	01	1	1402-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1402-1402
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1402-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1402-

217 16 14 48 224 538 530 1 224 178 596 14 48 208 16 48 16 14 225 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER ID=14 OD=18 L=60	1-09337-030-0	03	1	1402-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1402-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	02	1	1402-
14	CLIP; BAND,HARNESS (D) L=140	8-97122-360-0	01	1	1402-
14	CLIP; BAND,HARNESS (B) L=180	8-98216-427-0	08	1	1402-
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	09	1	1402-
16	CLIP; HARNESS (K) ID=16 L=28	0-95235-556-0	02	1	1402-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	1402-
16	CLIP; HARNESS (O) ID=14 H=50 L=20	1-09700-843-0	02	1	1402-
16	CLIP; HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1402-
16	CLIP; HARNESS (H) ID=25 H=30 L=35	1-09700-944-0	01	1	1402-
16	CLIP; HARNESS (J) ID=19 L=32	1-09701-235-0	04	1	1402-
16	CLIP; HARNESS (I) L=180	1-09707-162-1	01	1	1402-
16	CLIP; HARNESS (P) L=350	1-09707-183-0	02	1	1402-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1402-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	1402-
16	CLIP; HARNESS (F) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1402-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1402-
16	CLIP; HARNESS (N) L=40.6 THA	8-97229-357-0	02	1	1402-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1402-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
48	CLIP; FRAME HARNESS (L) ID=11 L=41	1-09700-403-0	01	1	1402-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	04	1	1402-
48	CLIP; FRAME HARNESS (G) ID=19 H=70 L=25	1-09700-773-0	01	1	1402-
48	CLIP; FRAME HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1402-
48	CLIP; FRAME HARNESS (D) ID=25 L=50	1-09701-019-0	01	1	1402-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1402-
48	CLIP; FRAME HARNESS (M) L=300	1-09707-001-1	01	1	1402-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1402-
48	CLIP; FRAME HARNESS (I) ID=13-18 L=14.5	1-09709-290-0	03	1	1402-
48	CLIP; FRAME HARNESS (J) ID=13-18 L=22	1-09709-292-0	03	1	1402-
48	CLIP; FRAME HARNESS (K) ID=13-18 L=26	1-09709-293-0	01	1	1402-
48	CLIP; FRAME HARNESS (H) L=140 THA	8-97920-656-0	02	1	1402-
49	CLIP; GEN HARNESS (A) ID=19 L=20	0-95235-836-0	04	1	1402-
49	CLIP; GEN HARNESS (B) L=250	5-09707-030-1	01	1	1402-
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	02	1	1402-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1402-
224	SLEEVE; RUBBER,HARNESS (B) ID=23 OD=27 L=40	1-09337-015-0	01	1	1402-
224	SLEEVE; RUBBER,HARNESS (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	1402-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1402-
530	SEAL; HARNESS 180X40	1-72498-019-1	06	1	1402-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1402-
596	GROMMET ID=32 OD=40 T=18	1-09891-003-0	01	1	1402-

139 38 371 304 38 38 304 127 38 386 184 38 139 139 38 377 38 38 242 139 313 150 139 313 313 524 294 294 525 219 139 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (E) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
38	BOLT; CLIP,HARNESS (E) M8X16 FLANGE THA	0-28050-816-0	06	1	1402-
38	BOLT; CLIP,HARNESS (G) M8X30 FLANGE THA	0-28050-830-0	01	1	1402-
38	BOLT; CLIP,HARNESS (F) M10X25 FLANGE THA	0-28151-025-0	01	1	1402-
38	BOLT; CLIP,HARNESS (H) M12X20 FLANGE	0-28151-220-0	01	1	1402-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	04	1	1402-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE THA	0-28050-820-0	01	1	1402-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE THA	0-28050-820-0	01	1	1402-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1402-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1402-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1402-
139	BOLT; BRKT (A) M8X12 FLANGE THA	0-28050-812-0	01	1	1402-
139	BOLT; BRKT (D) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
139	BOLT; BRKT (E) M8X35 FLANGE THA	0-28650-835-0	01	1	1402-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1402-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	1402-
150	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
150	BOLT; CLIP (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1402-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	1402-
219	NUT M8 FLANGE THA	0-91180-108-0	01	1	1402-
219	NUT M8 FLANGE THA	0-91180-108-0	01	1	1402-
242	BOLT; BRKT,HARNESS M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1402-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1402-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	01	1	1402-
313	BOLT; BRKT (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
313	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1402-
371	BOLT; GEN HARNESS M8X16 FLANGE THA	0-28050-816-0	04	1	1402-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1402-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1402-
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	1402-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1402-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1402-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1402-

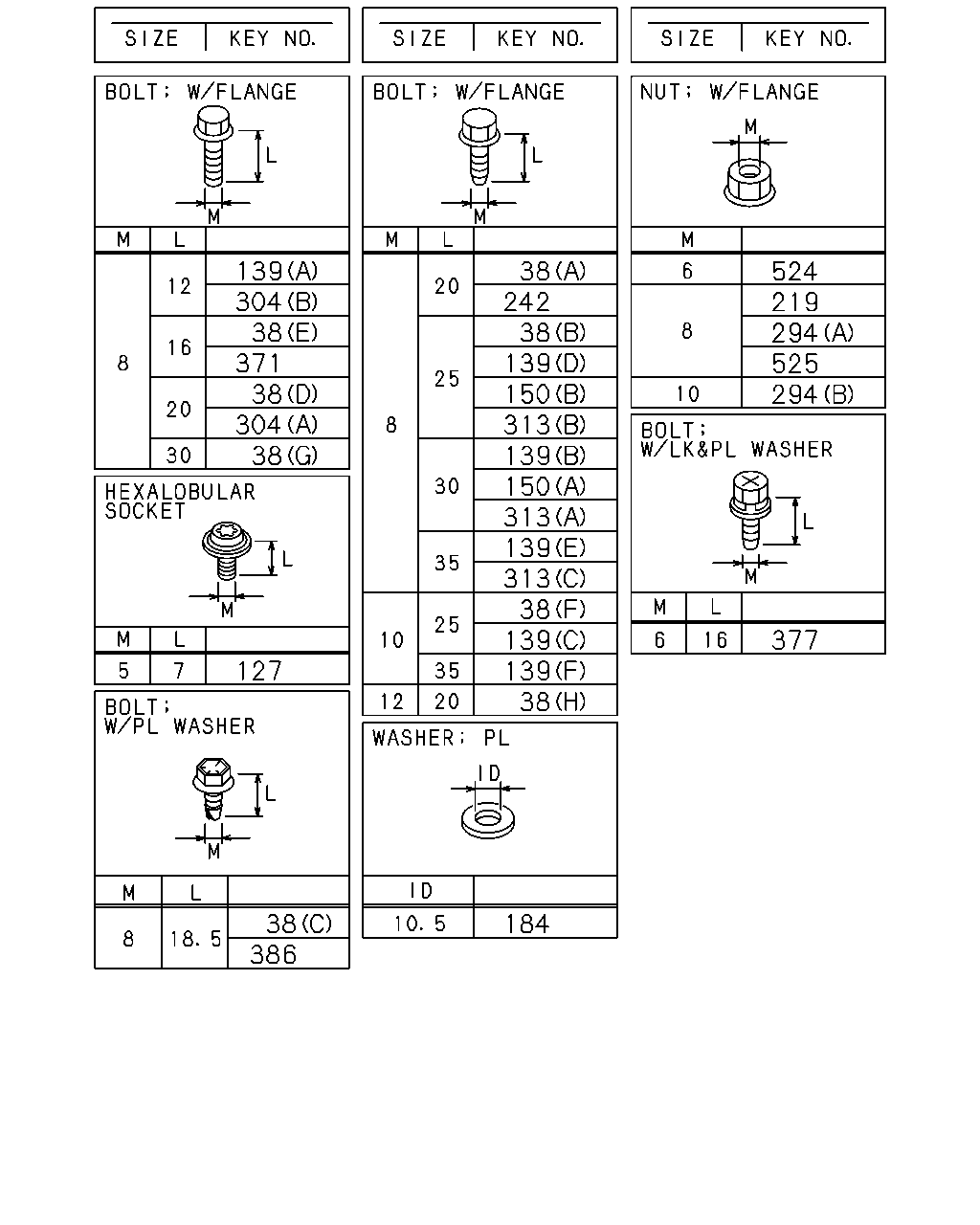

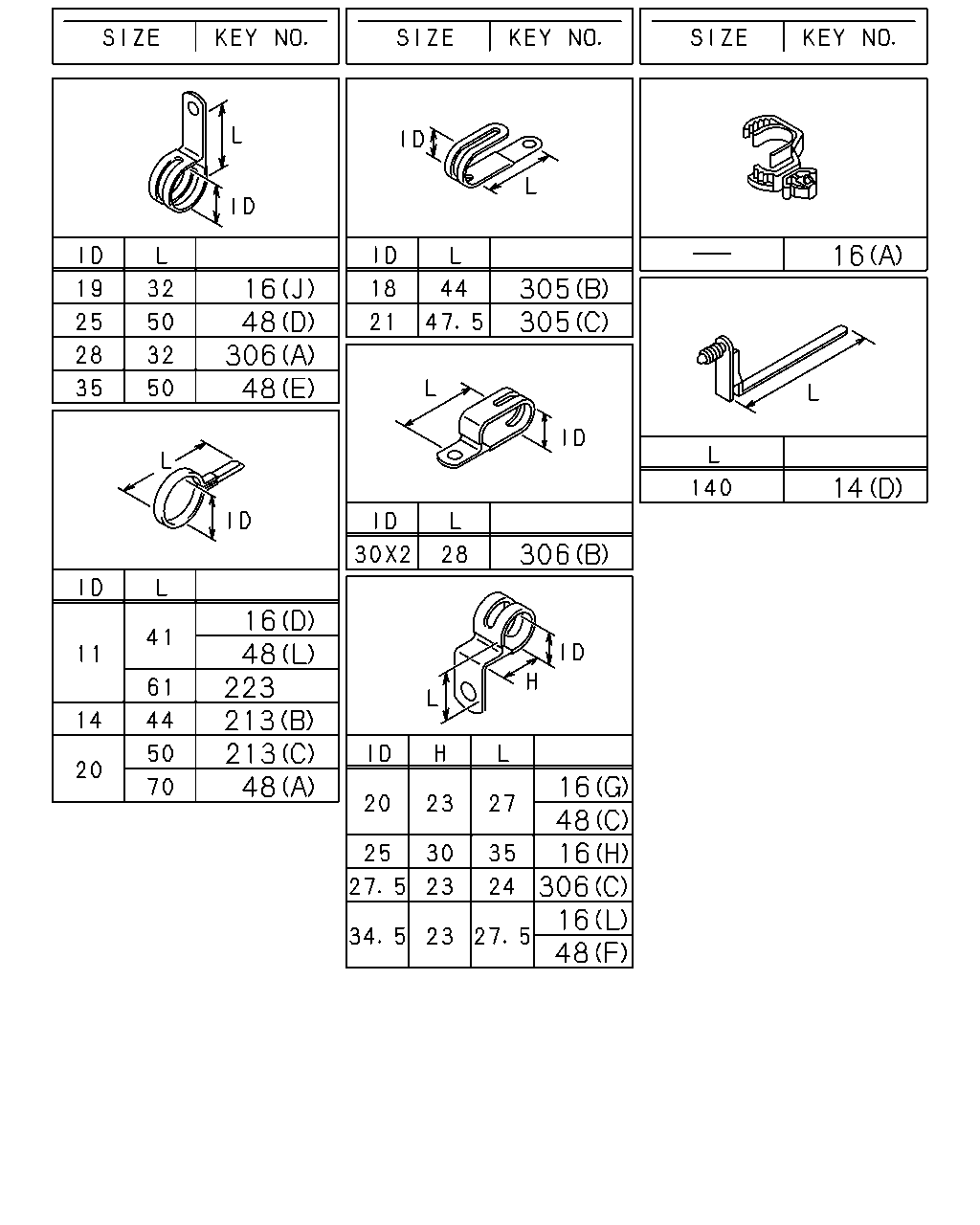

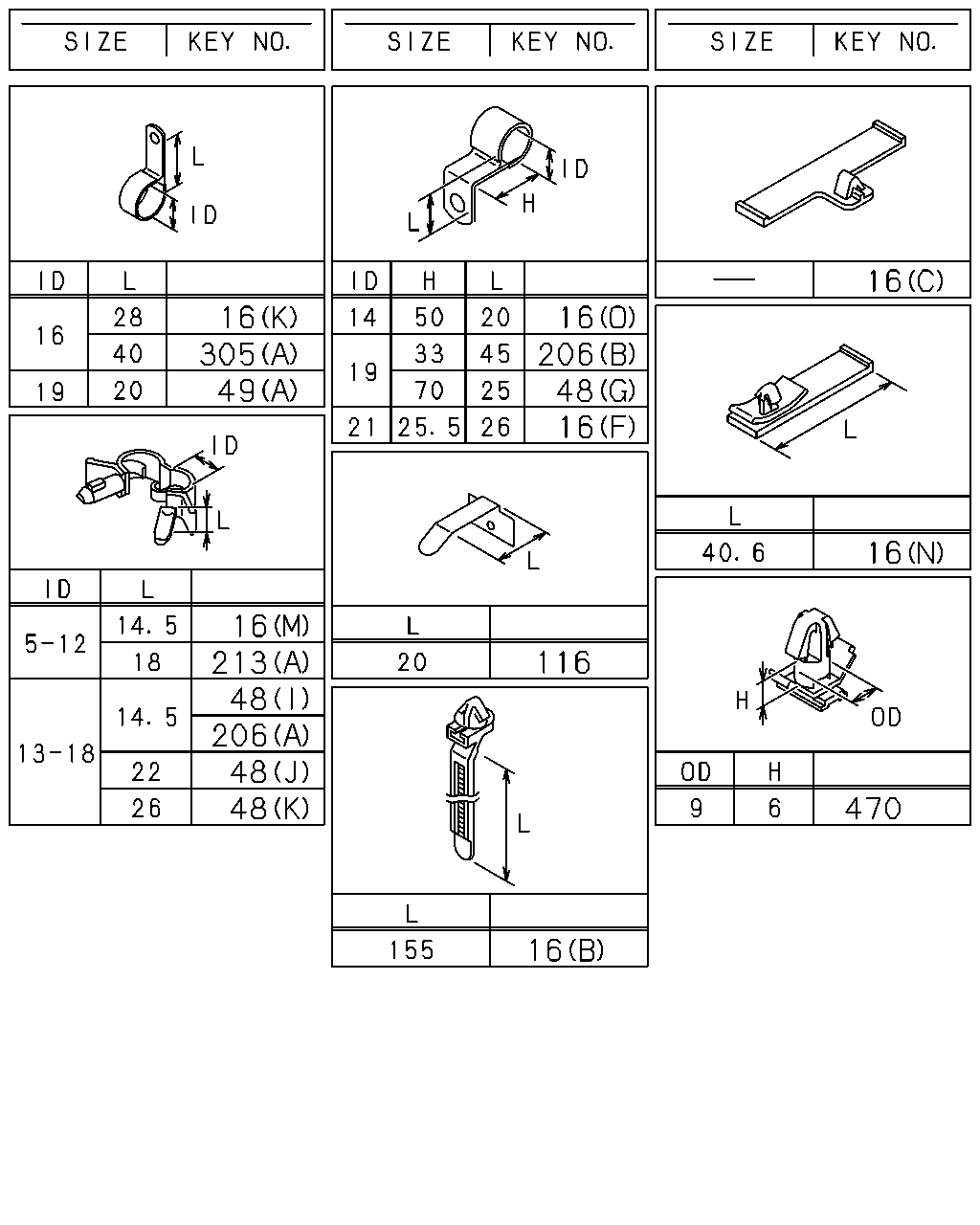

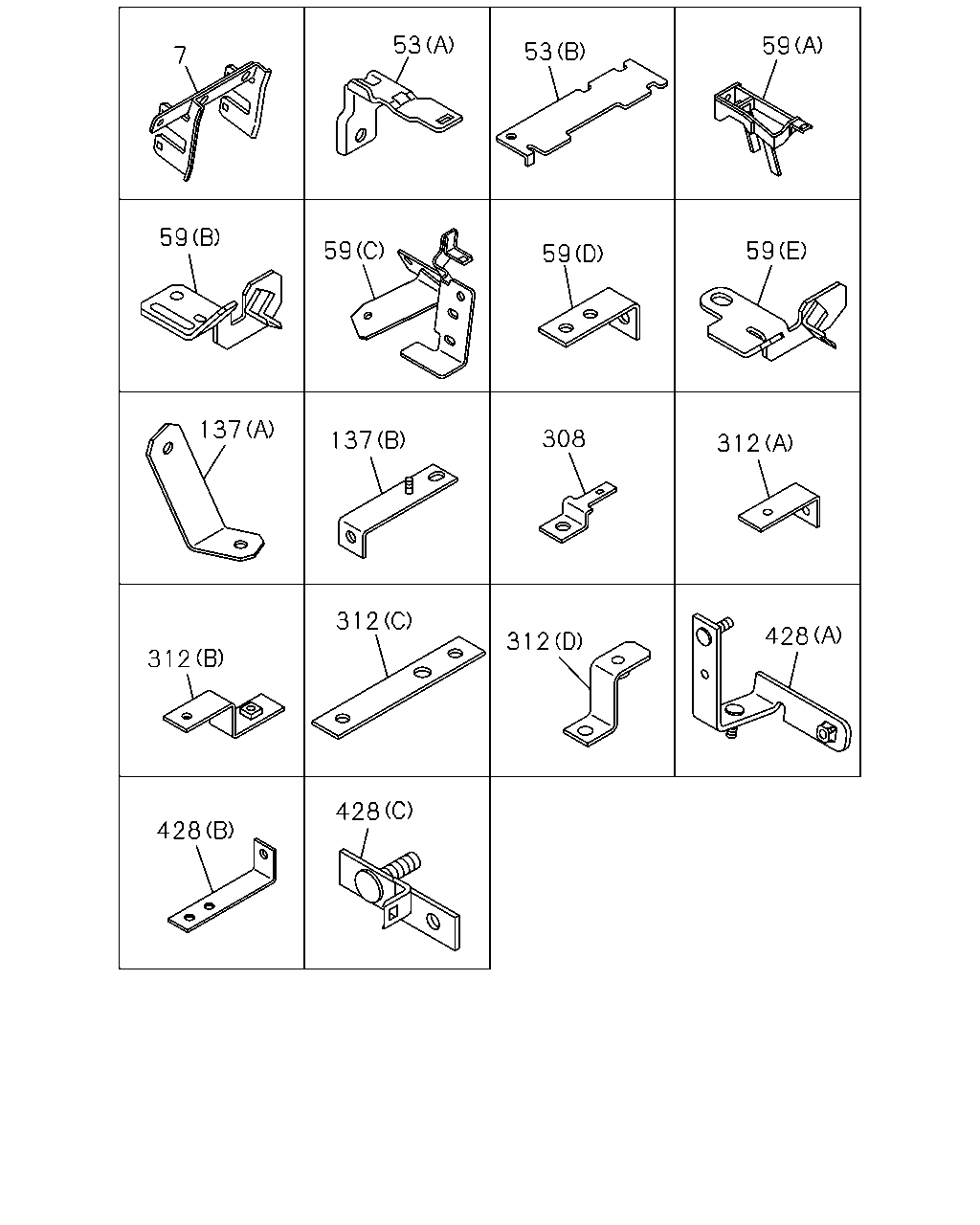

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
