Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#13311) — 835 parça

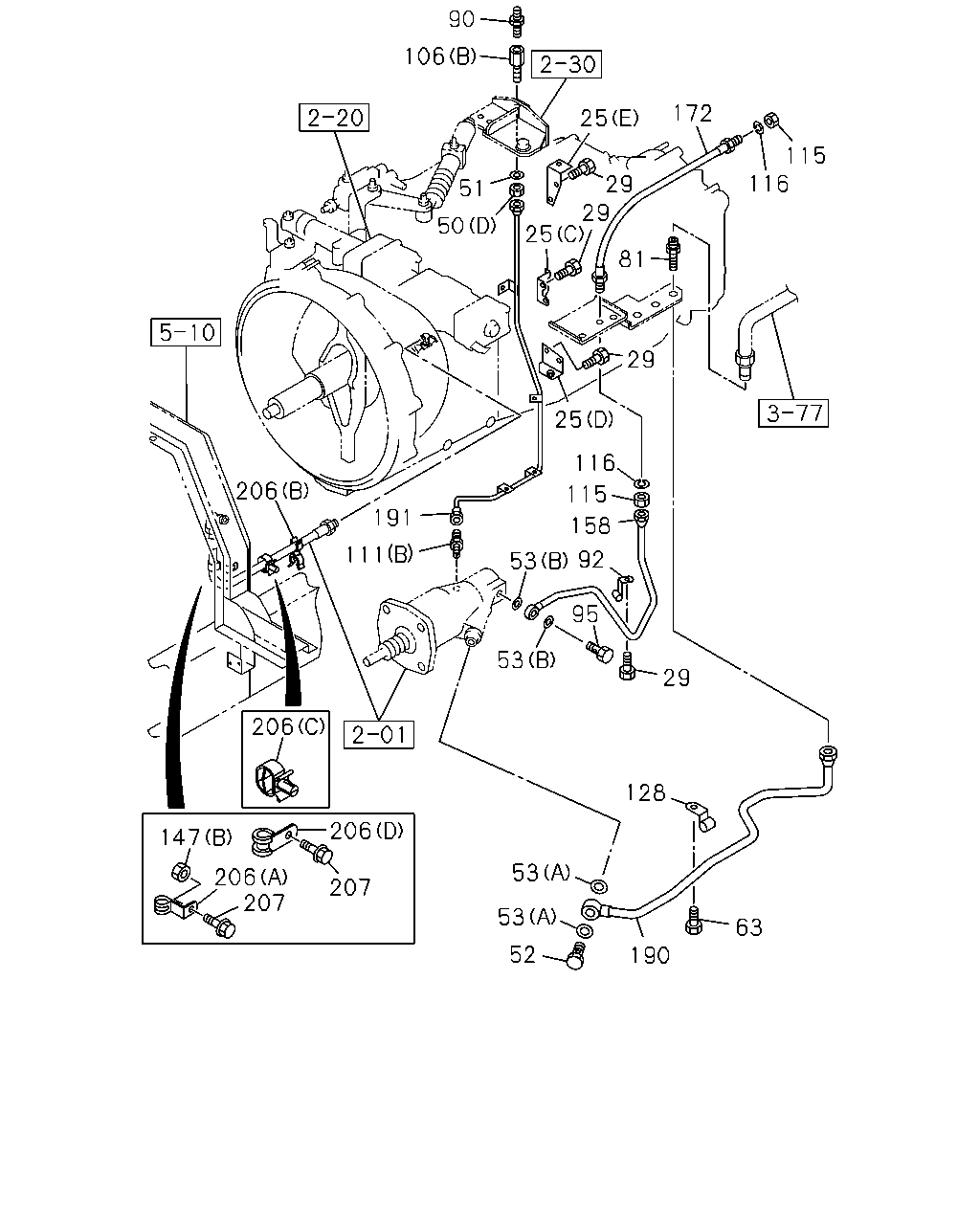

115 116 172 25 90 106 29 29 25 81 51 50 29 25 116 115 158 206 191 111 53 92 95 29 53 206 128 63 190 52 53 53 207 206 207 206 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-47478-411-1	01	1	0106-0106	●	●
25	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-47479-297-0	01	1	0107-	●	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-0105	●	●
25	BRACKET; OIL PIPE PE-SERIES ENG<1A0> (A)	1-47477-604-2	01	1	0106-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (B) L=50	1-47475-299-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=50	1-47475-299-2	03	1	0105-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	05	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X16 FLANGE	0-28080-816-0	03	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-0512	●	●
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-0512	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	0-91111-520-0	01	1	0601-	●	●
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (E) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (E) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-0603	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-	●	●
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0105-0603	●	●
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	0-91510-512-0	01	1	0604-	●	●
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-	●	●
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-	●	●
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
81	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0105-	●	●
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0105-	●	●
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0105-	●	●
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> PE-SERIES ENG<1A0> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-	●	●
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (C) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M14 2WAY	1-09654-176-2	01	1	0105-	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	0-91111-514-0	02	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	0-91510-514-0	02	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0105-	●	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-	●	●
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-0602	●	●
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-	●	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0105-	●	●
172	HOSE; FLEX,CLU BOOSTER PE-SERIES ENG<1A0> TRANSMISSION-ZF 16S151 OD(Y2N) L=400	1-09364-263-0	01	1	0105-	●	●
172	HOSE; FLEX,CLU BOOSTER W-SERIES ENG<1A2> TRANSMISSION-ZF 16S151 OD(Y2N) L=470	1-09364-929-0	01	1	0105-	●	●
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0105-	●	●
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0105-	●	●
206	CLIP; TUBE 6WF1 TC-C(1B8),6WF1 TC(84L) ZF M/T<X9E> (B) ID=13 & 21	8-94417-626-0	01	1	0108-	●
206	CLIP; TUBE 6WF1 TC(84L) ZF M/T<X9E> (B) ID=13 & 21	8-94417-626-0	01	1	0108-		●
206	CLIP; TUBE ZF M/T<X9E> PE-SERIES ENG<1A0> (D) ID=18 L=50	1-09701-072-0	01	1	0108-	●	●
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0105-0107	●	●
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0108-	●	●
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0105-	●	●
206	CLIP; TUBE ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0105-0107	●	●
206	CLIP; TUBE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0108-	●	●
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●

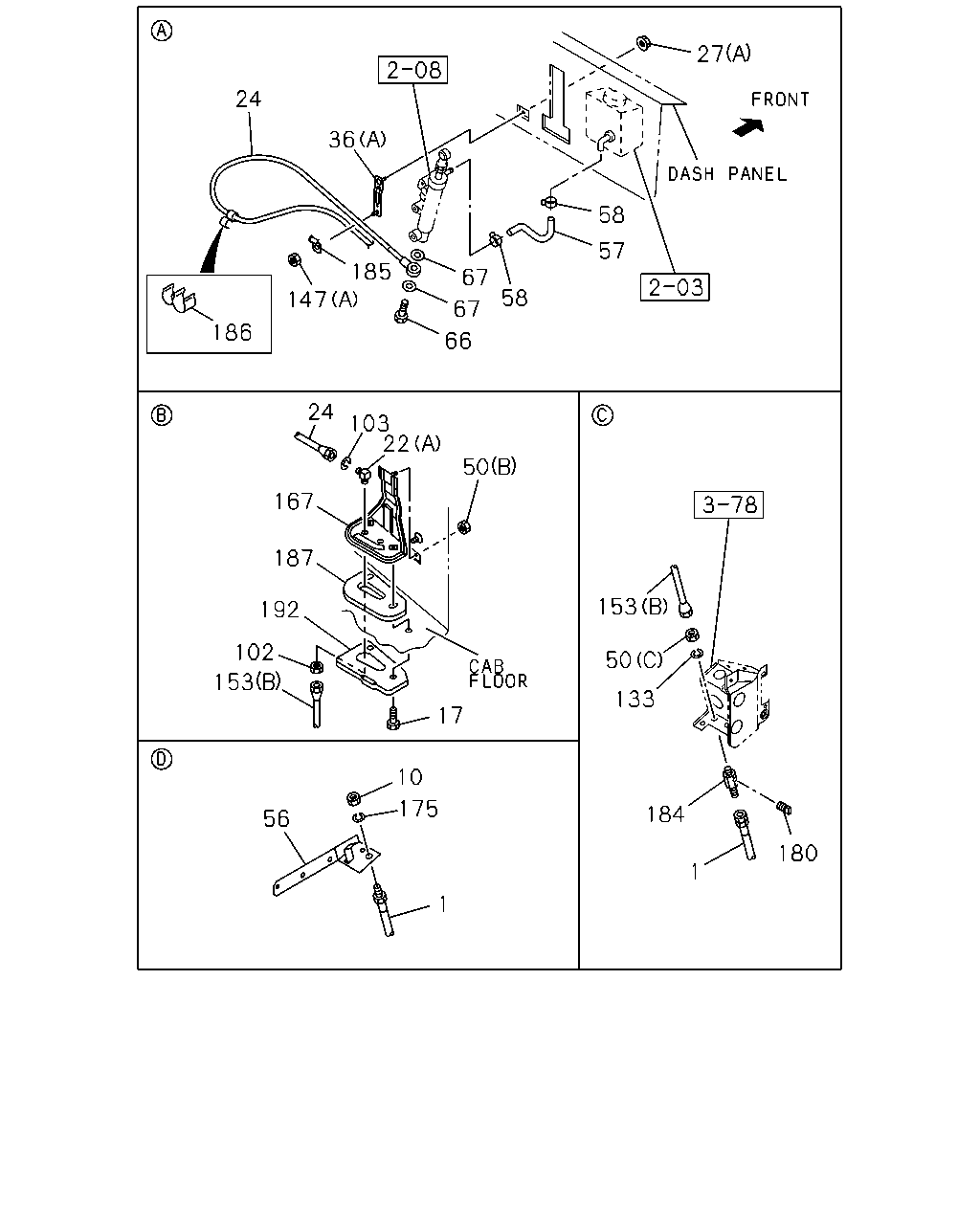

24 167 153 104 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	0105-	●	●
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	0105-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A>,FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0105-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0105-	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47478-840-0	01	1	0105-	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-602-1	01	1	0105-0110	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47478-300-1	01	1	0111-0201	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-602-1	01	1	0202-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> L=1595	1-49165-436-0	01	1	0105-0105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> L=1618	1-49166-188-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> PE-SERIES ENG<1A0> L=2495	1-49163-209-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2> L=2889	1-49164-483-0	01	1	0105-0105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-191-0	01	1	0106-0106	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-212-0	01	1	0107-0206	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-668-0	01	1	0207-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> W-SERIES ENG<1A2> (A) SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	0105-	●	●

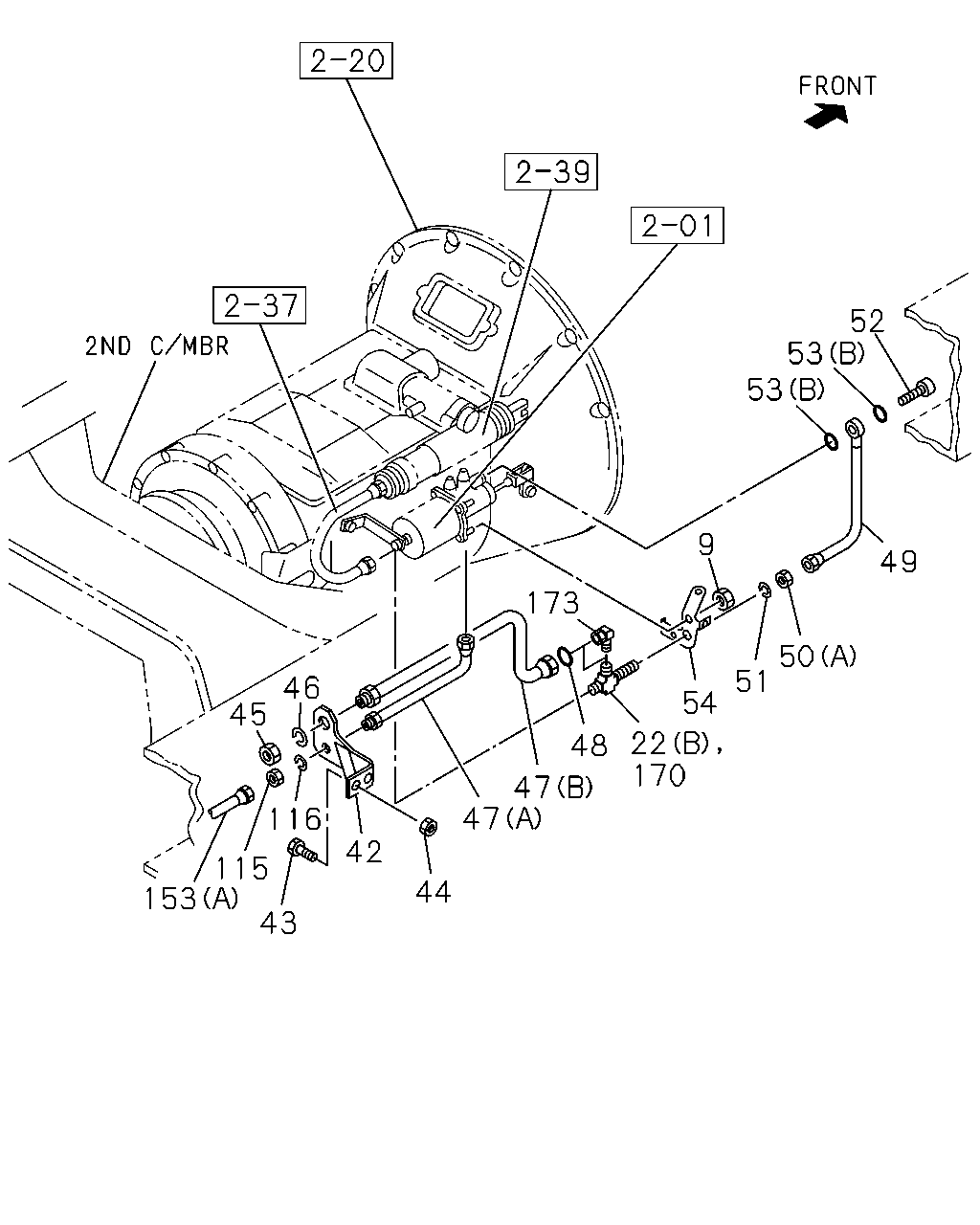

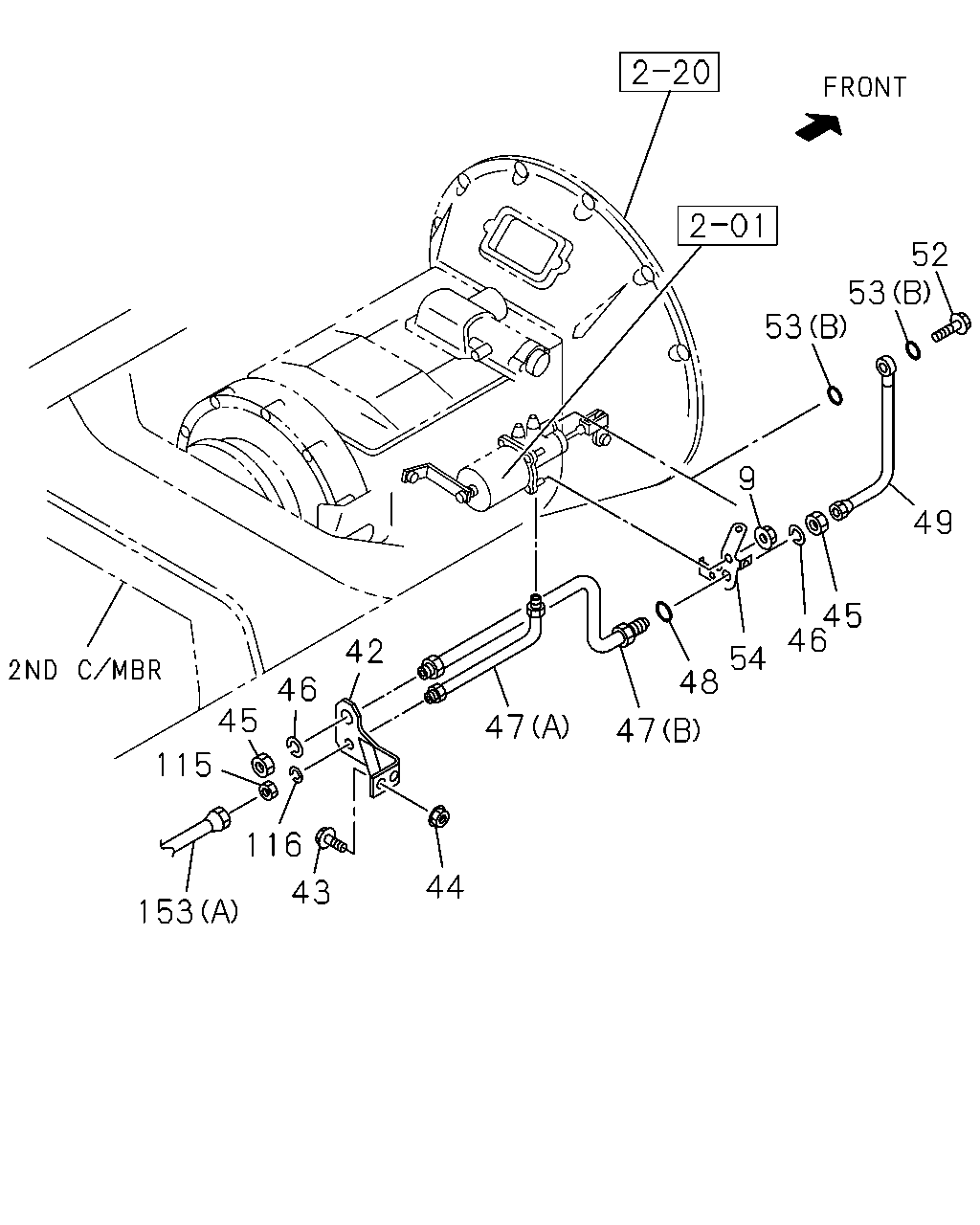

52 53 53 49 9 173 50 51 54 22 170 48 47 47 46 45 116 42 44 115 43 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
9	NUT; BRKT,FLEX HOSE ISUZU M/T<X9A> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	0105-	●	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> (B)	1-09656-181-1	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-47479-371-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47477-724-0	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0>	1-47477-546-1	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0105-0112	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0201-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> FULLER M/T<X9B> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-0512	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	0-91111-520-0	01	1	0601-	●	●
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-0512	●	●
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	0-91111-520-0	02	1	0601-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	0-91510-520-0	02	1	0604-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A) L=390	0-07806-390-1	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=520	1-09364-583-0	01	1	0109-0109	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=450	1-09364-369-0	01	1	0110-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=560	0-07806-560-1	01	1	0105-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A) L=560	0-07806-560-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=600	1-09364-705-0	01	1	0105-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0109-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=500	1-09364-329-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) L=350	0-07806-350-1	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=420	1-09364-615-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=420	1-09364-615-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=420	1-09364-615-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-	●	●
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL5 M/T<X9F>,MAG6 M/T<X9T> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER M/T<X9B>	1-49161-120-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	0105-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-0512	●	●
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-0512	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	0-91111-520-0	01	1	0601-	●	●
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (E) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (E) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-0603	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-	●	●
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0105-0603	●	●
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	0-91510-512-0	01	1	0604-	●	●
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-	●	●
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-	●	●
54	BRACKET; AIR,FLEX HOSE ISUZU M/T<X9A>	1-47477-284-1	01	1	0105-	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	0-91111-514-0	02	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	0-91510-514-0	02	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> W-SERIES ENG<1A2> (A) SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●
170	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>	1-09656-640-0	01	1	0105-	●	●
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-	●	●

52 53 53 49 9 45 46 54 48 47 47 42 46 45 115 116 44 43 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
9	NUT; BRKT,FLEX HOSE ISUZU M/T<X9A> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-47479-371-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47477-724-0	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0>	1-47477-546-1	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0105-0112	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0201-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> FULLER M/T<X9B> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-0512	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	0-91111-520-0	01	1	0601-	●	●
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-0512	●	●
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	0-91111-520-0	02	1	0601-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	0-91510-520-0	02	1	0604-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A) L=390	0-07806-390-1	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=520	1-09364-583-0	01	1	0109-0109	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=450	1-09364-369-0	01	1	0110-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=560	0-07806-560-1	01	1	0105-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A) L=560	0-07806-560-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=600	1-09364-705-0	01	1	0105-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0109-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=500	1-09364-329-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) L=350	0-07806-350-1	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=420	1-09364-615-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=420	1-09364-615-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=420	1-09364-615-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-	●	●
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL5 M/T<X9F>,MAG6 M/T<X9T> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER M/T<X9B>	1-49161-120-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	0105-	●	●
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-	●	●
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-	●	●
54	BRACKET; AIR,FLEX HOSE ISUZU M/T<X9A>	1-47477-284-1	01	1	0105-	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	0-91111-514-0	02	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	0-91510-514-0	02	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> W-SERIES ENG<1A2> (A) SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●

31 32 30 30 33 34 35 32 33 35 33 34 111 50 111 116 115 153 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
30	BOLT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
30	BOLT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
31	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
31	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=50	1-47475-299-2	01	1	0105-	●	●
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B)	1-47475-881-0	01	1	0105-0106	●	●
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B)	1-47477-669-1	01	1	0107-	●	●
33	CLIP; OIL PIPE FULLER M/T<X9B> W-SERIES ENG<1A2> (D) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-	●	●
33	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> (C) M8X45 FLANGE	0-28080-845-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
35	NUT; PIPE CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0105-0106	●	●
35	NUT; PIPE CLIP FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0107-0602	●	●
35	NUT; PIPE CLIP FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
35	NUT; PIPE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
35	NUT; PIPE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-0512	●	●
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-0512	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	0-91111-520-0	01	1	0601-	●	●
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (E) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (E) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (C) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M14 2WAY	1-09654-176-2	01	1	0105-	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	0-91111-514-0	02	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	0-91510-514-0	02	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> W-SERIES ENG<1A2> (A) SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●
172	HOSE; FLEX,CLU BOOSTER PE-SERIES ENG<1A0> TRANSMISSION-ZF 16S151 OD(Y2N) L=400	1-09364-263-0	01	1	0105-	●	●
172	HOSE; FLEX,CLU BOOSTER W-SERIES ENG<1A2> TRANSMISSION-ZF 16S151 OD(Y2N) L=470	1-09364-929-0	01	1	0105-	●	●

153 104 83 73 34 36 33 34 25 30 28 29 26 27 34 26 33 28 106 35 29 42 43 116 115 47 116 115 49 171 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-47478-411-1	01	1	0106-0106	●	●
25	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-47479-297-0	01	1	0107-	●	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-0105	●	●
25	BRACKET; OIL PIPE PE-SERIES ENG<1A0> (A)	1-47477-604-2	01	1	0106-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (B) L=50	1-47475-299-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=50	1-47475-299-2	03	1	0105-	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	04	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	06	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0105-0105	●	●
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (B) ID=9 L=20	9-09524-835-0	01	1	0106-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0106-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0105-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	05	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X16 FLANGE	0-28080-816-0	03	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
30	BOLT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
30	BOLT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
33	CLIP; OIL PIPE FULLER M/T<X9B> W-SERIES ENG<1A2> (D) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-	●	●
33	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> (C) M8X45 FLANGE	0-28080-845-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
35	NUT; PIPE CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0105-0106	●	●
35	NUT; PIPE CLIP FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0107-0602	●	●
35	NUT; PIPE CLIP FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
35	NUT; PIPE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
35	NUT; PIPE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0105-	●	●
36	BRACKET; CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> (B)	1-47475-427-1	01	1	0105-	●	●
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-47479-371-0	01	1	0201-	●	●

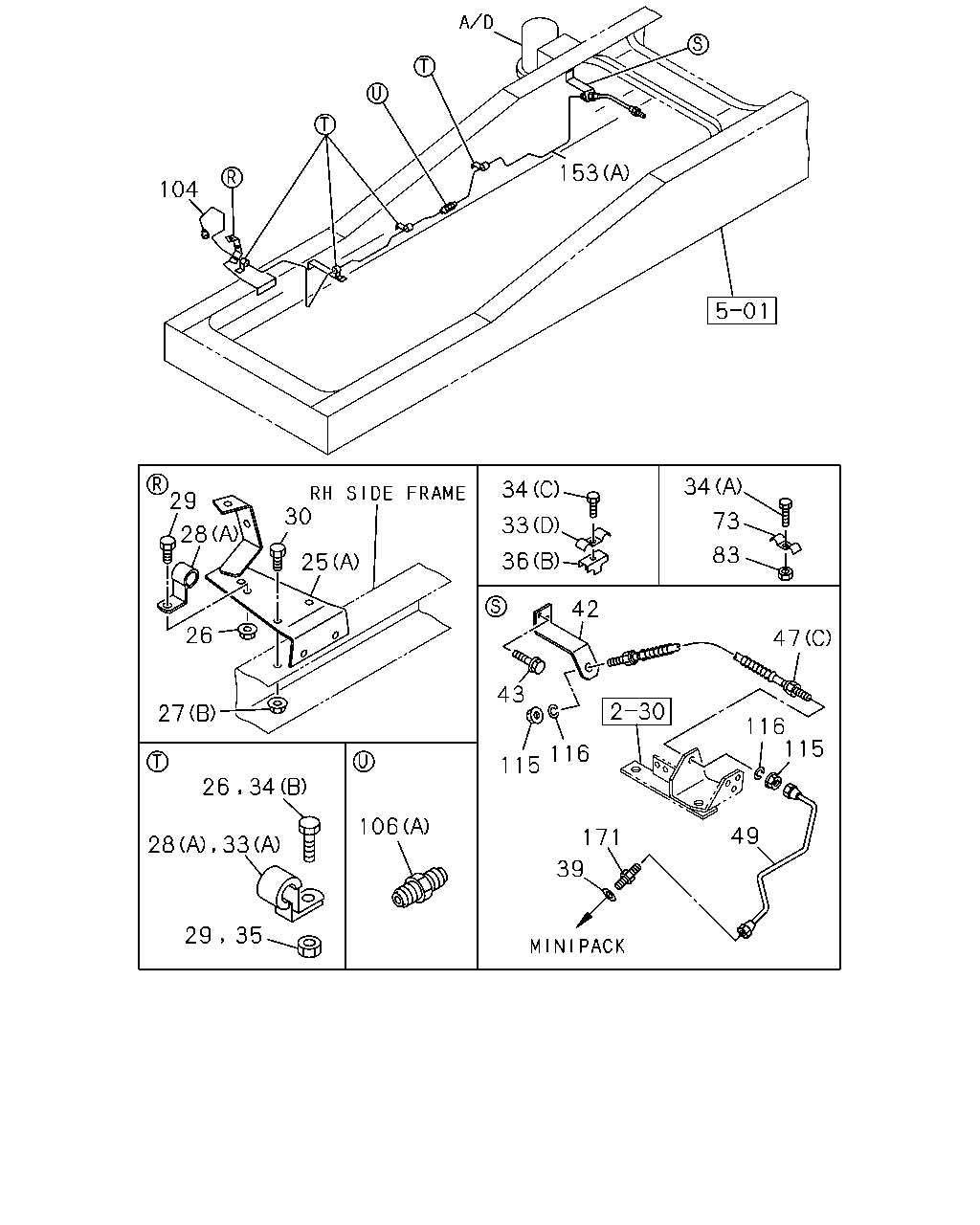

42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47477-724-0	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0>	1-47477-546-1	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0105-0112	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0201-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> FULLER M/T<X9B> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A) L=390	0-07806-390-1	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=520	1-09364-583-0	01	1	0109-0109	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=450	1-09364-369-0	01	1	0110-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=560	0-07806-560-1	01	1	0105-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A) L=560	0-07806-560-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=600	1-09364-705-0	01	1	0105-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0109-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=500	1-09364-329-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) L=350	0-07806-350-1	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=420	1-09364-615-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=420	1-09364-615-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=420	1-09364-615-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL5 M/T<X9F>,MAG6 M/T<X9T> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER M/T<X9B>	1-49161-120-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	0105-	●	●
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	9-09110-408-0	01	1	0105-0512	●	●
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	01	1	0601-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> L=1595	1-49165-436-0	01	1	0105-0105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> L=1618	1-49166-188-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> PE-SERIES ENG<1A0> L=2495	1-49163-209-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2> L=2889	1-49164-483-0	01	1	0105-0105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-191-0	01	1	0106-0106	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-212-0	01	1	0107-0206	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-668-0	01	1	0207-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> PE-SERIES ENG<1A0> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	0-91111-514-0	02	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	0-91510-514-0	02	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ISUZU M/T<X9A>,ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> W-SERIES ENG<1A2> (A) SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	0105-	●	●

153 109 104 28 29 28 25 26 29 106 30 25 29 26 28 27

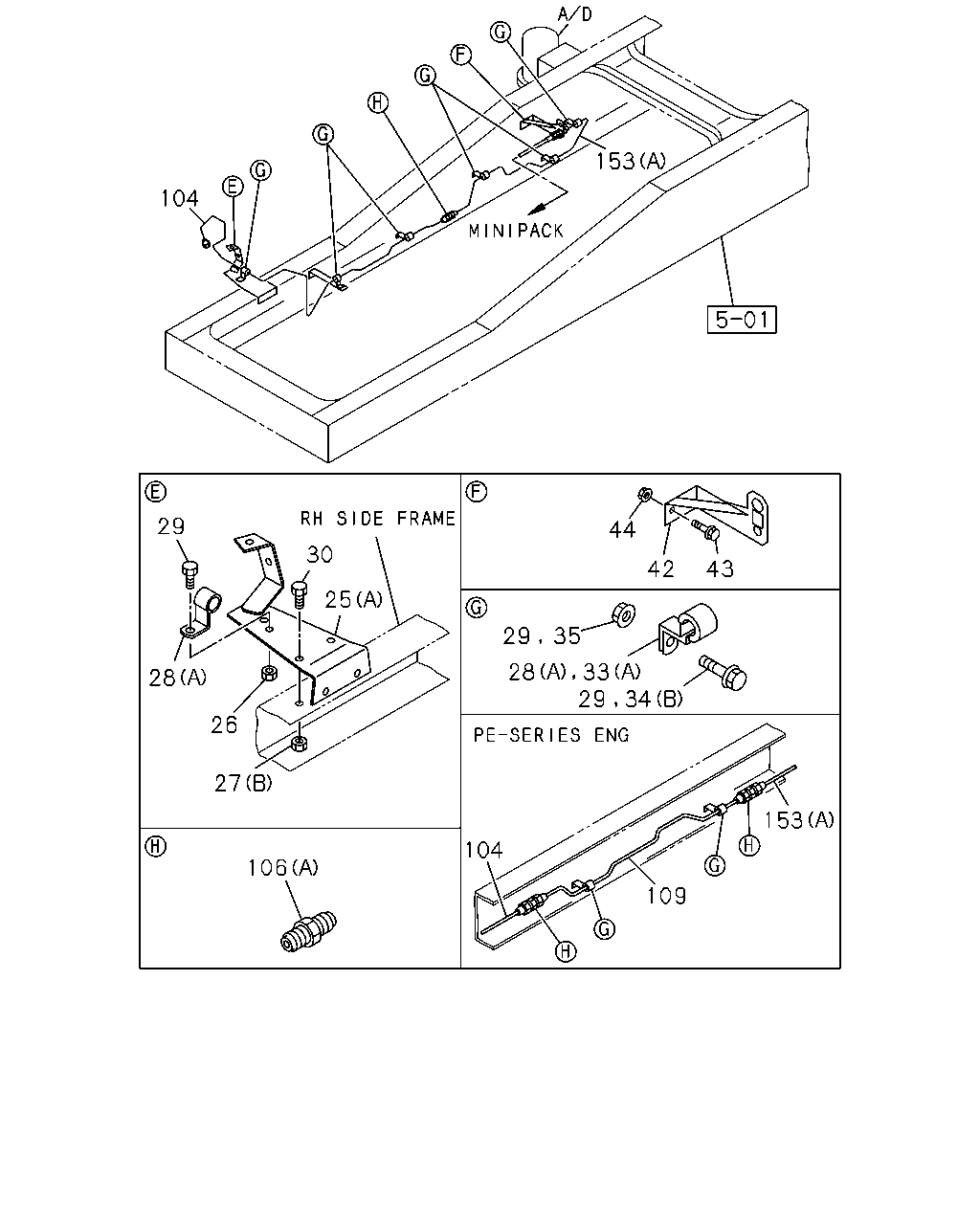

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-47478-411-1	01	1	0106-0106	●	●
25	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-47479-297-0	01	1	0107-	●	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-0105	●	●
25	BRACKET; OIL PIPE PE-SERIES ENG<1A0> (A)	1-47477-604-2	01	1	0106-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (B) L=50	1-47475-299-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=50	1-47475-299-2	03	1	0105-	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	04	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	06	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0105-0105	●	●
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (B) ID=9 L=20	9-09524-835-0	01	1	0106-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0106-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0105-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	05	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X16 FLANGE	0-28080-816-0	03	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
30	BOLT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
30	BOLT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> L=1595	1-49165-436-0	01	1	0105-0105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> L=1618	1-49166-188-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> PE-SERIES ENG<1A0> L=2495	1-49163-209-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2> L=2889	1-49164-483-0	01	1	0105-0105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-191-0	01	1	0106-0106	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-212-0	01	1	0107-0206	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-668-0	01	1	0207-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> PE-SERIES ENG<1A0> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=1081 SERVICED BY L=1100	1-47426-387-0	01	1	0109-	●
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0105-0108	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 4900MM(49W) ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0109-0110	●
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0109-0110		●
109	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0111-	●	●
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> PE-SERIES ENG<1A0> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	0105-	●	●
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> W-SERIES ENG<1A2> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	0105-0106	●	●
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> W-SERIES ENG<1A2> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> W-SERIES ENG<1A2> (A) SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●

27 58 57 67 67 58 66 36 24 185 147 186 24 103 22 50 167 187 192 102 153 17 153 50 133 184 1 180 10 175 1 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	0105-	●	●
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	0105-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512	●	●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0105-	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	0105-	●	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> (B)	1-09656-181-1	01	1	0105-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A>,FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0105-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0105-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0105-	●	●
36	BRACKET; CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> (B)	1-47475-427-1	01	1	0105-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-0512	●	●
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-0512	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	0-91111-520-0	01	1	0601-	●	●
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (E) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (E) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47478-840-0	01	1	0105-	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-602-1	01	1	0105-0110	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47478-300-1	01	1	0111-0201	●	●
56	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-602-1	01	1	0202-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0105-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-	●	●
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-0602	●	●
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> W-SERIES ENG<1A2> (A) SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	0105-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0105-	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0105-	●	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0105-	●	●
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0105-	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	0105-	●	●
192	PLATE	1-71117-221-0	01	1	0105-	●	●

153 104 29 30 25 28 26 27 44 42 43 29 35 33 29 34 28 153 109 104 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-47478-411-1	01	1	0106-0106	●	●
25	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-47479-297-0	01	1	0107-	●	●
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	0105-0105	●	●
25	BRACKET; OIL PIPE PE-SERIES ENG<1A0> (A)	1-47477-604-2	01	1	0106-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (B) L=50	1-47475-299-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=50	1-47475-299-2	03	1	0105-	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	04	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	06	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0105-0105	●	●
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (B) ID=9 L=20	9-09524-835-0	01	1	0106-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=9 L=20	9-09524-835-0	01	1	0106-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0105-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	05	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0105	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X16 FLANGE	0-28080-816-0	03	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
30	BOLT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
30	BOLT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
33	CLIP; OIL PIPE FULLER M/T<X9B> W-SERIES ENG<1A2> (D) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-	●	●
33	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> (C) M8X45 FLANGE	0-28080-845-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP PE-SERIES ENG<1A0> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
35	NUT; PIPE CLIP FULLER M/T<X9B> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0105-0106	●	●
35	NUT; PIPE CLIP FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0107-0602	●	●
35	NUT; PIPE CLIP FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
35	NUT; PIPE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
35	NUT; PIPE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-47479-371-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47477-724-0	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0>	1-47477-546-1	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0105-0112	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-414-0	01	1	0201-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> FULLER M/T<X9B> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> L=1595	1-49165-436-0	01	1	0105-0105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> L=1618	1-49166-188-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> PE-SERIES ENG<1A0> L=2495	1-49163-209-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2> L=2889	1-49164-483-0	01	1	0105-0105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-191-0	01	1	0106-0106	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-212-0	01	1	0107-0206	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2>	1-49166-668-0	01	1	0207-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> PE-SERIES ENG<1A0> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=1081 SERVICED BY L=1100	1-47426-387-0	01	1	0109-	●
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0105-0108	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 4900MM(49W) ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0109-0110	●
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0109-0110		●
109	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=973 SERVICED BY L=1000	1-47426-386-0	01	1	0111-	●	●
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> PE-SERIES ENG<1A0> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	0105-	●	●
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> W-SERIES ENG<1A2> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	0105-0106	●	●
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> W-SERIES ENG<1A2> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> W-SERIES ENG<1A2> (A) SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
