Isuzu WW
▶
TRUCKS
▶
GVR
▶
11581 - GVR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-20 - SIDE PANEL AND STEP
▶
6-20 — SIDE PANEL AND STEP
(#133106) — 70 parça
◀

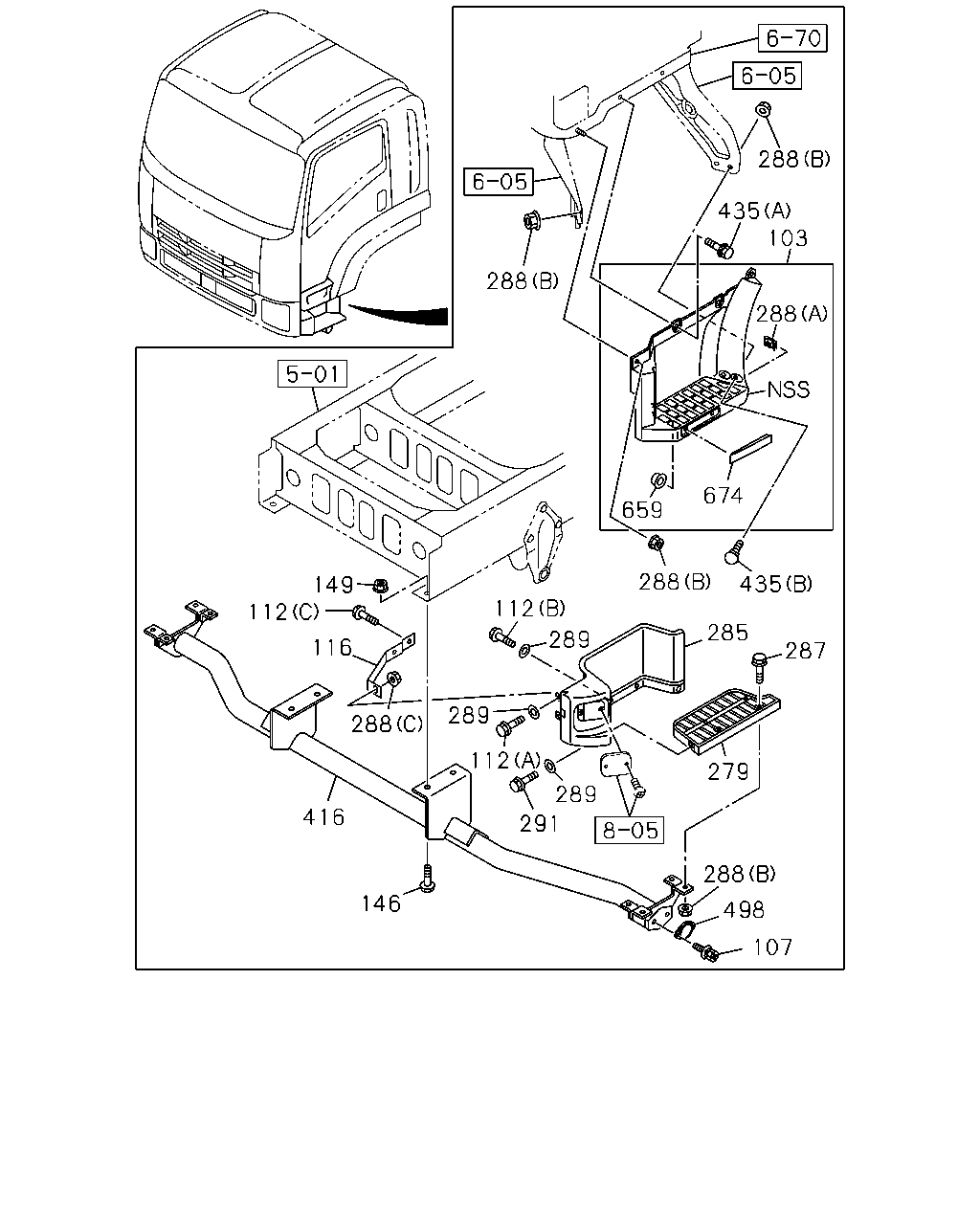

[620A] STEP (27 parça)

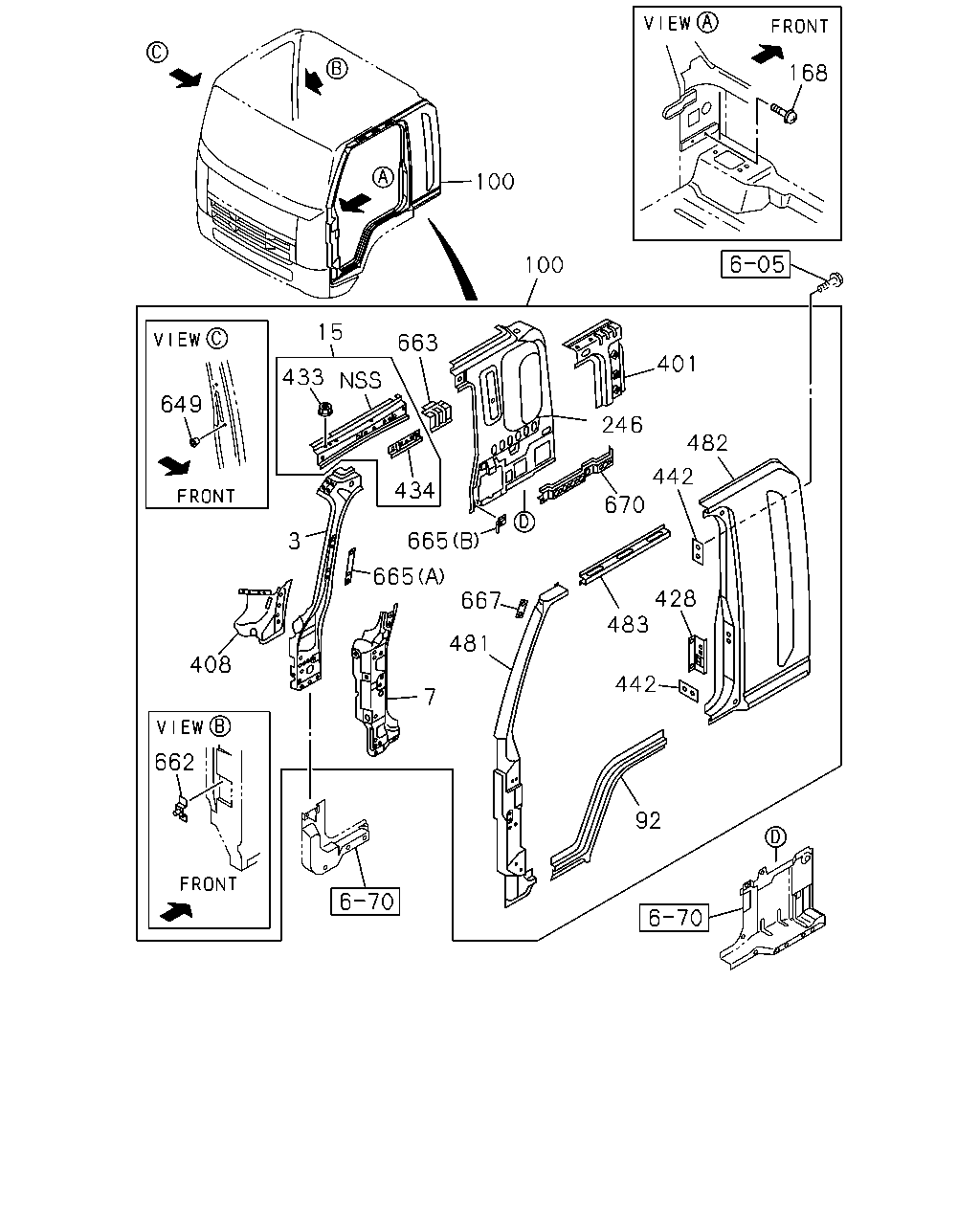

[620A] SIDE PANEL (43 parça)
▶
288
435
103
288
288
674
659
435
287
285
288
112
289
149
112
116
288
289
112
416
146
289
279
291
288
498
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
103
PLATE; STEP
8-98069-976-2
01
1
1402-
103
PLATE; STEP
8-98069-977-2
01
1
1402-
107
BOLT; SIDE STEP
M5X16 W/LK&PL WASHER
8-94198-538-0
04
1
1402-
112
BOLT; 1ST STEP
(A) M6X16 FLANGE THA
0-28050-616-0
02
1
1402-
112
BOLT; 1ST STEP
(B) M6X20 FLANGE
0-28050-620-0
02
1
1402-
112
BOLT; 1ST STEP
(C) M8X12 FLANGE THA
0-28050-812-0
04
1
1402-
116
STAY; 1ST STEP,FRT
THA
8-98196-756-0
02
1
1402-
146
BOLT; STEP BRKT
M14X45 FLANGE THA
0-28851-445-0
04
1
1402-
149
NUT; STEP BRKT
M14 FLANGE THA
0-91180-214-0
04
1
1402-
279
BOARD; STEP 1ST
THA
8-97924-109-0
01
1
1402-
279
BOARD; STEP 1ST
THA
8-97924-110-0
01
1
1402-
285
PLATE; STEP,1ST STEP
THA
8-97924-703-1
01
1
1402-
285
PLATE; STEP,1ST STEP
THA
8-97924-704-1
01
1
1402-
287
BOLT; BOARD STEP
M8X35 FLANGE THA
0-28650-835-0
08
1
1402-
288
NUT; STEP
(C) M6 FLANGE THA
0-91180-106-0
02
1
1402-
288
NUT; STEP
(B) M8 FLANGE THA
0-91180-108-0
08
1
1402-
288
NUT; STEP
(B) M8 FLANGE THA
0-91180-108-0
10
1
1402-
288
NUT; STEP
(A) M8
8-98040-792-0
02
1
1402-
289
WASHER; PL,STEP
ID=6.4 OD=18
0-91610-706-0
10
1
1402-
291
BOLT; STEP PLATE
M6X12 FLANGE THA
0-28050-612-0
06
1
1402-
416
BRACKET; ASSIST STEP
THA
8-98167-277-2
01
1
1402-
435
BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1402-
435
BOLT; RR STEP
(B) M8X18
8-98146-670-0
08
1
1402-
498
REFLECTOR
1-82290-011-1
02
1
1402-
659
CLIP; SPRING NUT
8-97811-510-0
04
1
1402-
674
COVER; REFLECTOR
8-98092-733-0
01
1
1402-
674
COVER; REFLECTOR
8-98092-734-0
01
1
1402-
168
100
100
401
482
246
663
15
649
3
433
434
665
442
670
428
483
442
667
481
7
665
408
92
662
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PANEL; CLOSING,FRT PILLAR
8-98058-236-1
01
1
1402-
3
PANEL; CLOSING,FRT PILLAR
8-98058-237-1
01
1
1402-
7
REINFORCEMENT; HINGE
THA
8-97927-058-0
01
1
1402-
7
REINFORCEMENT; HINGE
THA
8-97927-059-0
01
1
1402-
15
PANEL; CANT RAIL SIDE
THA
8-97585-292-2
01
1
1402-
15
PANEL; CANT RAIL SIDE
THA
8-97585-293-2
01
1
1402-
92
PANEL; SIDE SILL,CAB
8-98055-461-1
01
1
1402-
92
PANEL; SIDE SILL,CAB
8-98055-462-1
01
1
1402-
100
PANEL ASM; BODY SIDE
THA
8-97948-562-1
01
1
1402-
100
PANEL ASM; BODY SIDE
THA
8-97948-576-1
01
1
1402-
168
BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
08
1
1402-
246
PANEL; RR PILLAR,INNER
THA
8-97586-156-5
01
1
1402-
246
PANEL; RR PILLAR,INNER
THA
8-97586-158-5
01
1
1402-
401
PATCH; CLOSING,FRT PILLAR
THA
8-97586-160-2
01
1
1402-
401
PATCH; CLOSING,FRT PILLAR
THA
8-97586-161-2
01
1
1402-
408
GUSSET; PILLAR
8-97586-193-3
01
1
1402-
408
GUSSET; PILLAR
8-97586-194-2
01
1
1402-
428
REINFORCEMENT; DOOR STRIKER
8-97585-260-4
01
1
1402-
428
REINFORCEMENT; DOOR STRIKER
8-97585-261-4
01
1
1402-
433
NUT; HEADER SHELF
M6 THA
9-09114-086-0
02
1
1402-
433
NUT; HEADER SHELF
M6 THA
9-09114-086-0
02
1
1402-
434
PATCH; ASSIST GRIP
8-98039-019-0
01
1
1402-
434
PATCH; ASSIST GRIP
8-98039-020-0
01
1
1402-
442
PATCH
THA
8-98096-158-0
02
1
1402-
442
PATCH
THA
8-98096-158-0
02
1
1402-
481
PANEL; SIDE FRT PILLAR
8-98055-453-0
01
1
1402-
481
PANEL; SIDE FRT PILLAR
8-98055-471-0
01
1
1402-
482
PANEL; SIDE RR PILLAR
8-98103-377-0
01
1
1402-
482
PANEL; SIDE RR PILLAR
8-98103-378-0
01
1
1402-
483
PANEL; SIDE CANTRAIL
8-98055-458-0
01
1
1402-
483
PANEL; SIDE CANTRAIL
8-98055-460-0
01
1
1402-
649
NUT; POP
M5 POP NUT THA
8-97249-574-0
02
1
1402-
662
BRACKET; DUCT
THA
8-97948-248-0
01
1
1402-
663
BRACKET; AIR
THA
8-97948-277-0
01
1
1402-
663
BRACKET; AIR
THA
8-97948-278-0
01
1
1402-
665
REINFORCEMENT; GRIP,ASSIST
(A)
8-97585-314-0
01
1
1402-
665
REINFORCEMENT; GRIP,ASSIST
(A)
8-97585-314-0
01
1
1402-
665
REINFORCEMENT; GRIP,ASSIST
(B)
8-98012-287-1
01
1
1402-
665
REINFORCEMENT; GRIP,ASSIST
(B)
8-98012-287-1
01
1
1402-
667
BRACKET; MIRROR
8-98109-948-0
01
1
1402-
667
BRACKET; MIRROR
8-98109-948-0
02
1
1402-
670
STIFFENER; PANEL,SIDE
THA
8-98015-044-1
01
1
1402-
670
STIFFENER; PANEL,SIDE
THA
8-98015-044-1
01
1
1402-
