Isuzu WW
▶
TRUCKS
▶
GVR
▶
11581 - GVR CNG(THAILAND)
▶
5 - Frame, Cab Mounting
▶

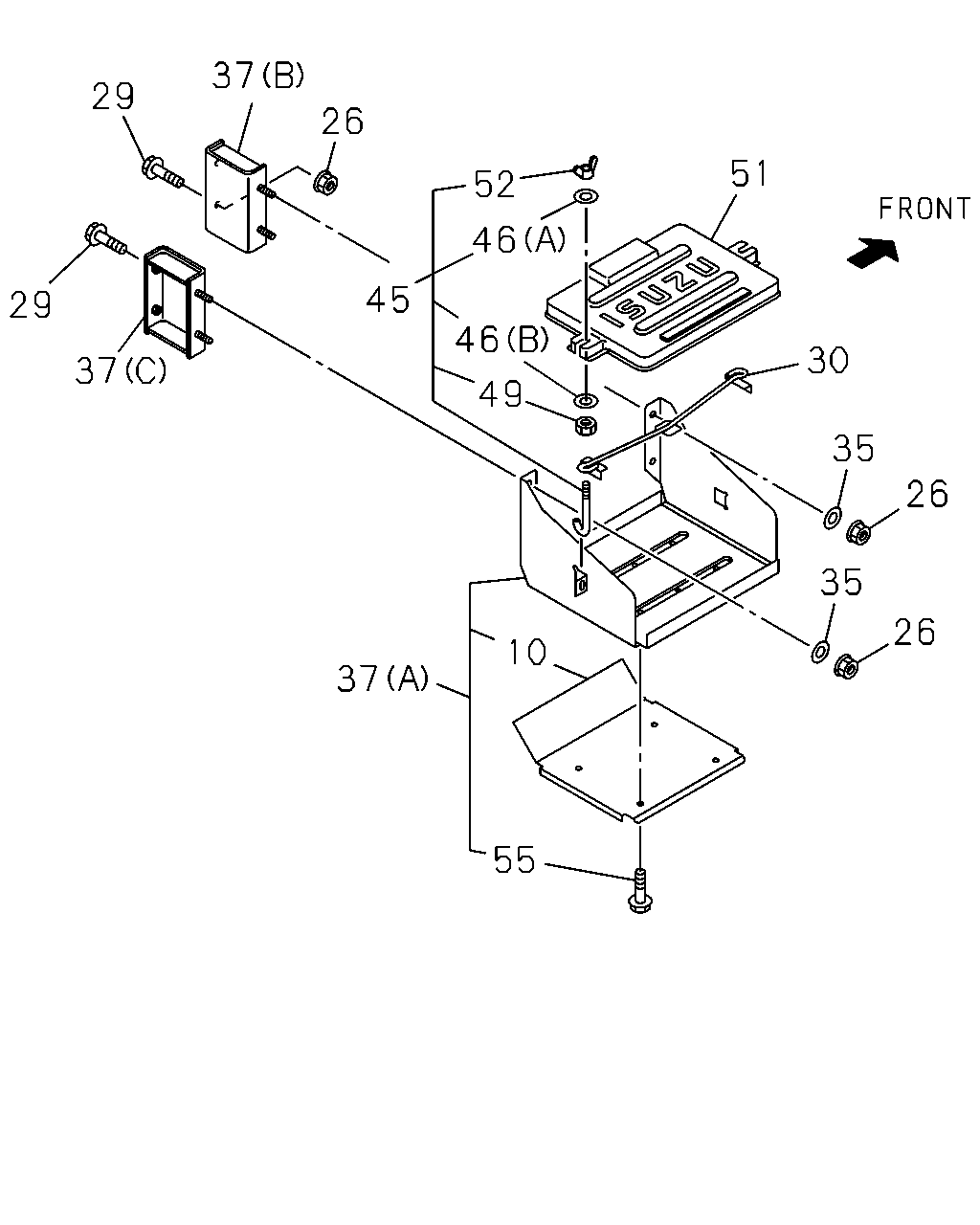

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#133100) — 16 parça
51
30
35
35
26
10
37
55
49
46
46
52
45
26
37
29
29
37
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
COVER; BATTERY
THA
8-98170-251-0
01
1
1402-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1402-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1402-
29
BOLT; BRKT TO FRAME
M10X40 FLANGE THA
0-28651-040-0
04
1
1402-
30
PLATE; BATTERY
THA
8-97910-232-0
01
1
1402-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
1402-
37
BRACKET; BATTERY
(A) THA
8-97925-315-0
01
1
1402-
37
BRACKET; BATTERY
(B) THA
8-97948-024-0
01
1
1402-
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
1402-
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1402-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91614-608-0
02
1
1402-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1402-
49
NUT; ROD,BATTERY
M8
0-91110-508-0
02
1
1402-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1402-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1402-
55
BOLT; HEAT PROTECTOR
M8X12 FLANGE THA
0-28050-812-0
04
1
1402-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
